Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test L: LH Turn Indicator Is Never/Always On

Test L: LH Turn Indicator Is Never/Always On

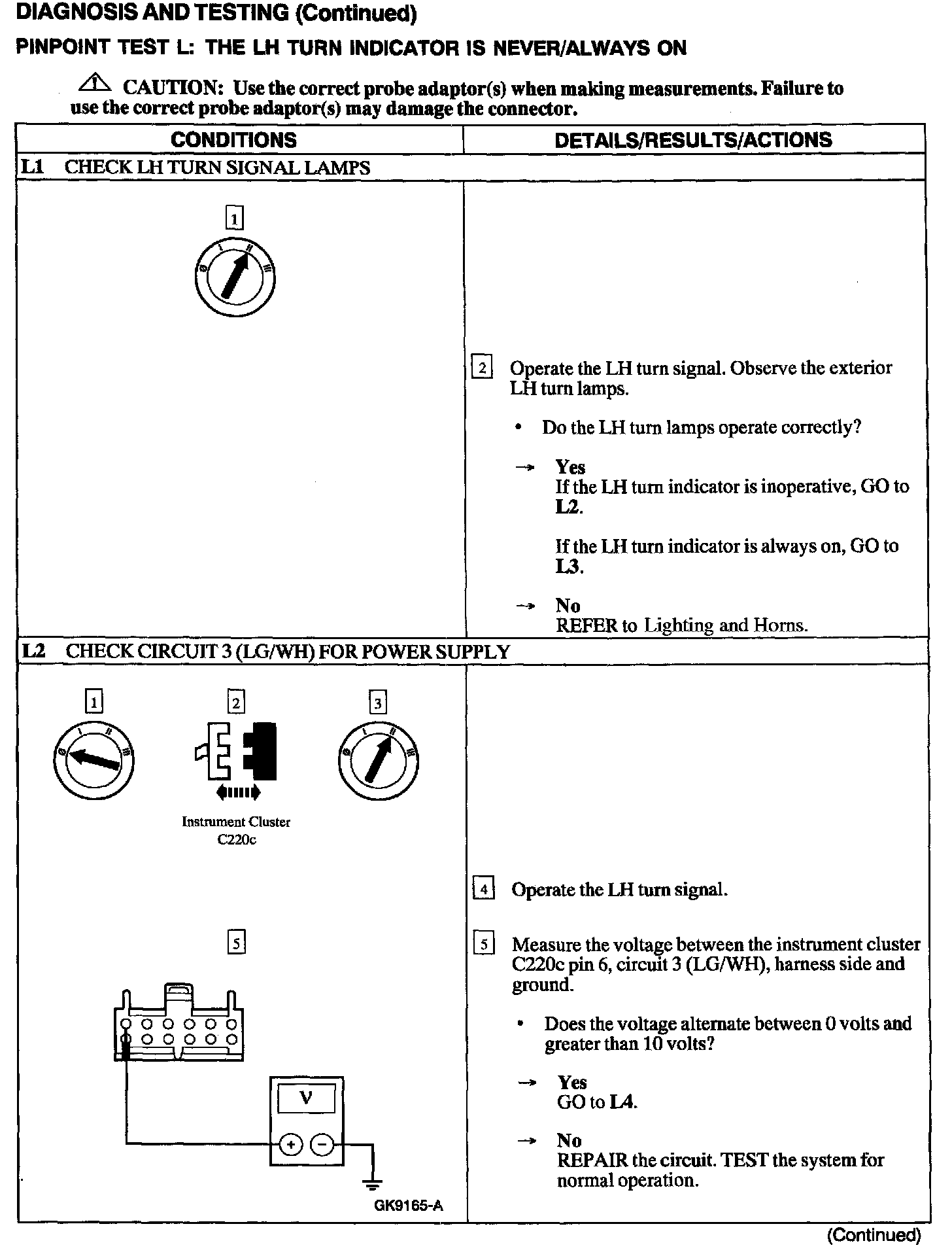

L1 - L2:

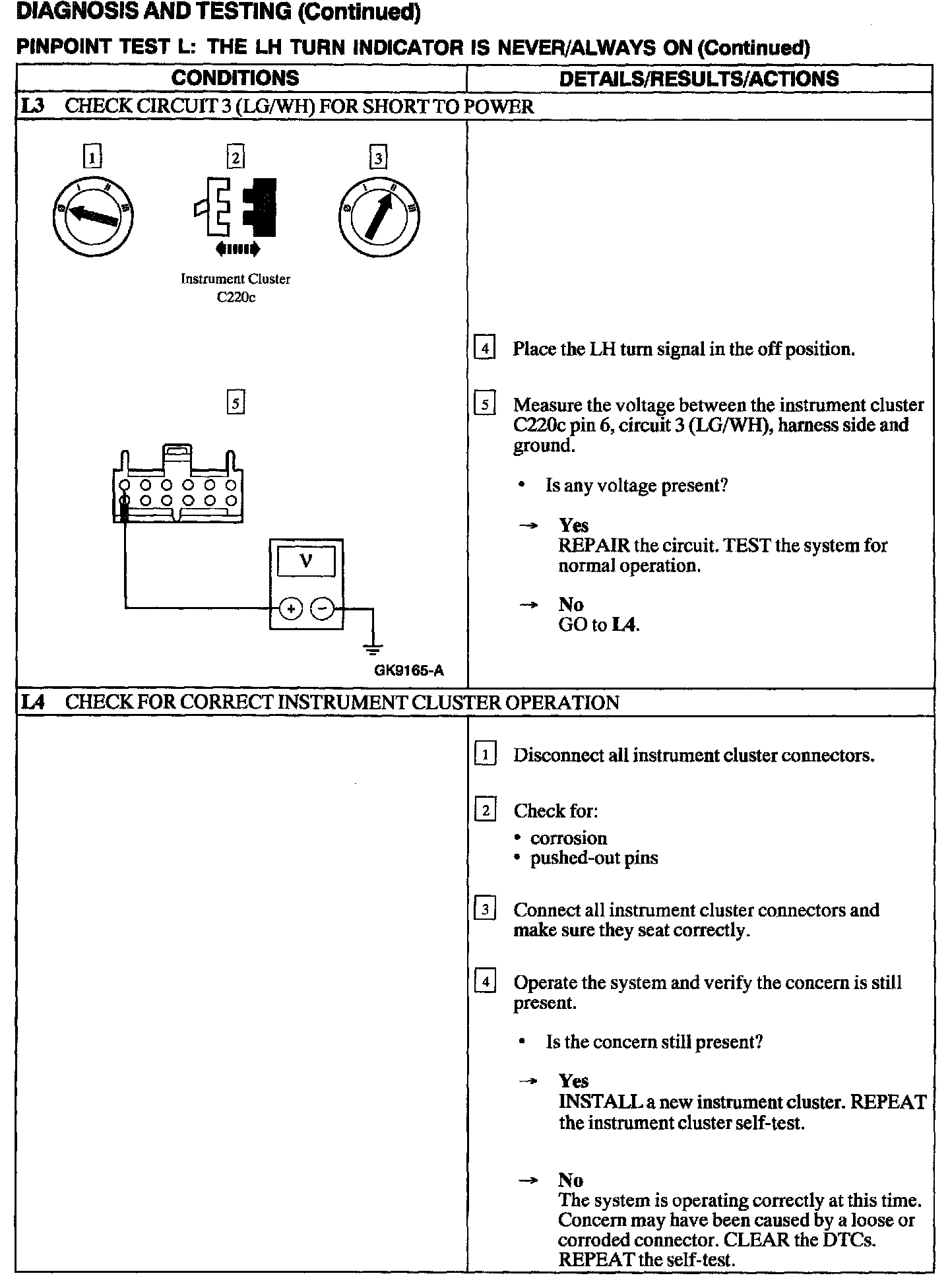

L3 - L4:
