Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test E: Speedometer/Odometer Is Inoperative

Test E: Speedometer/Odometer Is Inoperative

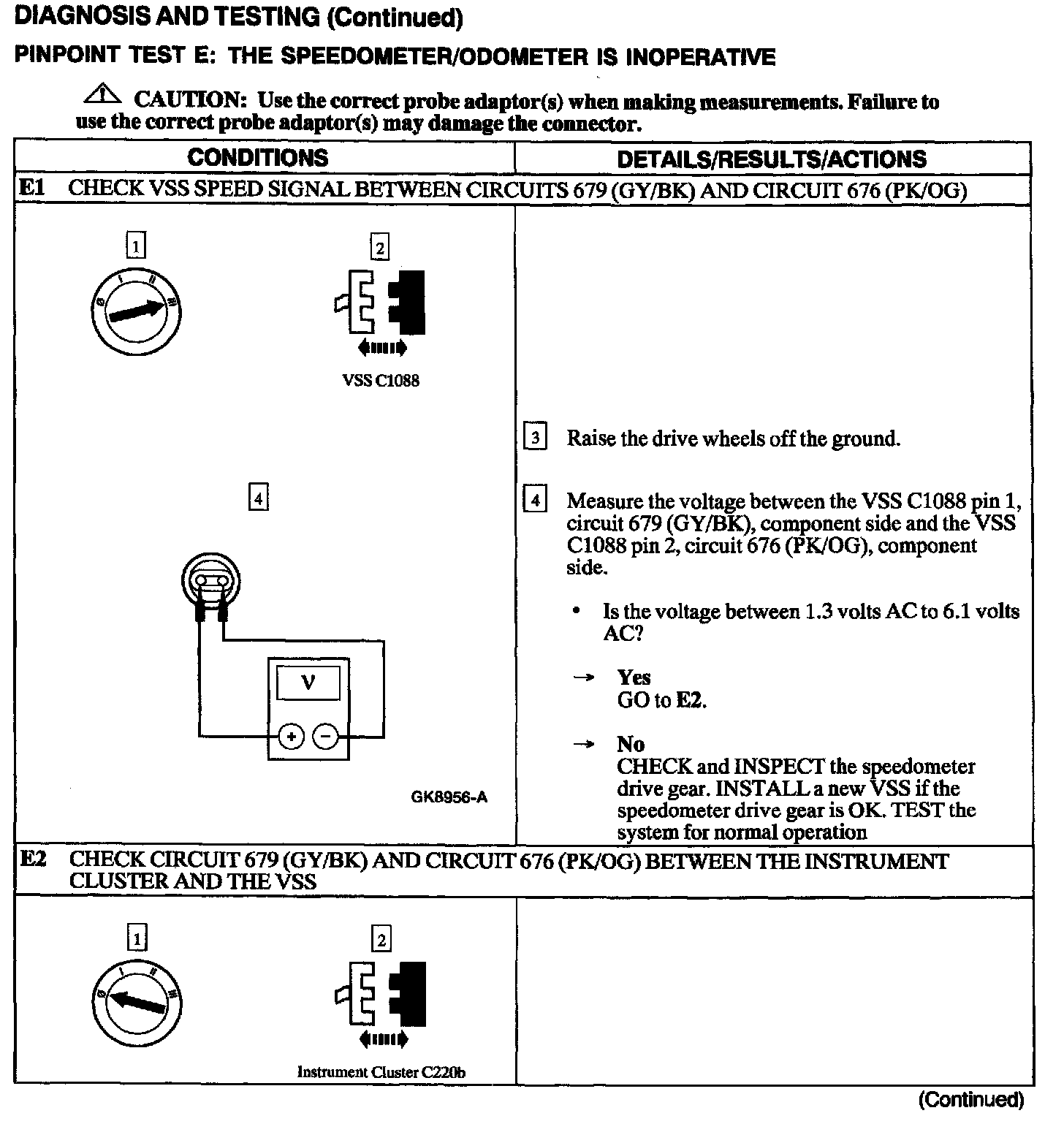

E1 - E2:

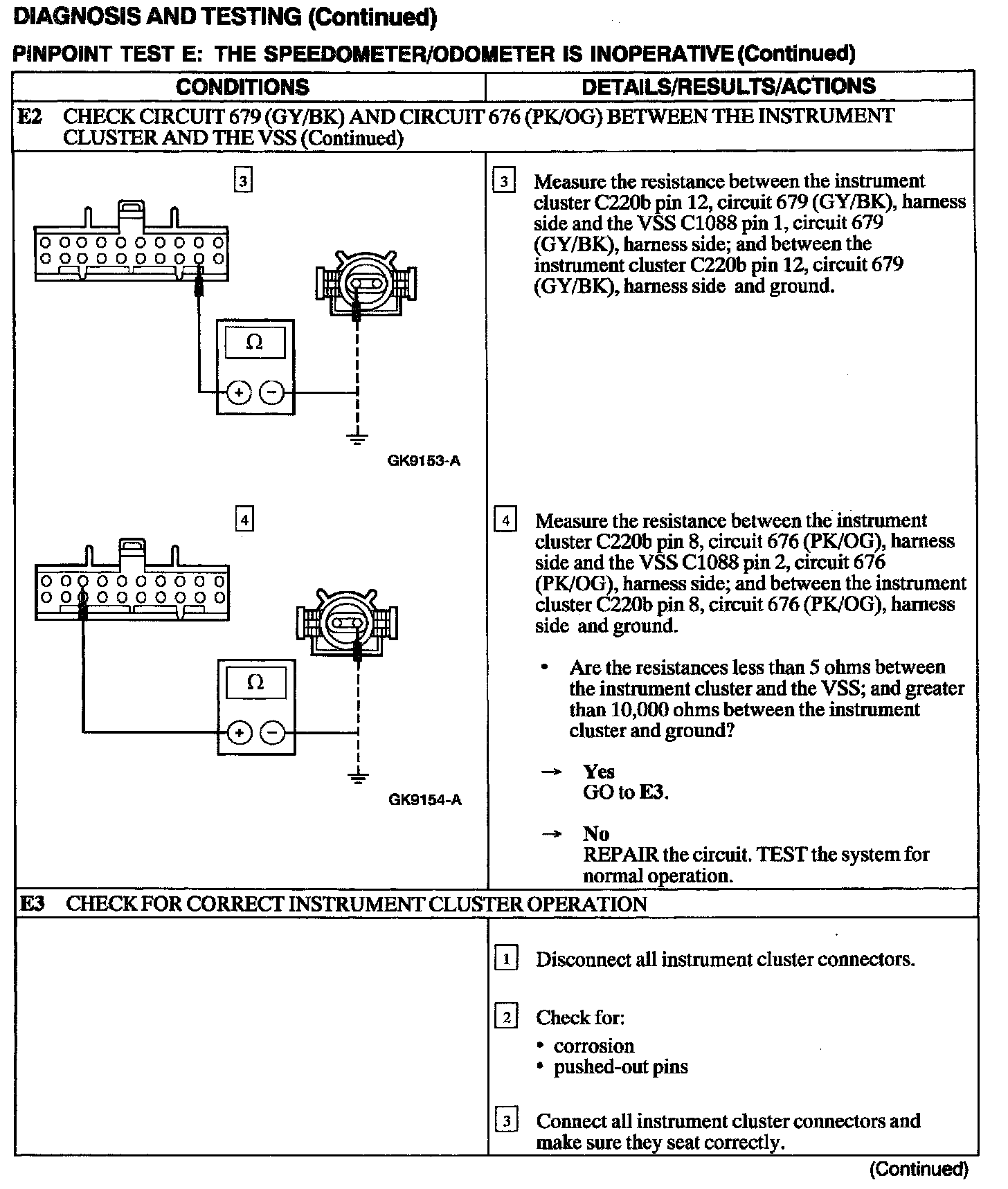

E2 - E3:

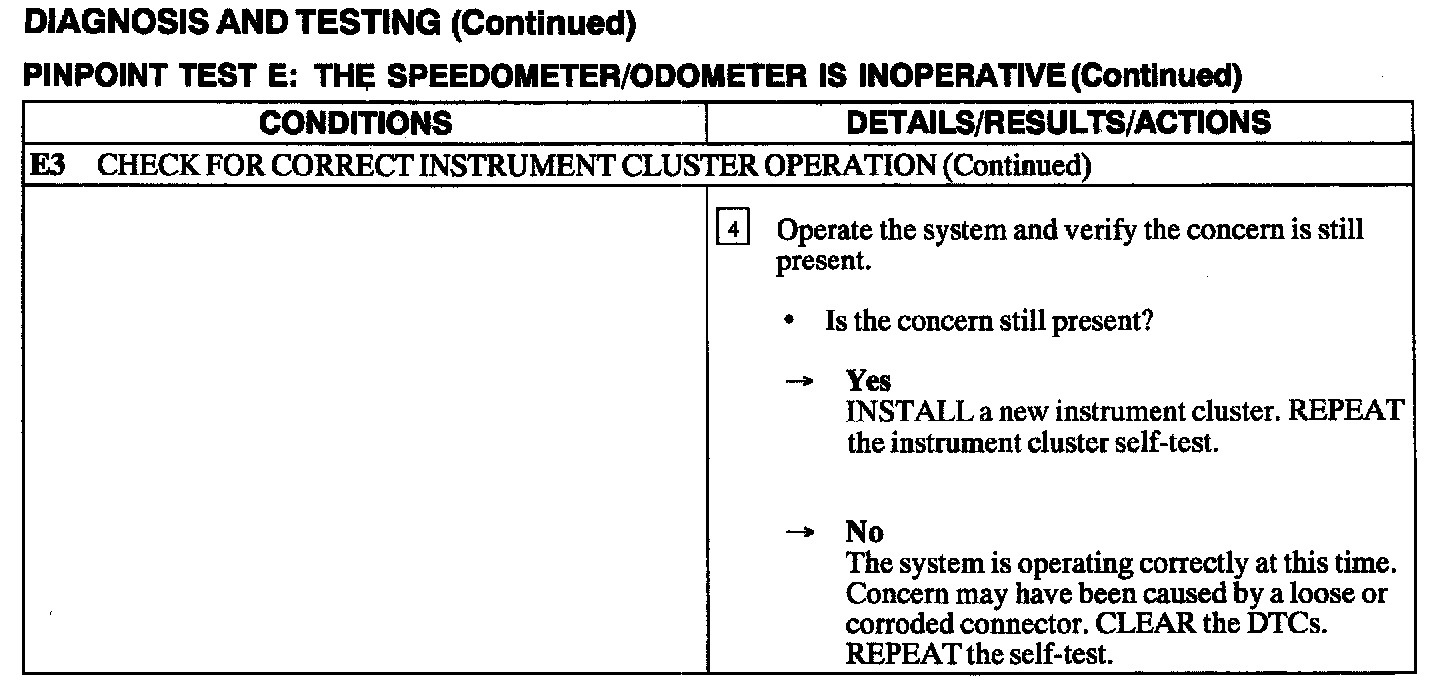

E3:
