Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Conventional Cluster - Instrument Cluster >> Test S: Check Fuel Cap Indicator Is Never/Always On

Test S: Check Fuel Cap Indicator Is Never/Always On

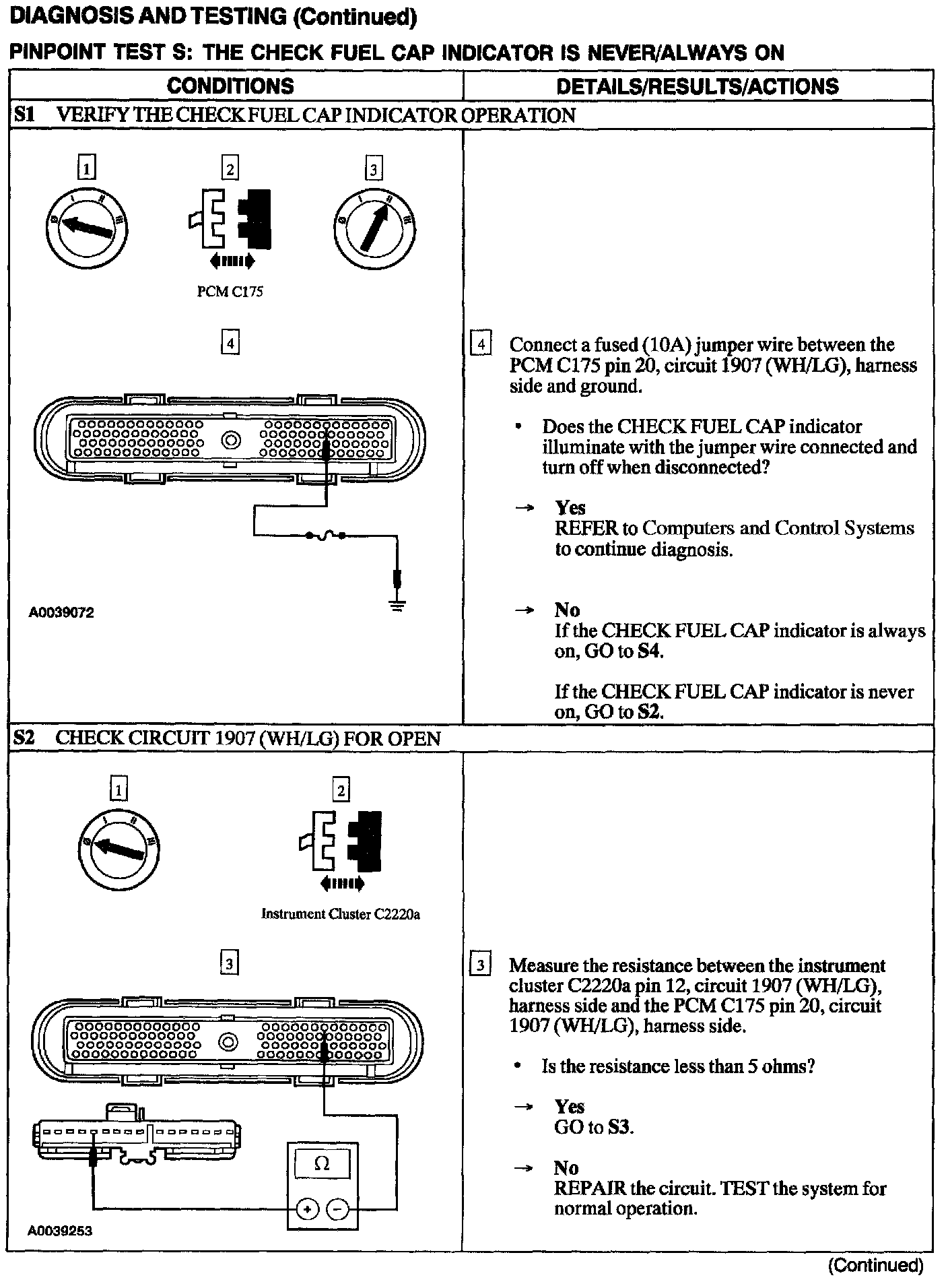

S1 - S2:

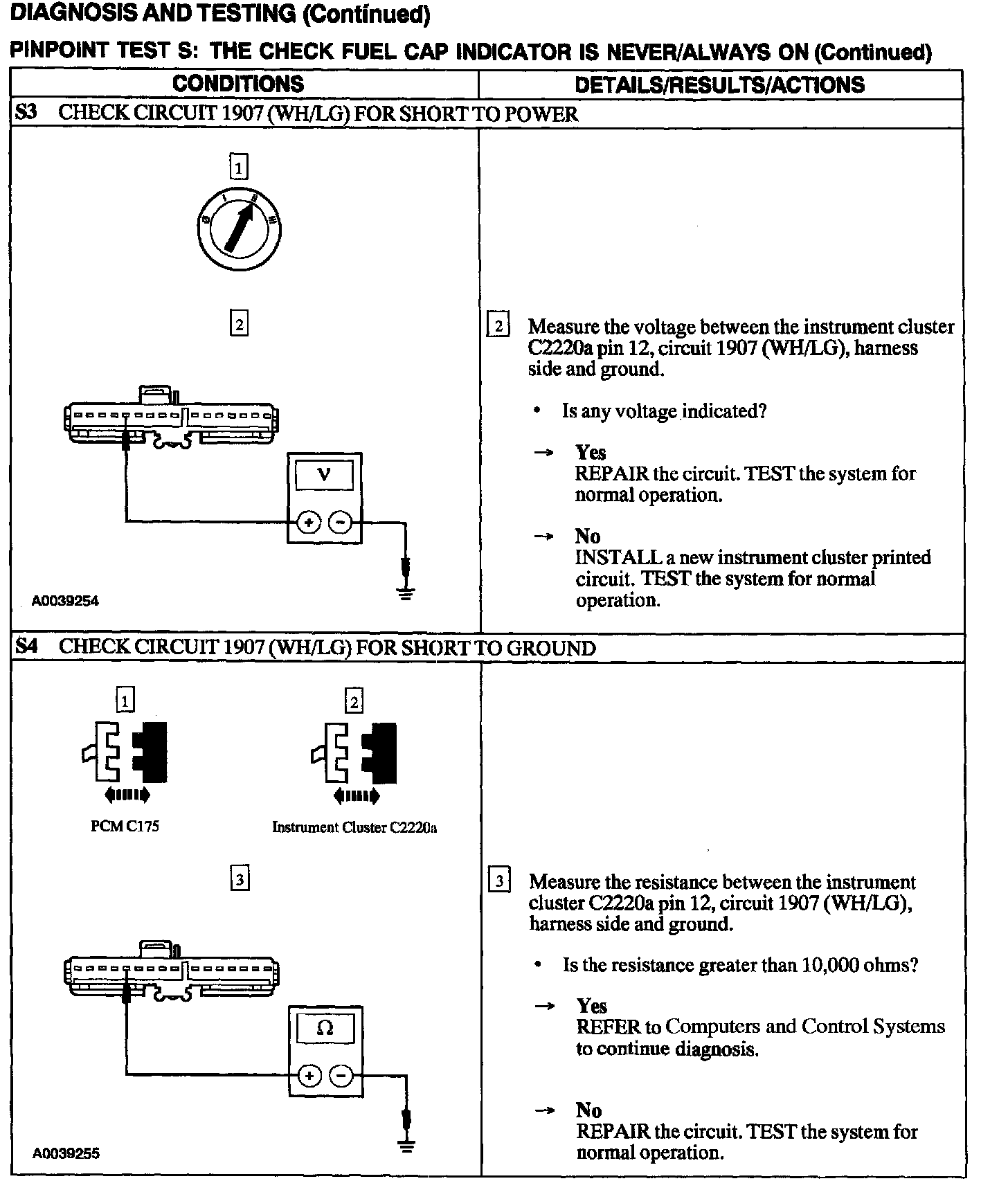

S3 - S4:
