Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Conventional Cluster - Instrument Cluster >> Test P: O/D Off Indicator Is Never On

Test P: O/D Off Indicator Is Never On

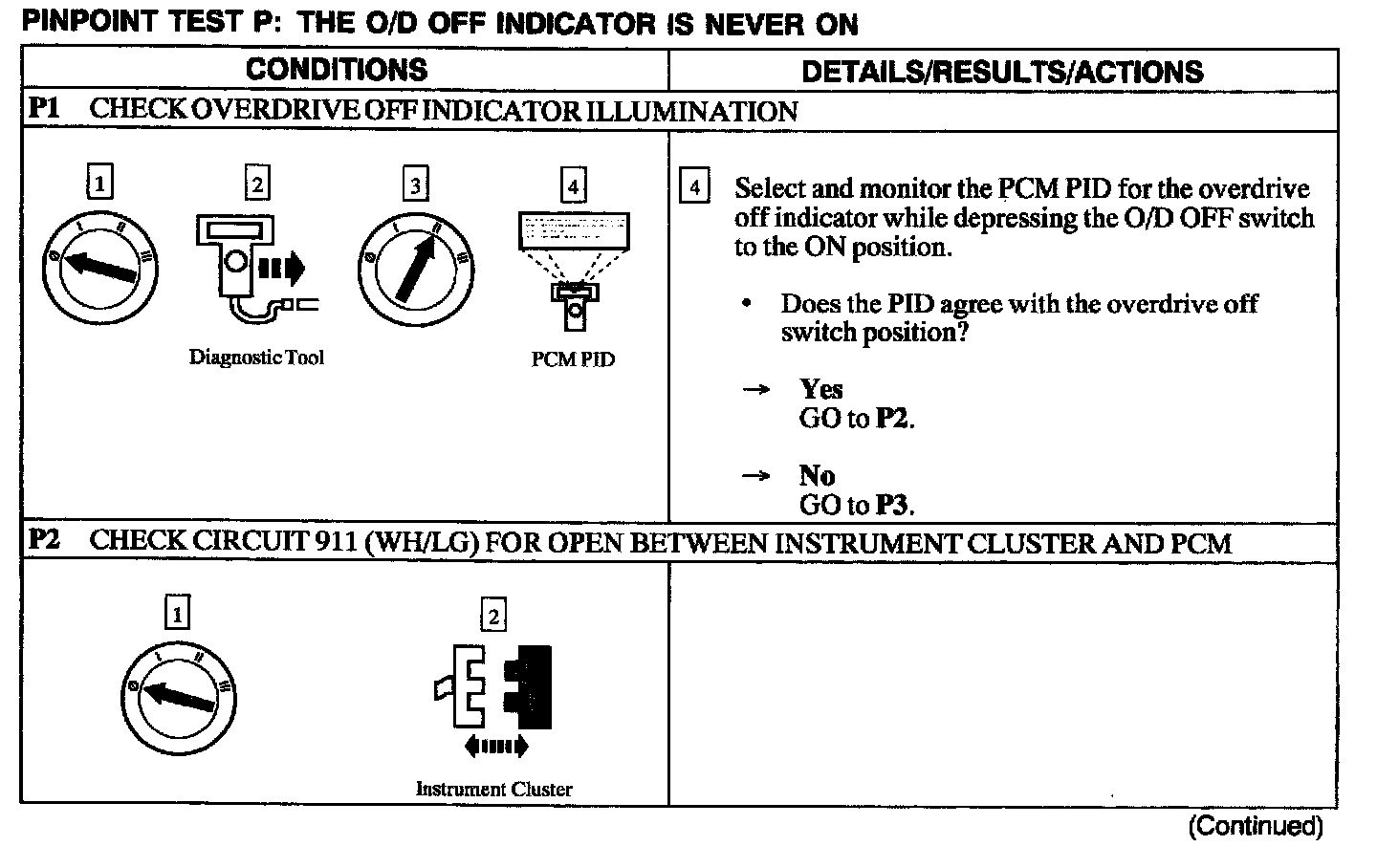

P1 - P2:

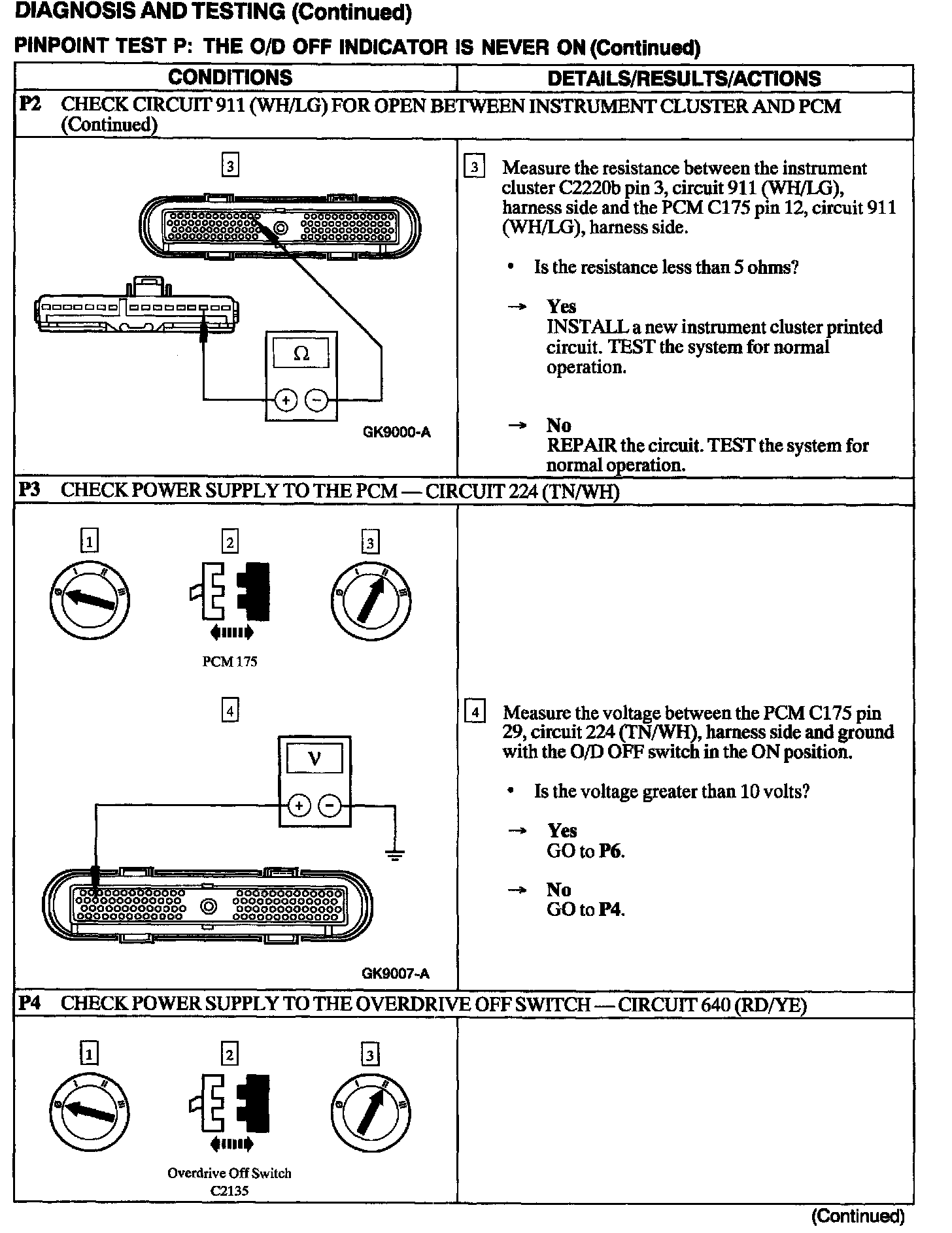

P2 - P4:

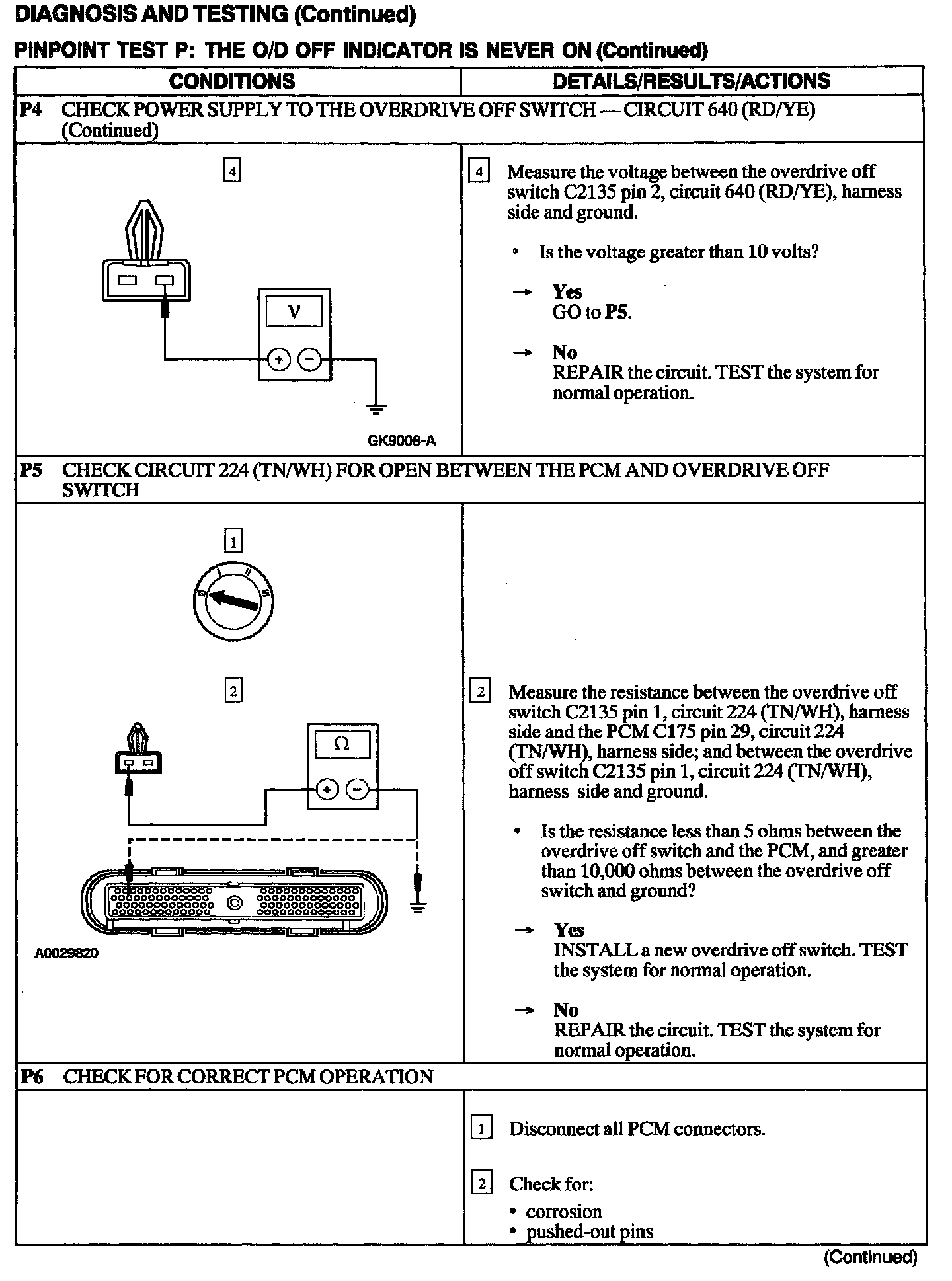

P4 - P6:

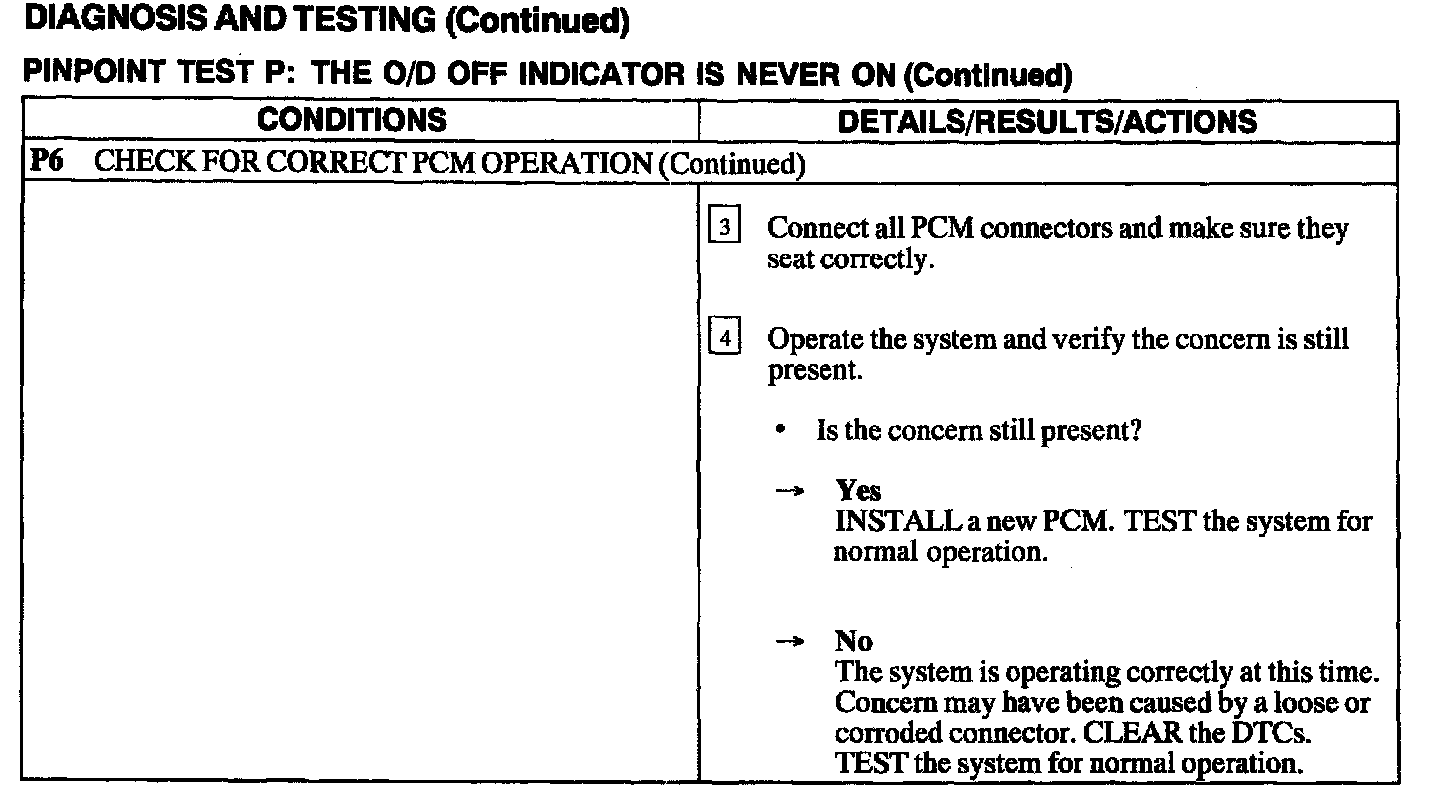

P6:
