Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Conventional Cluster - Instrument Cluster >> Test K: Air Suspension Indicator Is Never/Always On

Test K: Air Suspension Indicator Is Never/Always On

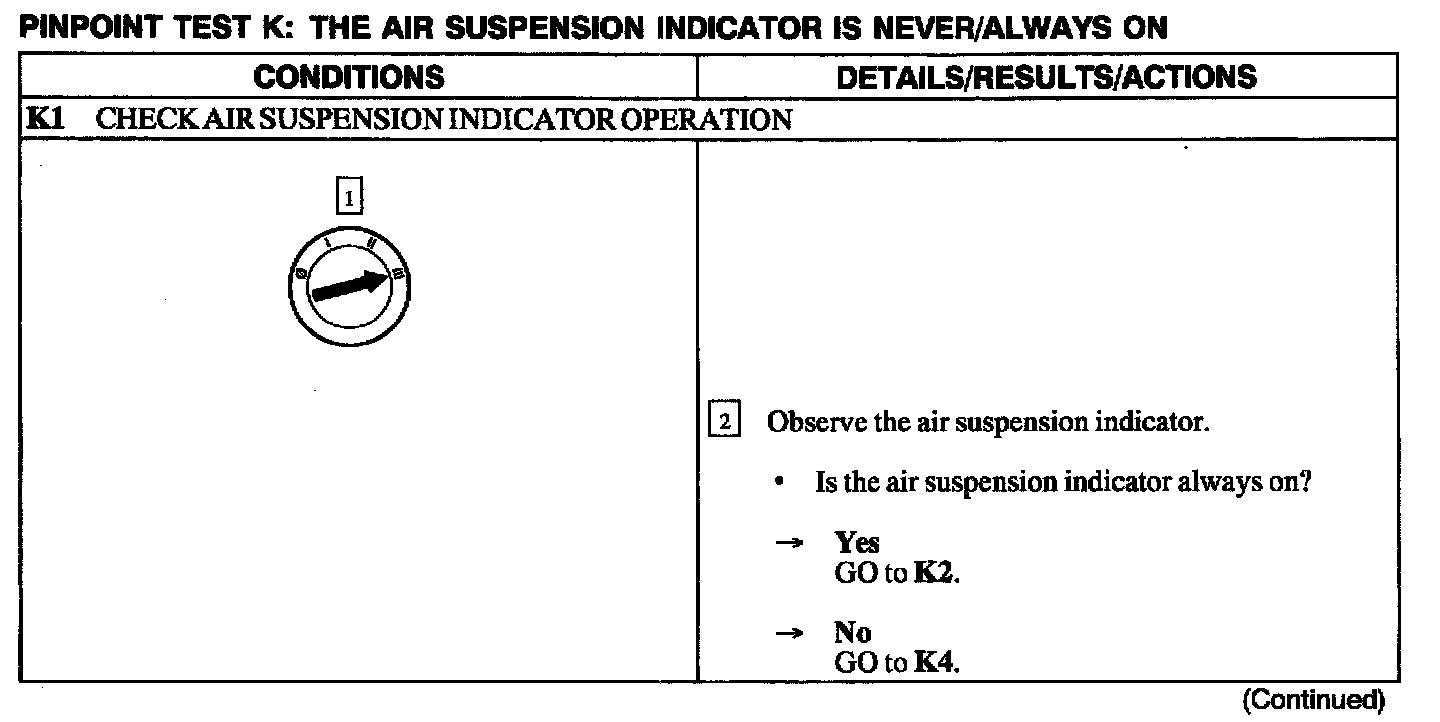

K1:

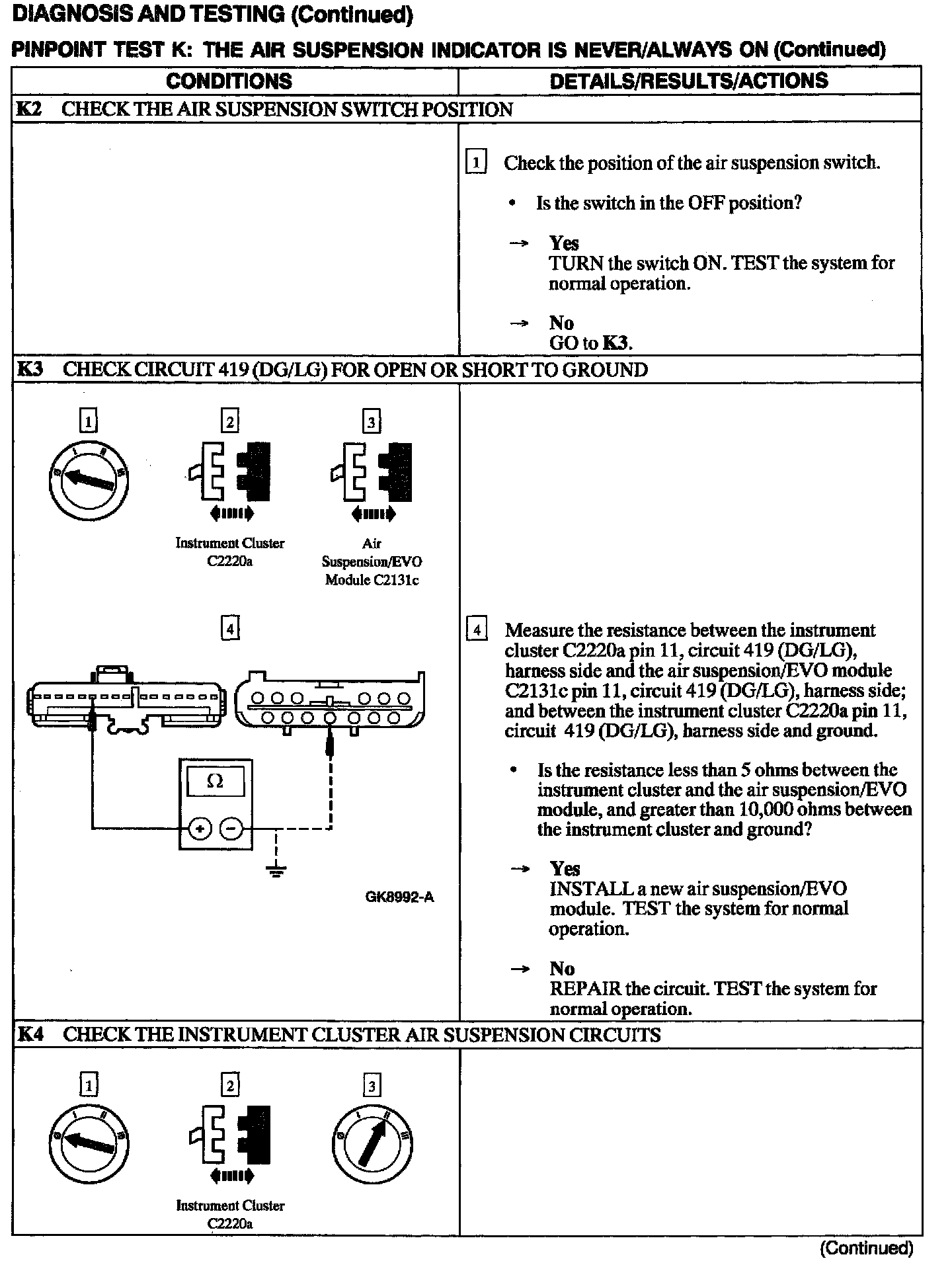

K2 - K4:

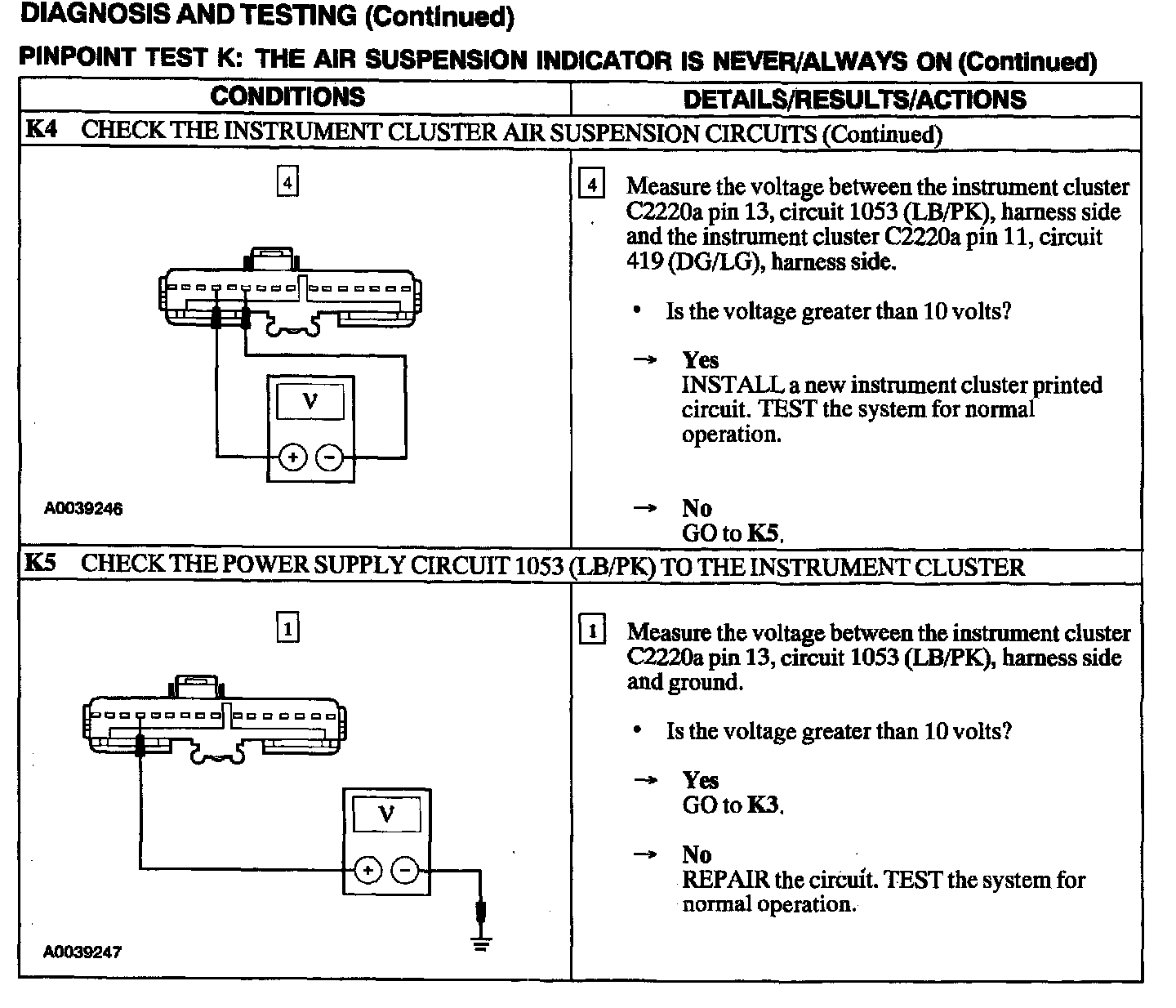

K4 - K5:
