Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Conventional Cluster - Instrument Cluster >> Test H: Brake Warning Indicator Is Never On

Test H: Brake Warning Indicator Is Never On

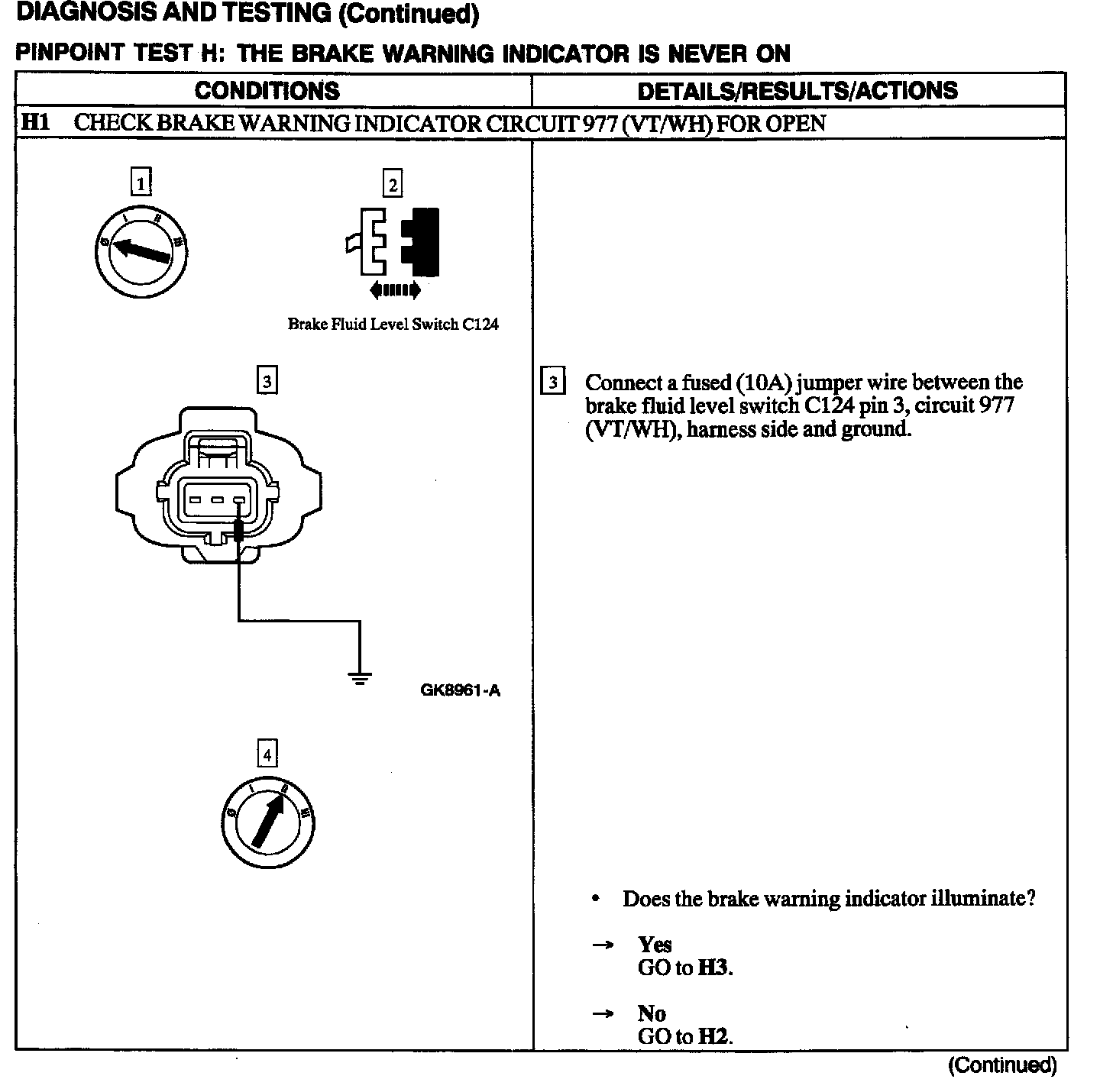

H1:

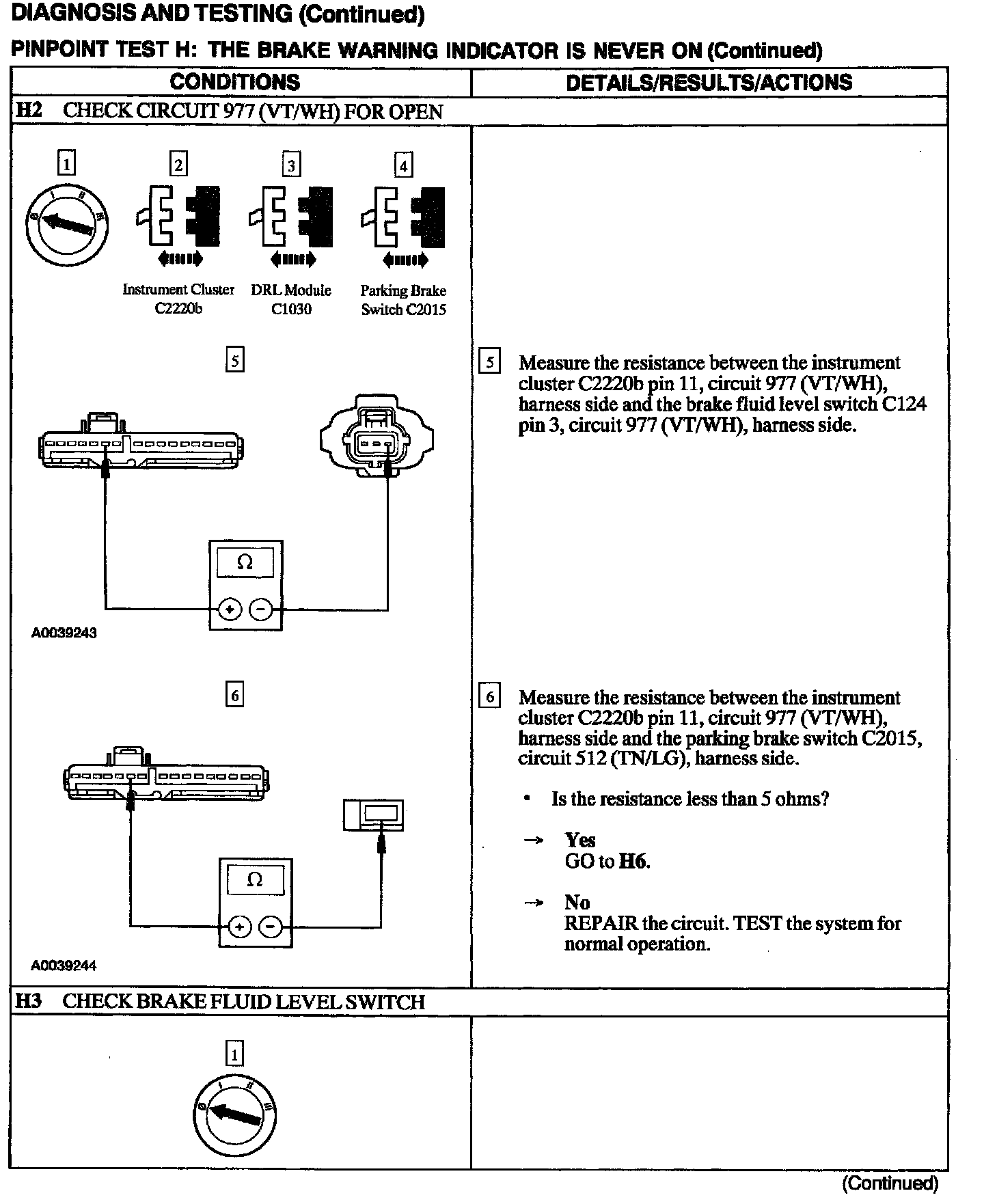

H2 - H3:

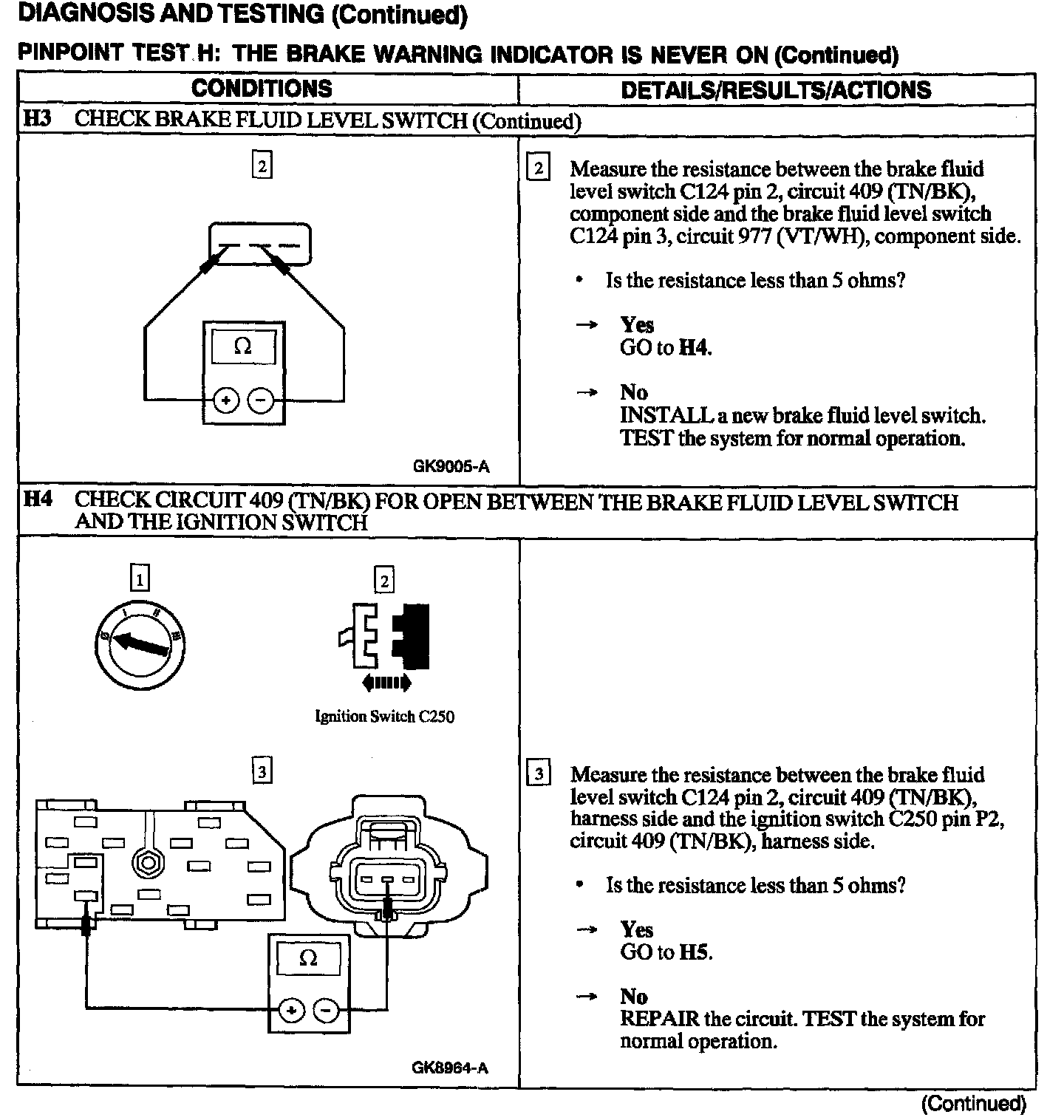

H3 - H4:






H5 - H6:
