Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Conventional Cluster - Instrument Cluster >> Test G: Charging System Warning Indicator Is Never On

Test G: Charging System Warning Indicator Is Never On

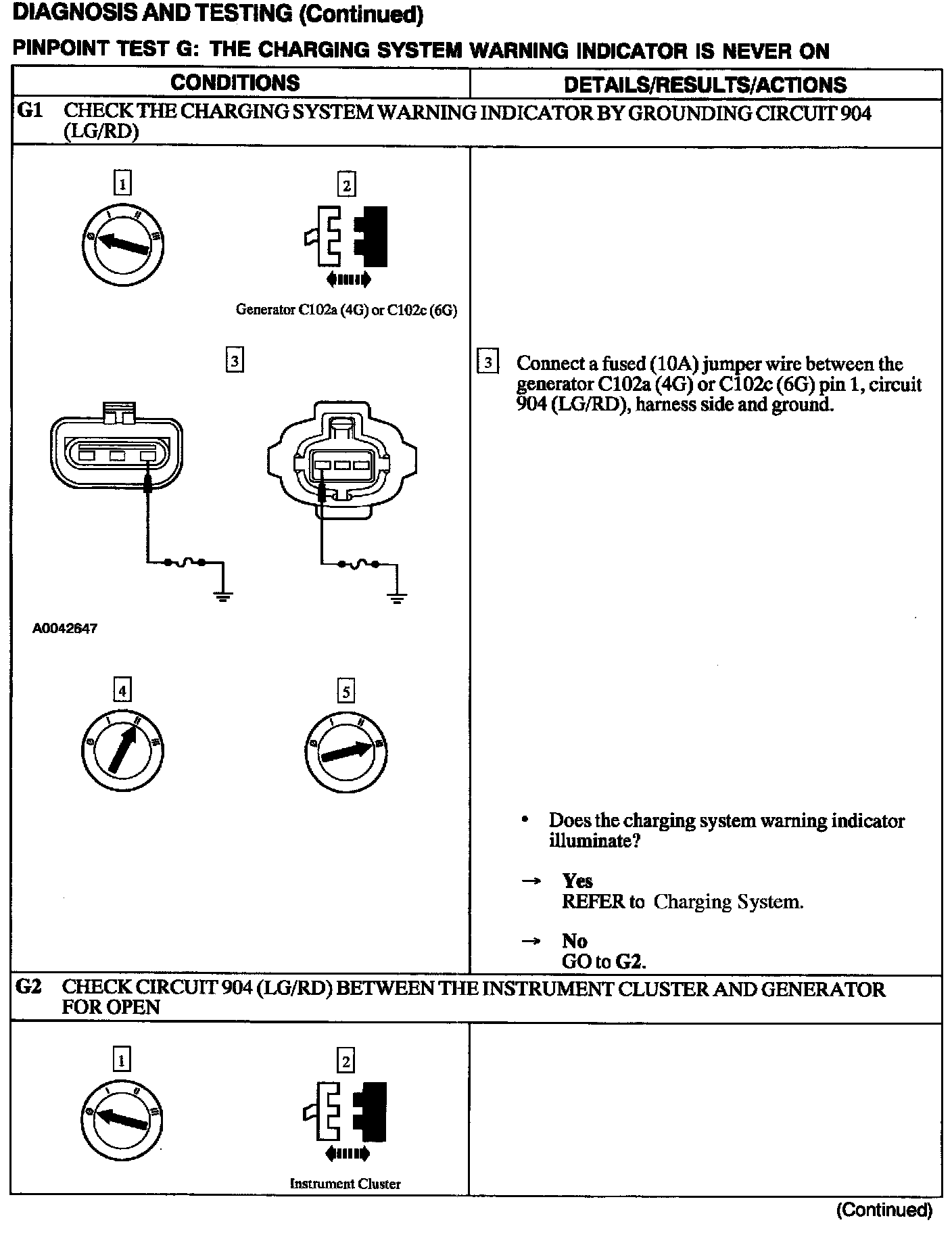

G1 - G2:

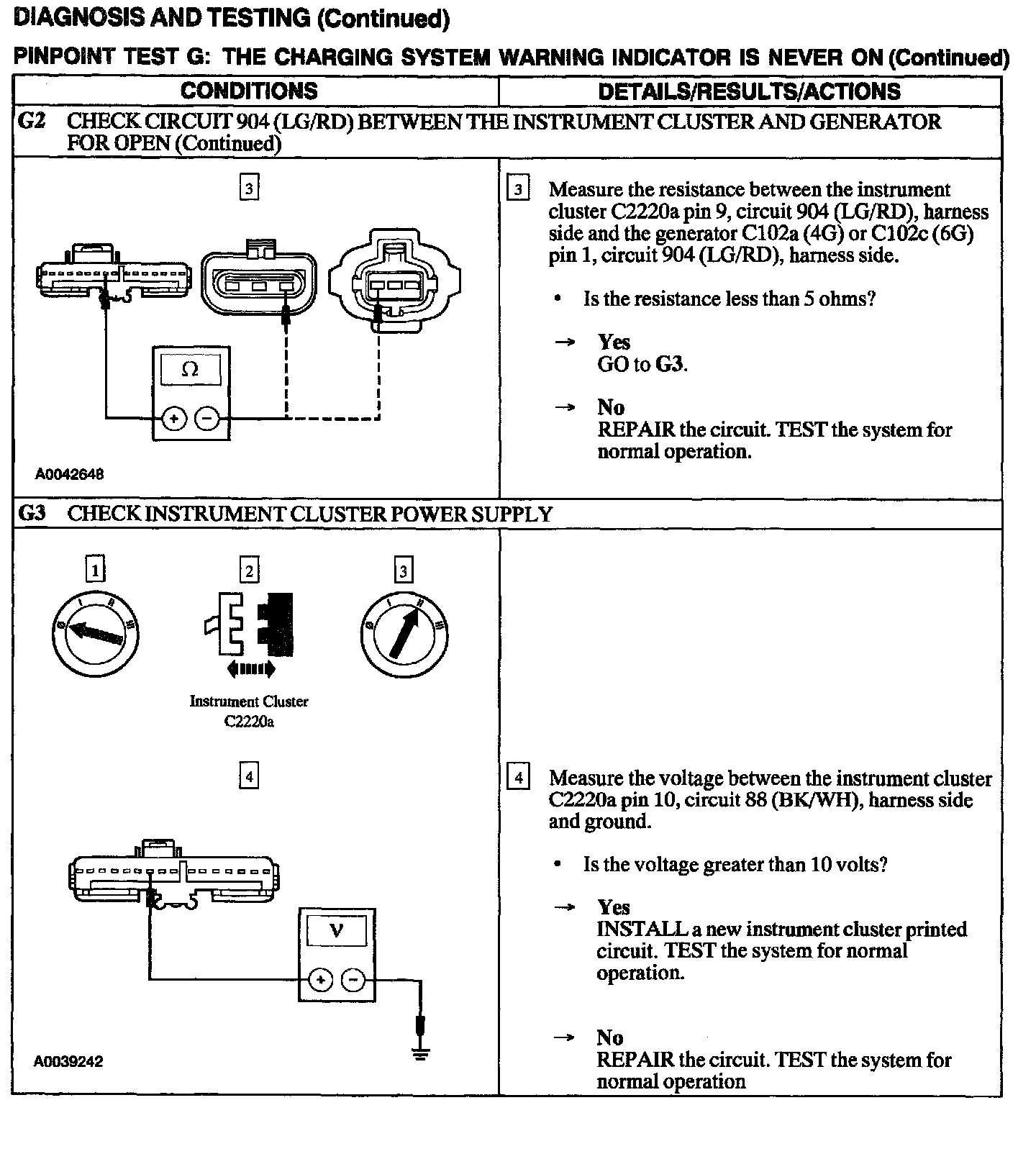

G2 - G3:
