Trouble Code Diagnostic Charts - Instrument Panel Illumination

DTC Index B1300 - B1354:

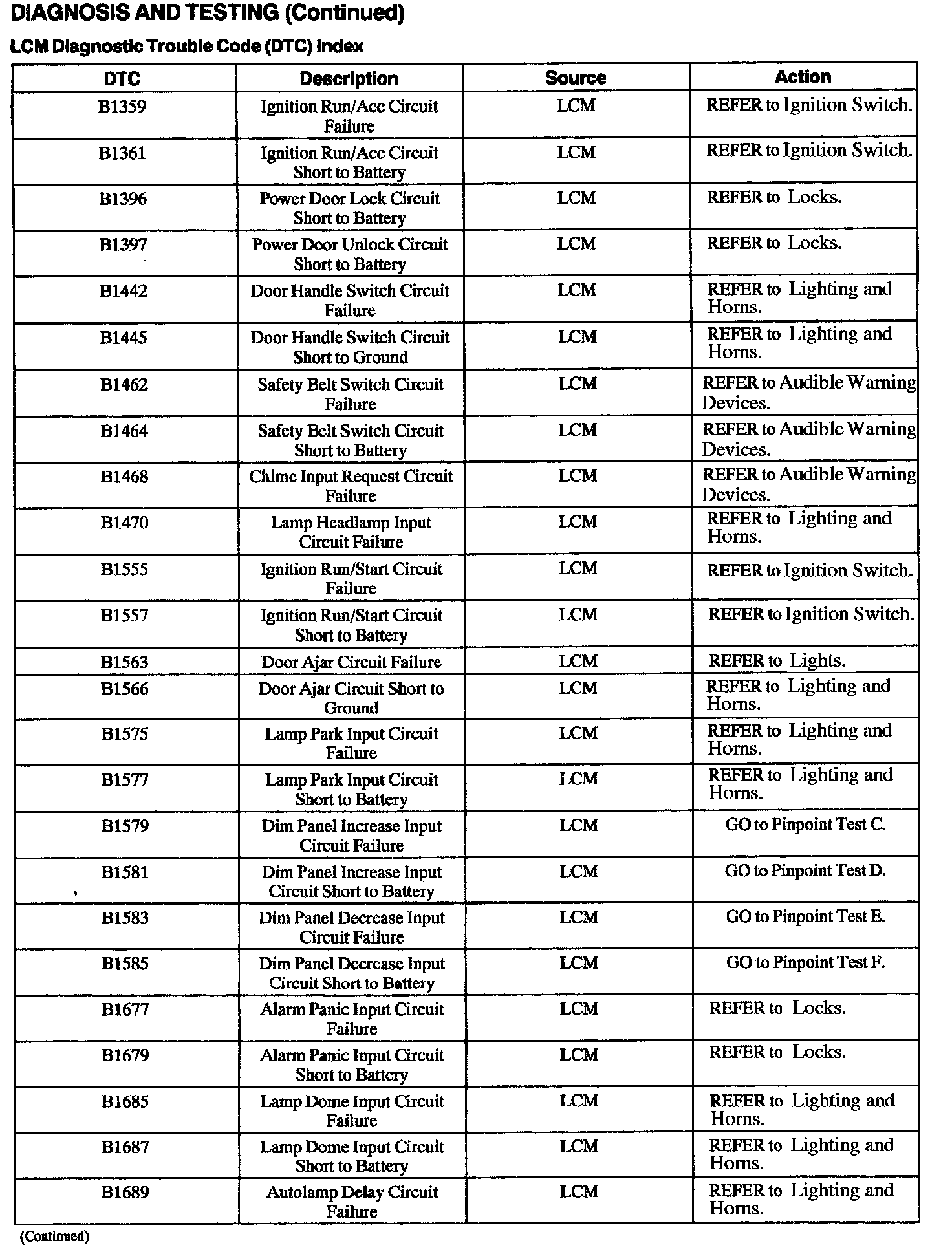

DTC Index B1359 - B1689:

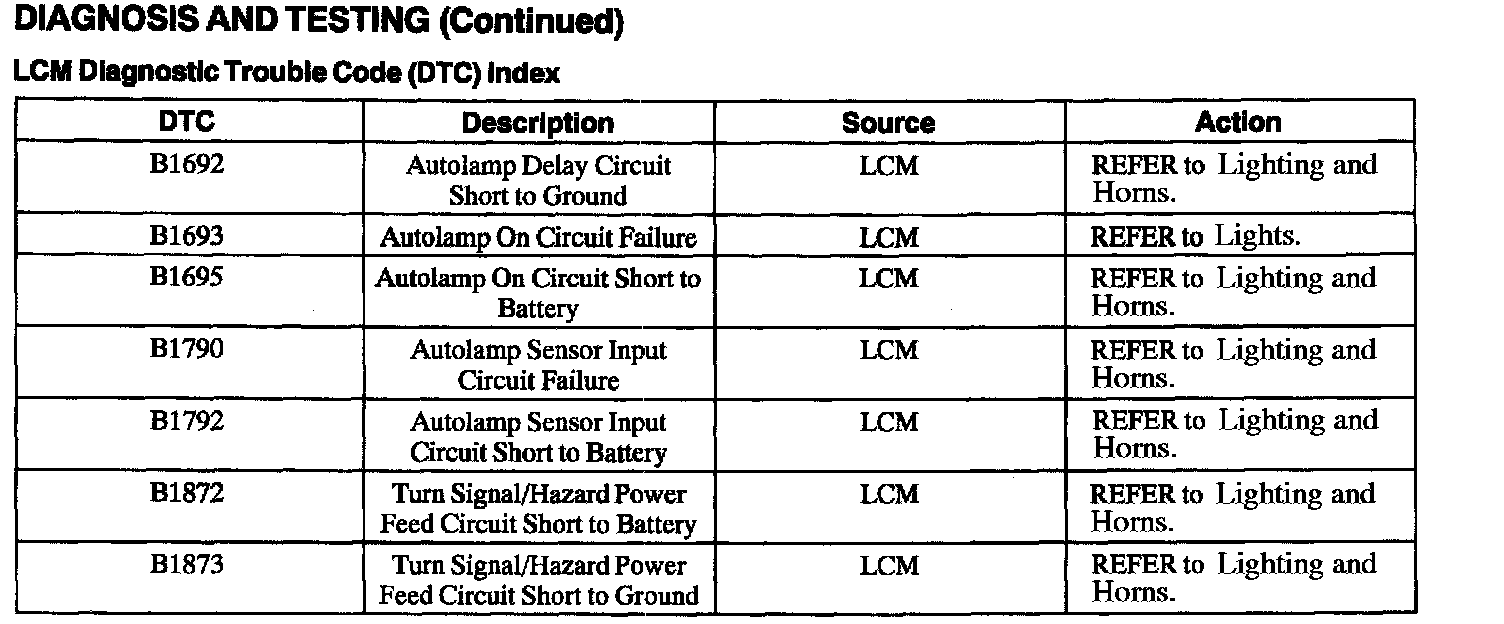

DTC Index B1692 - B1873:
