Conventional Cluster

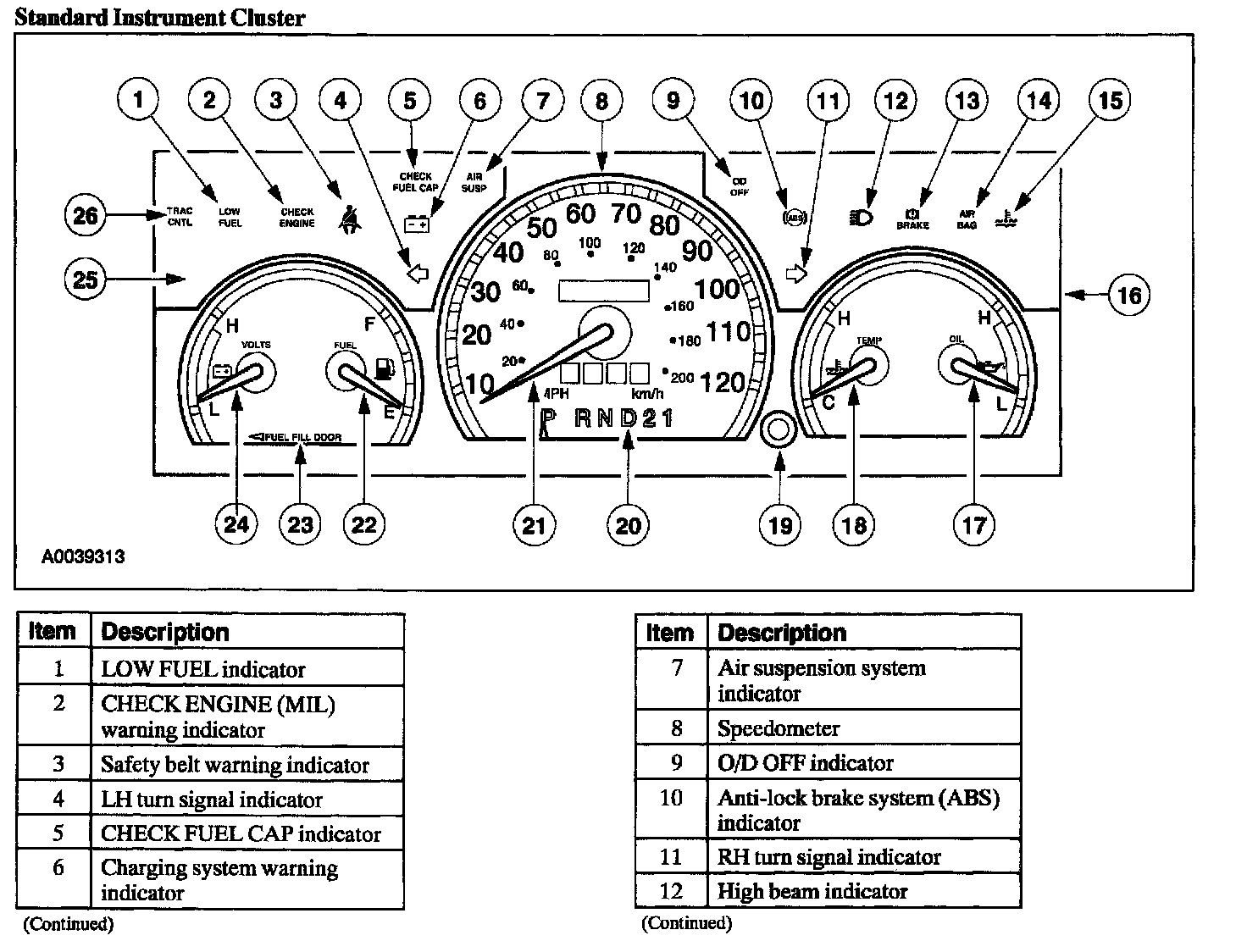

Standard Instrument Cluster, Part 1:

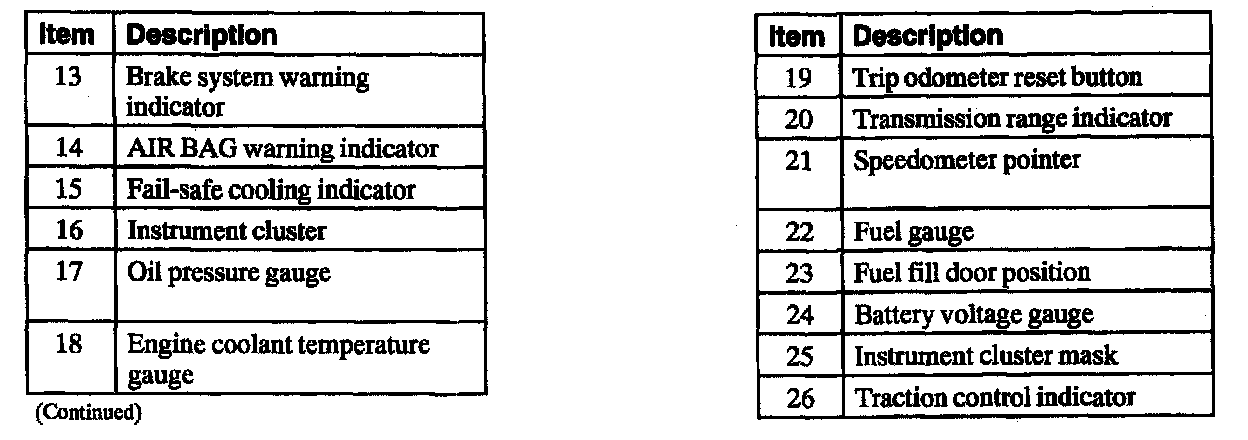

Standard Instrument Cluster, Part 2:






The standard instrument cluster consists of the components as shown in the illustration.
