Test S: Blower Motor Does Not Operate Correctly - EATC
Test S: Blower Motor Does Not Operate Correctly - EATC

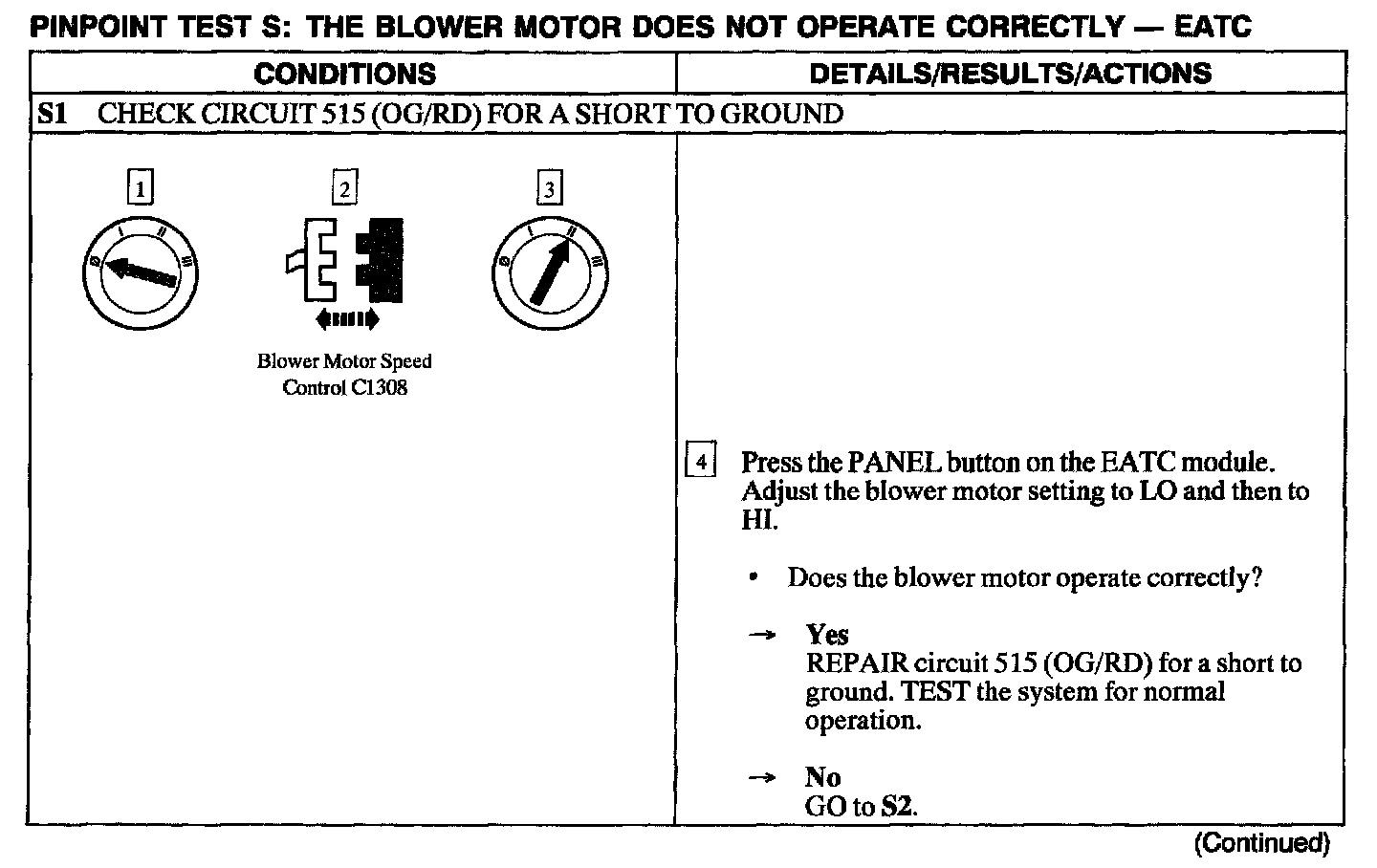

S1:

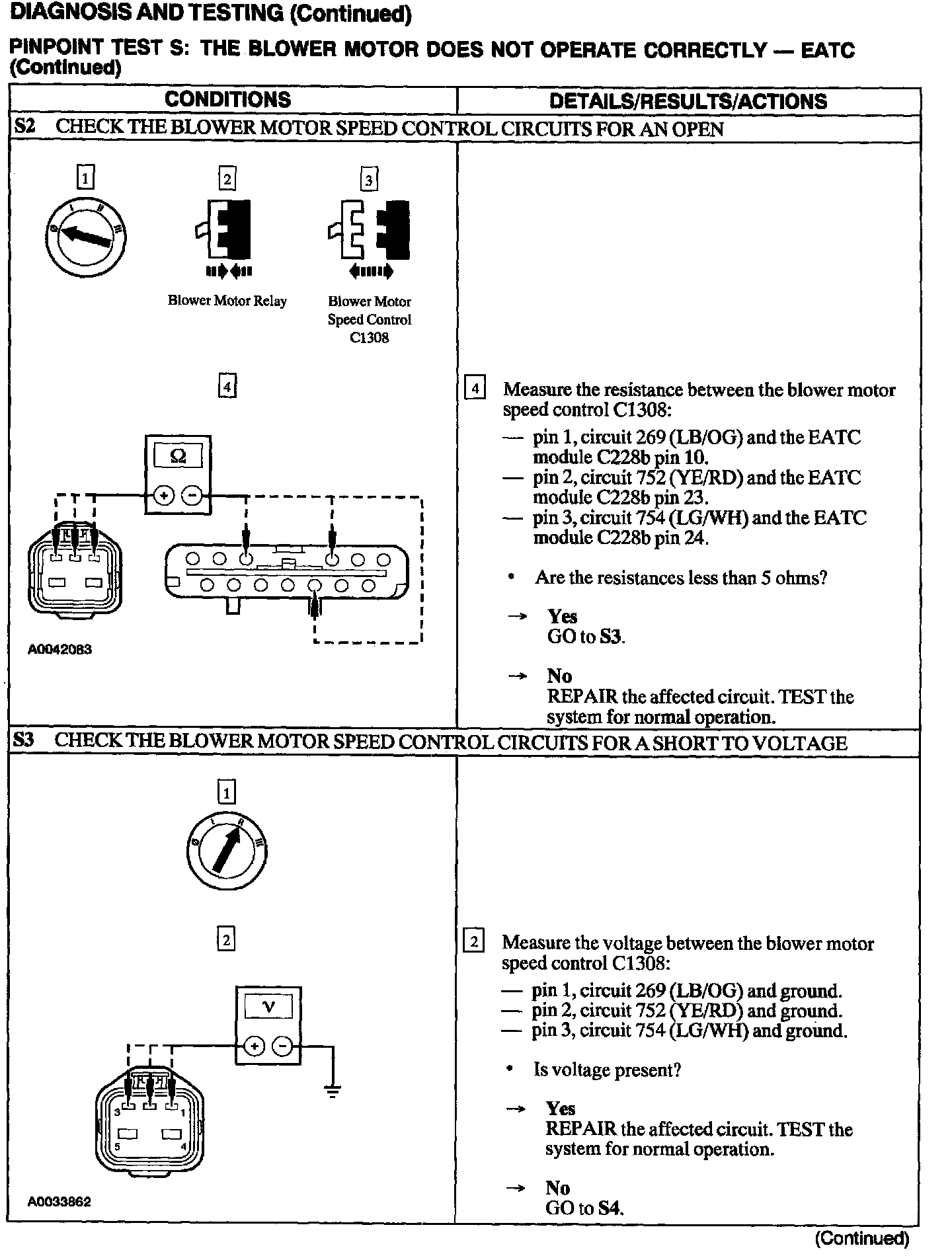

S2 - S3:

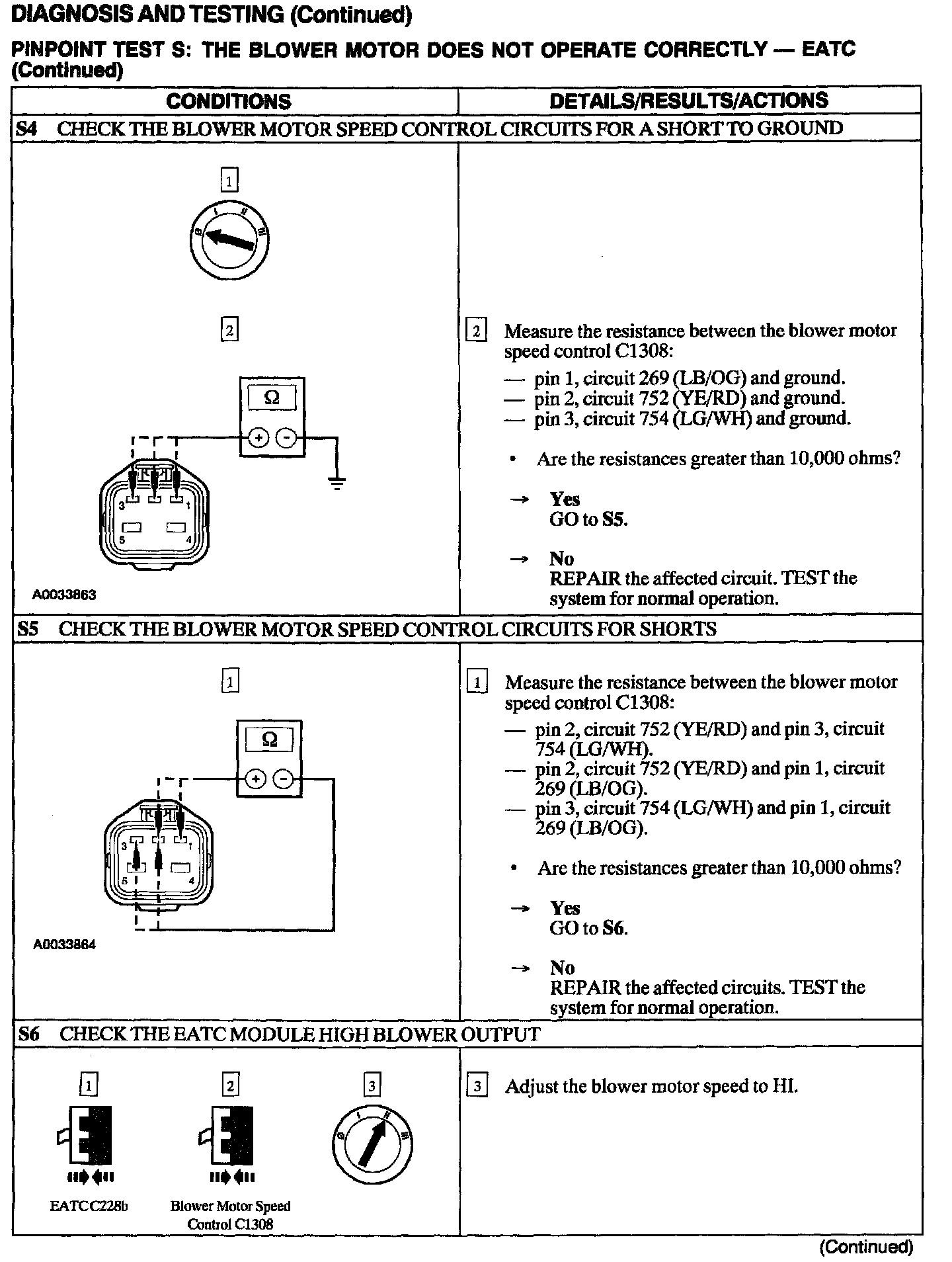

S4 - S6:

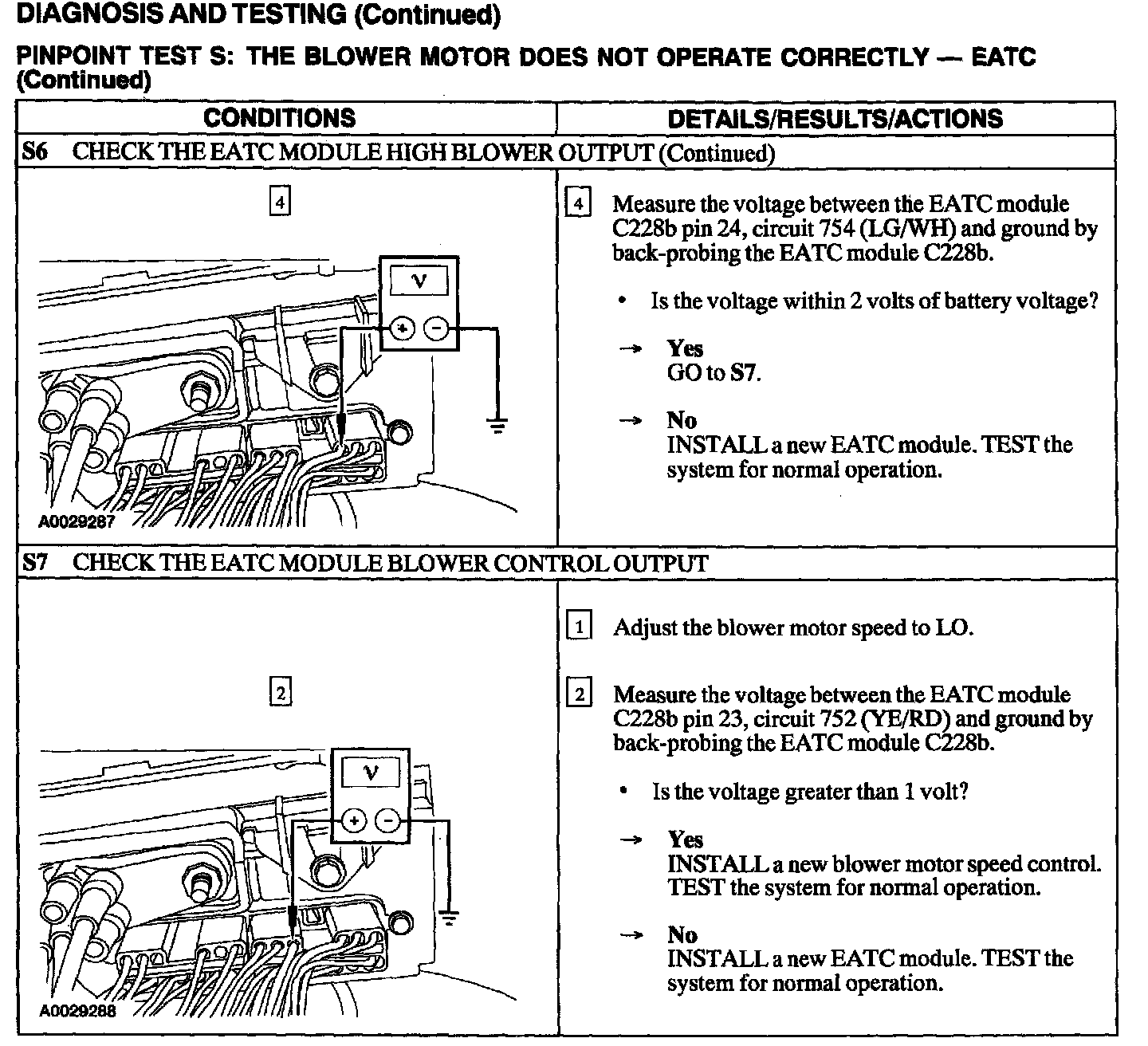

S6 - S7:
