Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test O: Blower Motor Is Inoperative - EATC

Test O: Blower Motor Is Inoperative - EATC

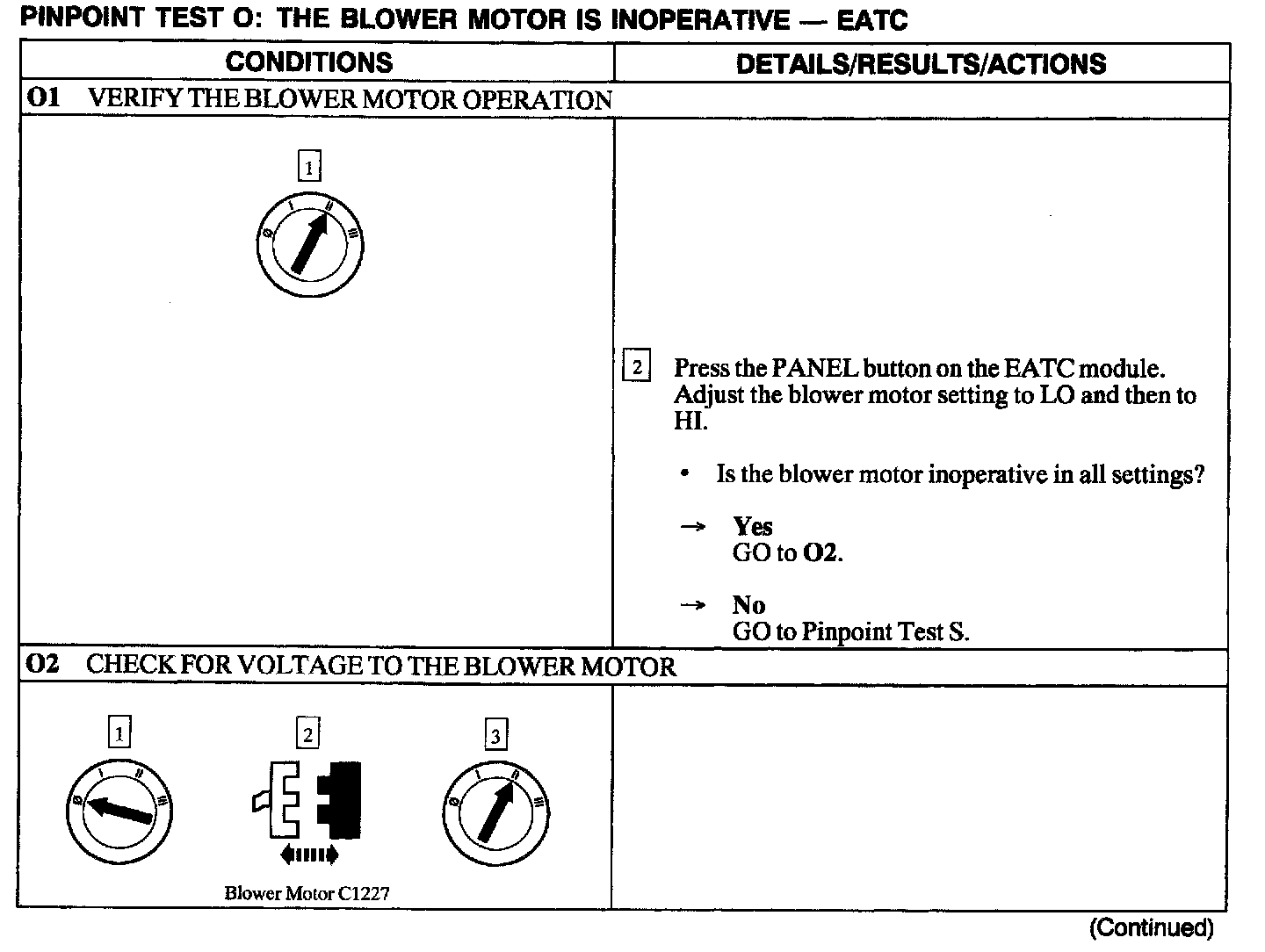

O1 - O2:

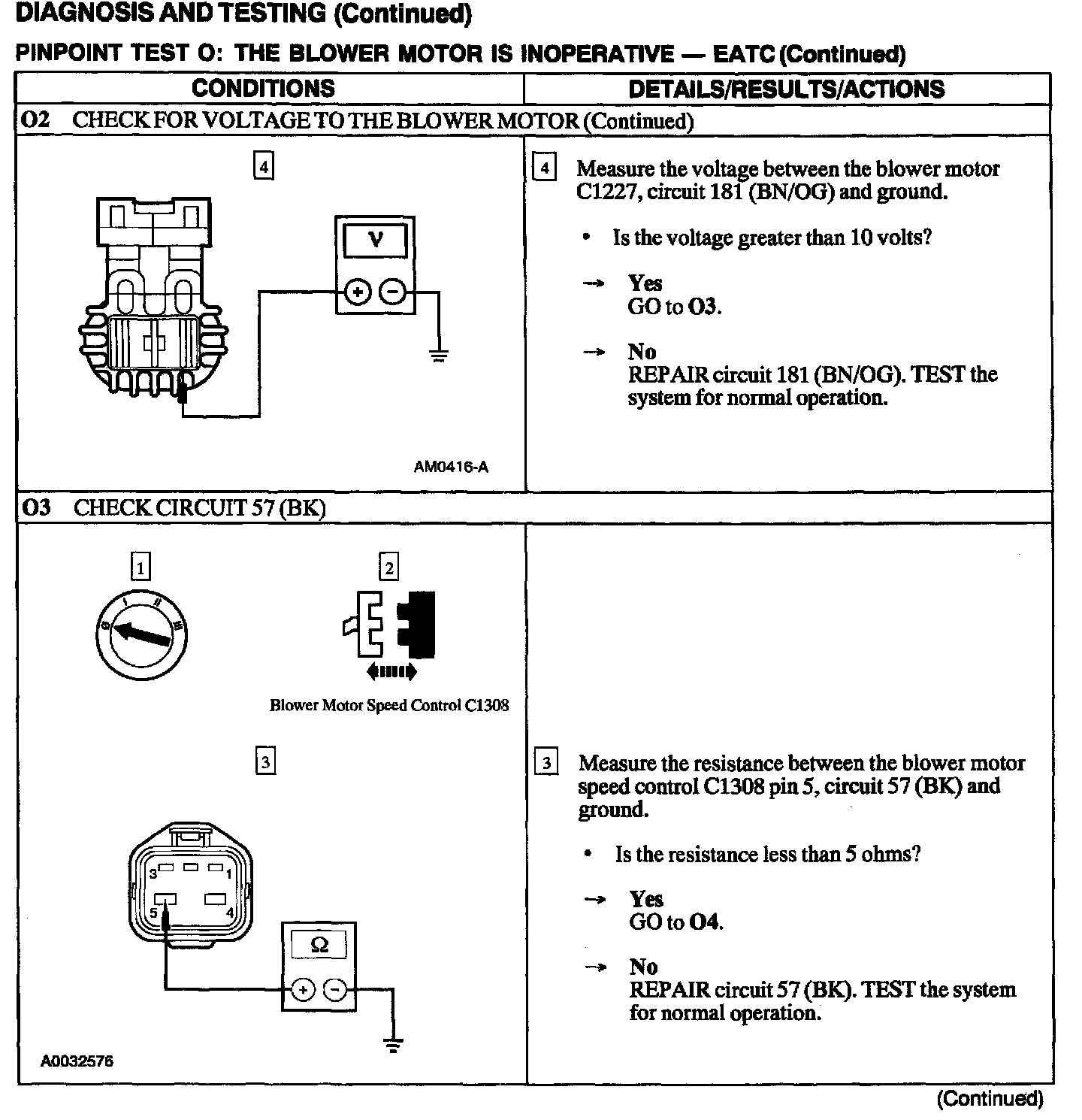

O2 - O3:

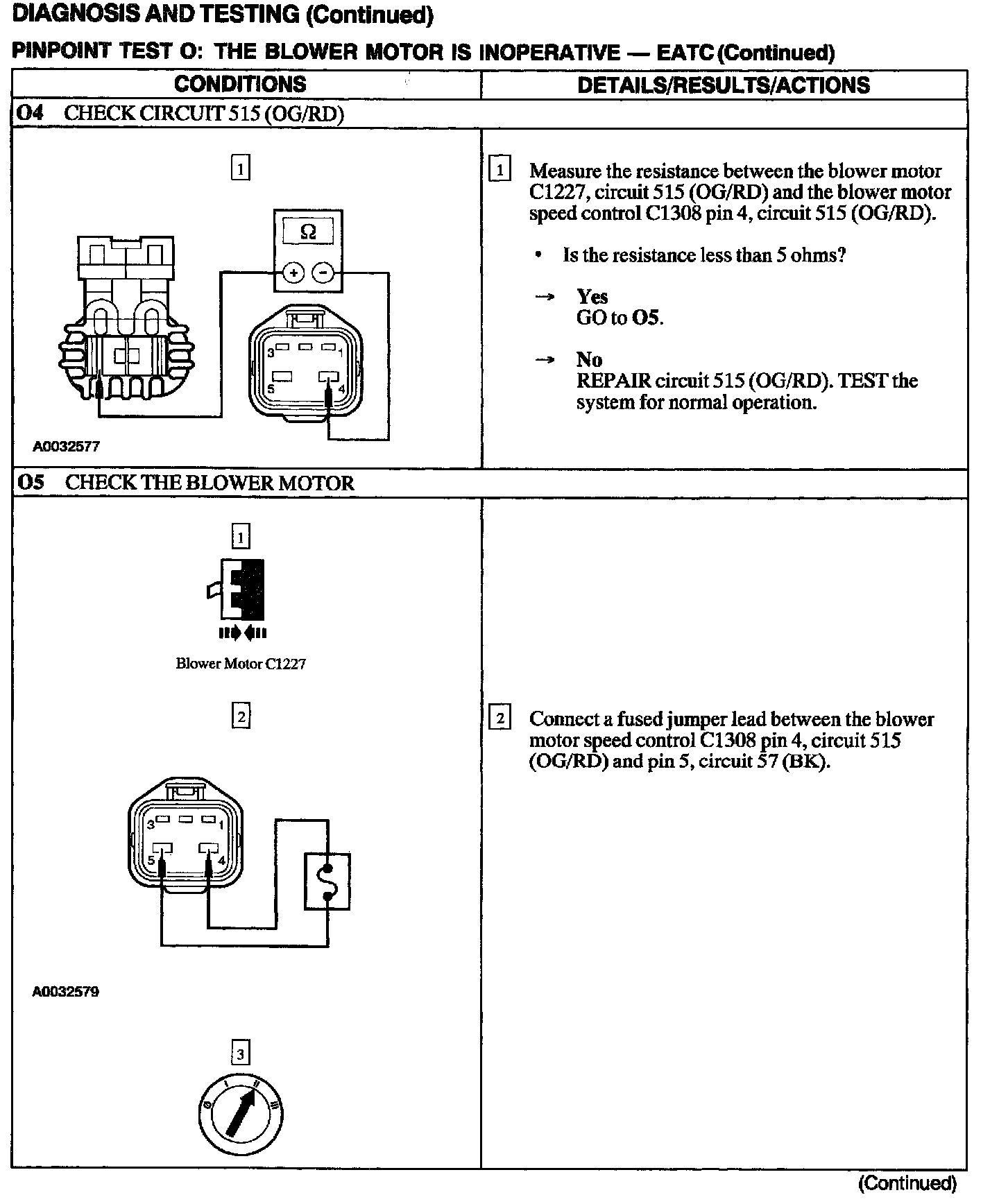

O4 - O5:






O5 - O6:

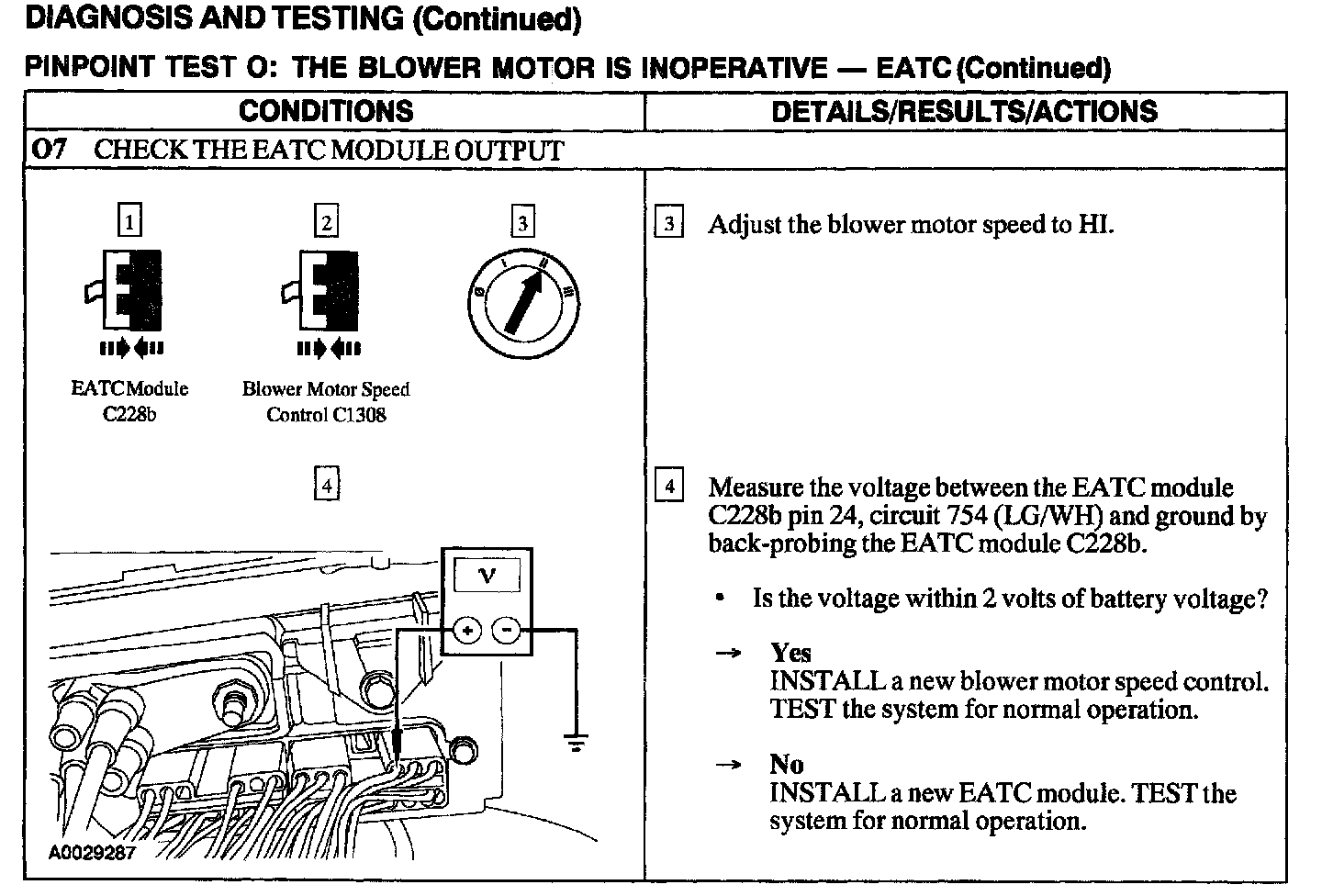

O7:
