Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test N: Blower Motor Is Inoperative - Manual Climate Control

Test N: Blower Motor Is Inoperative - Manual Climate Control

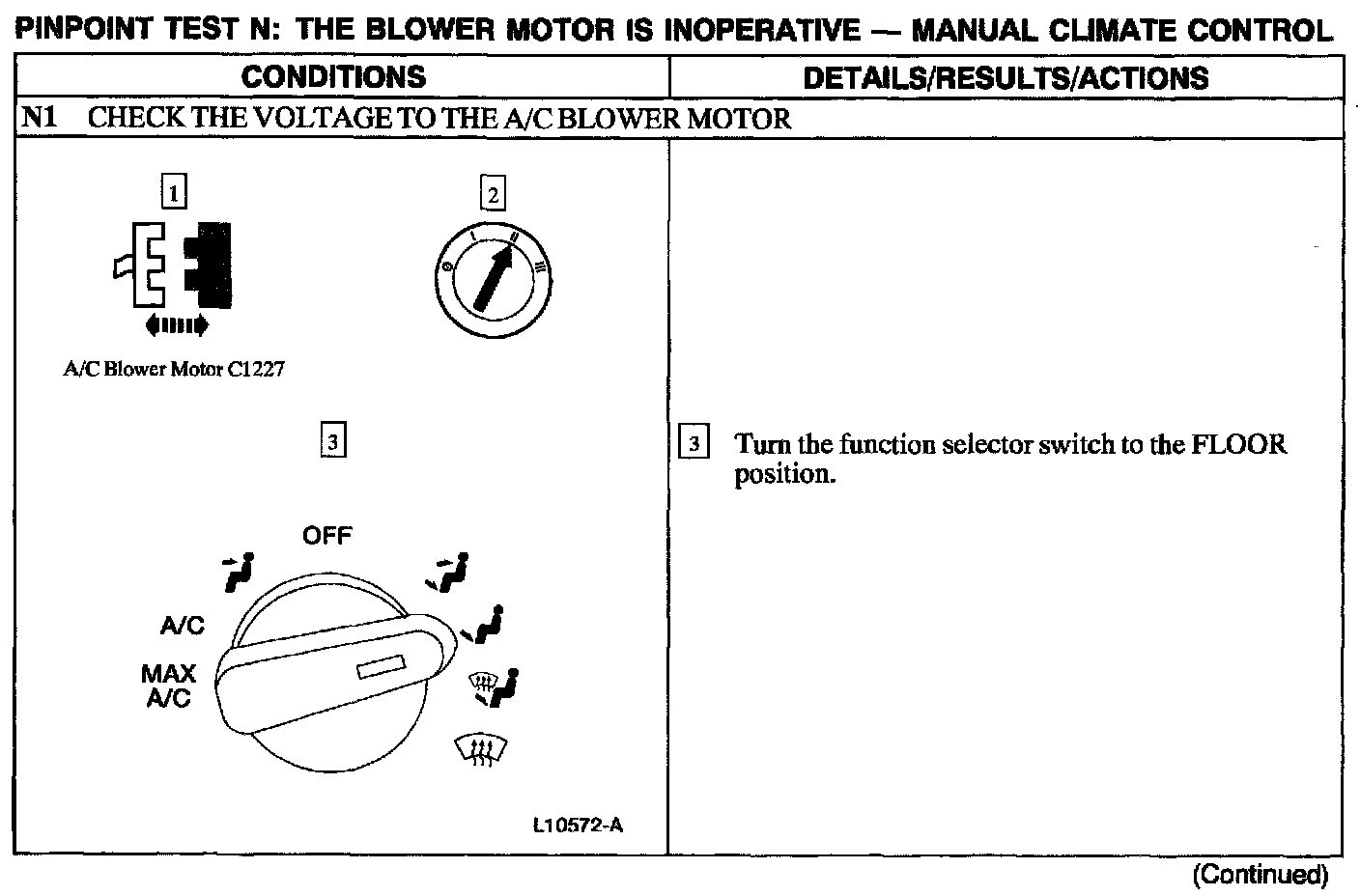

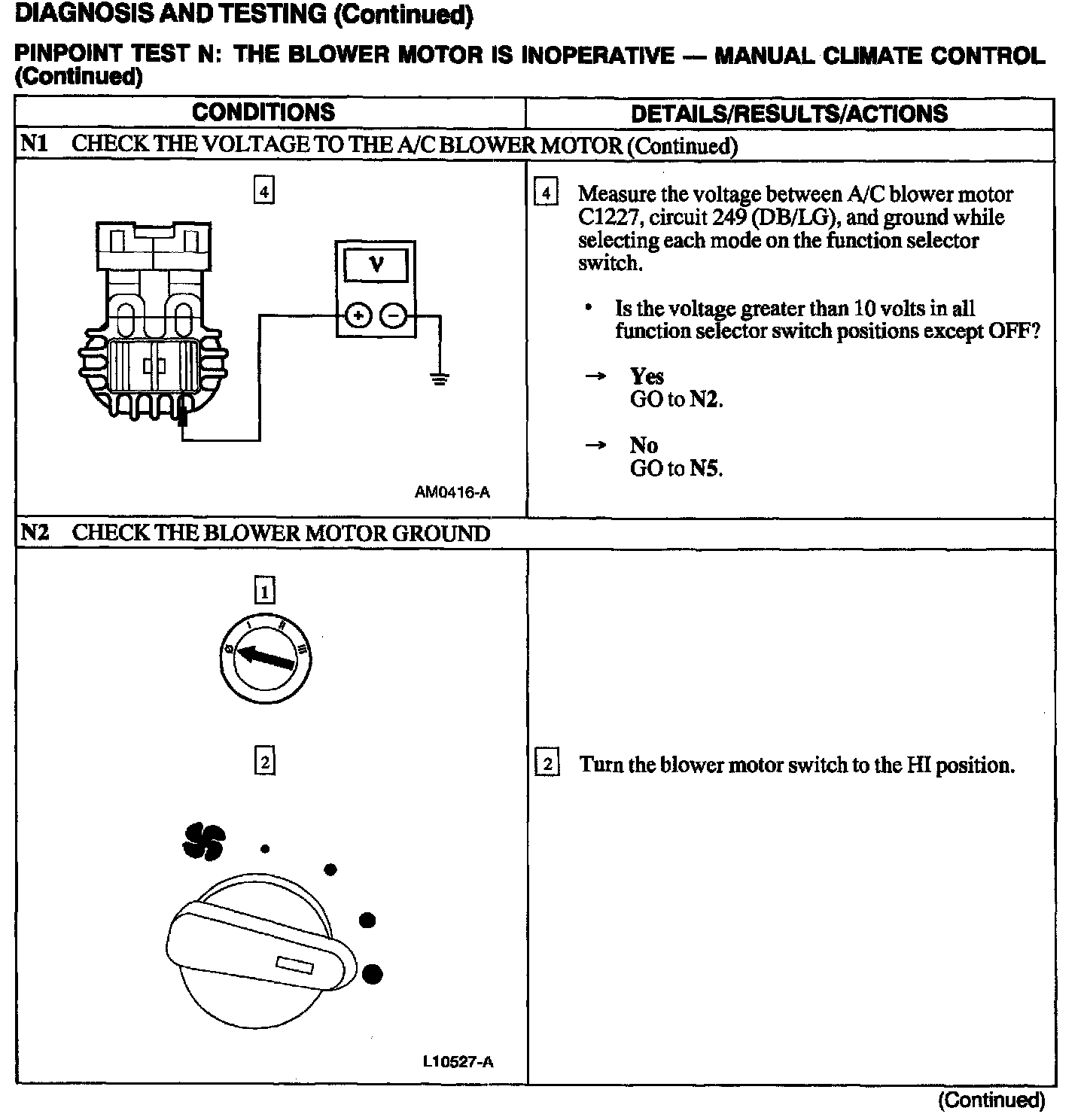

N1:






N1 - N2:

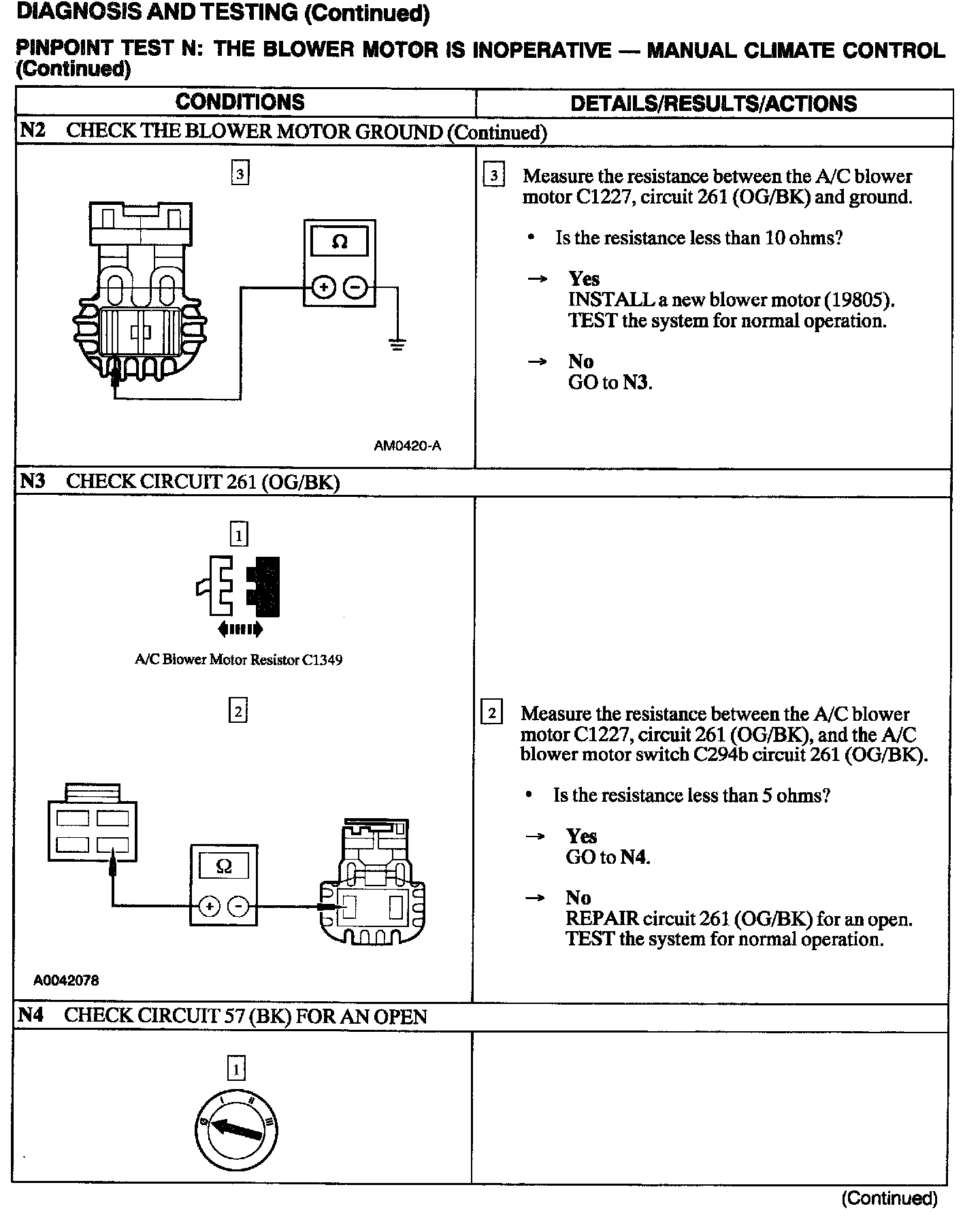

N2 - N4:

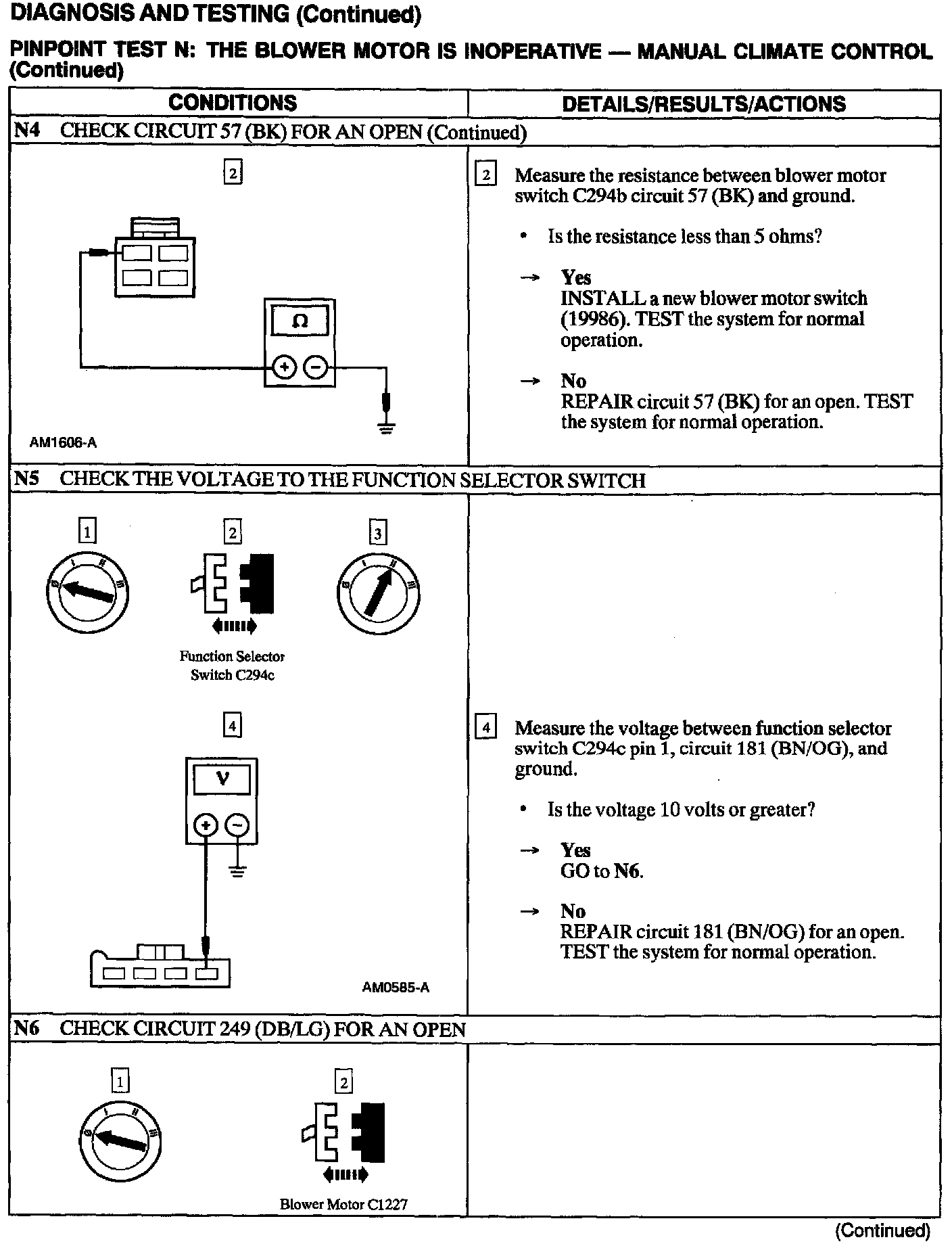

N4 - N6:

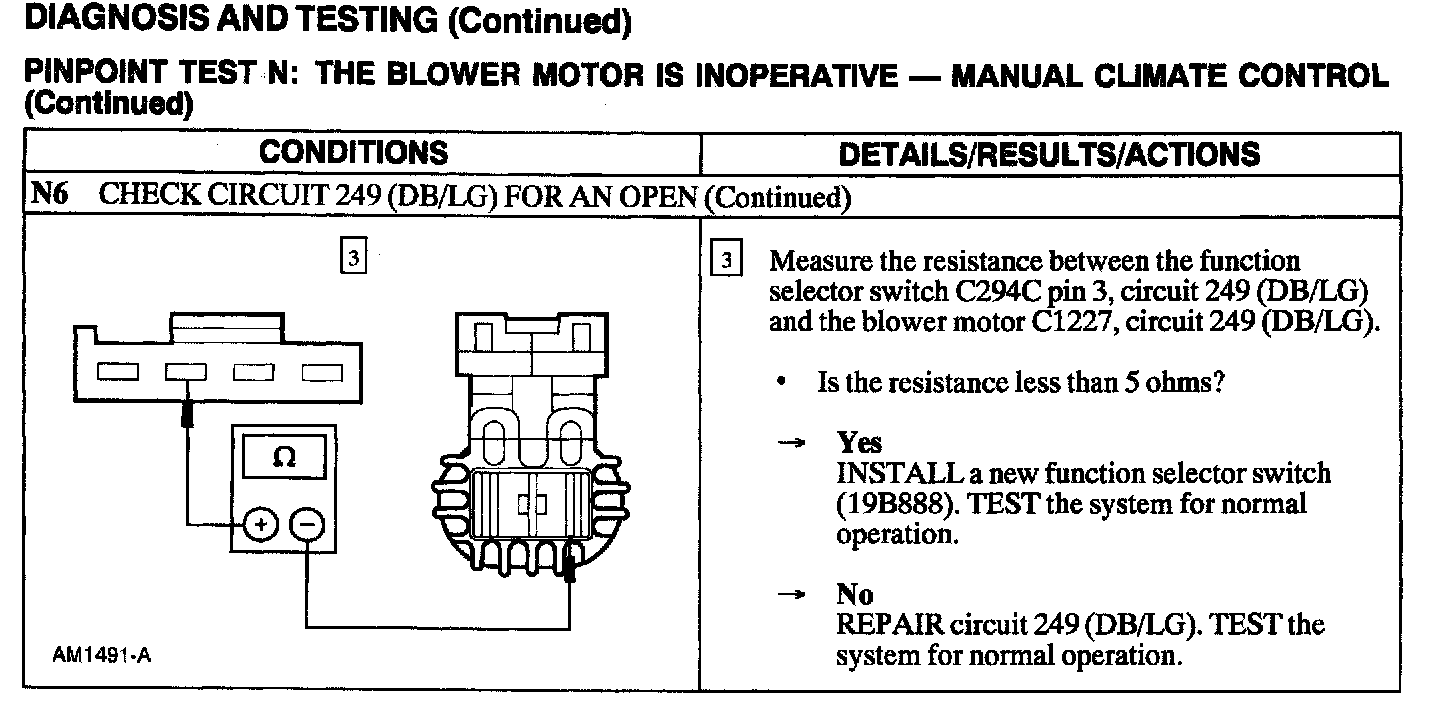

N6:
