Test M: No Operation In All Temperature Settings - Manual
Test M: No Operation In All Temperature Settings - Manual

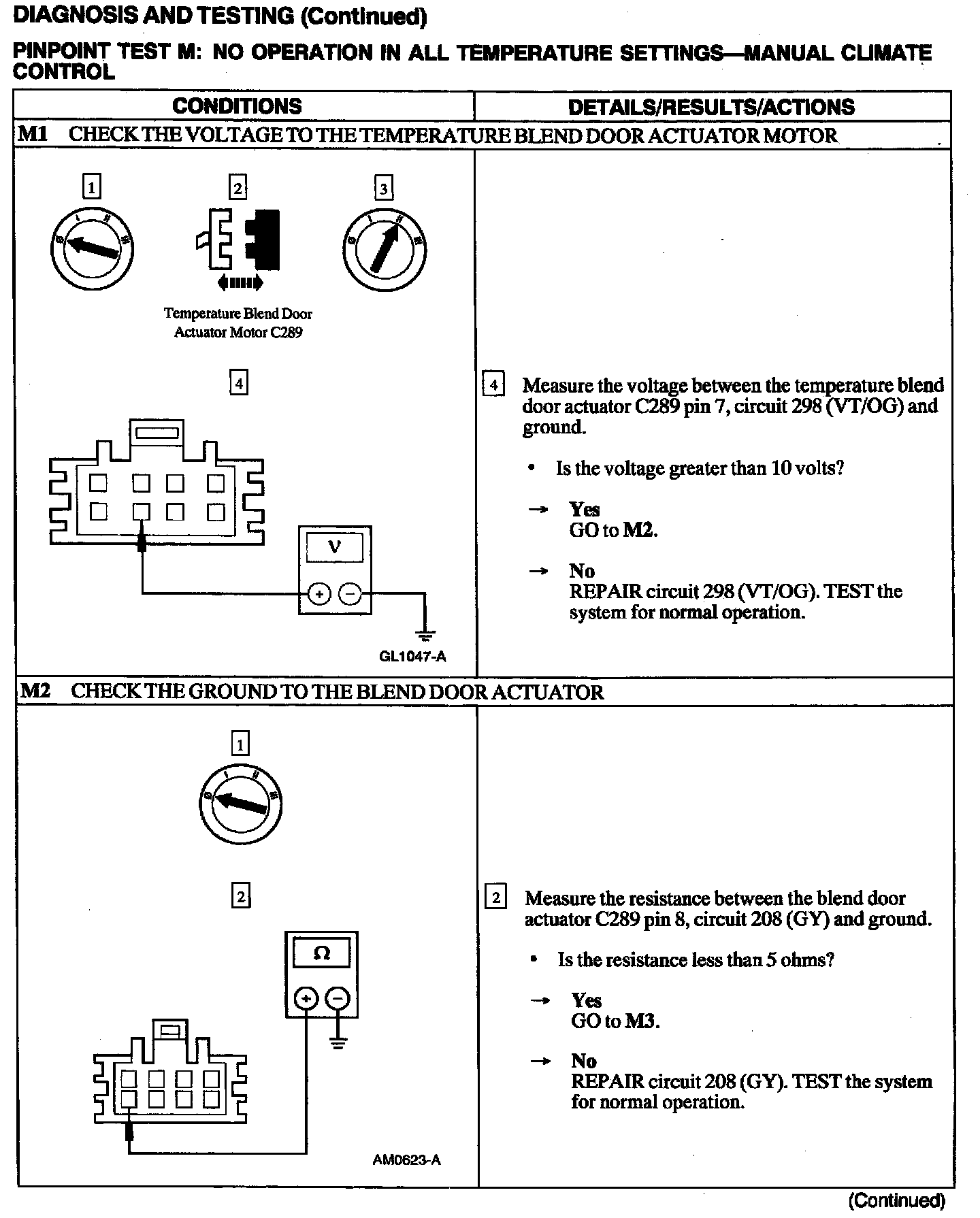

M1 - M2:

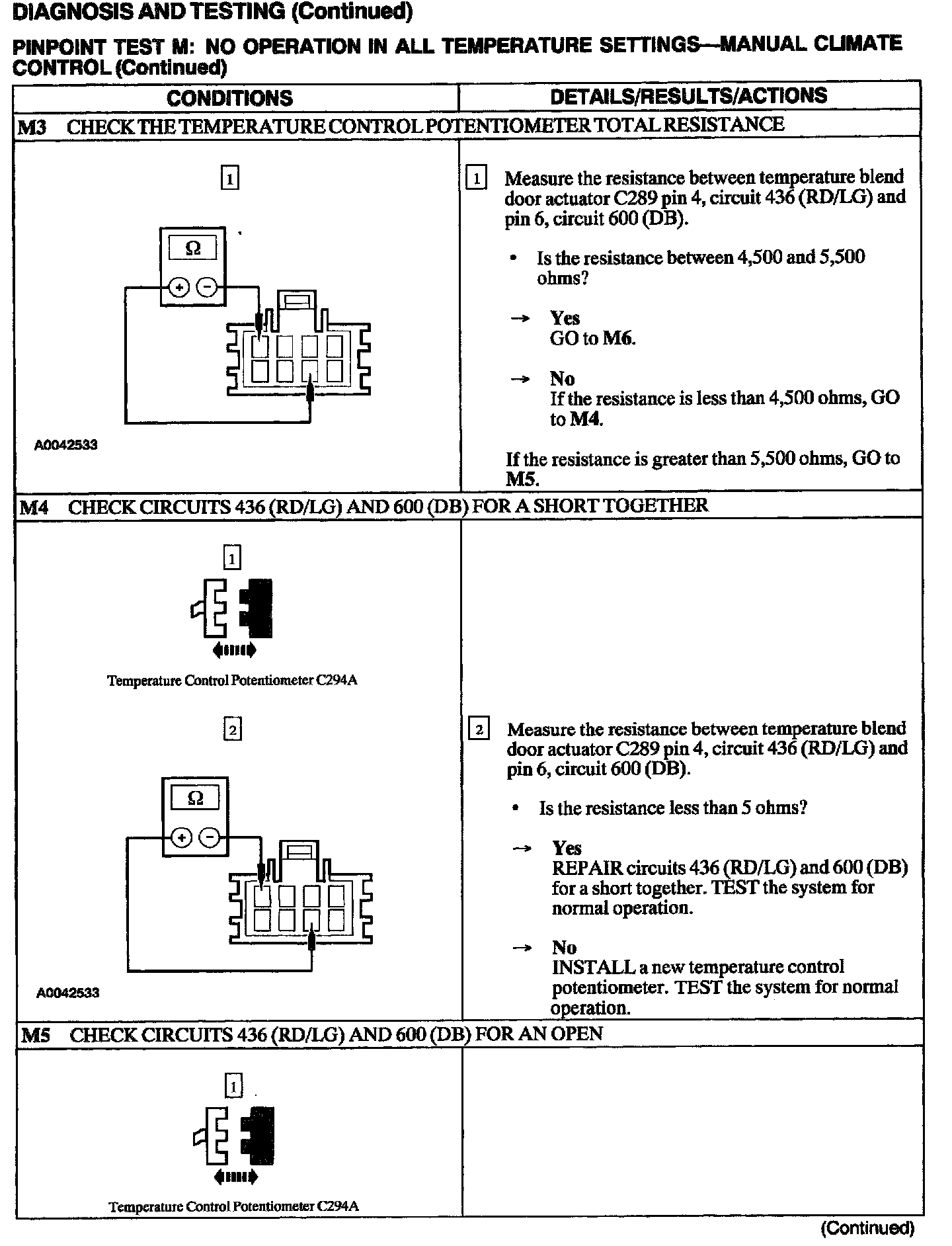

M3 - M5:

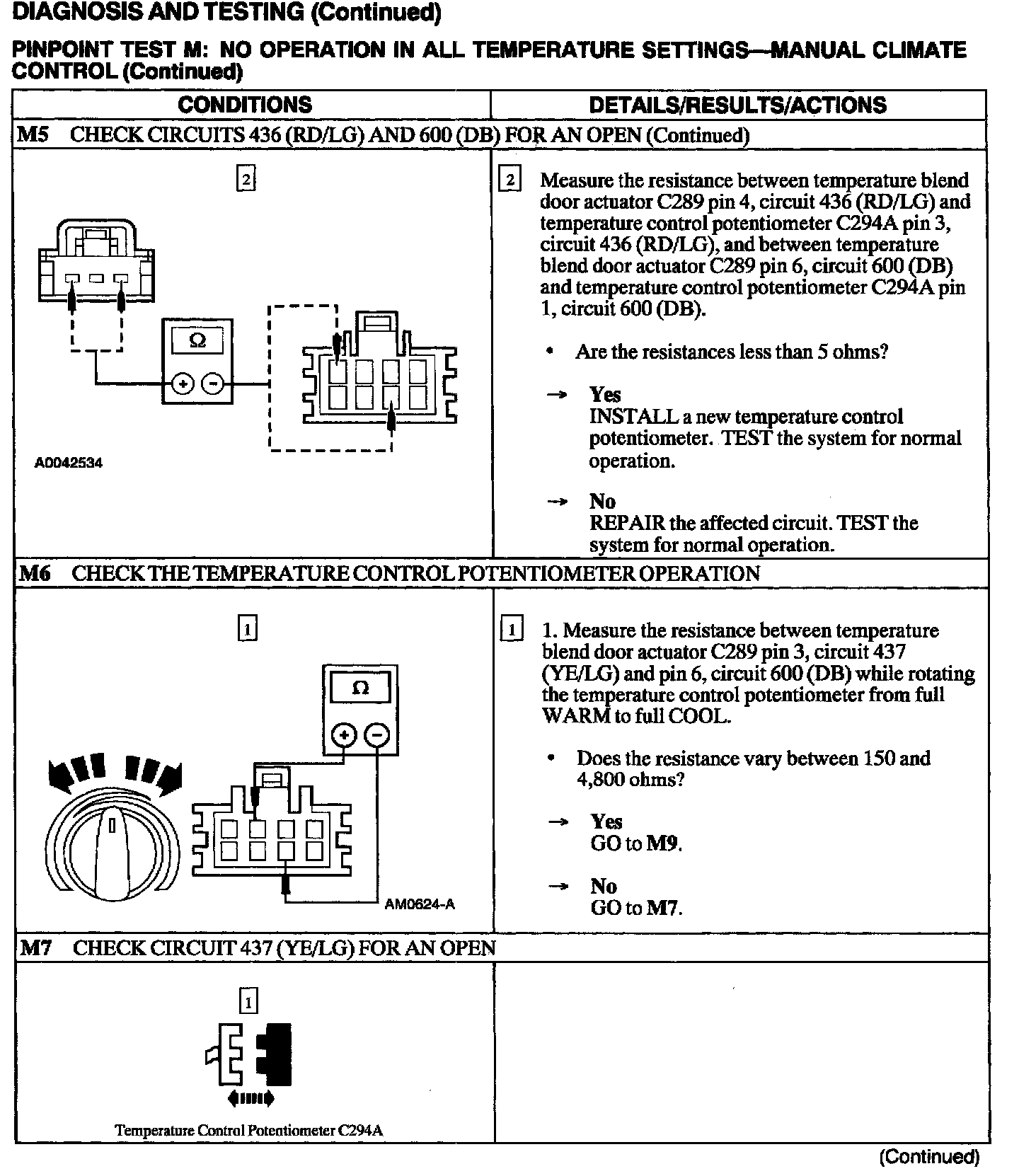

M5 - M7:

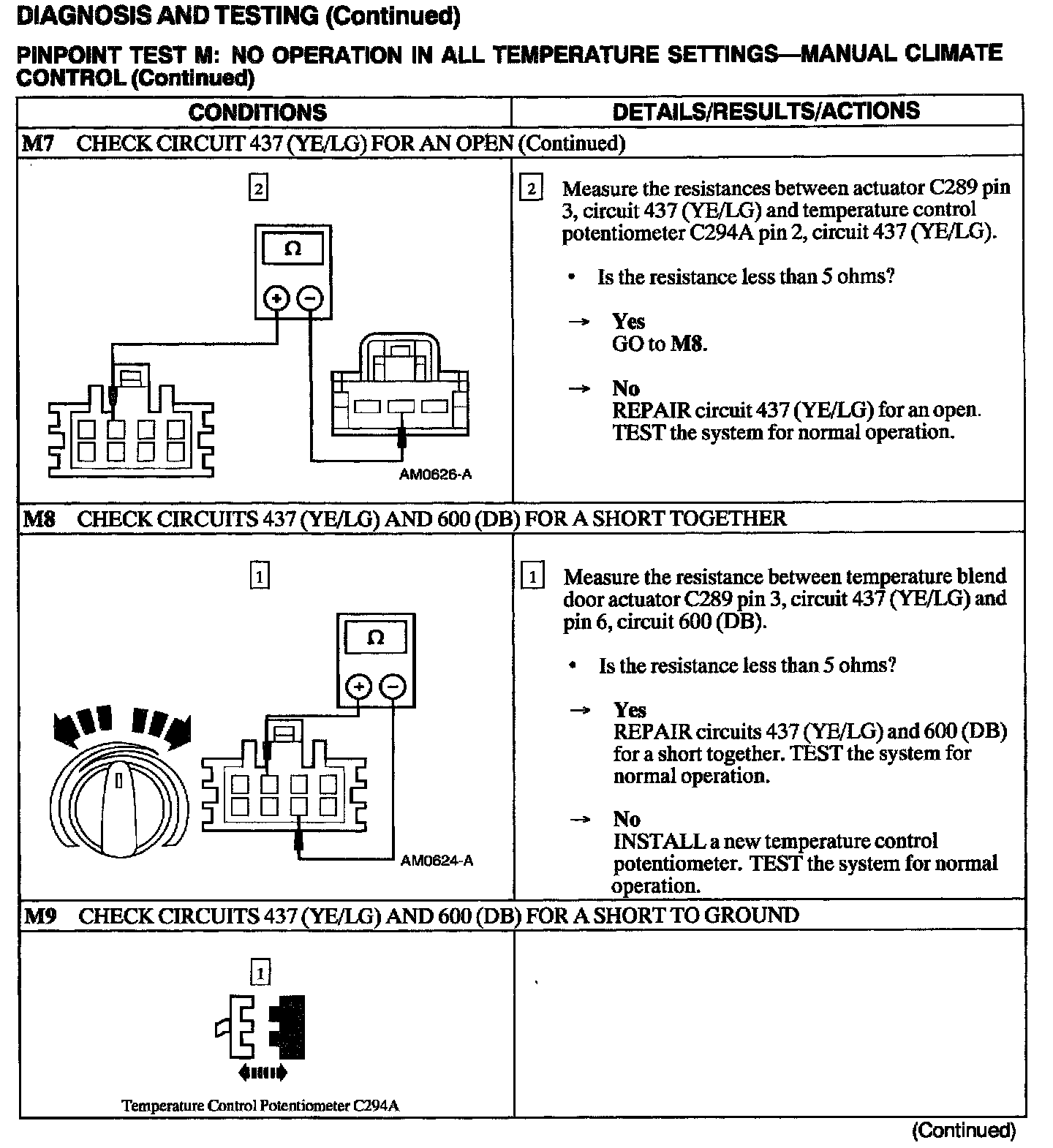

M7 - M9:

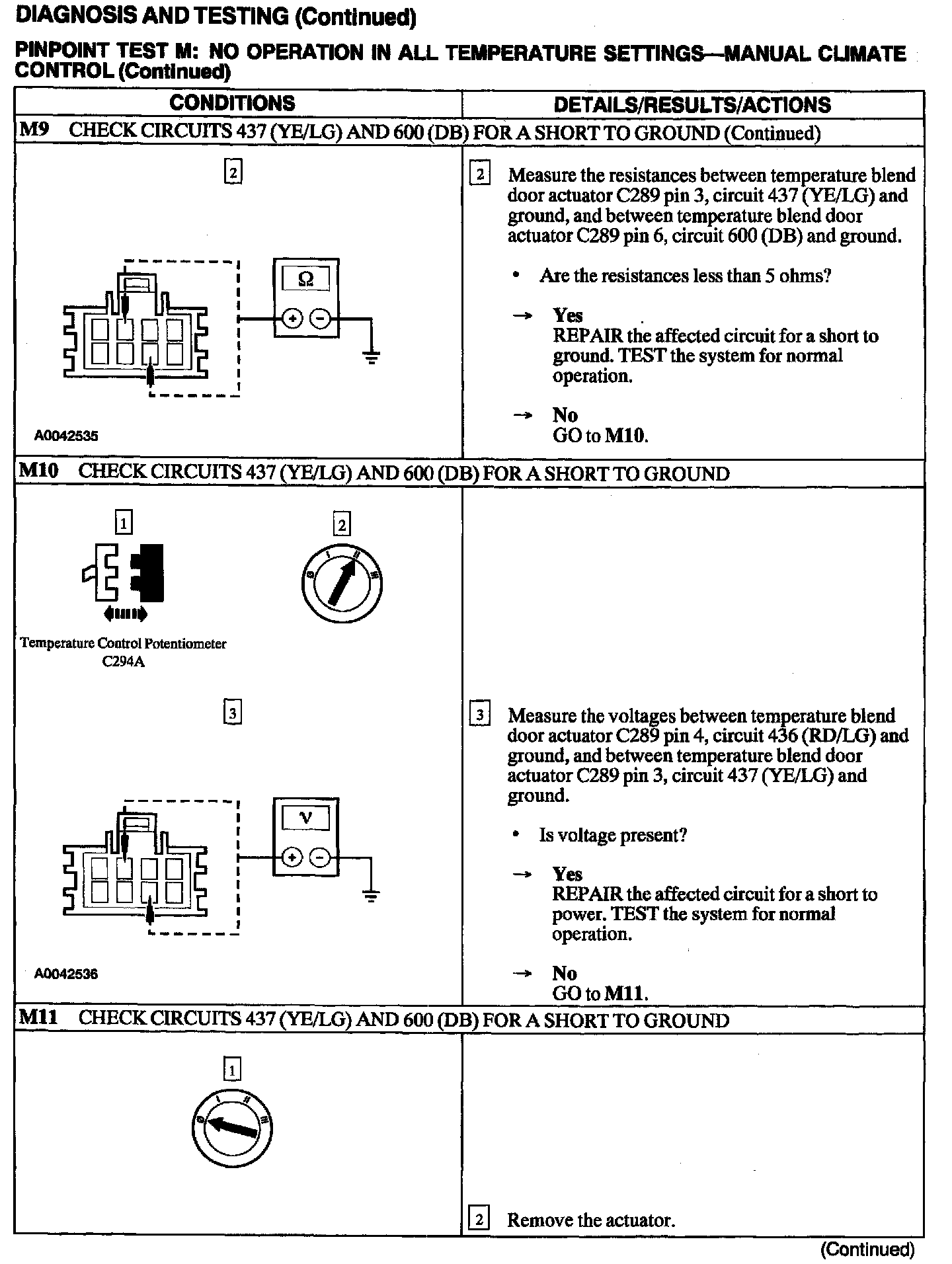

M9 - M11:

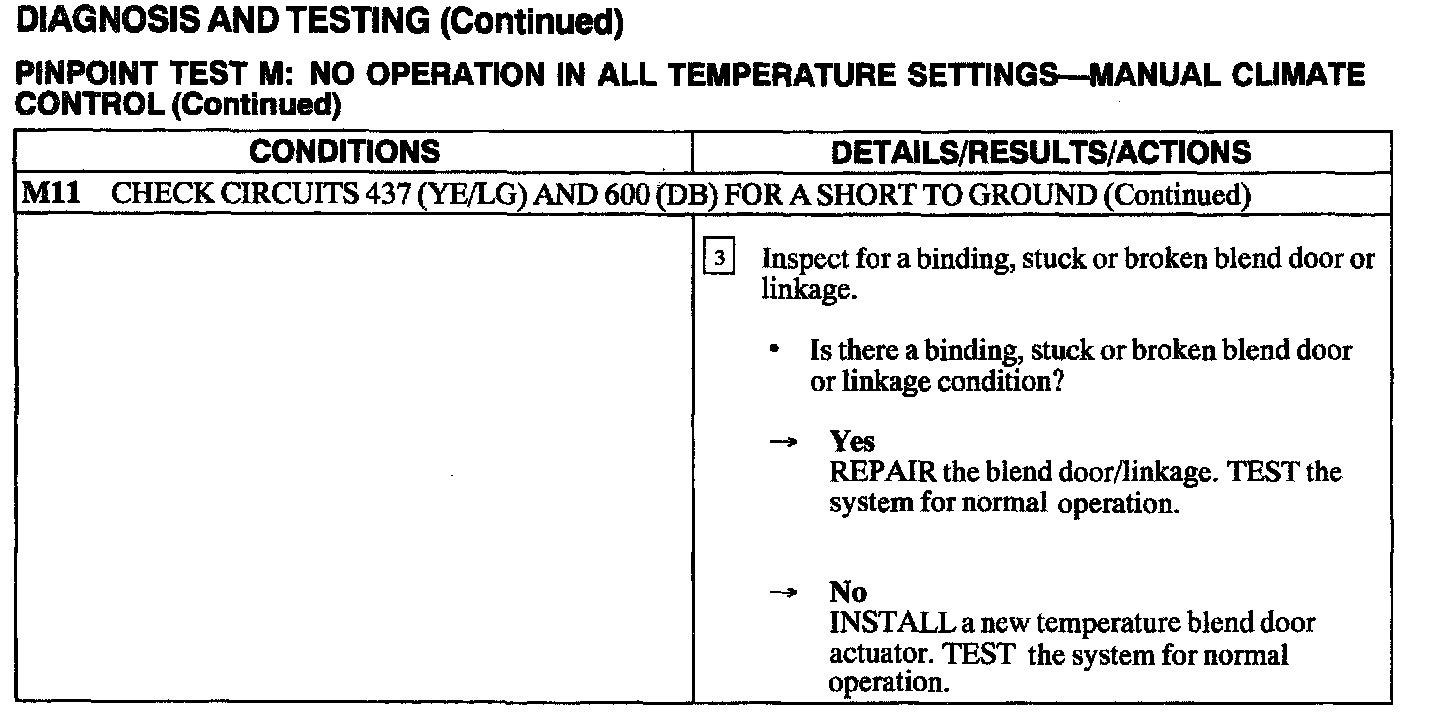

M11:
