Test J: Air Conditioning Inoperative/Does Not Operate Correctly
Test J: Air Conditioning Inoperative/Does Not Operate Correctly

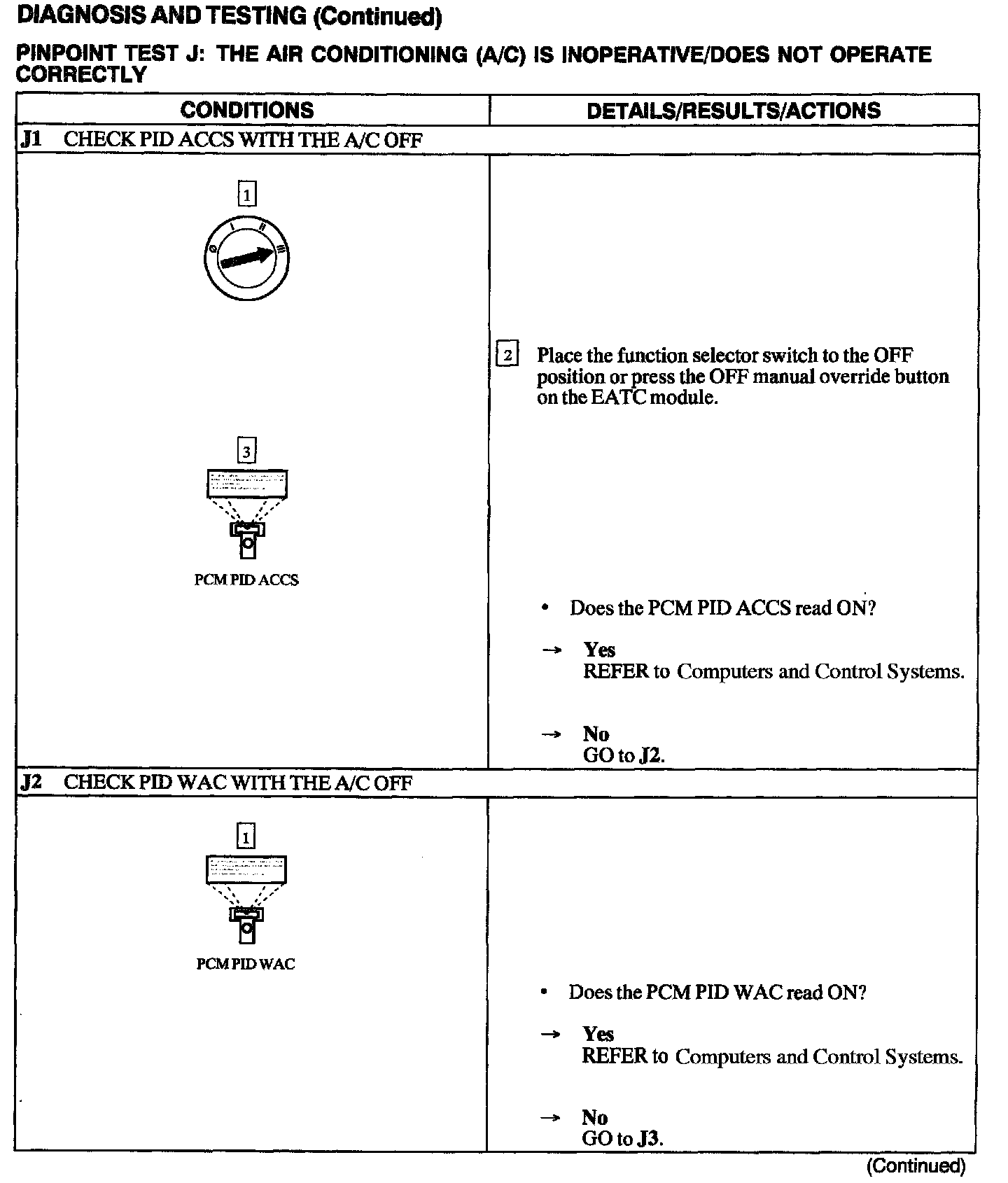

J1 - J2:

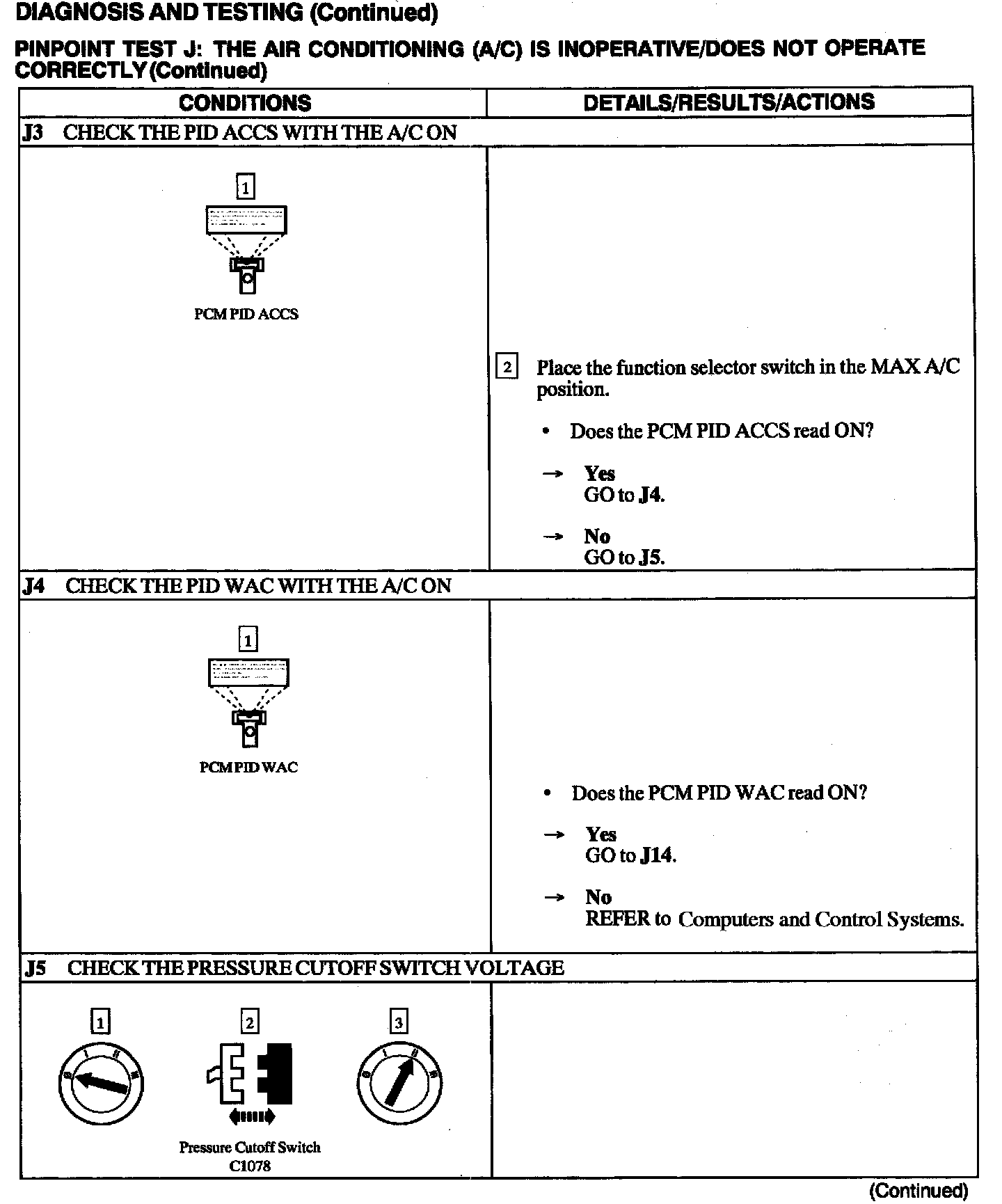

J3 - J5:

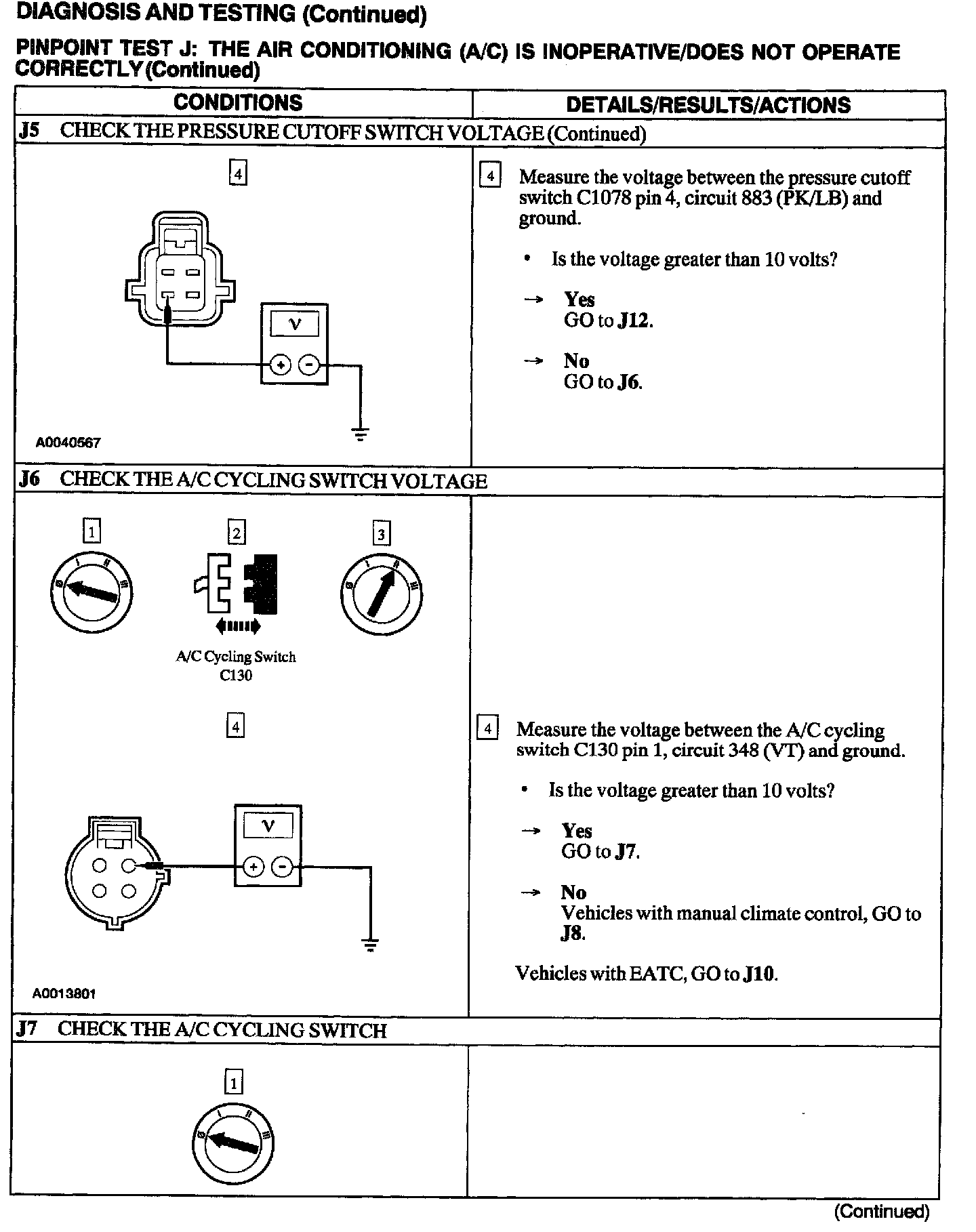

J5 - J7:

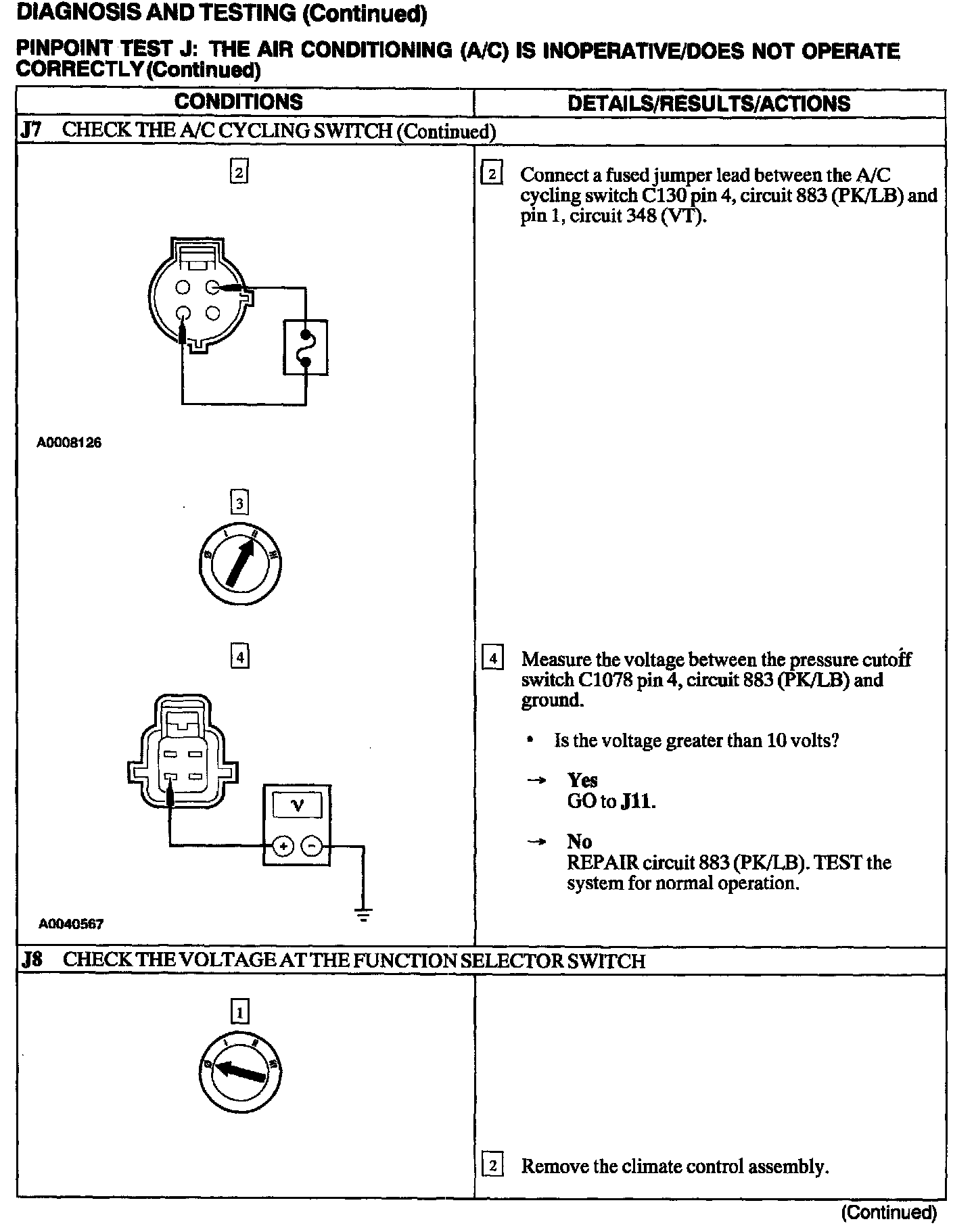

J7 - J8:

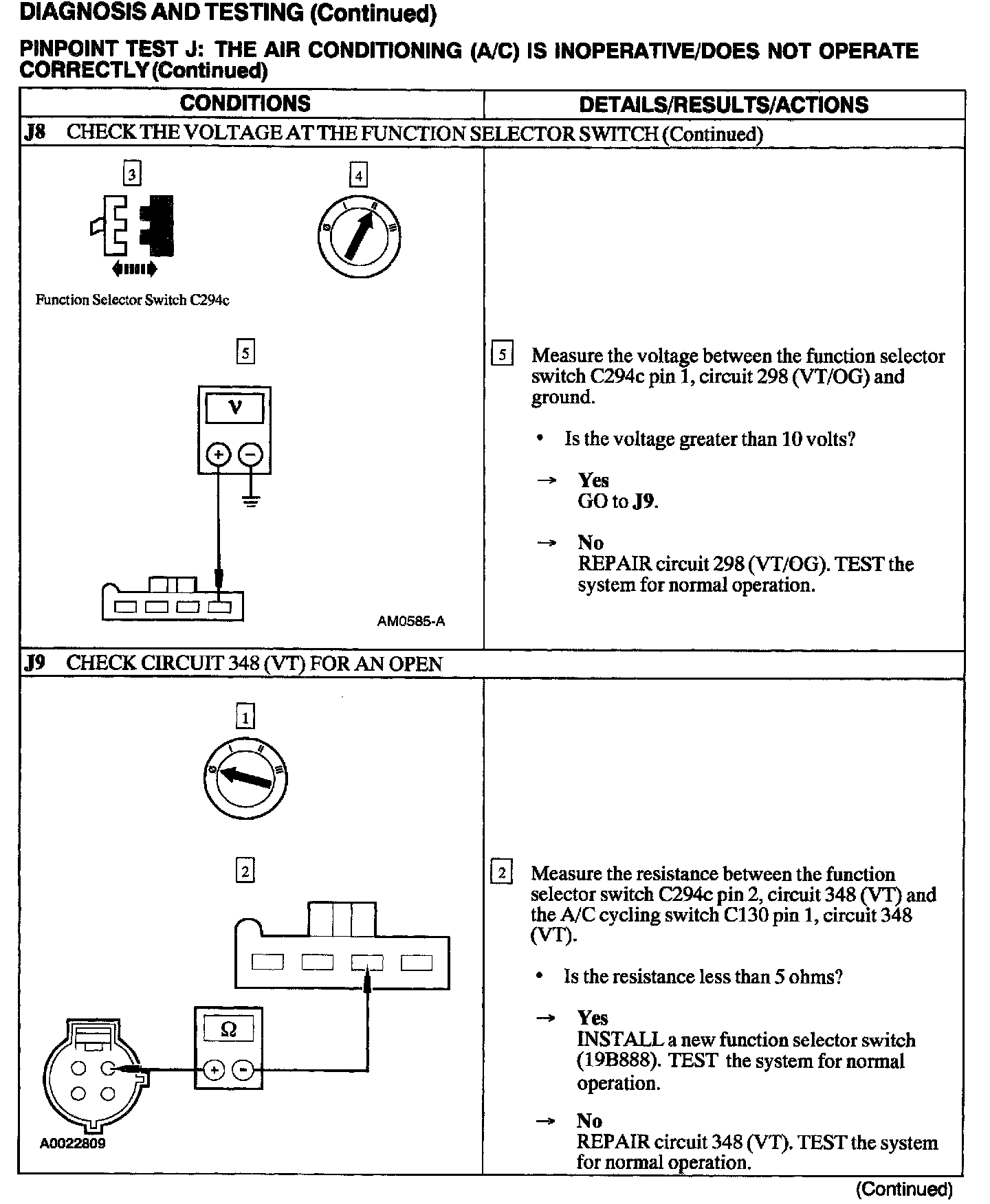

J8 - J9:

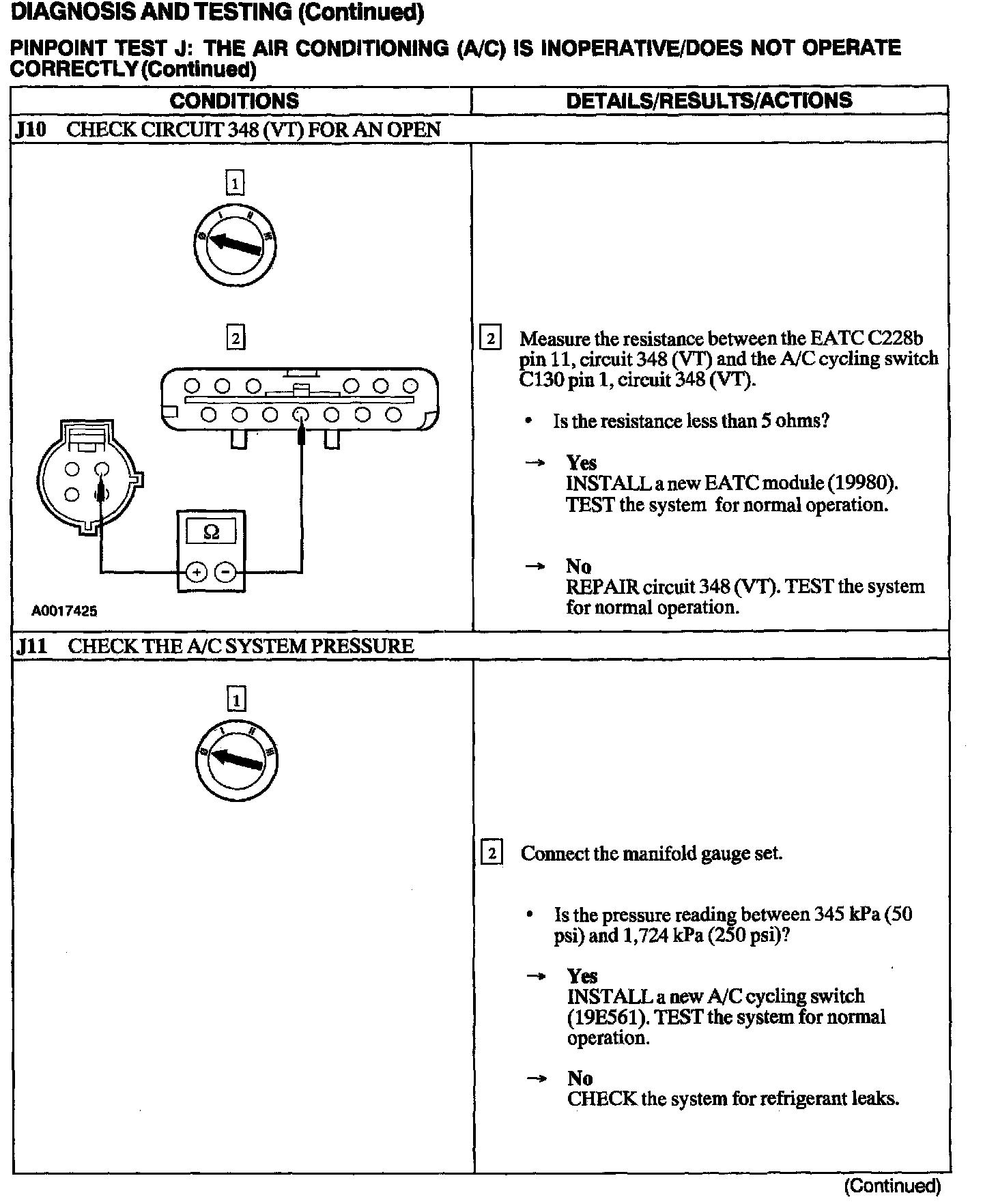

J10 - J11:

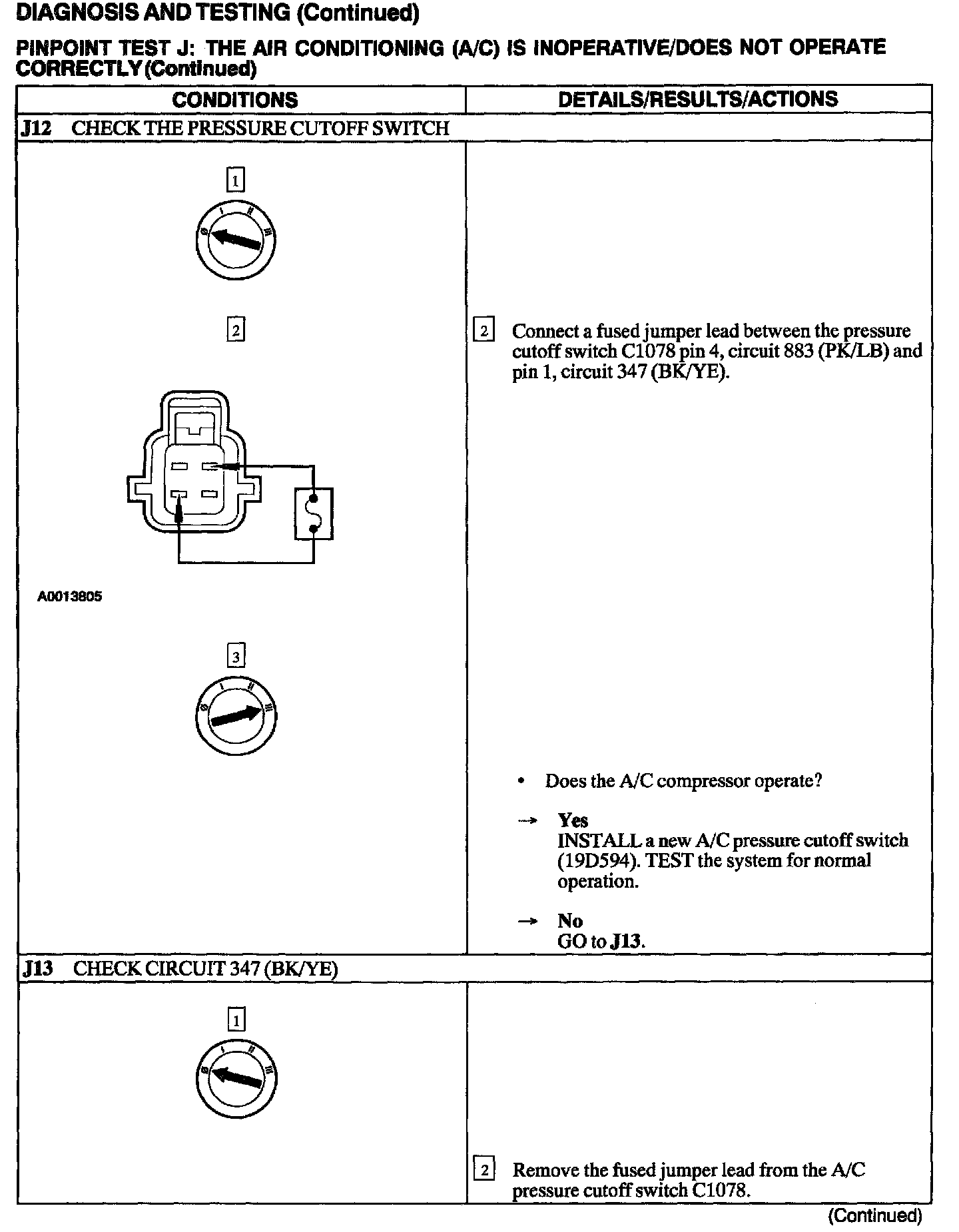

J12 - J13:

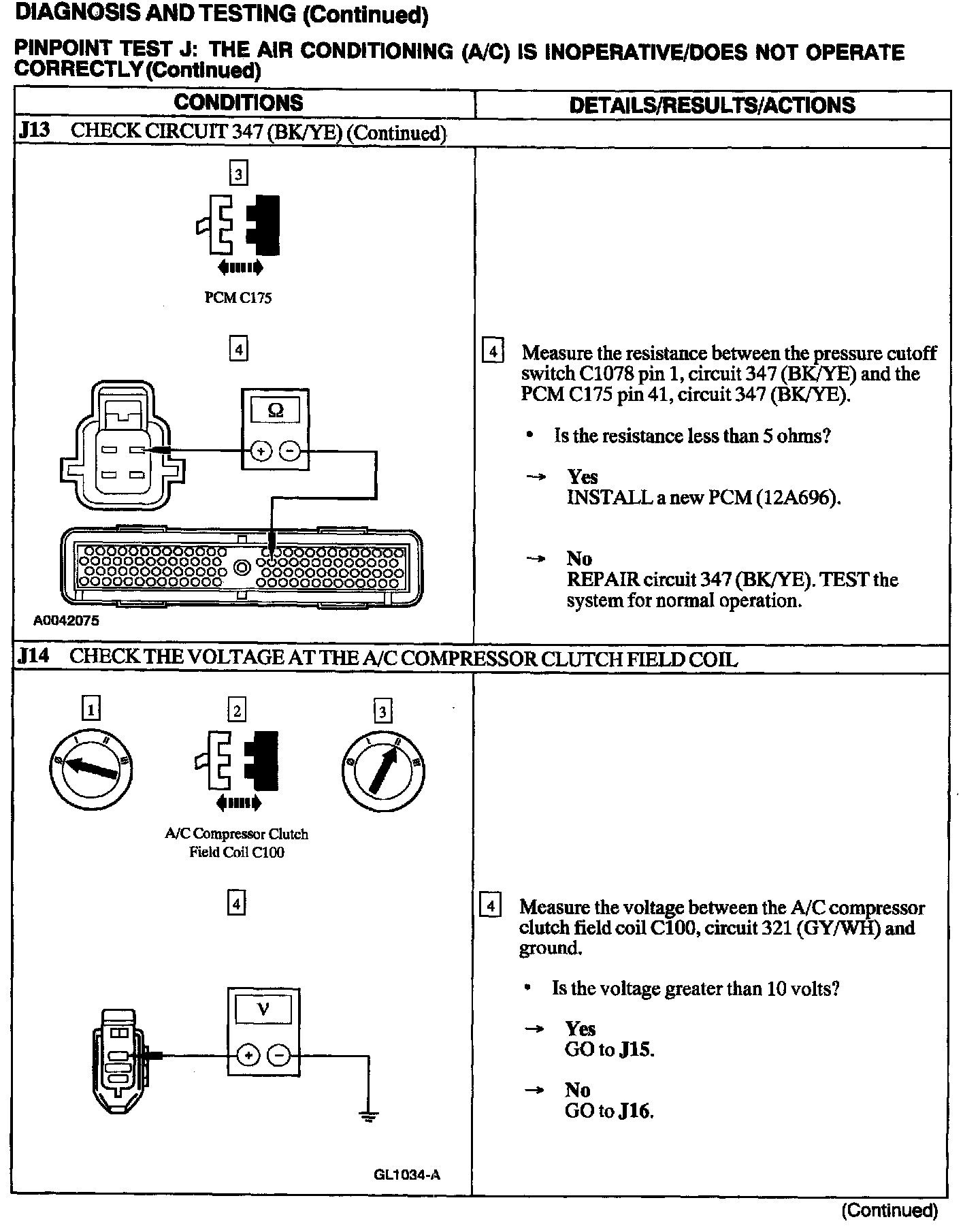

J13 - J14:
J15 - J16:

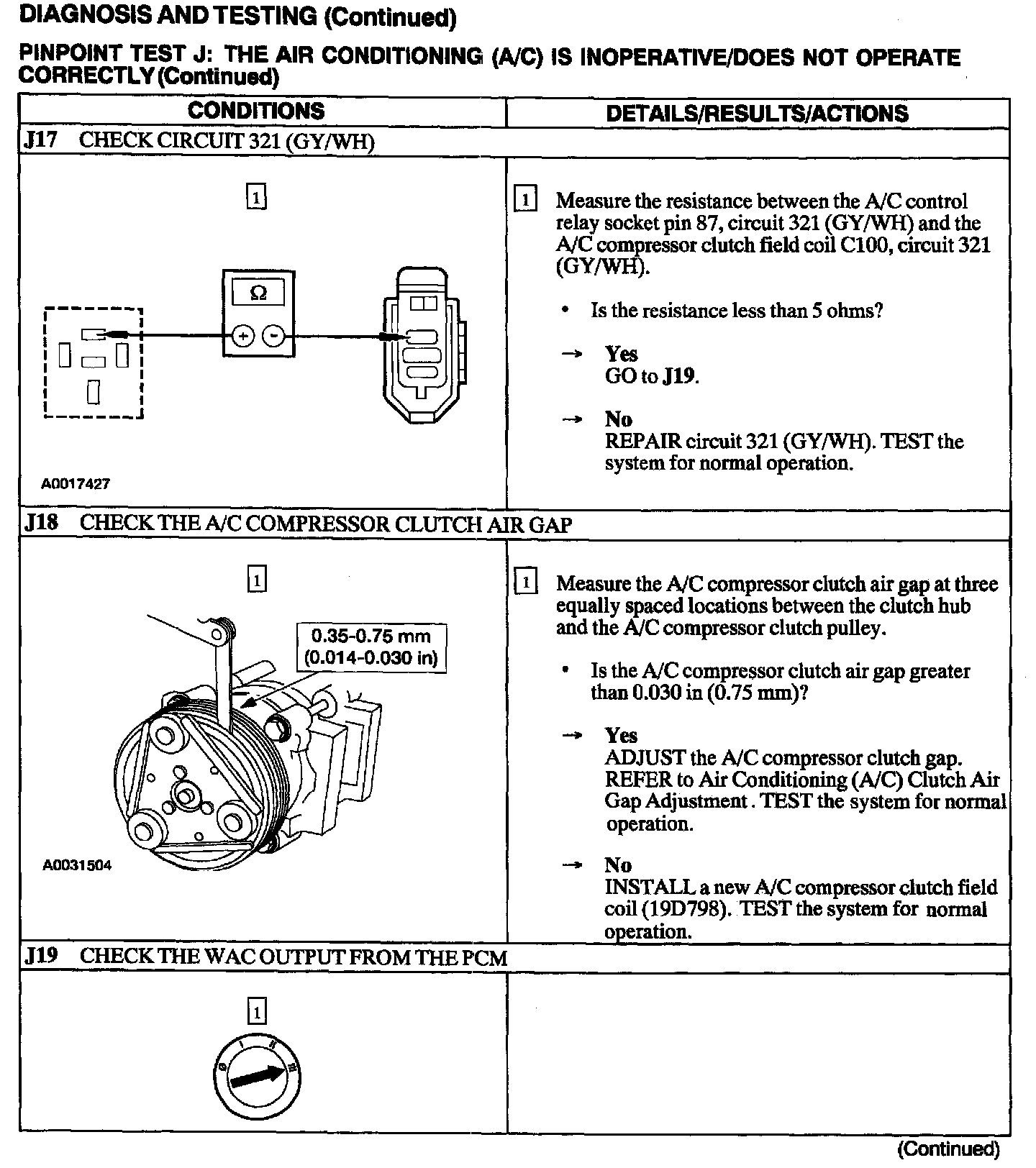

J17 - J19:

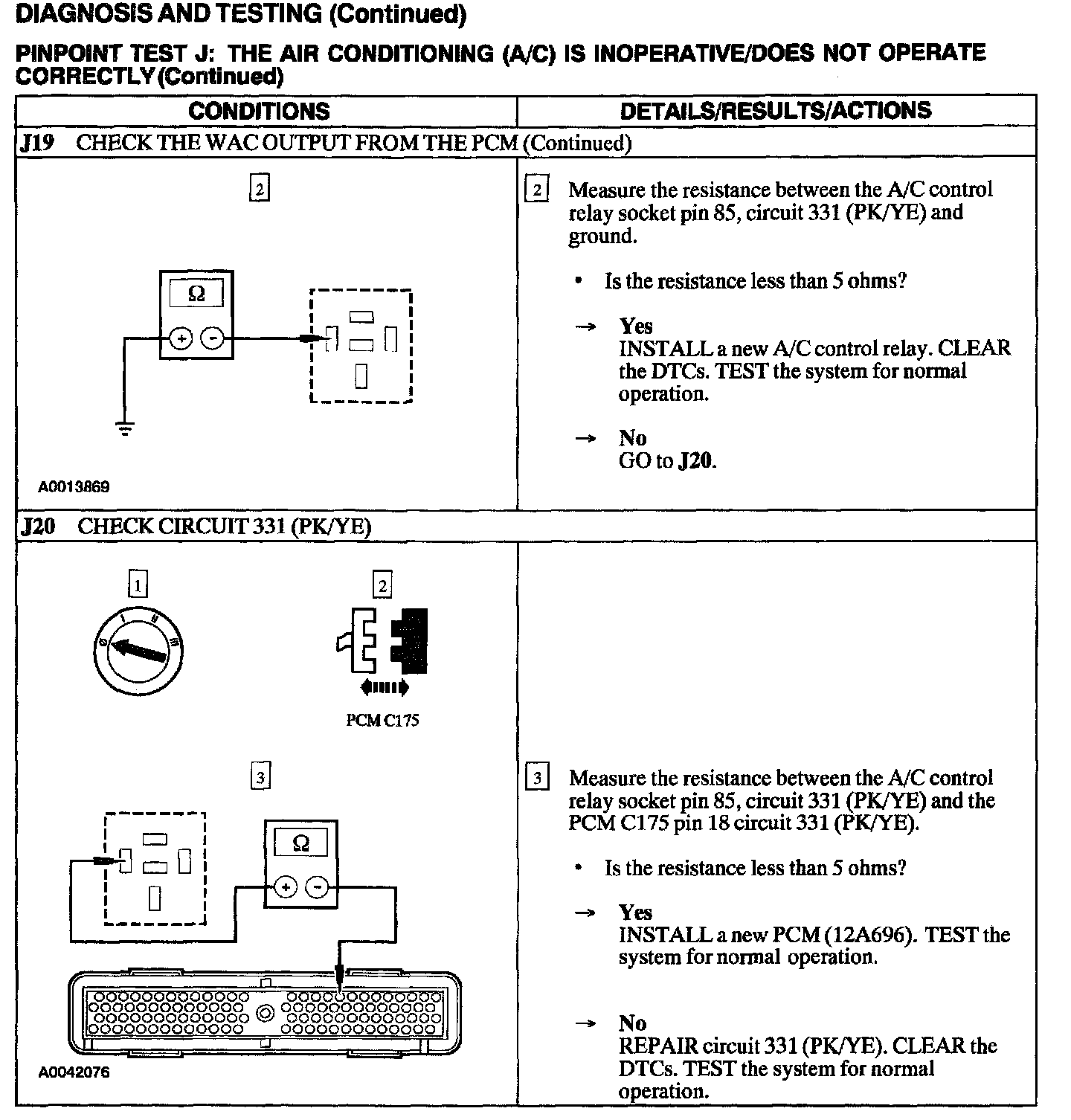

J19 - J20:
