Test H: Incorrect/Erratic Air Flow From Outlet - EATC
Test H: Incorrect/Erratic Air Flow From Outlet - EATC

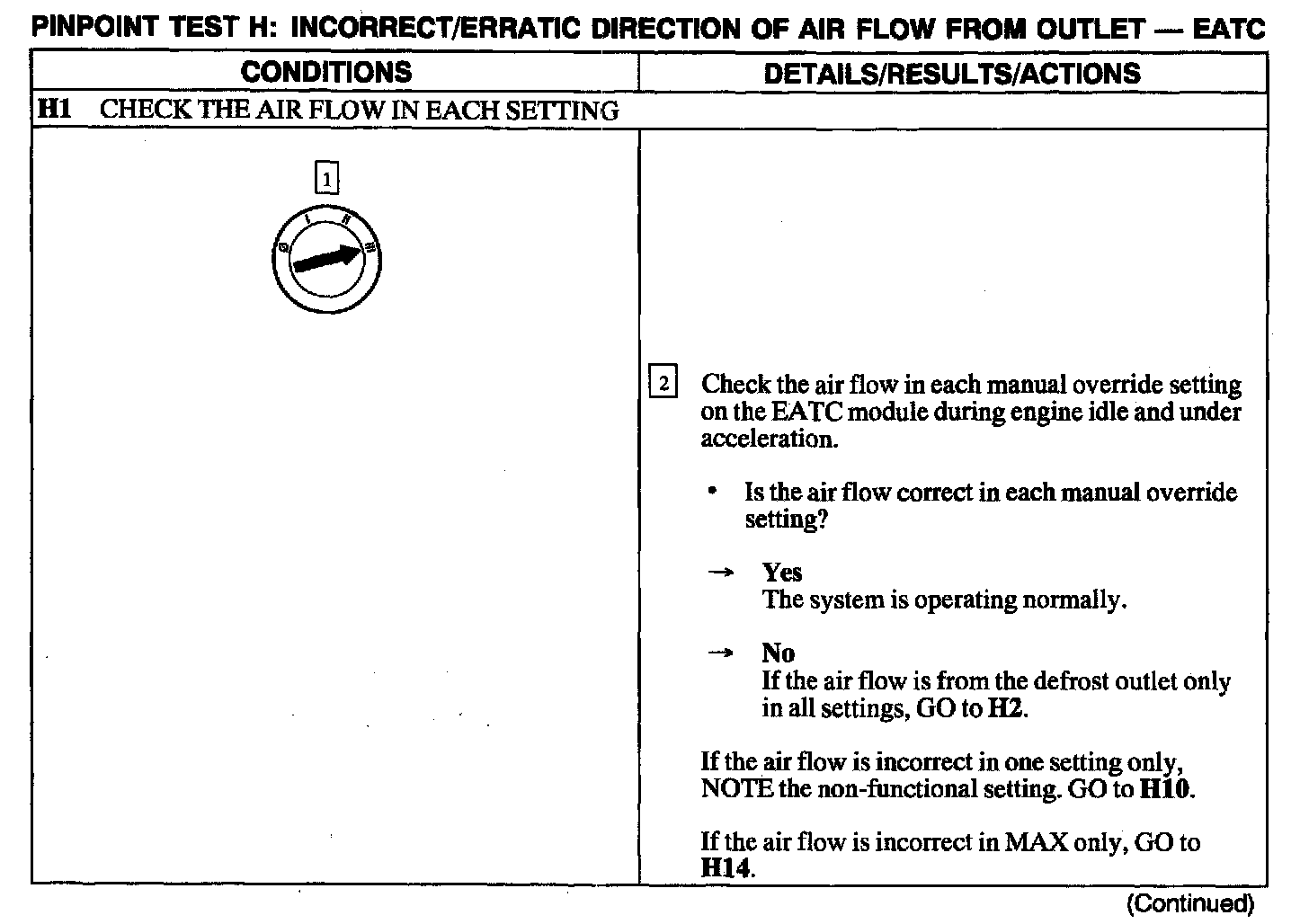

H1:

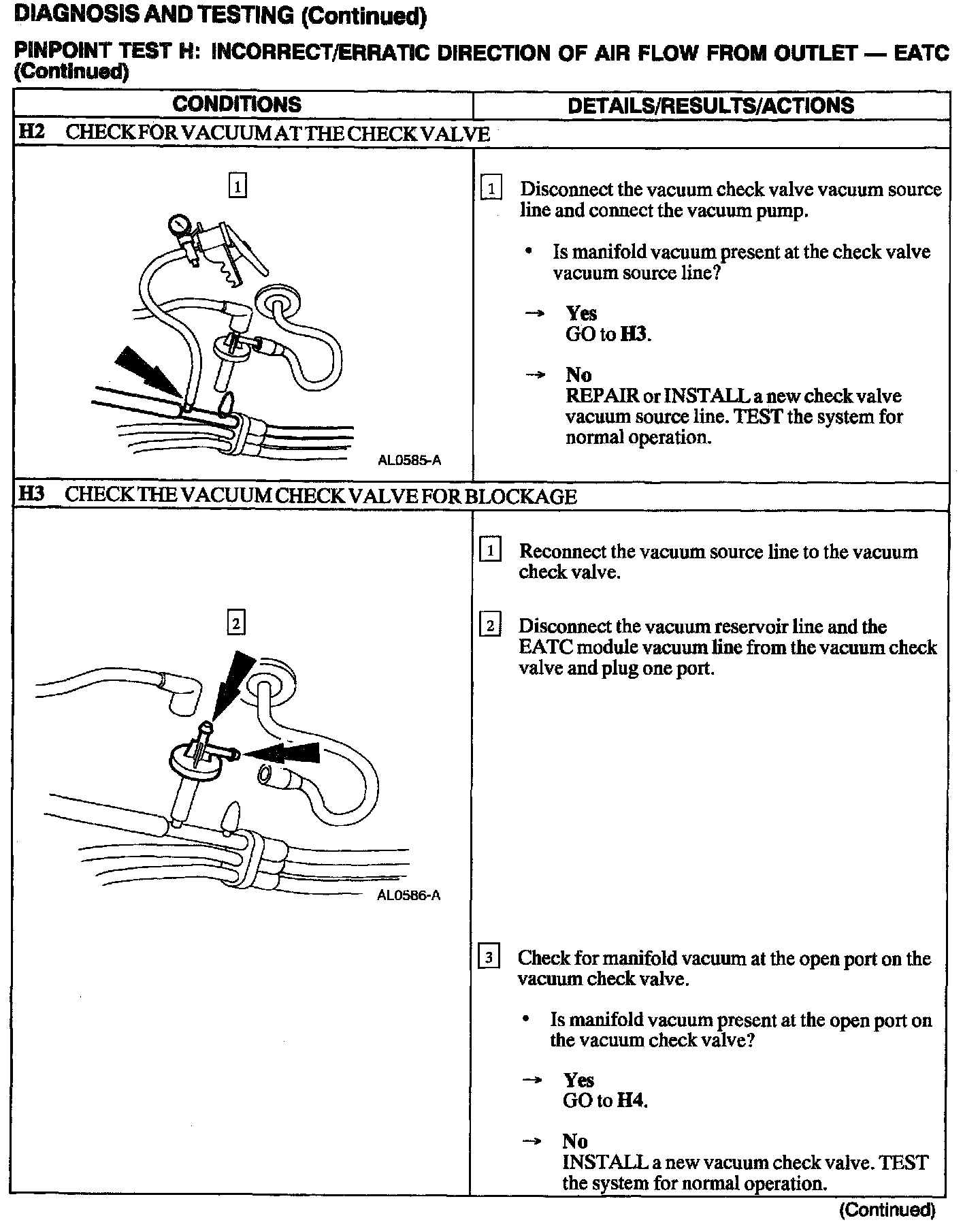

H2 - H3:

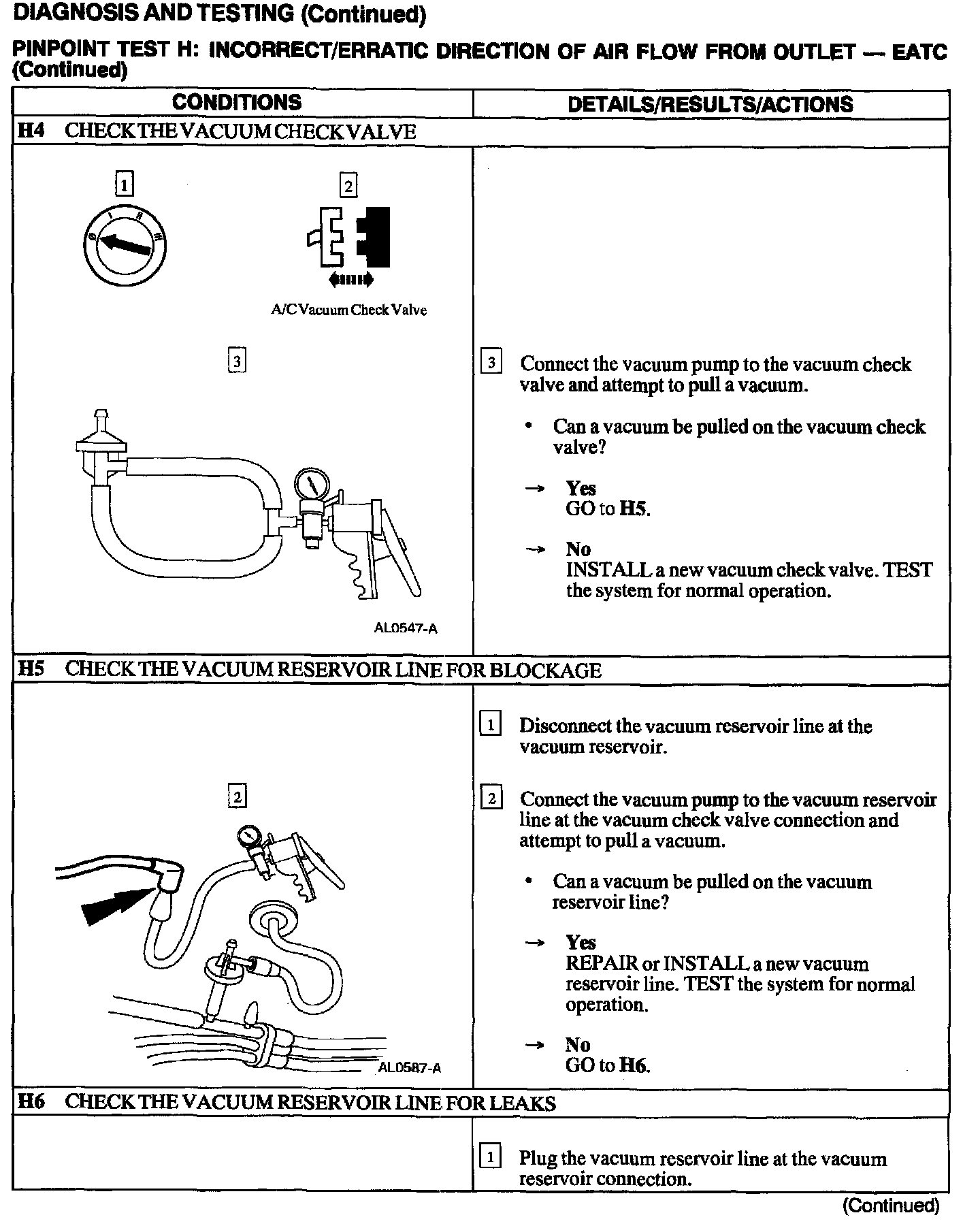

H4 - H6:

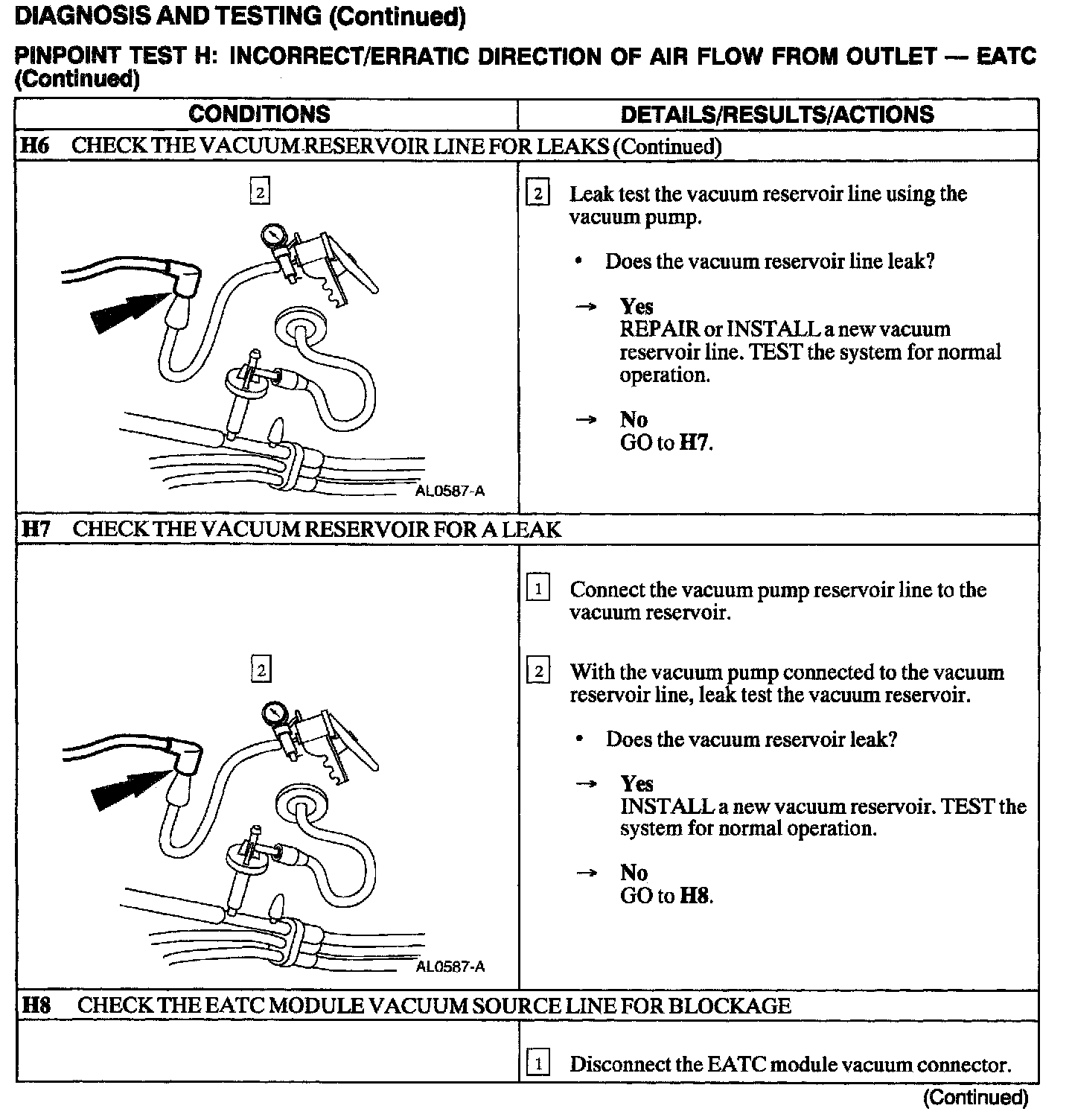

H6 - H8:

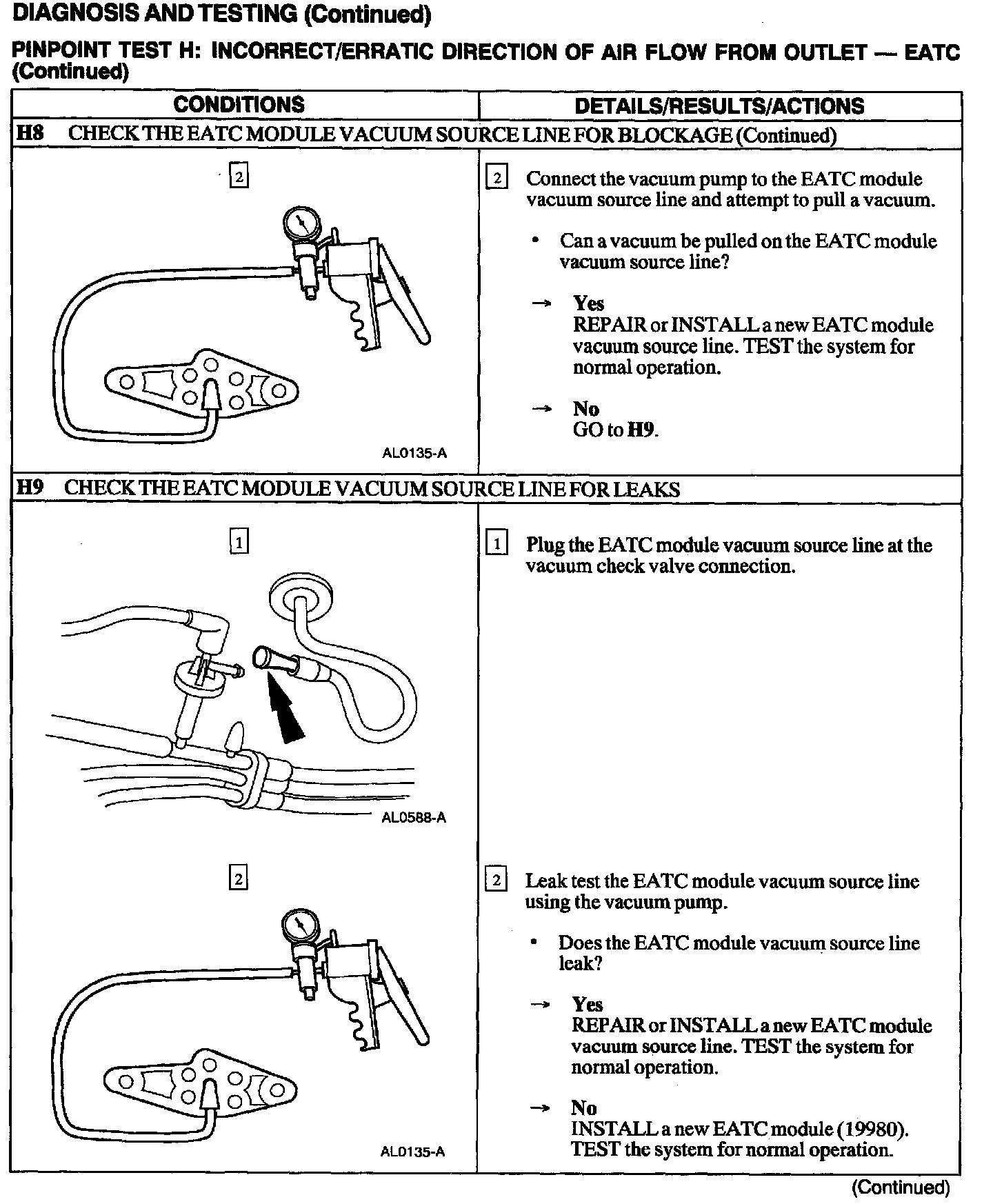

H8 - H9:

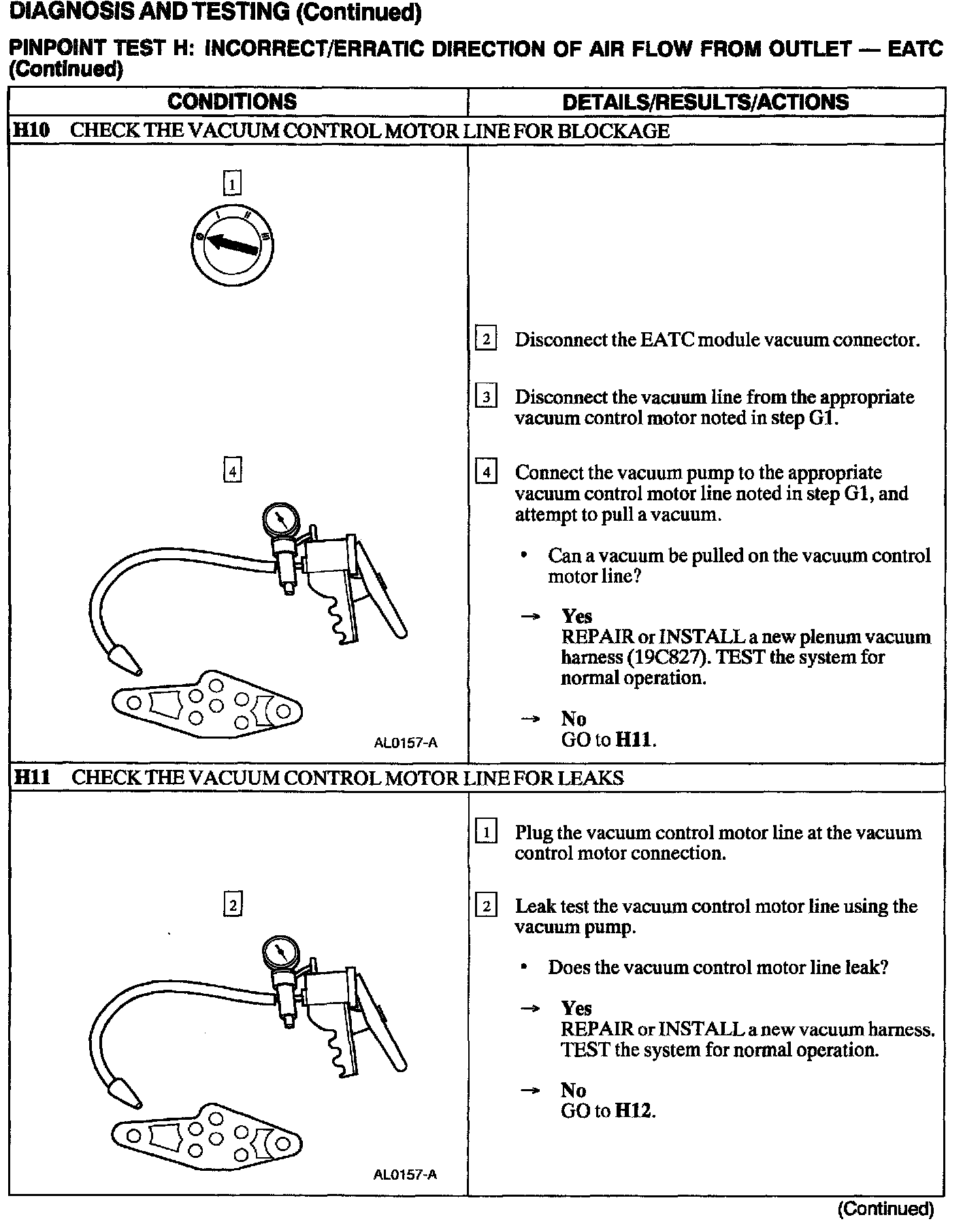

H10 - H11:

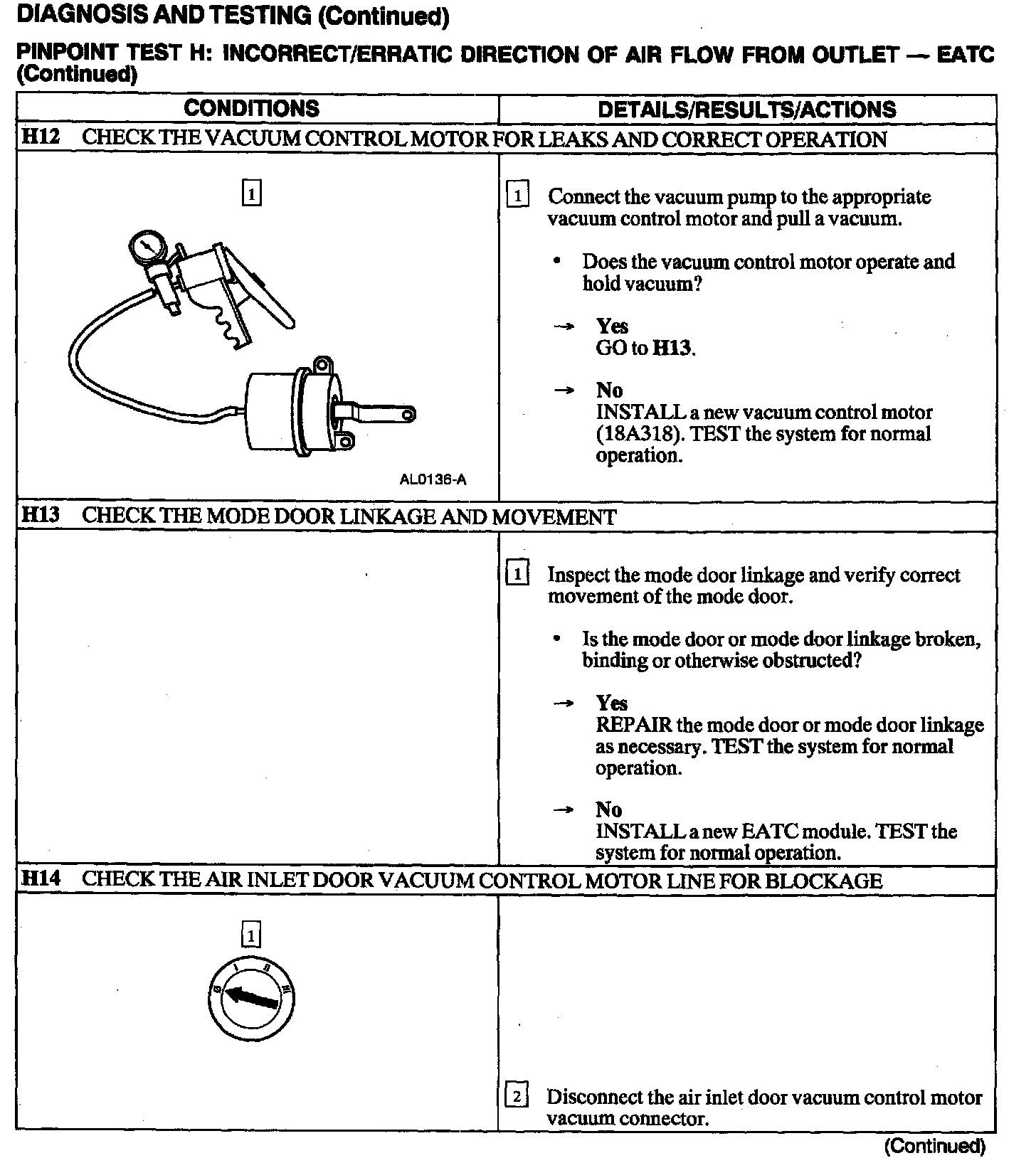

H12 - H14:

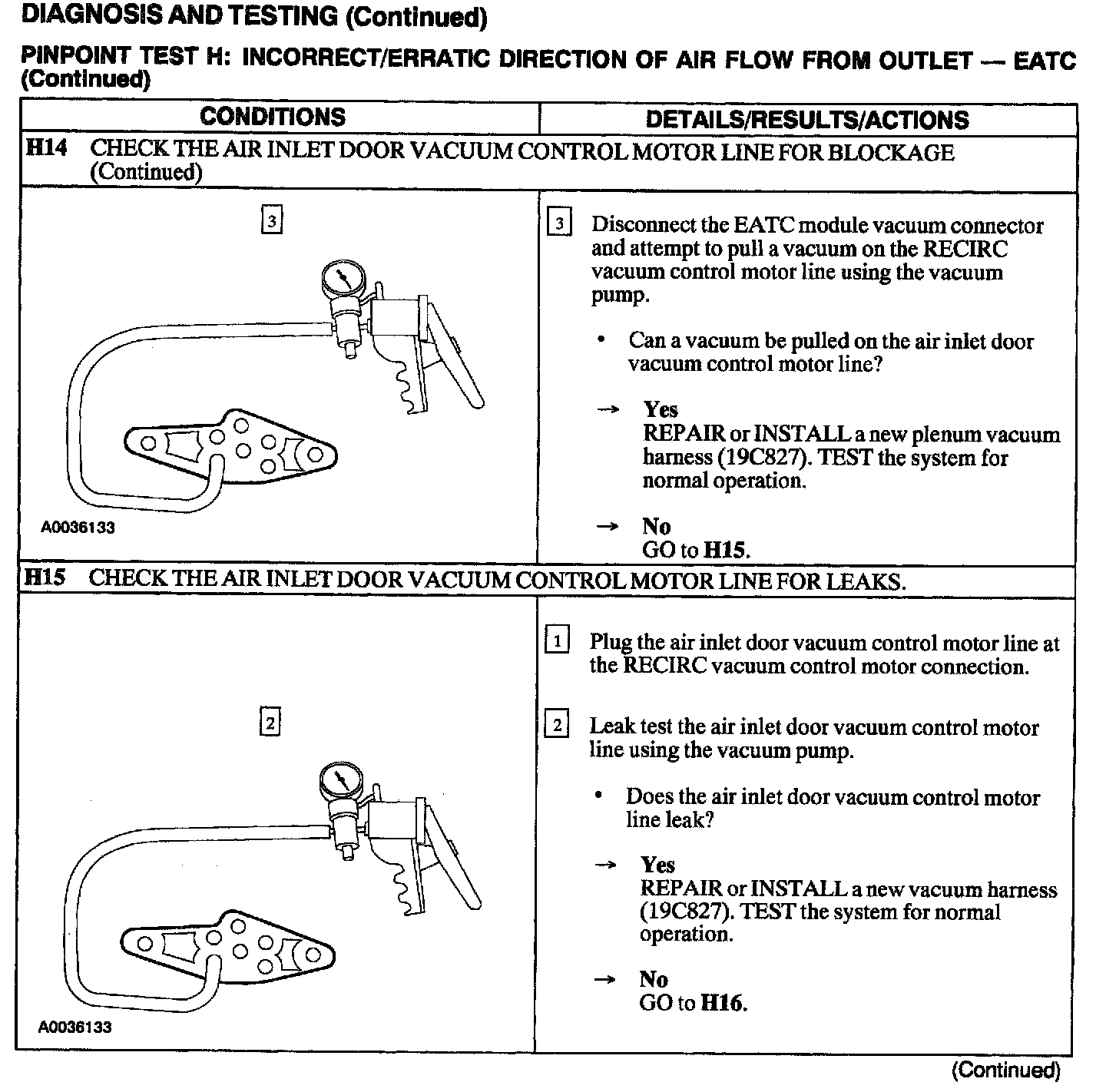

H14 - H15:

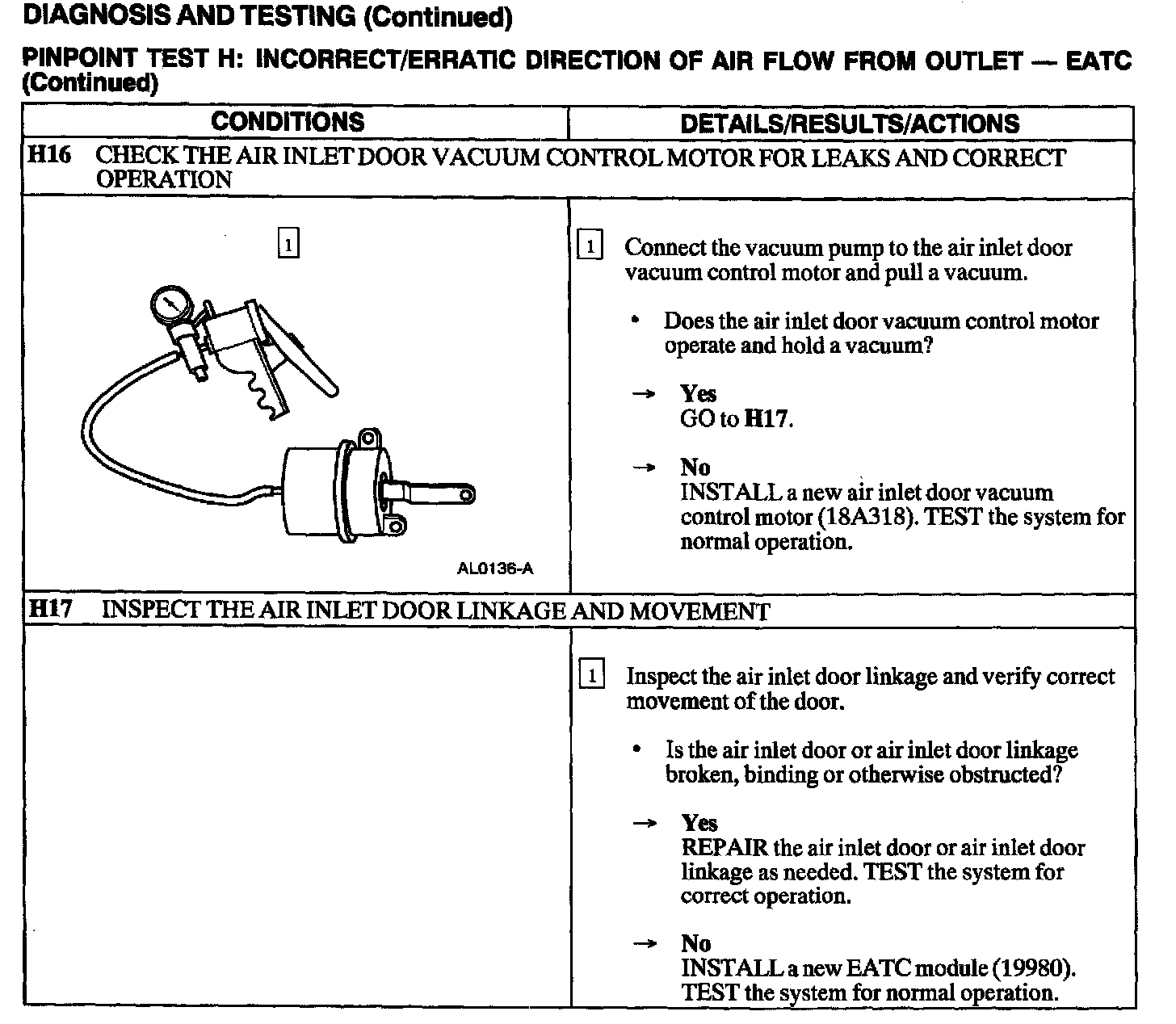

H16 - H17:
