Test G: Incorrect/Erratic Air Flow From Outlet - Manual System
Test G: Incorrect/Erratic Air Flow From Outlet - Manual System

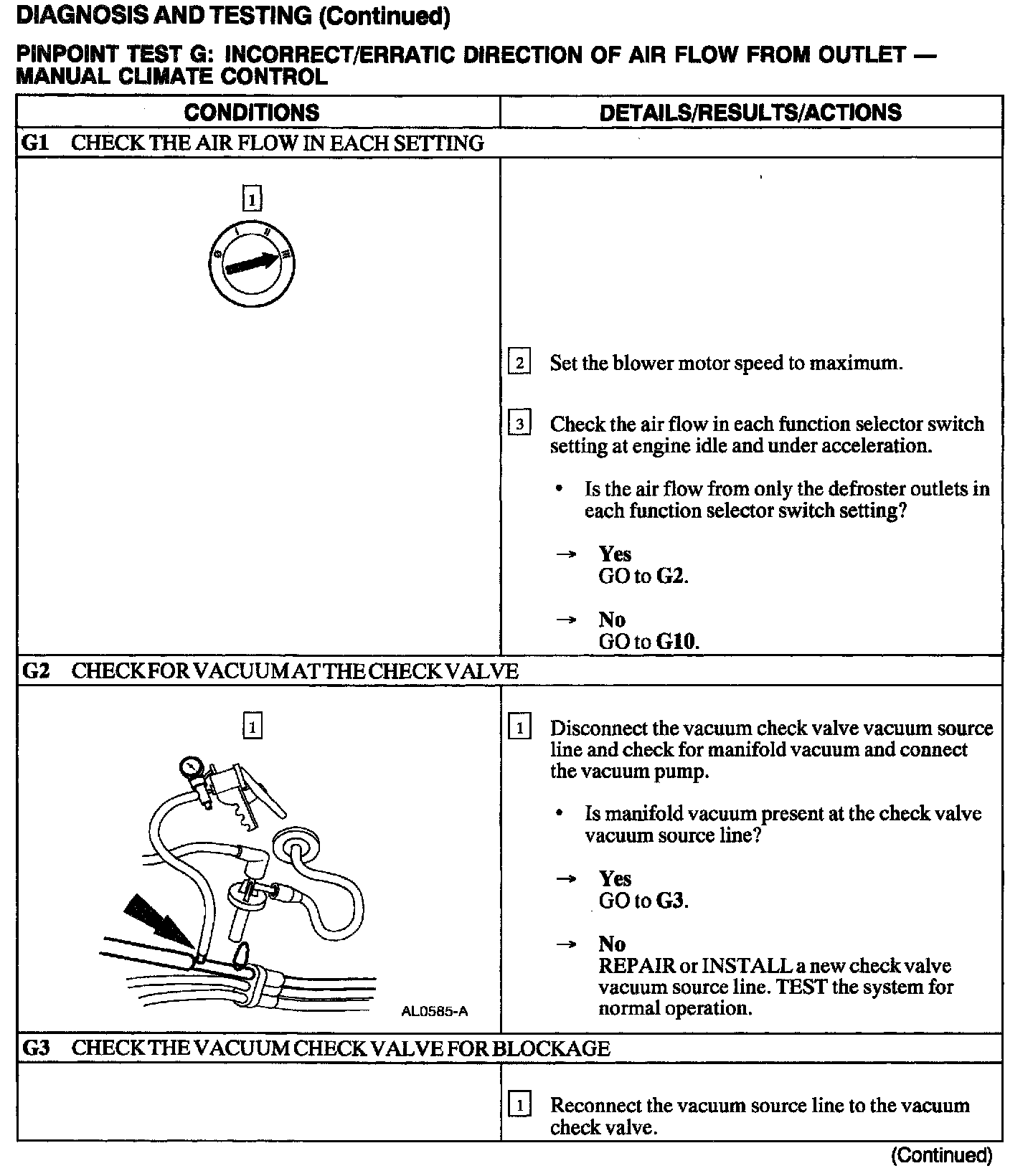

G1 - G3:

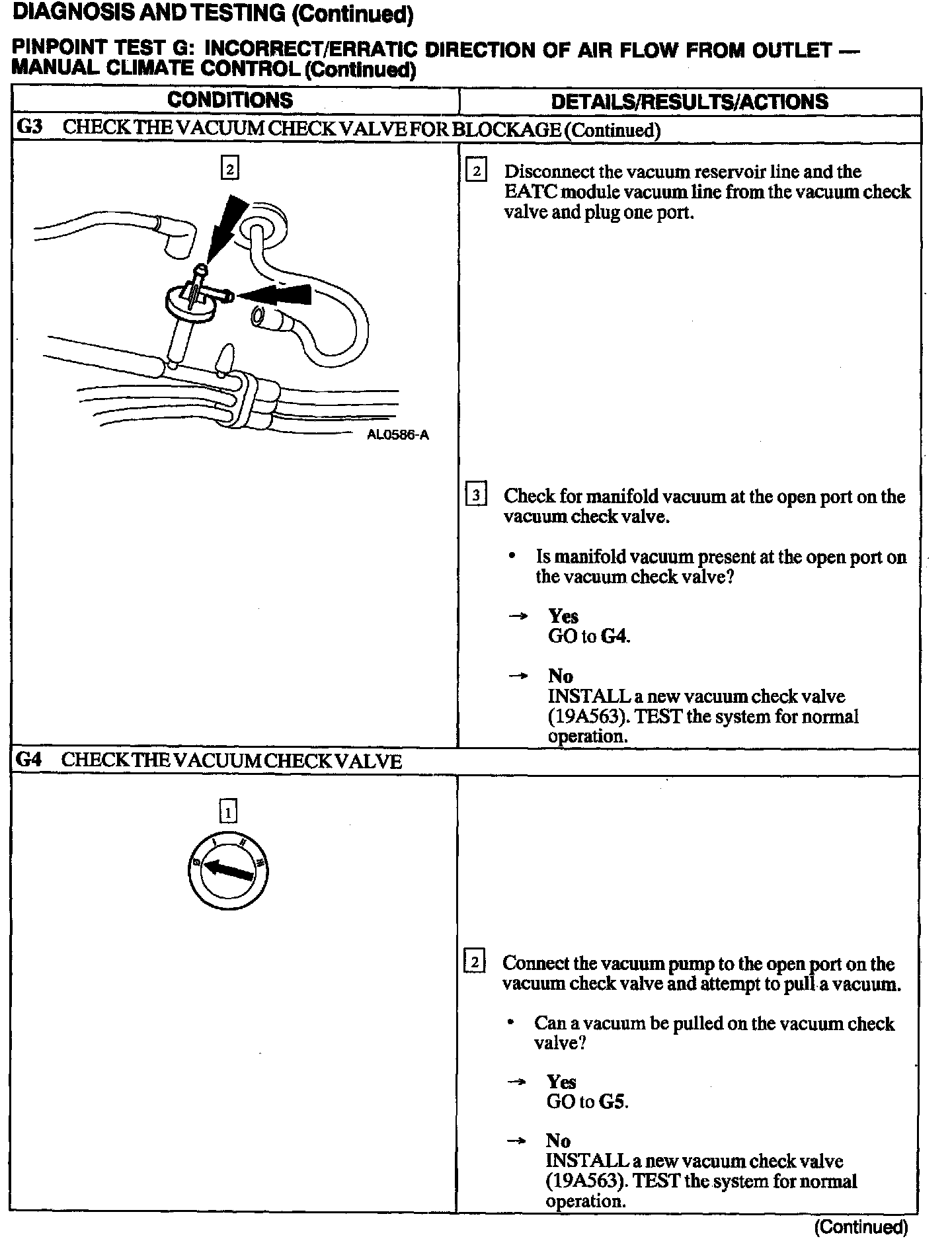

G3 - G4:

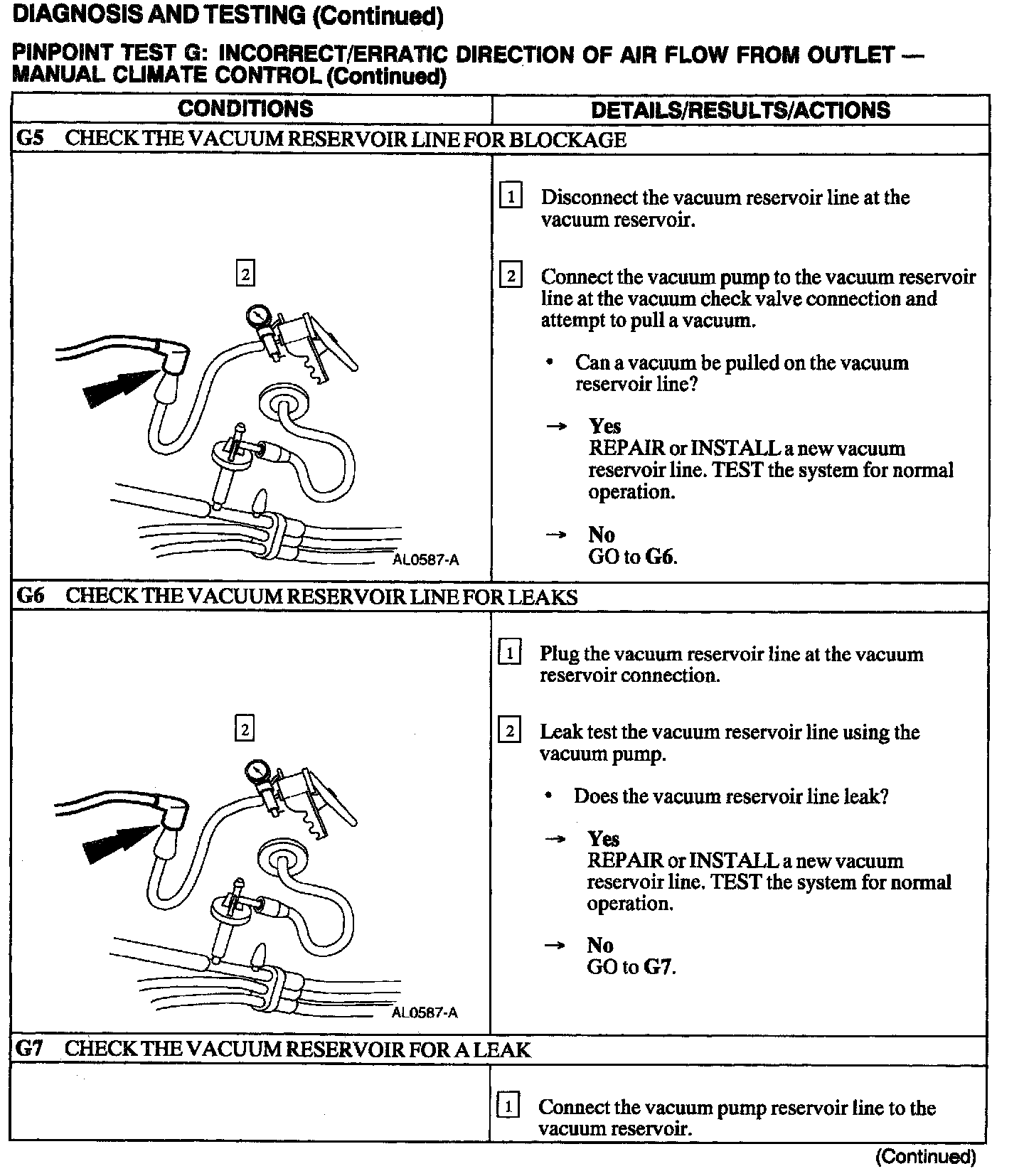

G5 - G7:

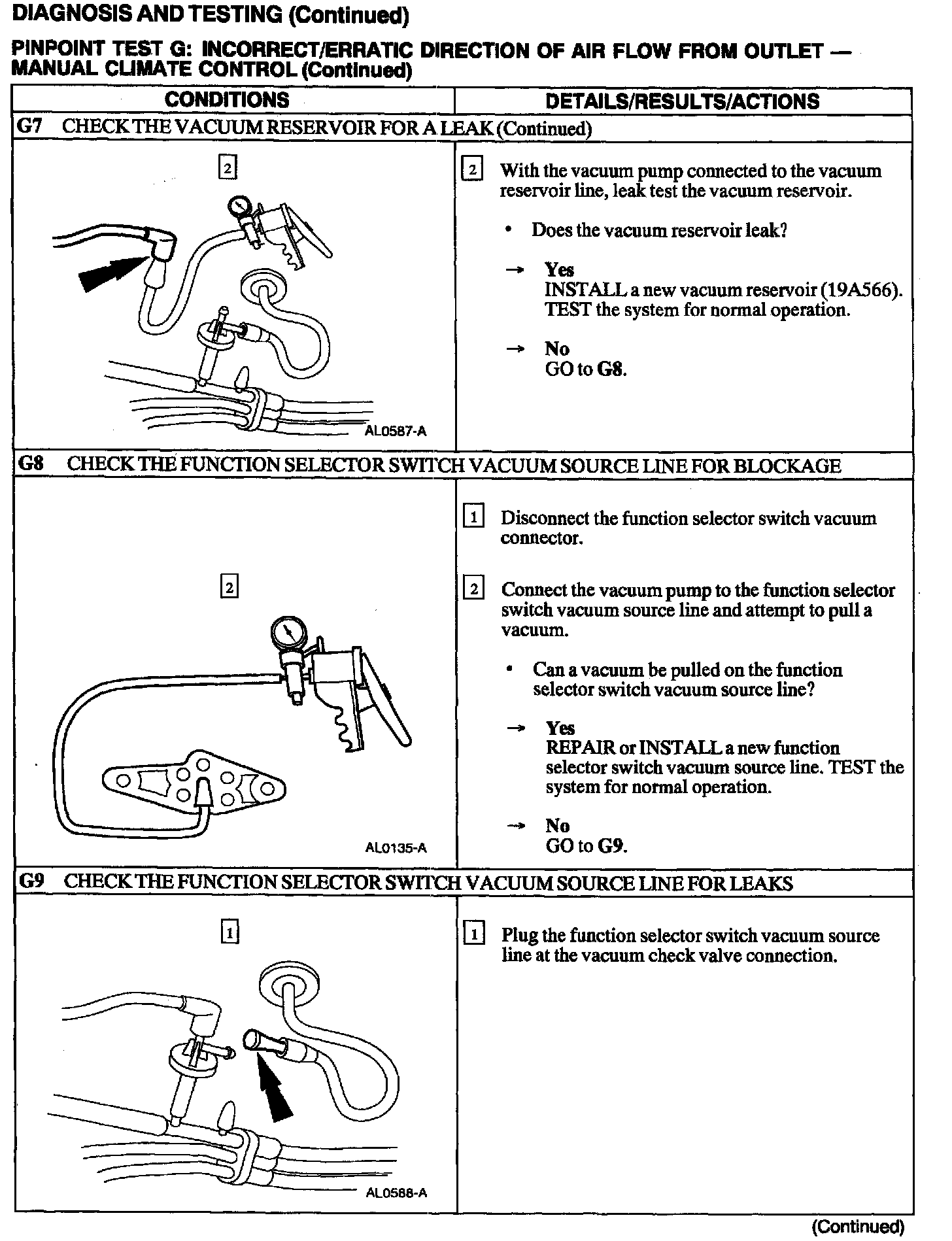

G7 - G9:

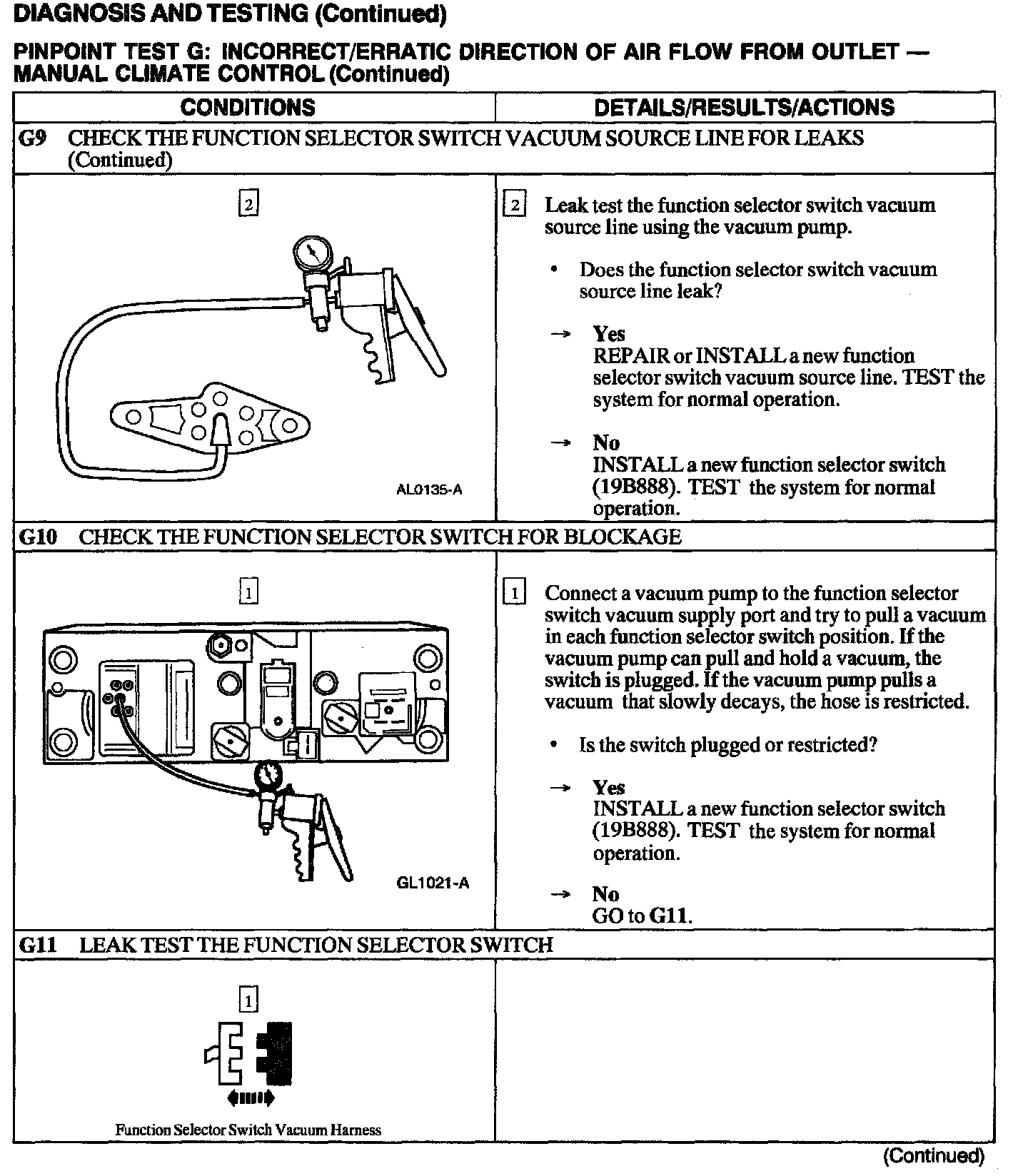

G9 - G11:

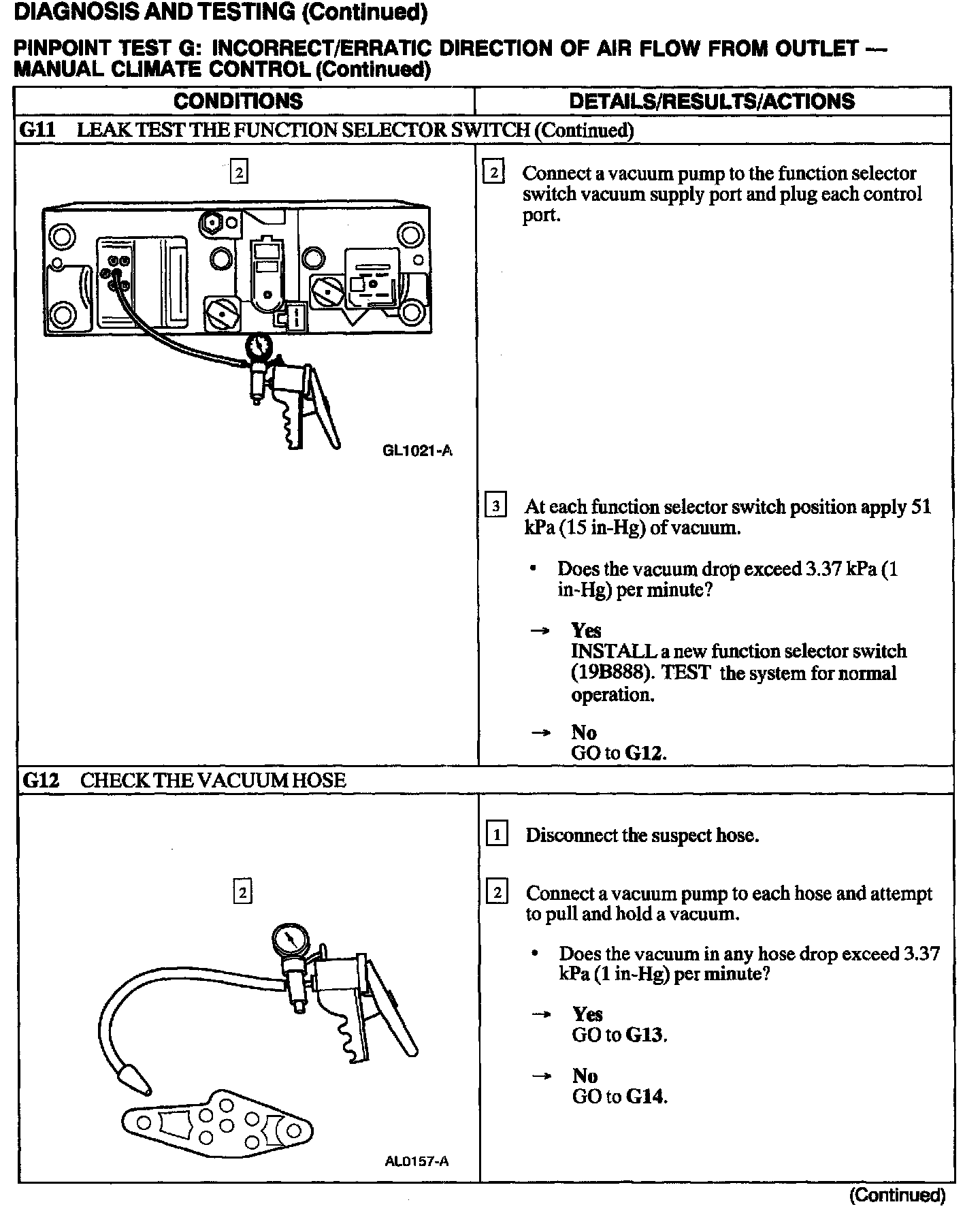

G11 - G12:

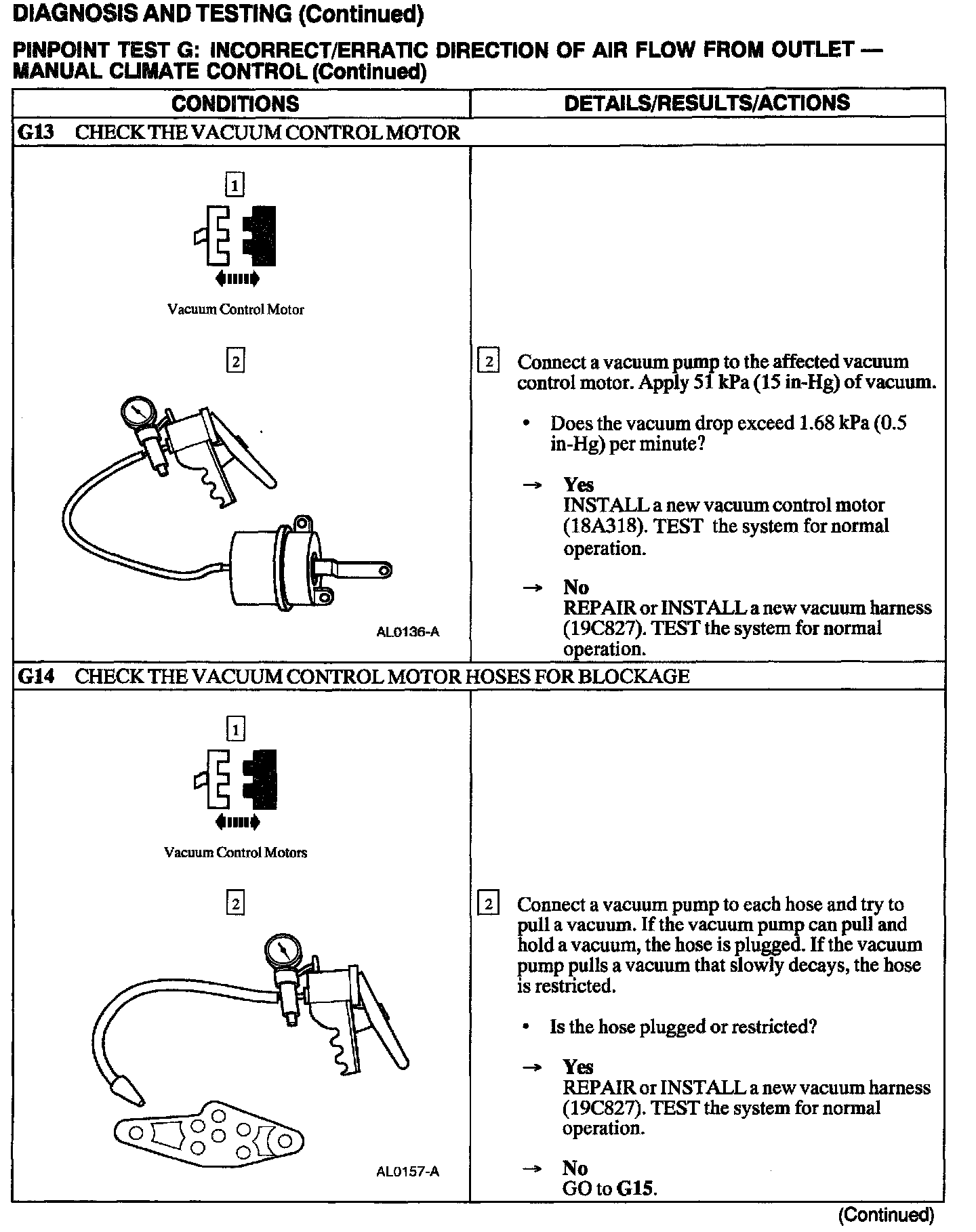

G13 - G14:

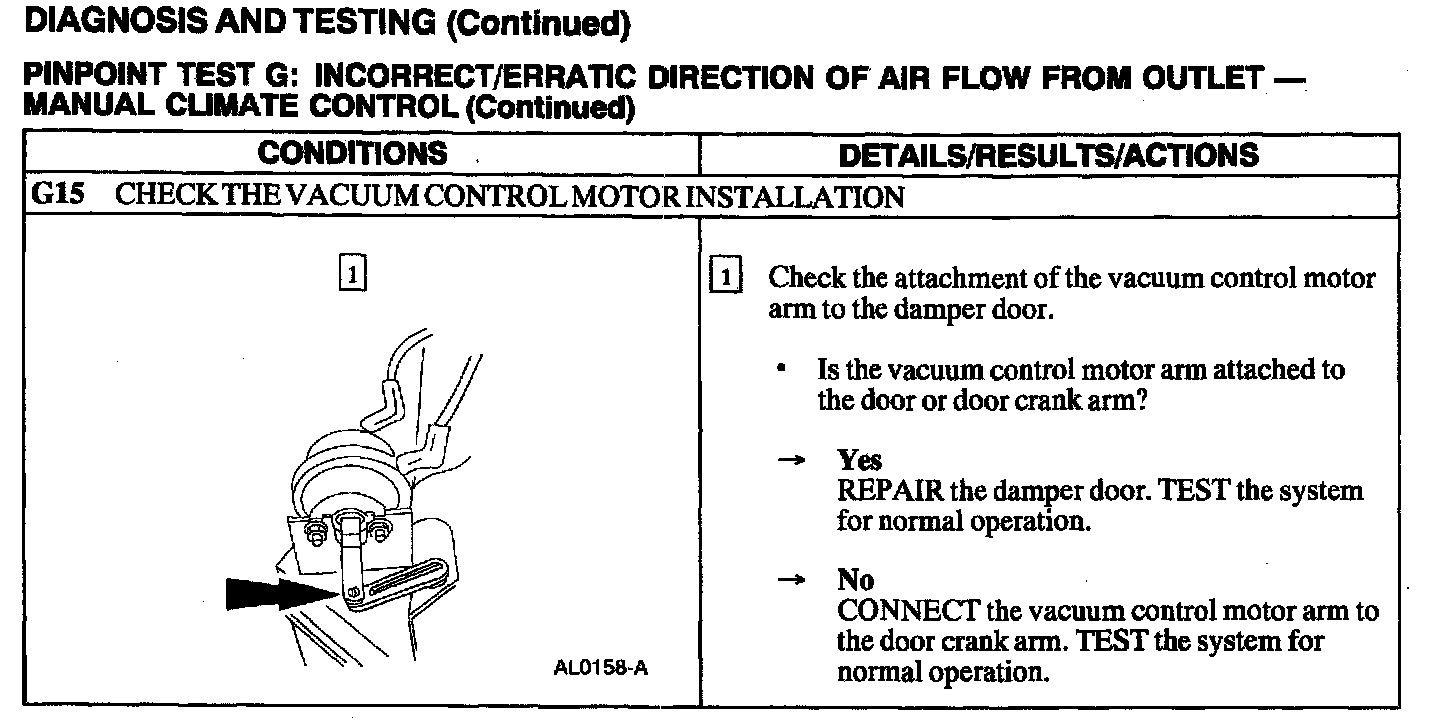

G15:
