Test F: EATC System Is Inoperative/Intermittent

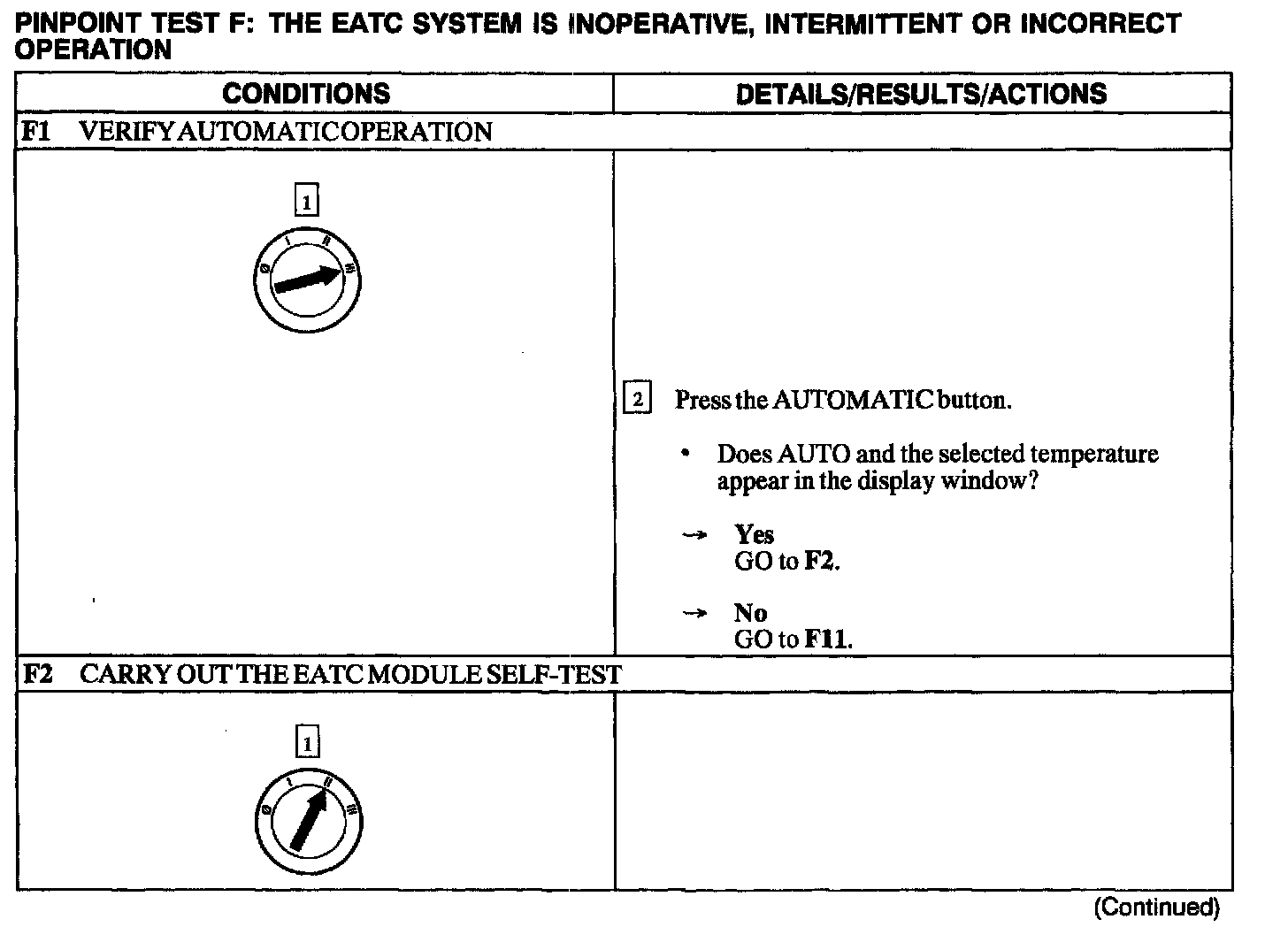

F1 - F2:

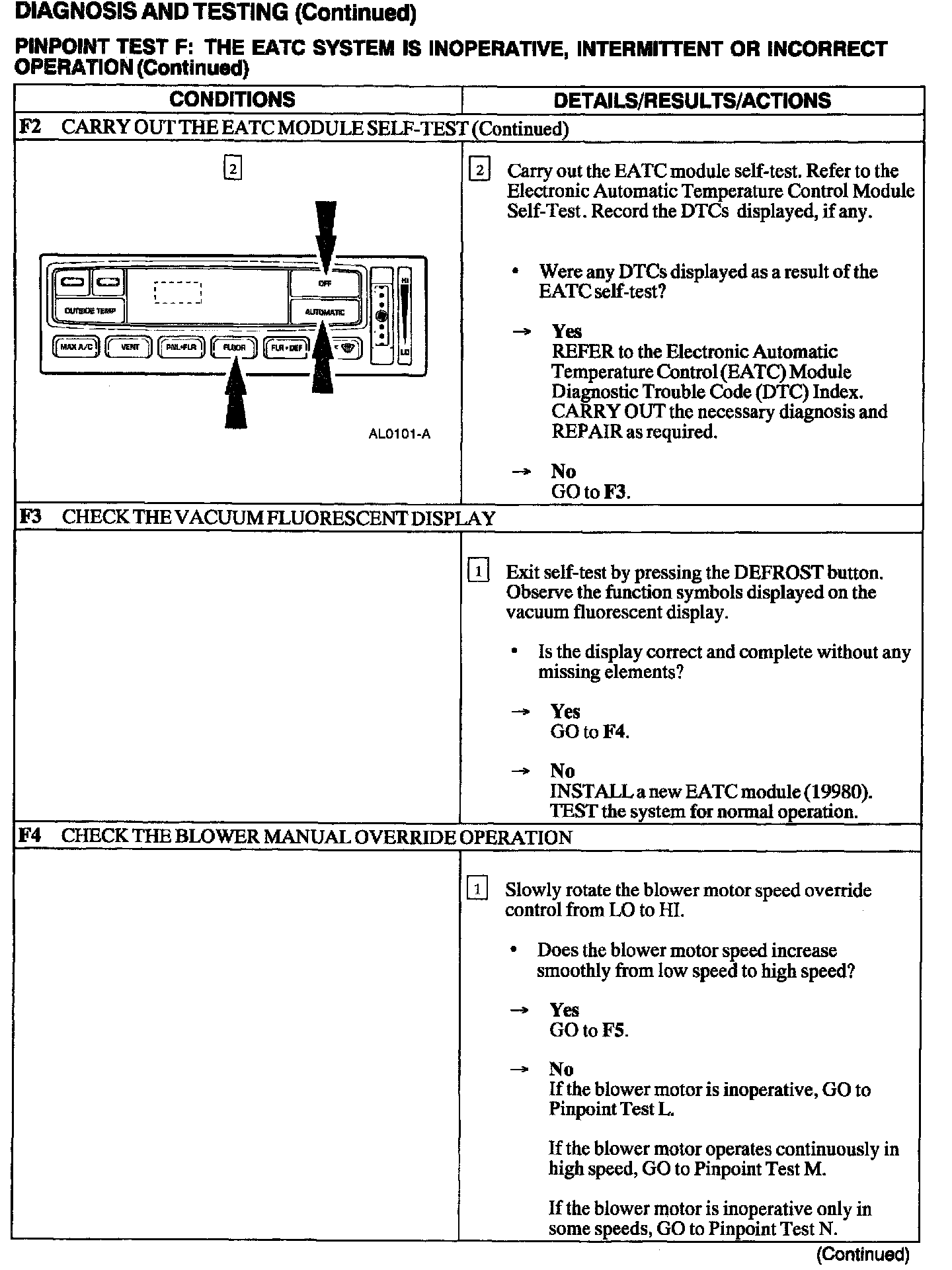

F2 - F4:

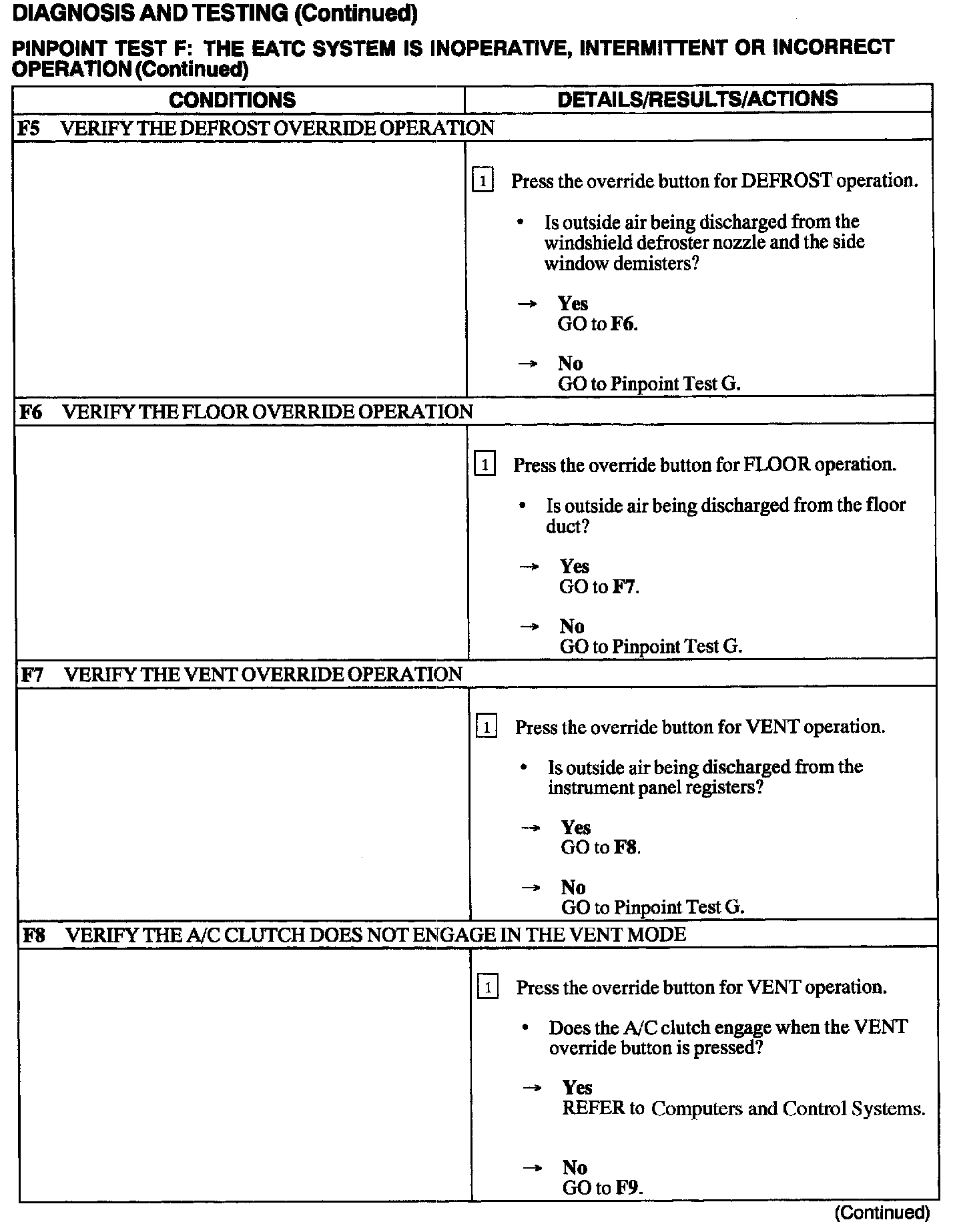

F5 - F8:






F9 - F12:

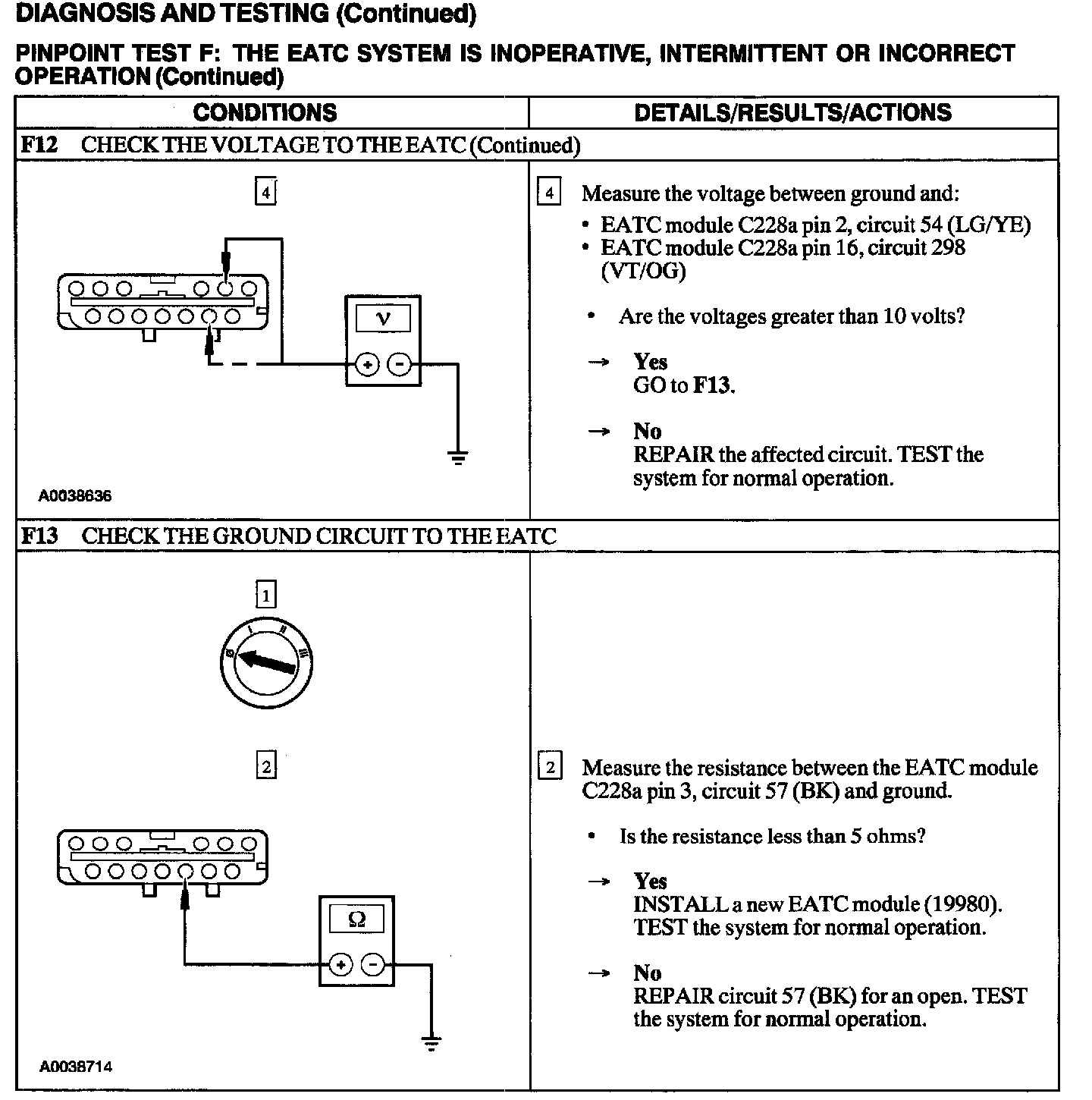

F12 - F13:
