FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2002
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B: DTC B1251 Or DTC B1253 - A/C In-Car Temp Sensor Open
Test B: DTC B1251 Or DTC B1253 - A/C In-Car Temp Sensor Open
B1:

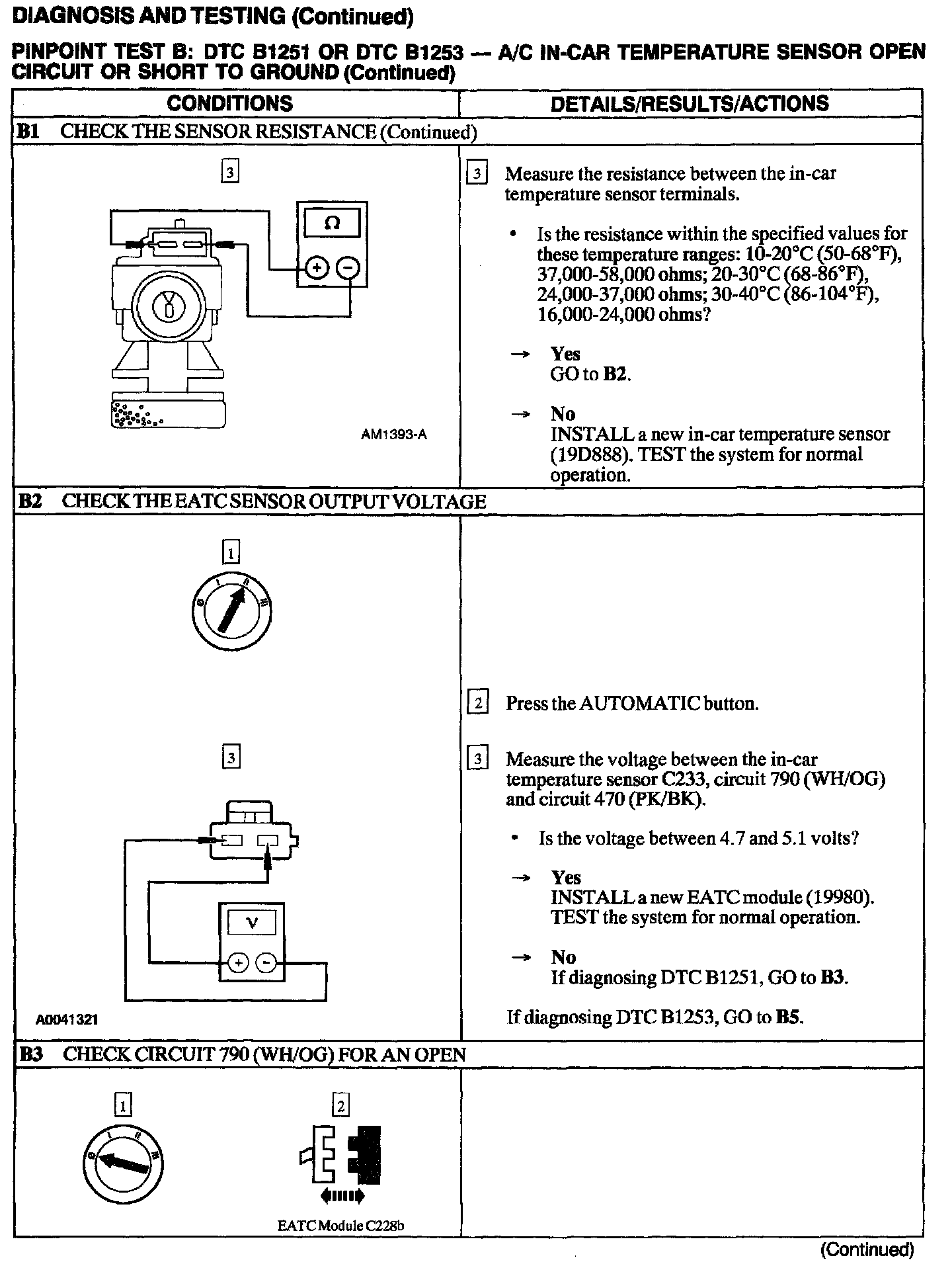

B1 - B3:

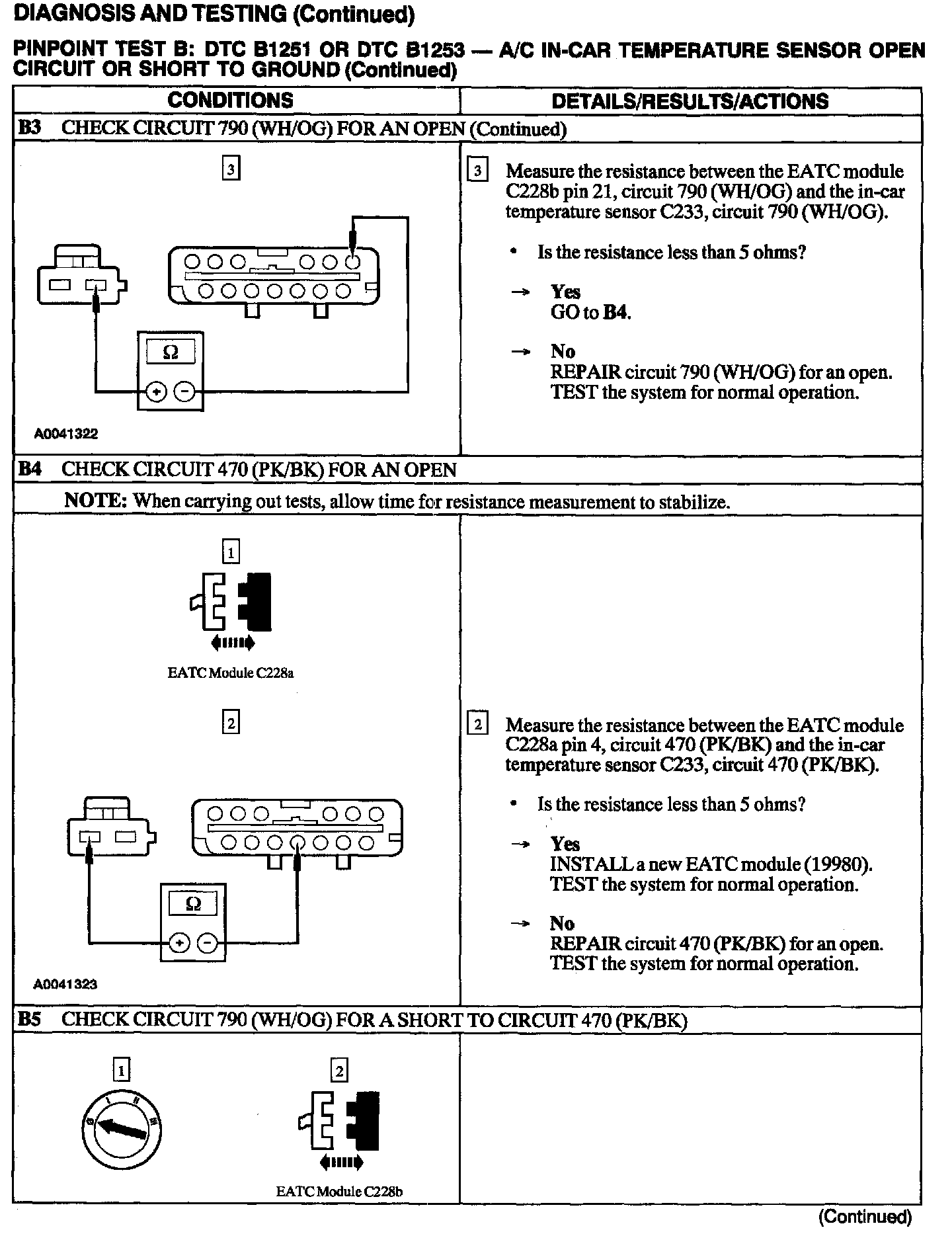

B3 - B5:

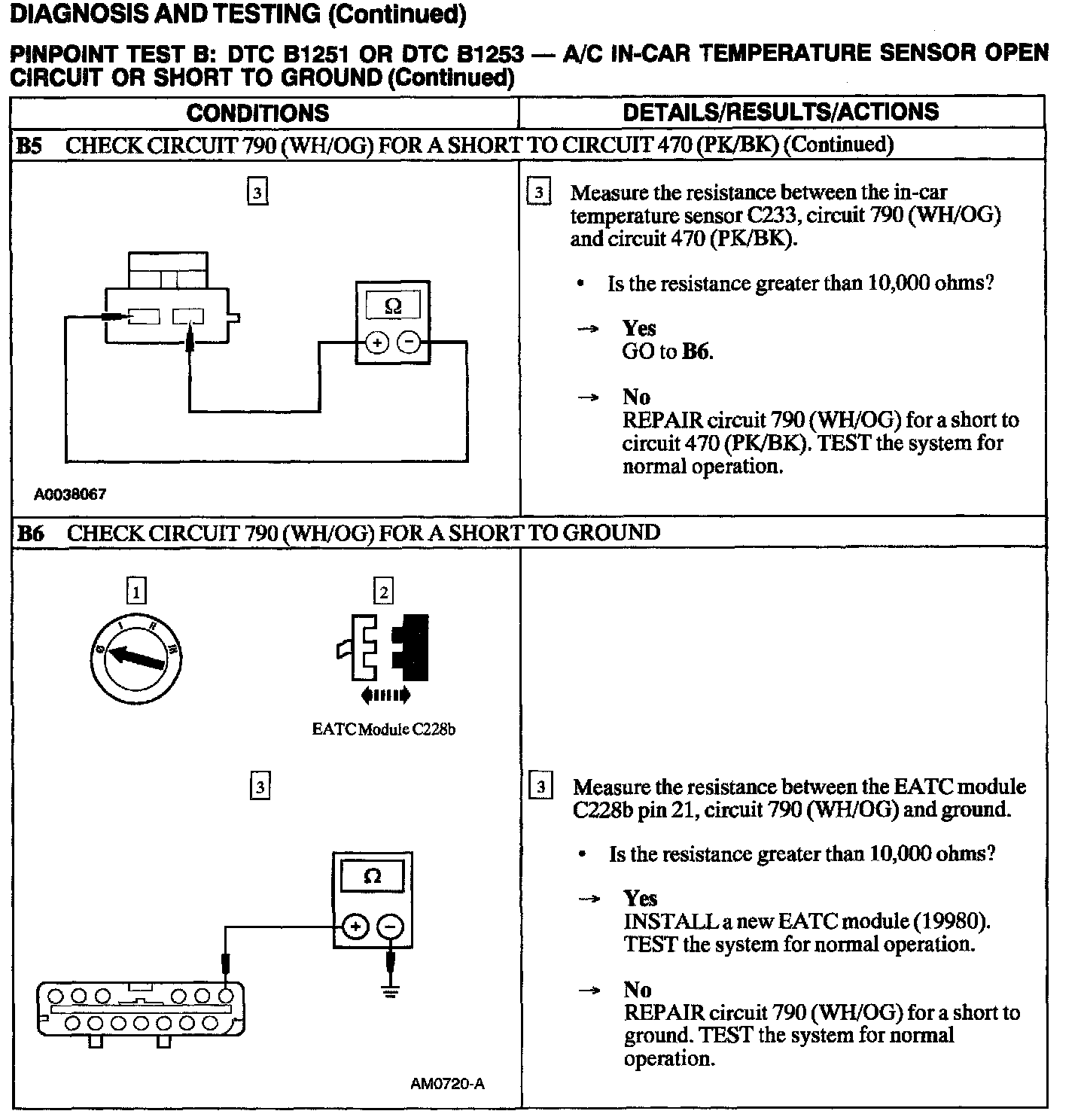

B5 - B6:
