Accumulator HVAC: Service and Repair

REMOVAL

NOTE: Installation of a new suction accumulator/drier is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator/drier.

1. Recover the refrigerant.







2. Disconnect the evaporator to compressor suction line from the suction accumulator/drier. Refer to the spring lock coupling disconnect and connect procedure.

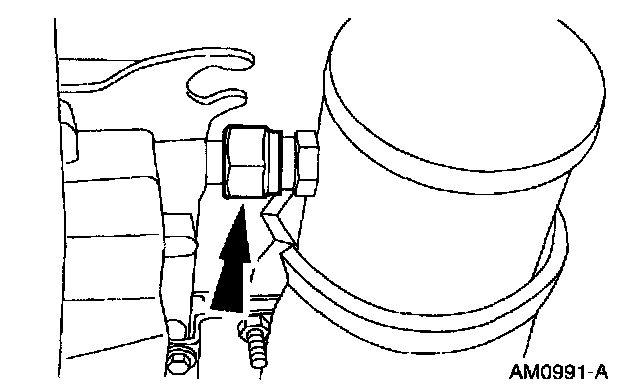

3. Disconnect the suction accumulator/drier from the A/C evaporator core.

CAUTION: To prevent damage to the fitting and the tube, use a backup wrench when removing the suction accumulator/drier.

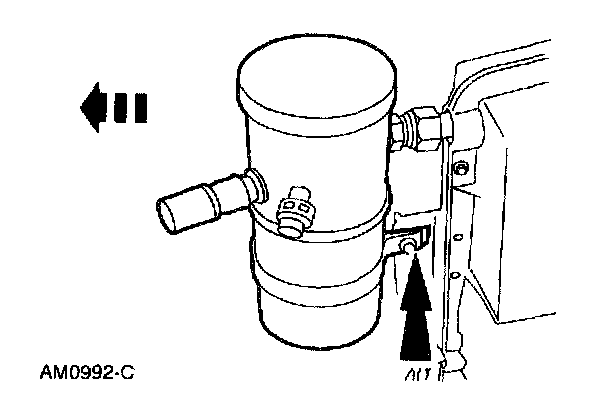

4. Remove the screw retaining the A/C accumulator mounting bracket to the A/C evaporator core and remove the suction accumulator/drier.

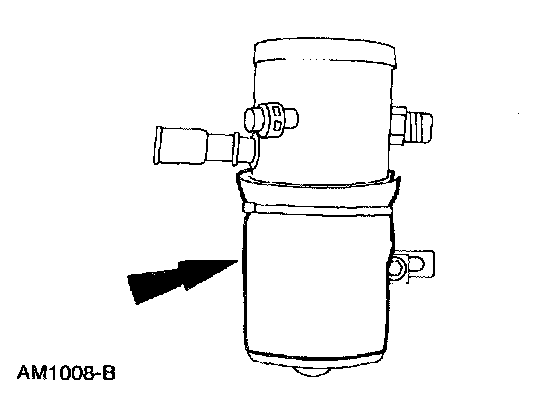

5. Remove the insulation cover from the suction accumulator/drier.

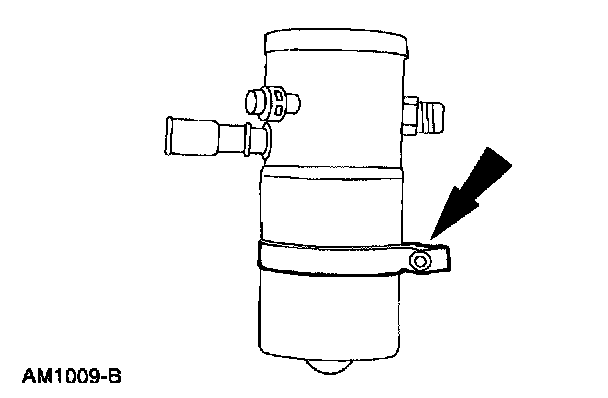

6. Remove the A/C accumulator mounting bracket from the suction accumulator/drier.

INSTALLATION

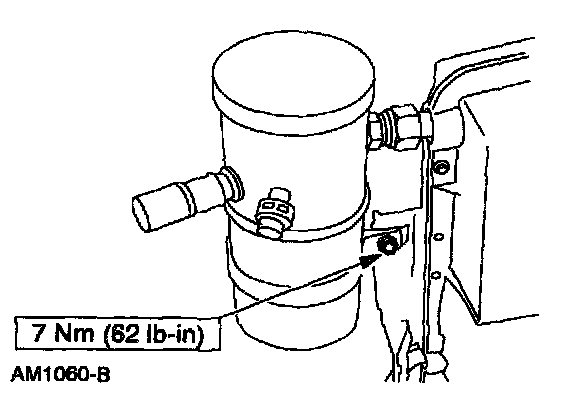

1. To install, reverse the removal procedure.
- Service the new suction accumulator/drier with the correct amount of PAG compressor oil YN-12-C F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
- Lubricate the O-ring seal with PAG compressor oil YN-12-C F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.

CAUTION: To prevent damage to the fitting and the tube, use a backup wrench when installing the suction accumulator/drier.
