RH

Exhaust Manifold-RH

Removal and Installation
1. Disconnect the battery ground cable.
2. Raise the vehicle.
3. Remove the right front wheel and tire.
4. Separate the exhaust at the exhaust manifold.
5. Disconnect the exhaust gas recirculation tube at the exhaust manifold connector.

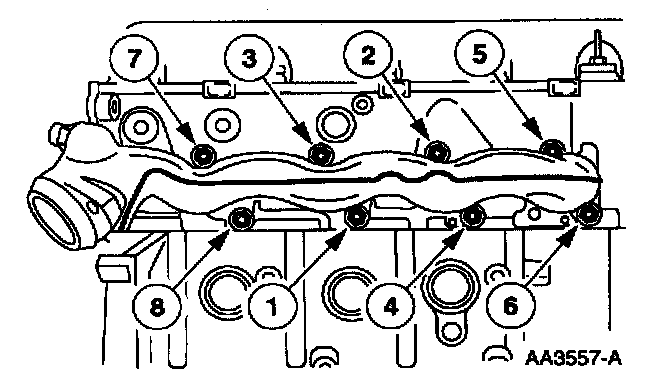

6. Remove the eight nuts.
- Remove the exhaust manifold.
- Remove the gasket.





7. To install, reverse the removal procedure.
