RH

Valve Cover RH

Removal and Installation
1. Raise and support the vehicle.





2. Disconnect the crankshaft position (CKP) sensor electrical connector.





3. Disconnect the A/C compressor electrical connector.
4. Lower the vehicle.





5. Disconnect the A/C cycling switch connector.
6. Disconnect the fuel lines.





7. Disconnect the ignition coils electrical connectors.

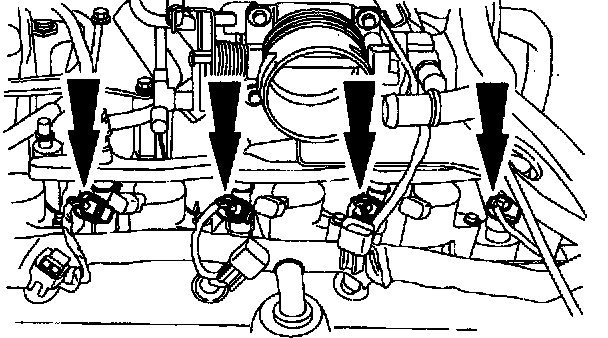

8. Disconnect the fuel injector electrical connectors.





9. Remove the positive crankcase ventilation (PCV) tube and position out of the way.





10. Disconnect the electrical connector.
11. Remove the evaporative emission (EVAP) canister purge valve.





12. Reposition the hold-down clamp and remove the hose from the bypass tube.





13. NOTE: The valve cover harness retaining studs positions 2 and 3 retain the fuel charging wiring.

Disconnect the harness from the valve cover and position out of the way.





14. Remove the studs, the bolts and the valve cover.





15. To install, reverse the removal procedure.
- Apply sealant in the location shown.





16. Tighten the bolts in the sequence shown.
