Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>

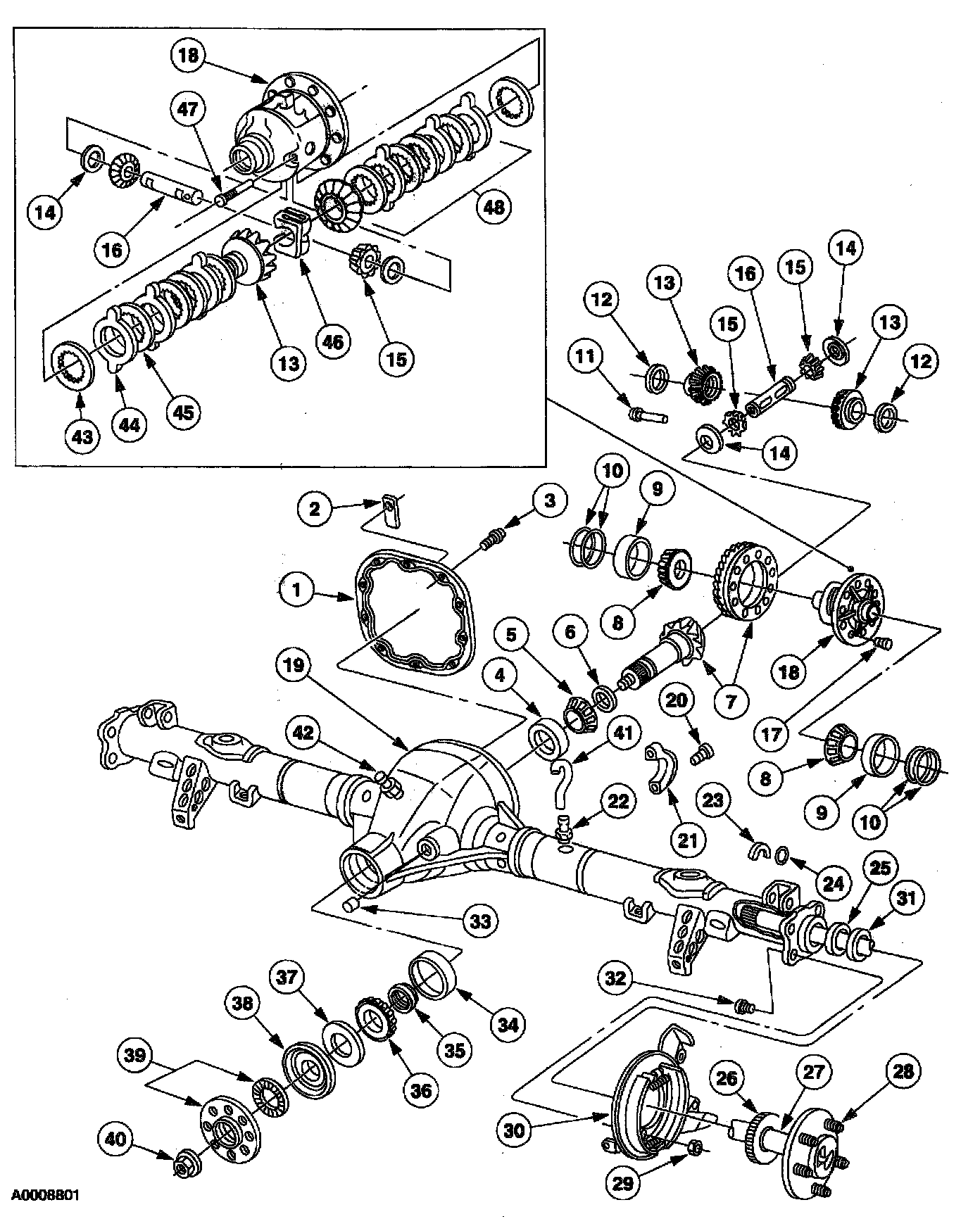

Exploded Views
>>

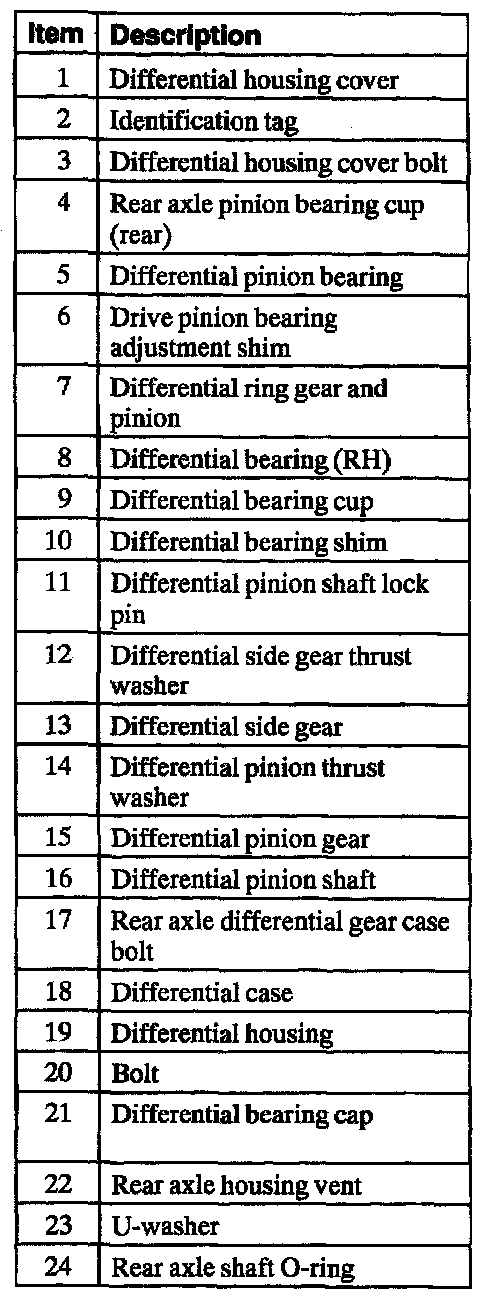

Differential Assembly
Differential Assembly
Rear Drive Axle and Differential
8.8 Inch Axle
