Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster Diagrams >> Analog

Analog

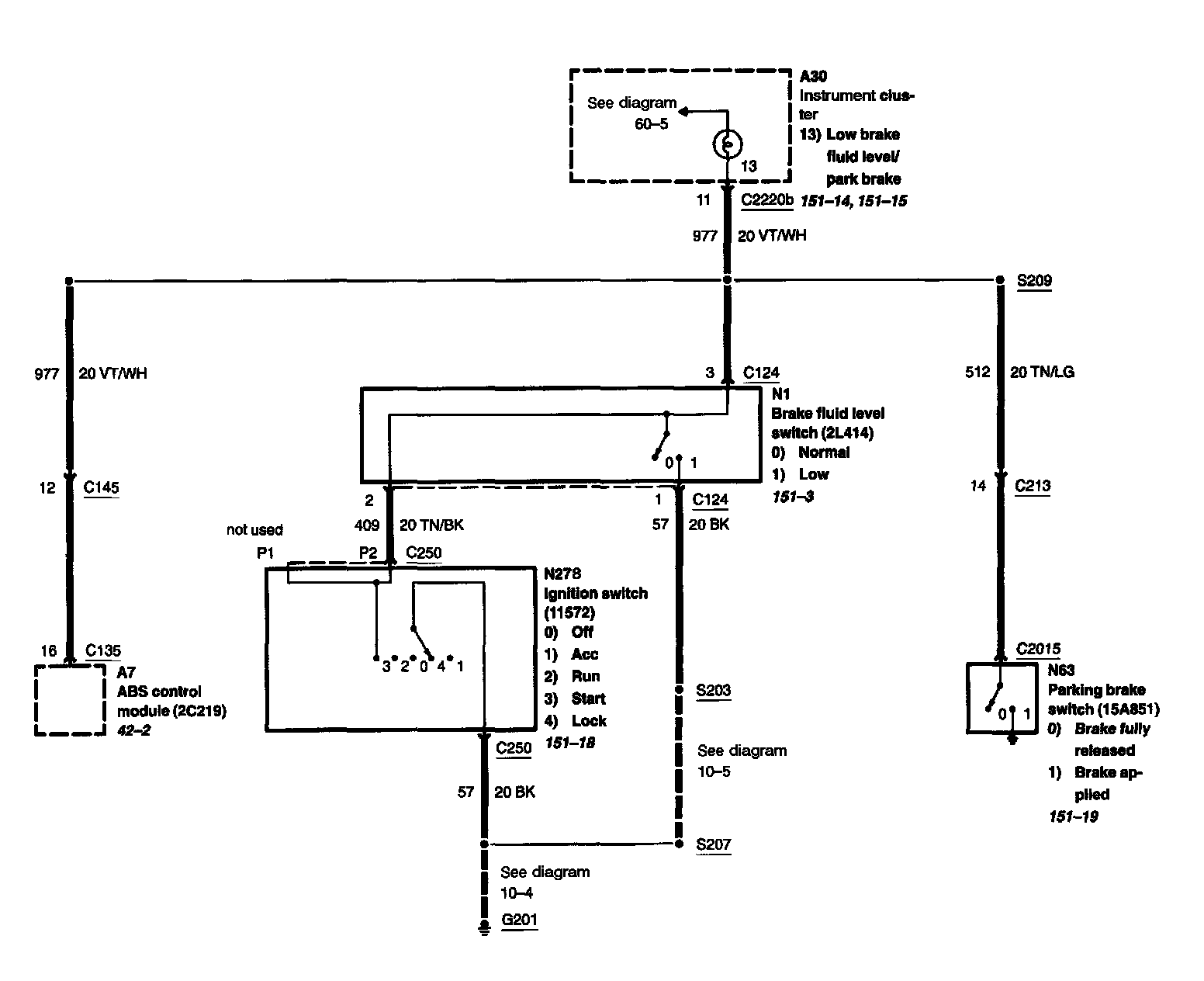

Diagram 60-1:

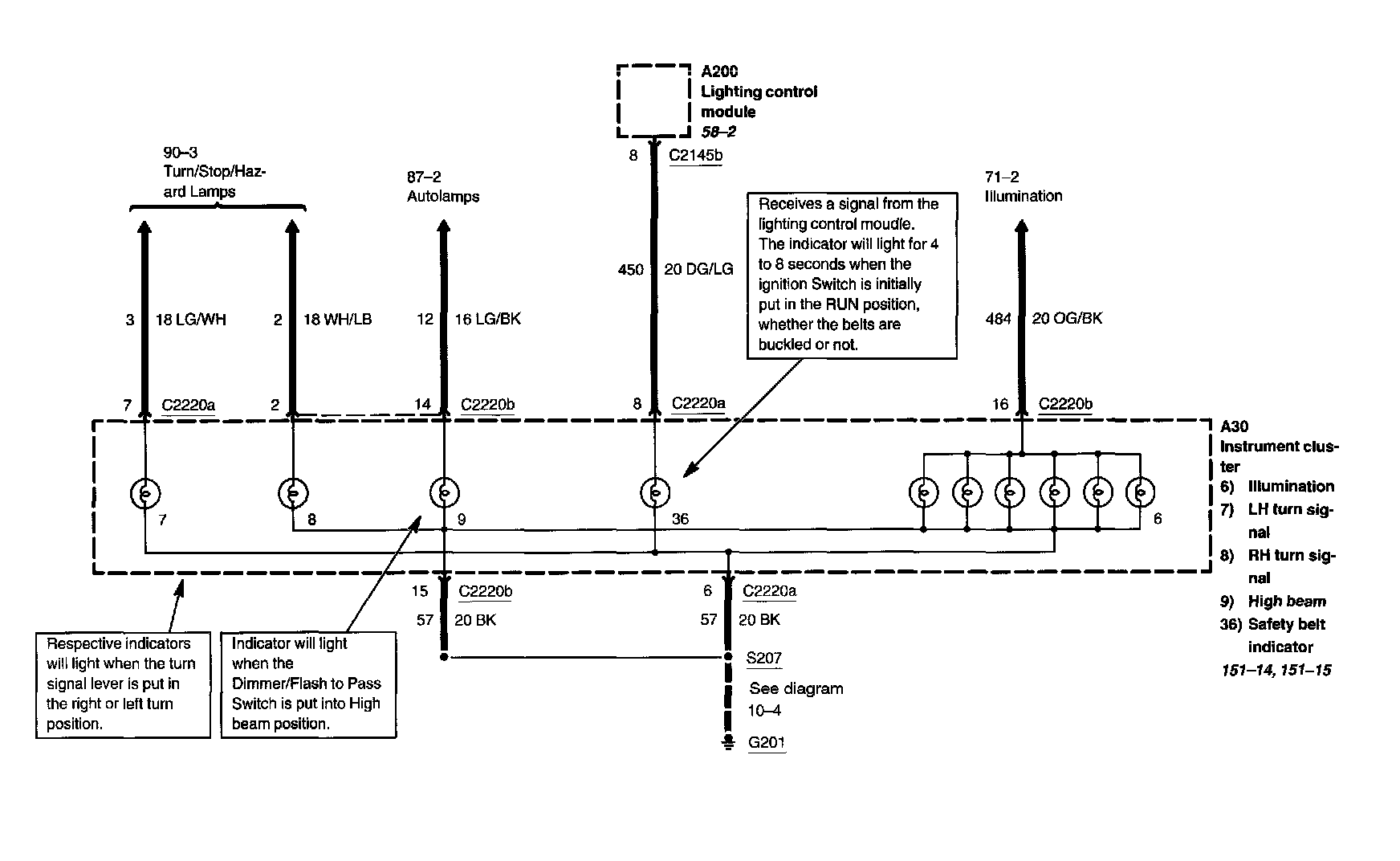

Diagram 60-2:

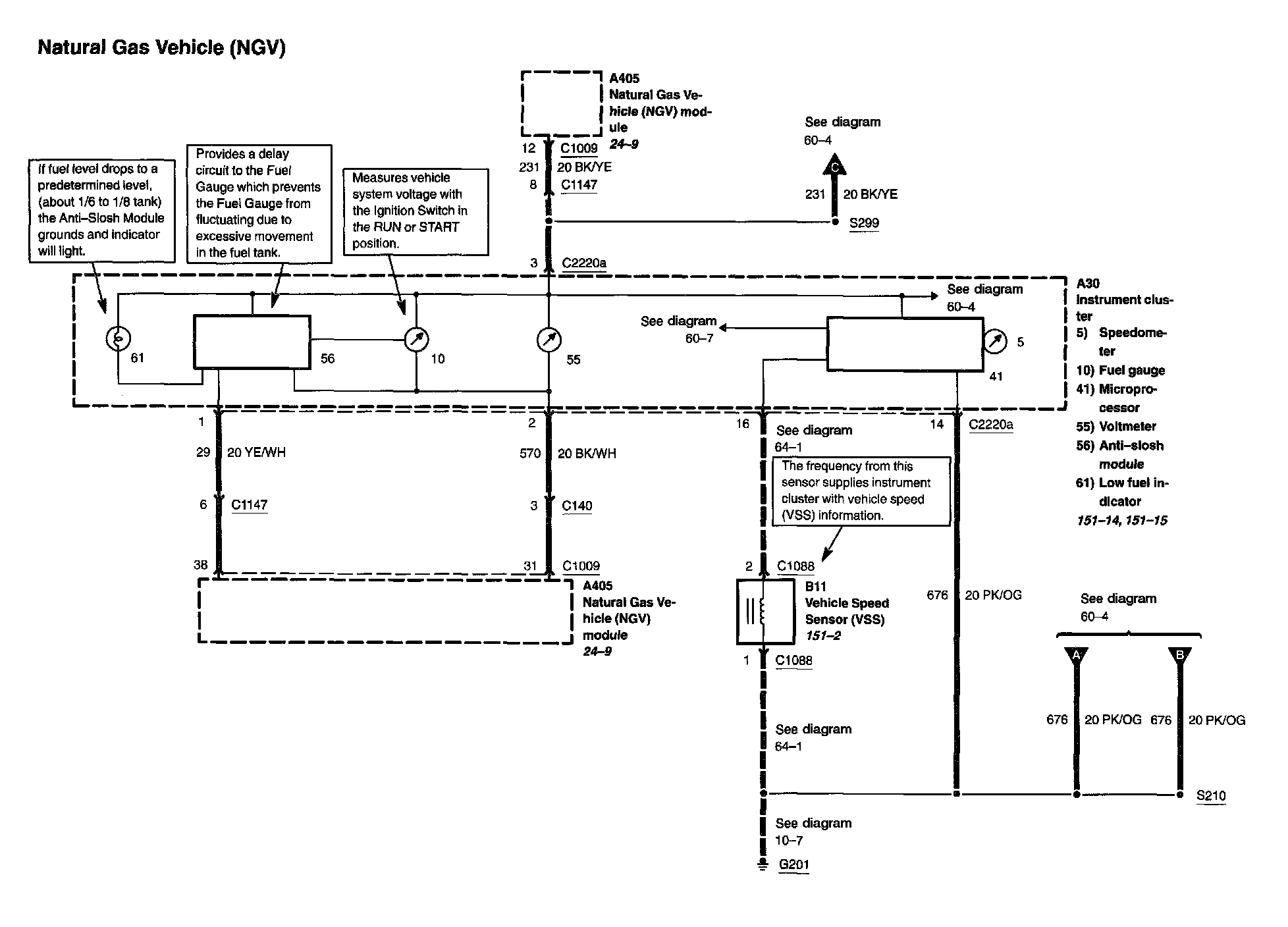

Diagram 60-3:

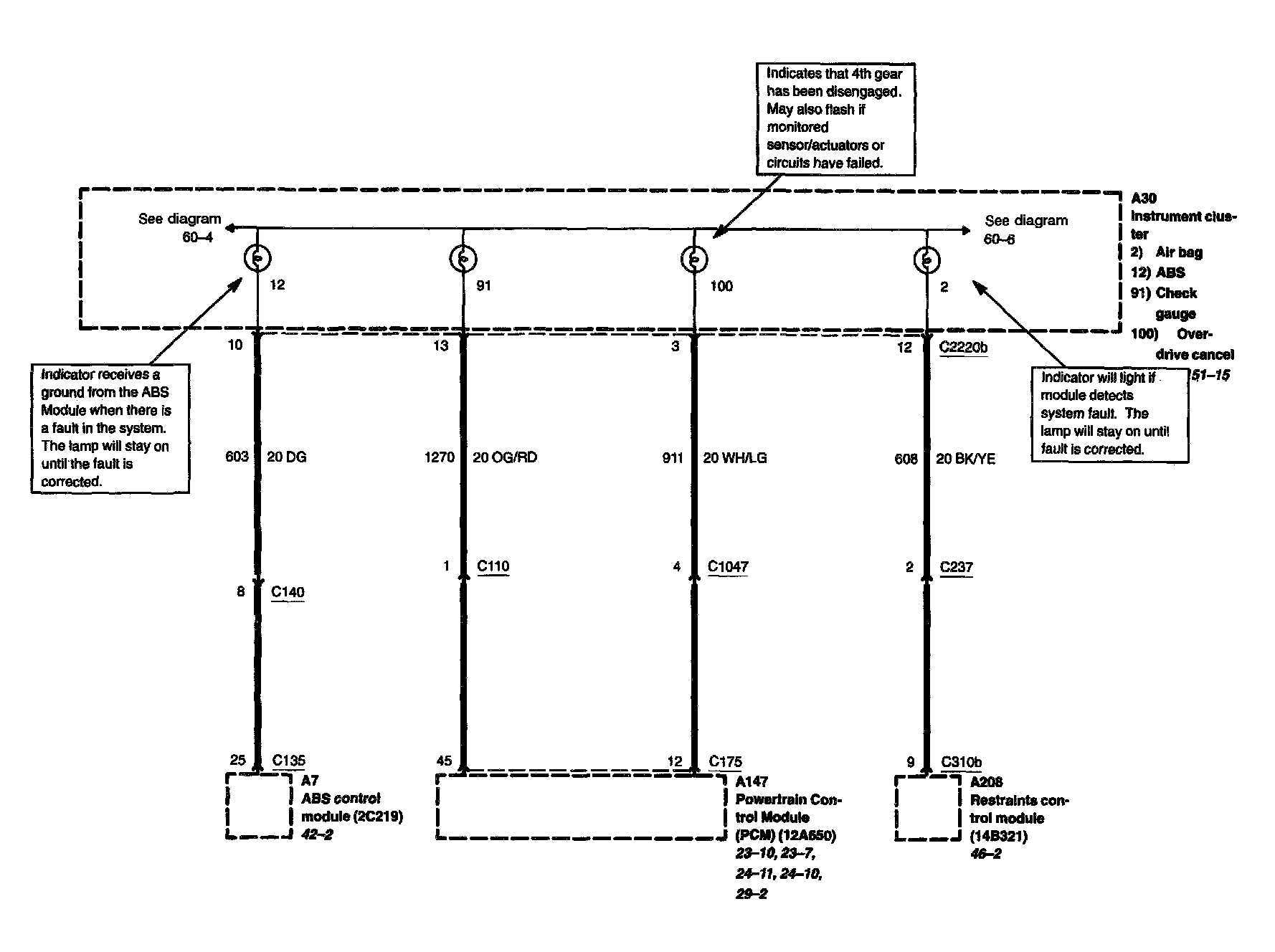

Diagram 60-4:

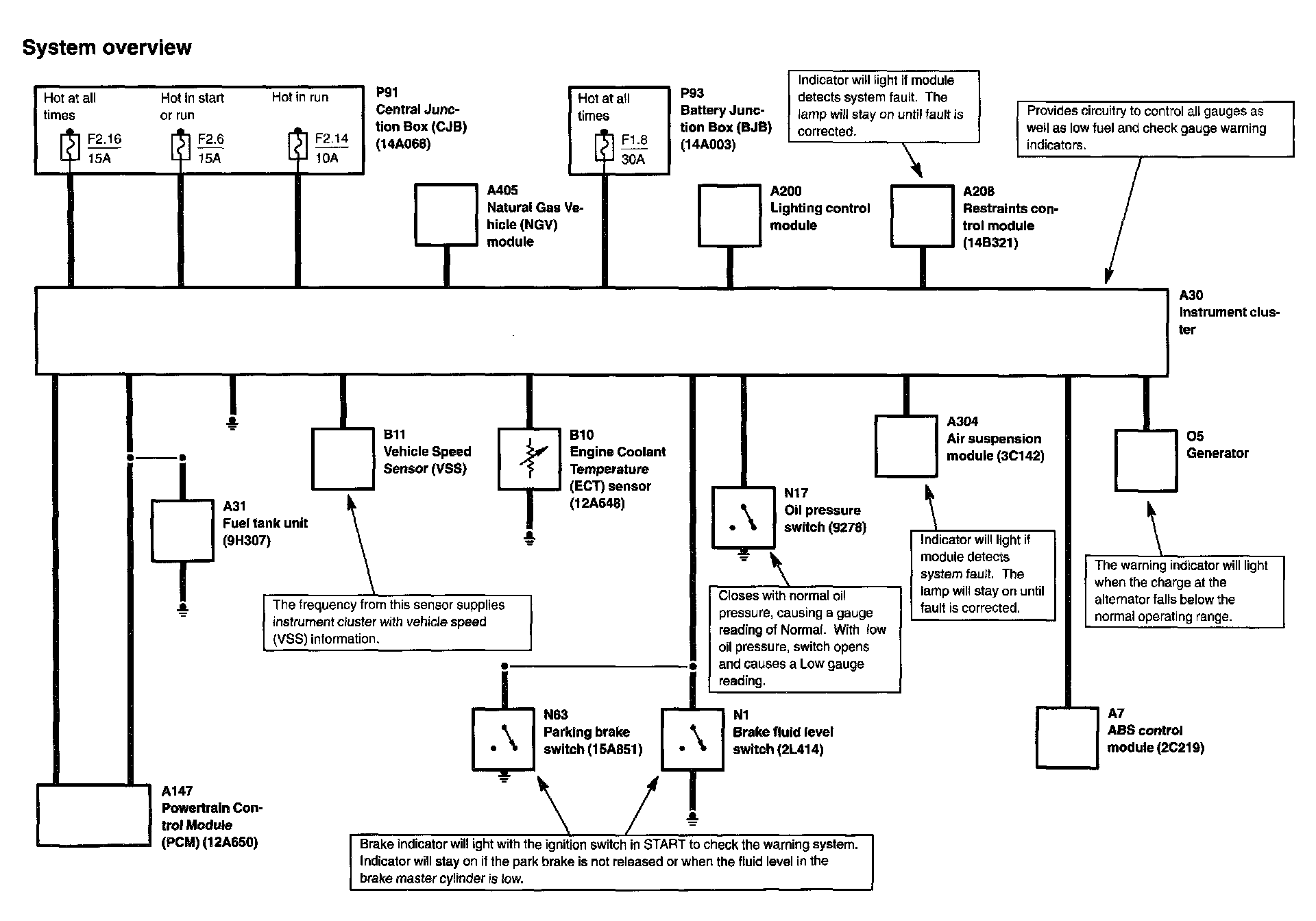

Diagram 60-5:

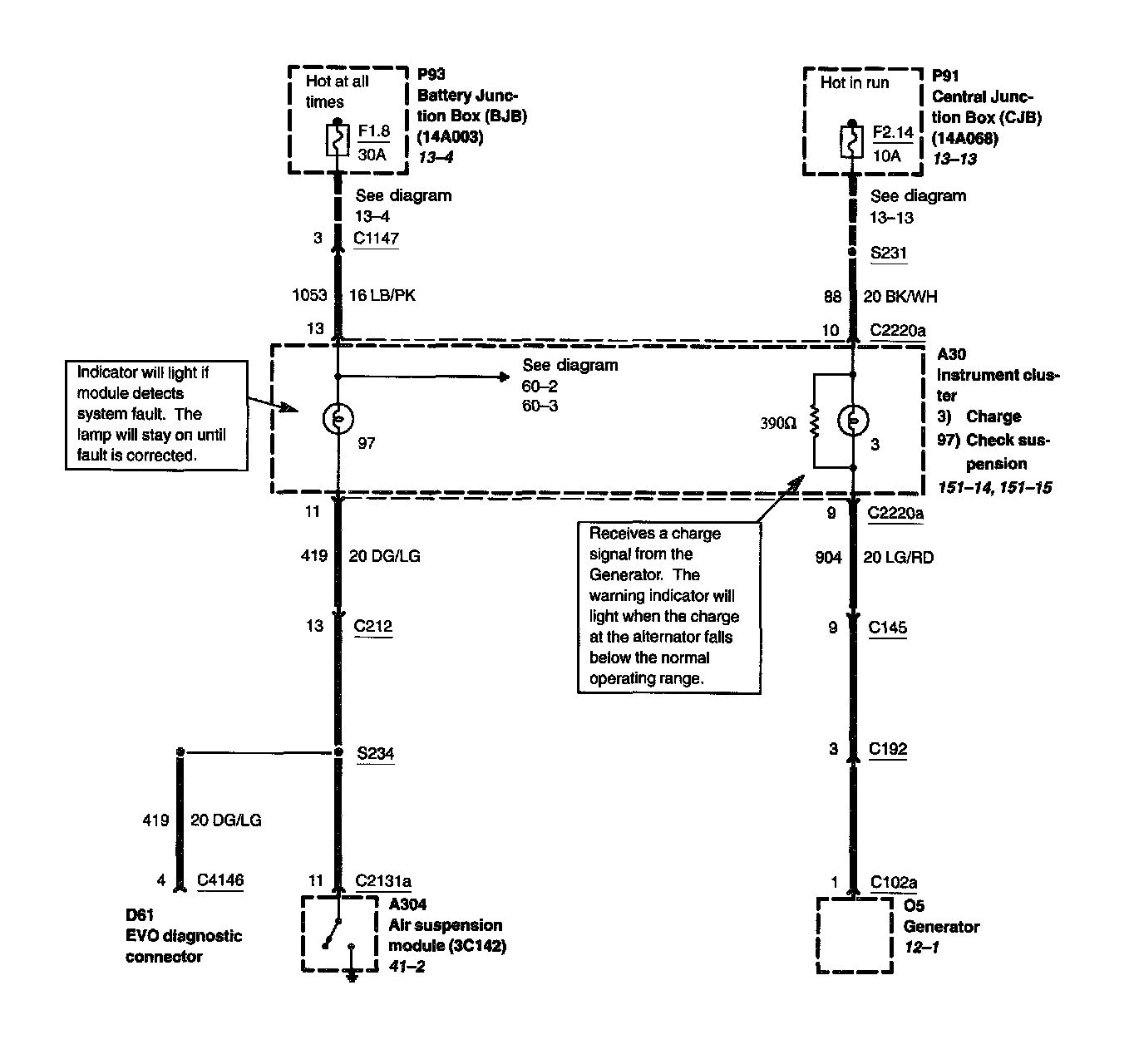

Diagram 60-6:

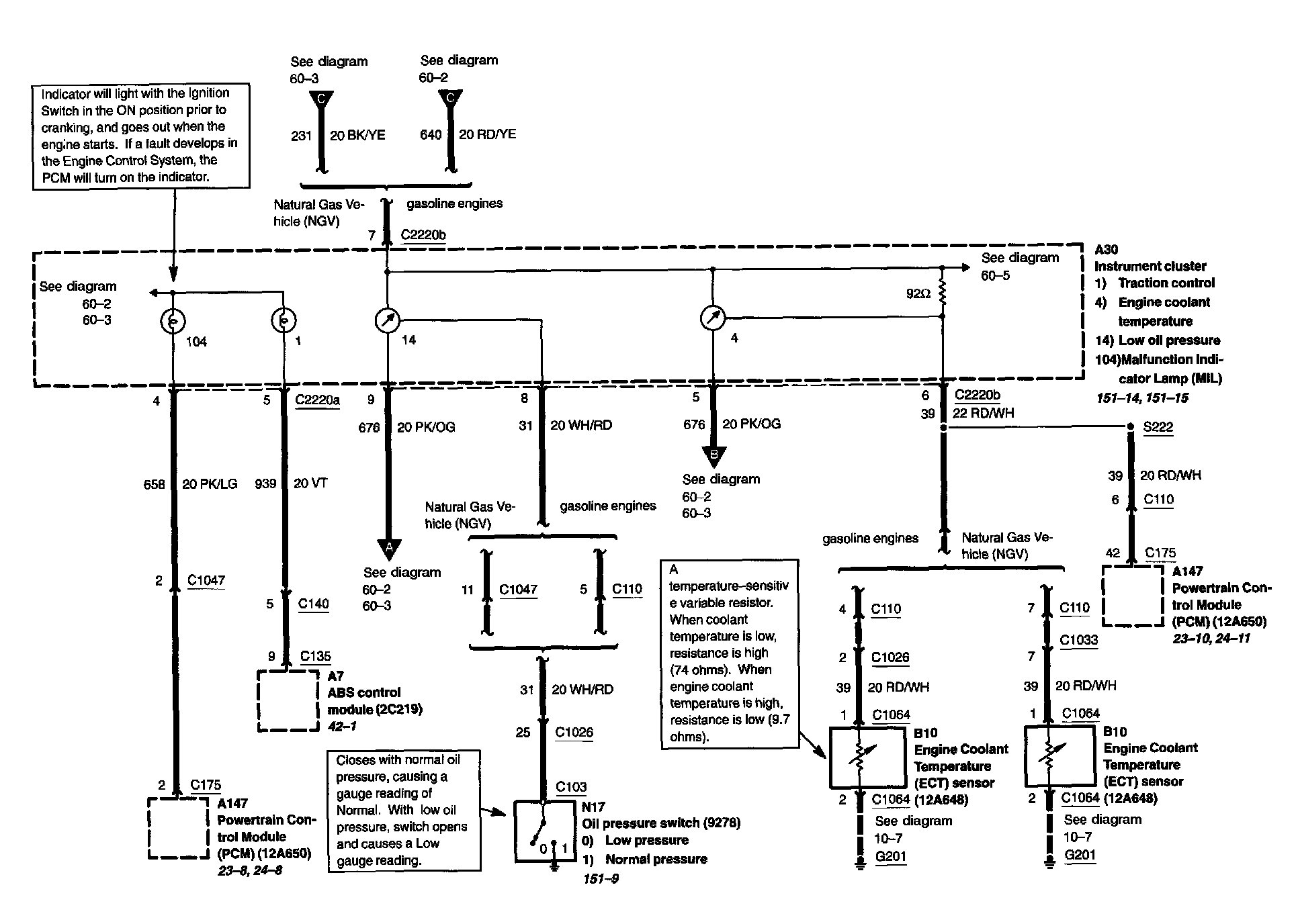

Diagram 60-7:

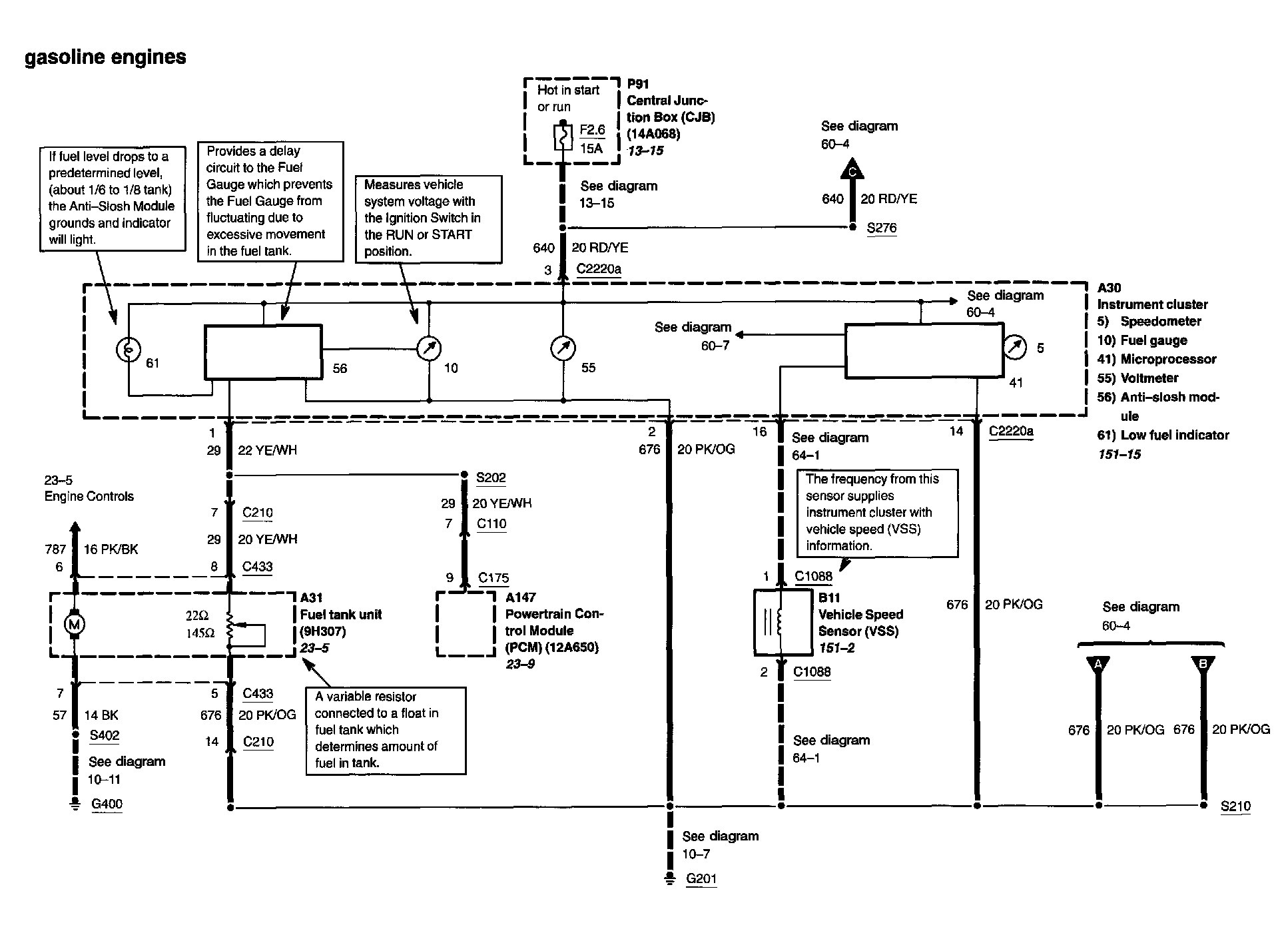

Diagram 60-8:
