Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test K: Throttle and Speed Control Inoperative (Elec. Cluster)

Test K: Throttle and Speed Control Inoperative (Elec. Cluster)

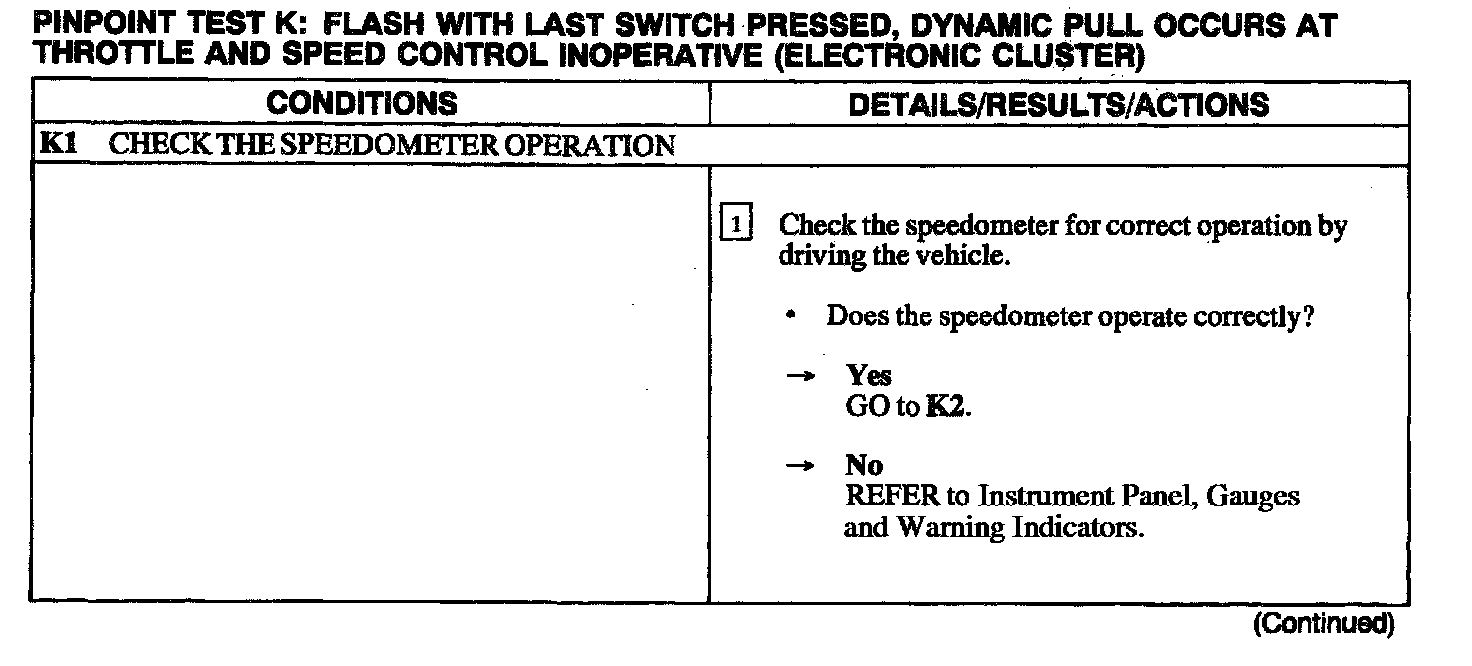

K1:

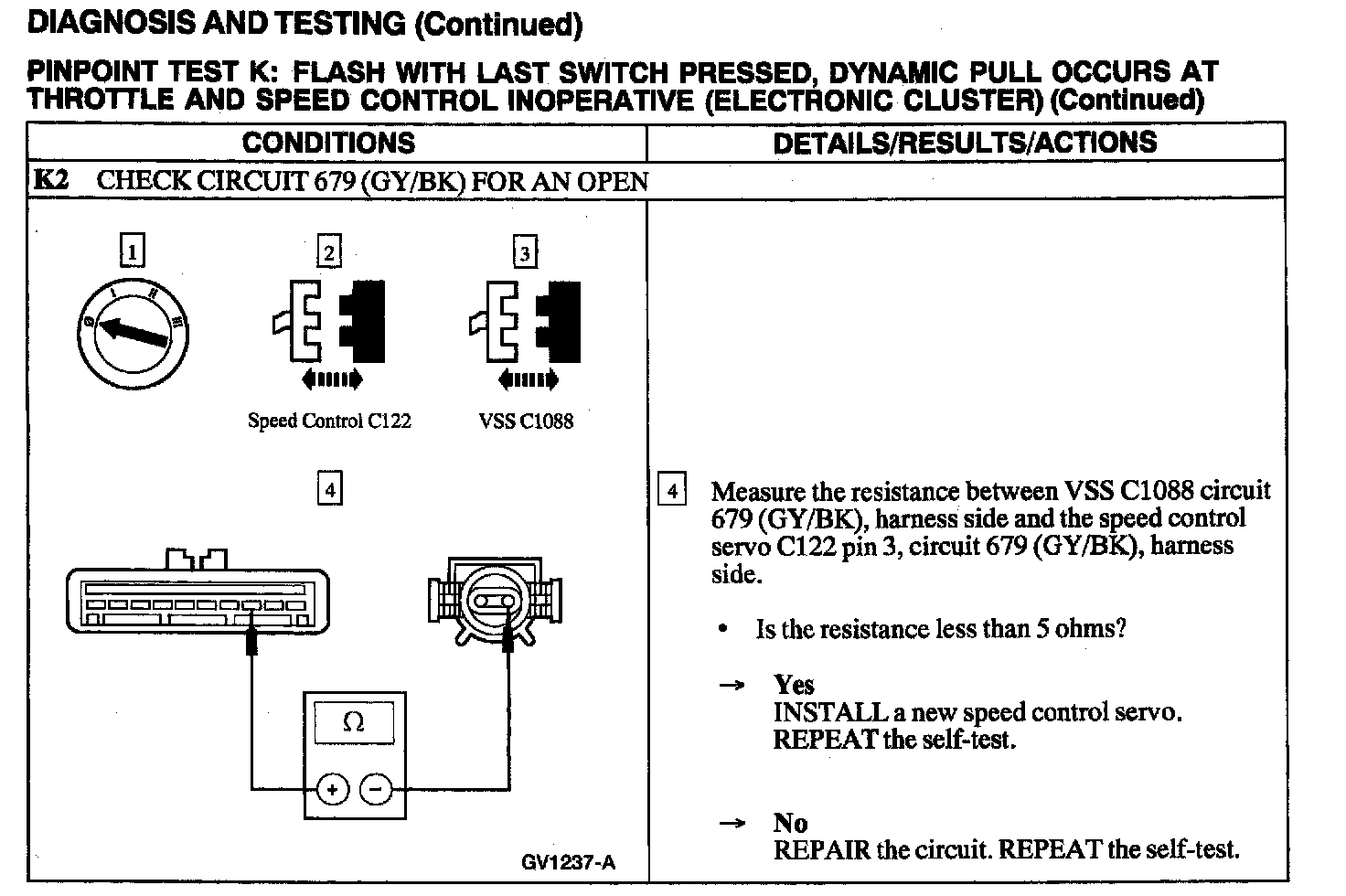

K2:
