Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test A: Speed Control Is Inoperative

Test A: Speed Control Is Inoperative

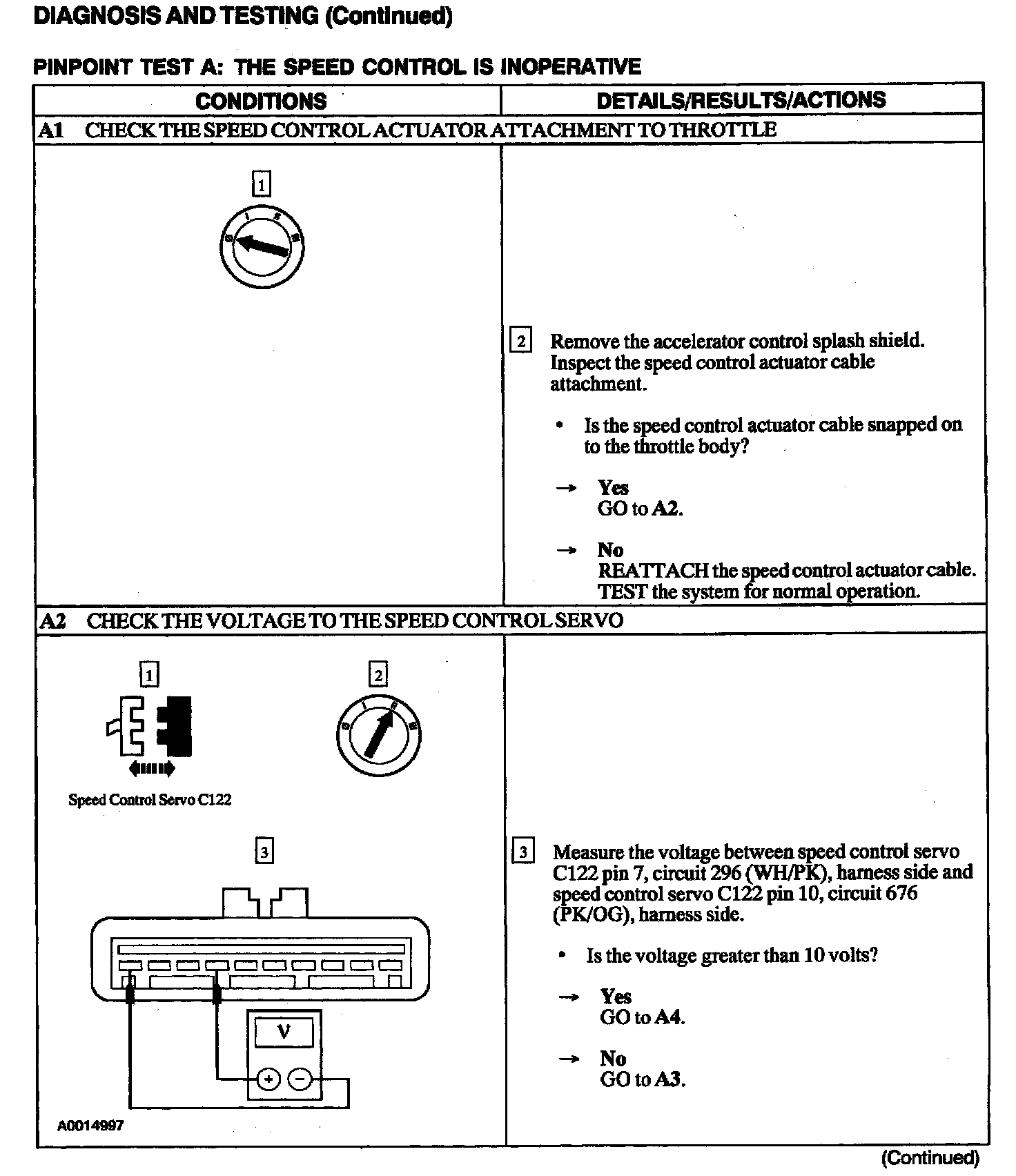

A1 - A2:

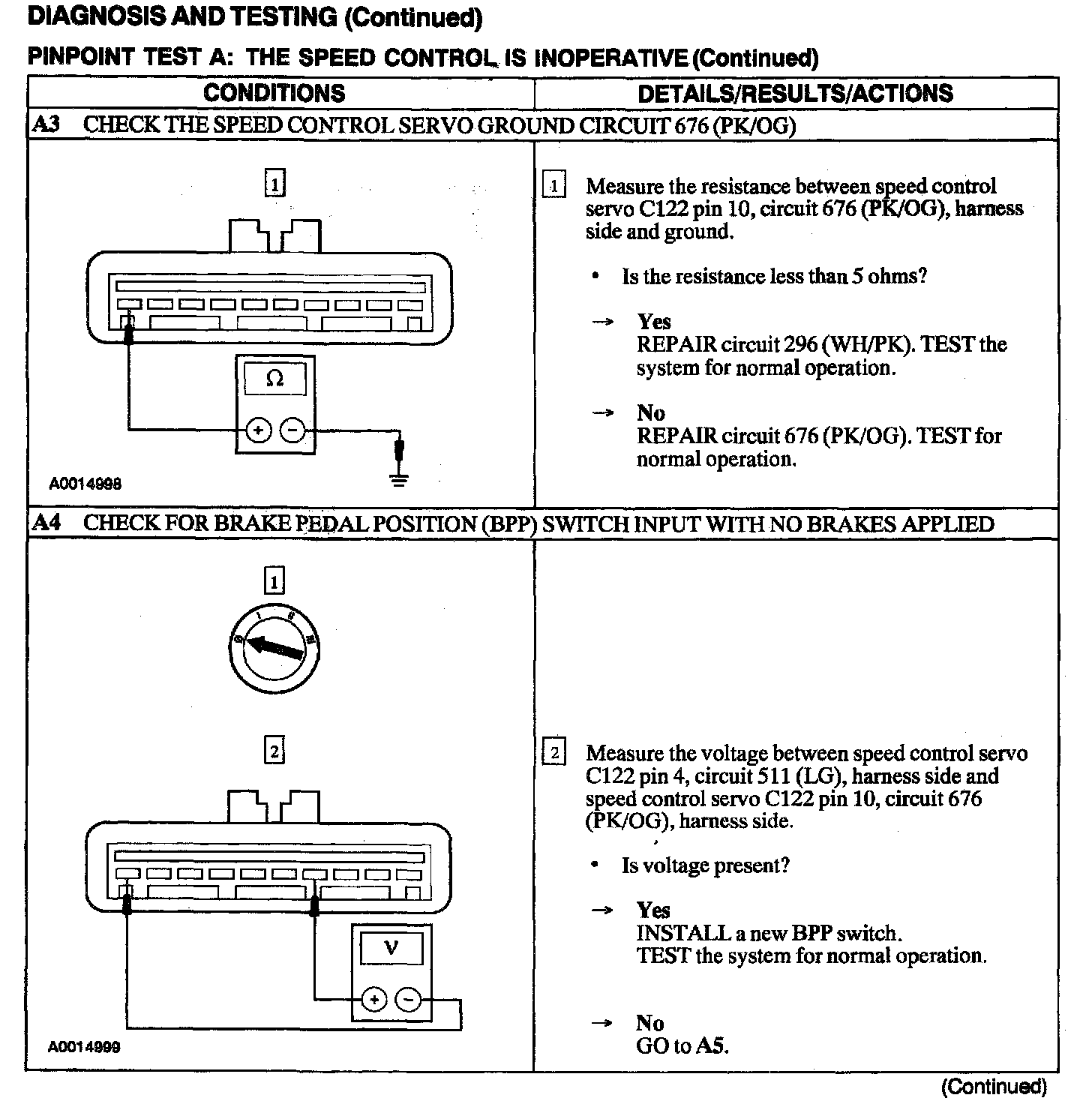

A3 - A4:

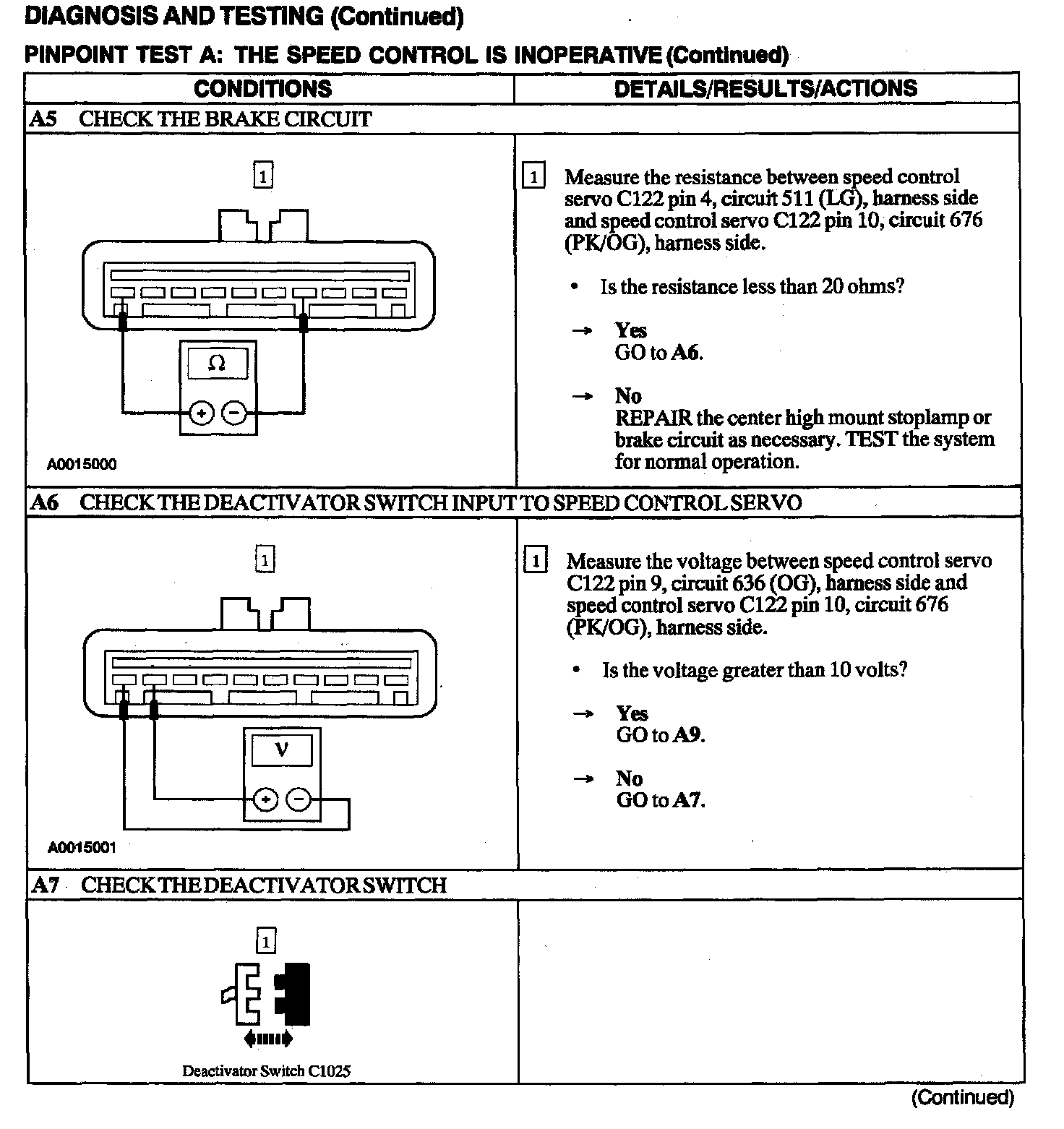

A5 - A7:






A7 - A9:

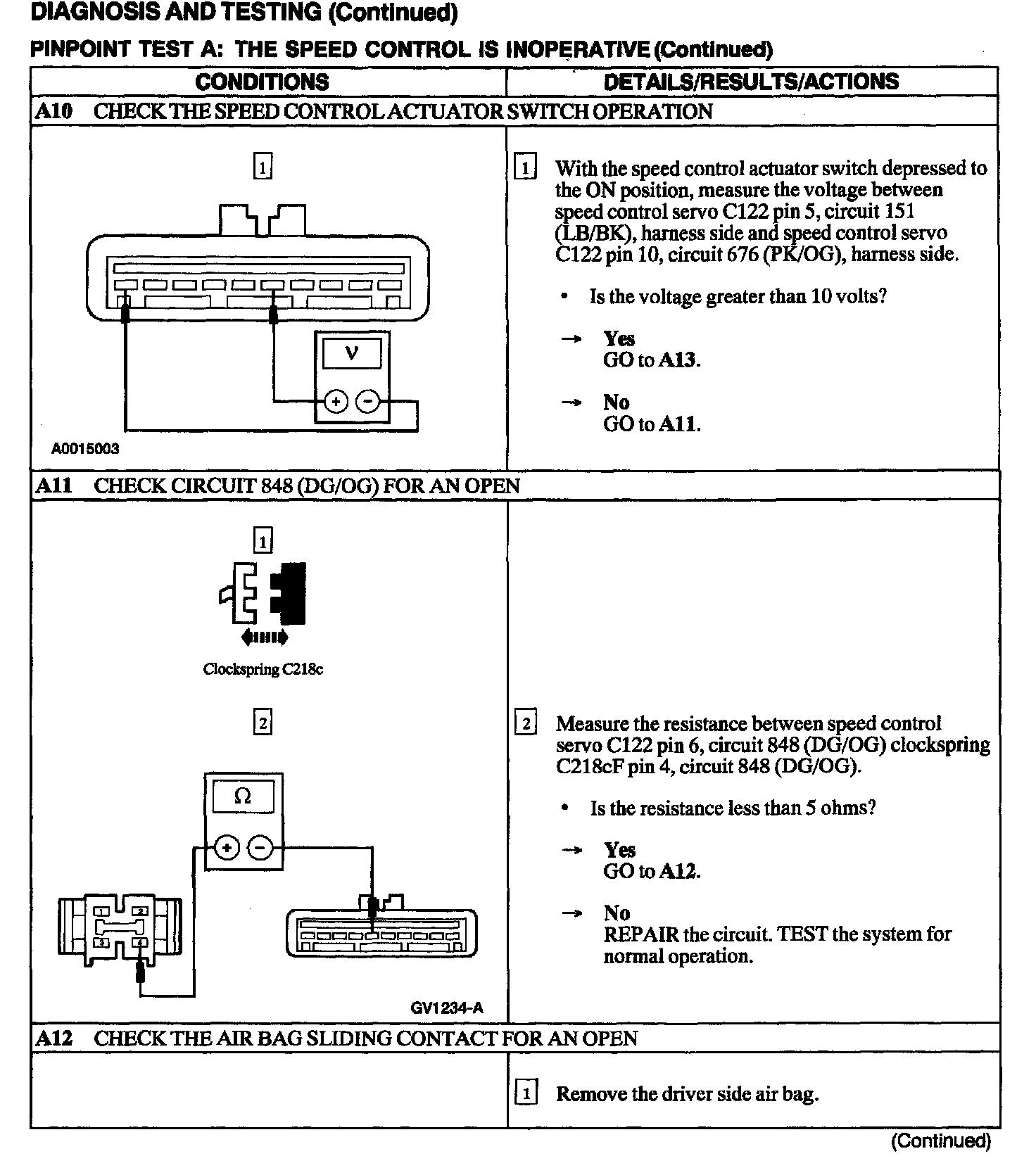

A10 - A12:

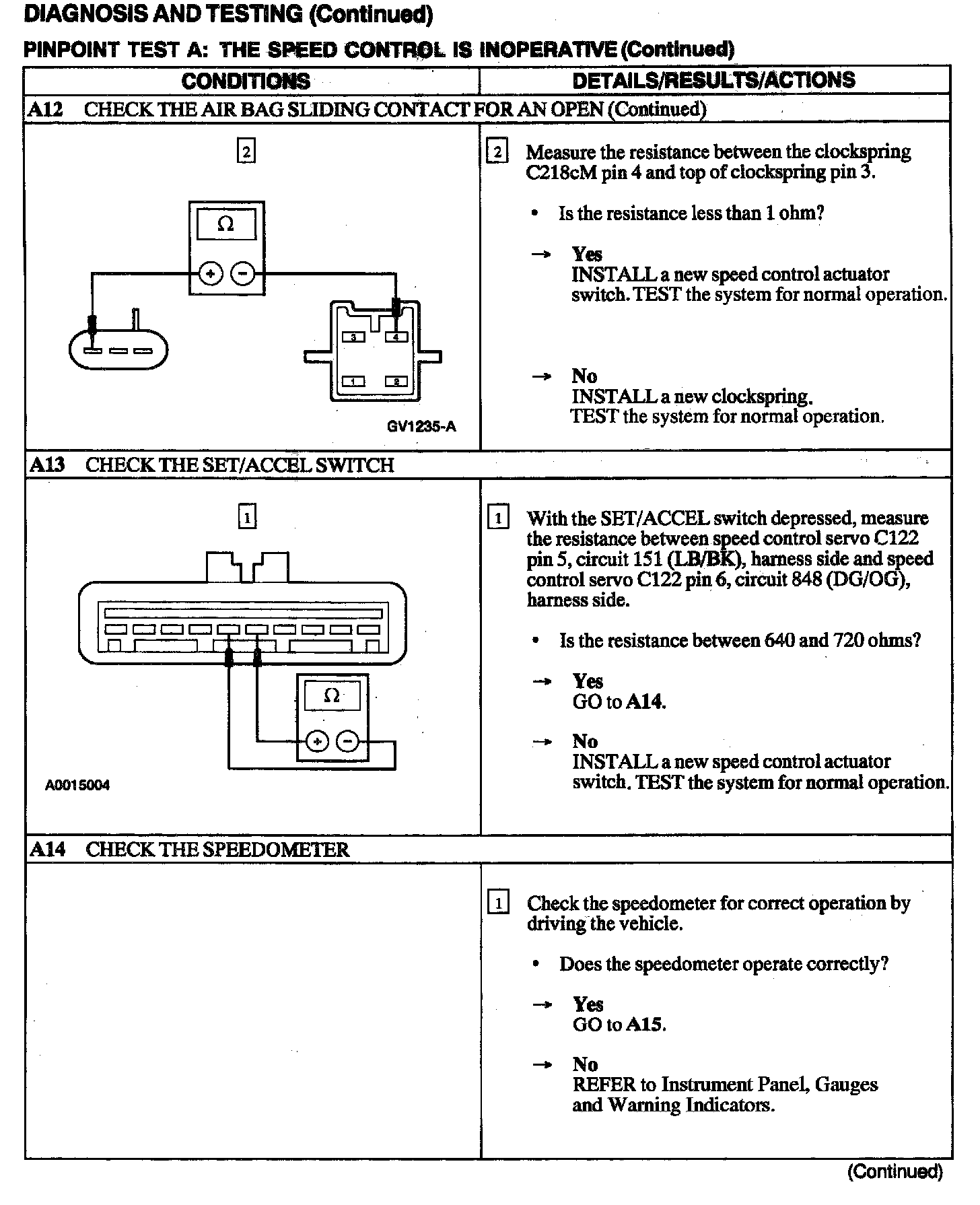

A12 - A14:

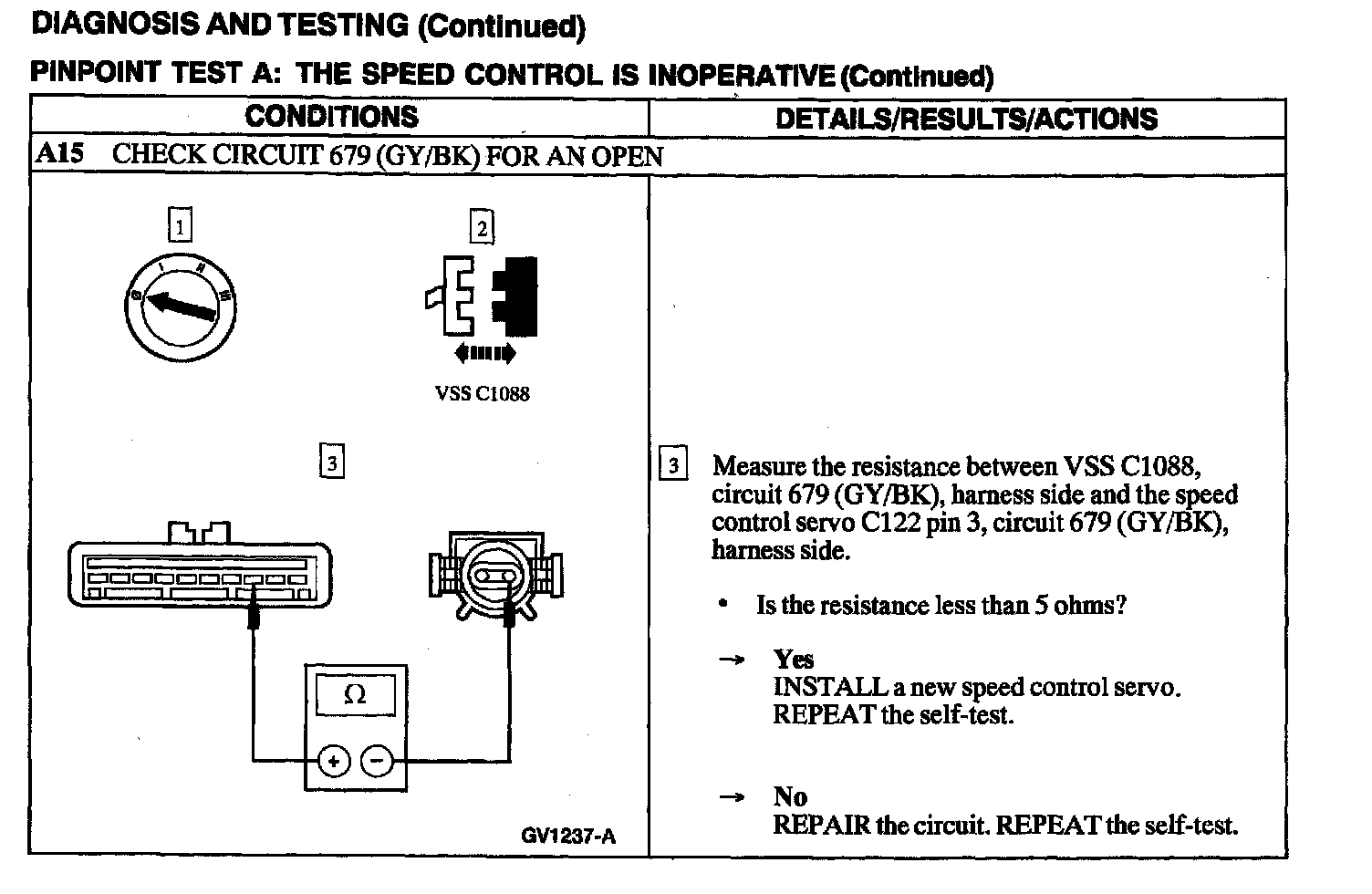

A15:
