Cable and Conduit - Rear

Cable and Conduit-Rear

Removal





1. Release the parking brake control, using the parking brake release handle.

2. WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the luggage compartment. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

Raise the vehicle on a hoist.

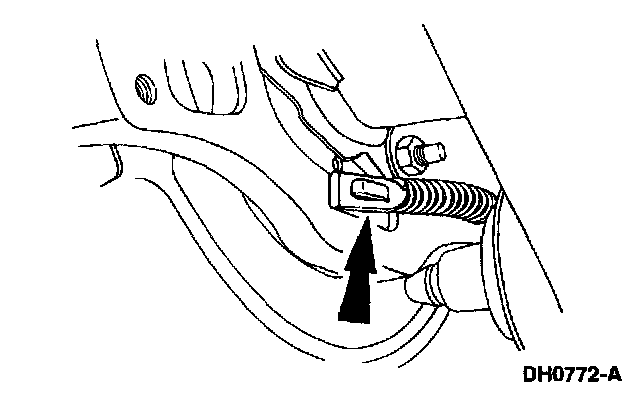

3. Pull the parking brake adjuster clip downward.
4. Lower the vehicle.
5. Apply the parking brake control fully.
6. Raise the vehicle.





7. Push up on the parking brake adjuster clip to lock the adjuster.
8. Lower the vehicle.





9. Release the parking brake control, using the parking brake release handle.
10. Raise the vehicle.





11. Disconnect the front parking brake cable and conduit from the parking brake rear cable and conduit at the cable connector.

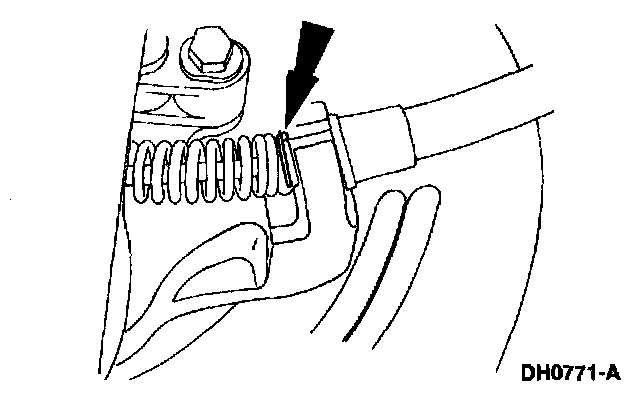

12. Press the retaining tabs, and remove the RH parking brake rear cable and conduit from the frame.





13. Disconnect the LH parking brake rear cable and conduit retainer from the cable adjuster.

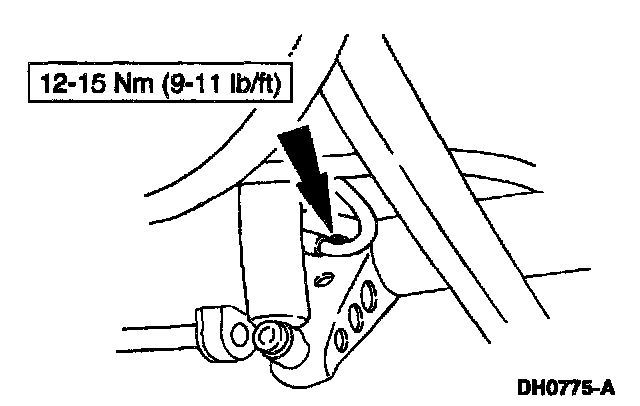

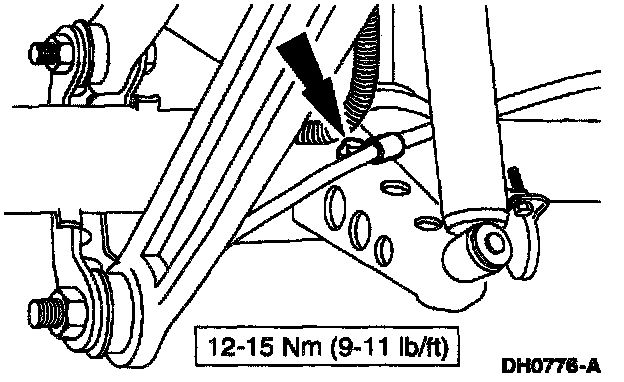

14. Remove the RH parking brake rear cable and conduit retainer bolts.





15. Compress the cable retaining clip, and pull the parking brake rear cable and conduit out of the rear disc brake adapter plate.





16. Disconnect the parking brake rear cable and conduit from the parking brake lever.





17. Unclip the parking brake rear cable and conduit from the axle housing.
18. Remove the parking brake rear cable and conduit.

Installation
1. Install the parking brake rear cable and conduit.





2. Connect the parking brake rear cable and conduit to the parking brake lever.





3. Install the parking brake rear cable and conduit in the rear disc brake adapter plate.





4. Clip the RH parking brake rear cable and conduit to the axle housing.








5. Install the RH parking brake rear cable and conduit retainer bolts.





6. Install the RH parking brake rear cable and conduit to the frame.





7. Connect the LH parking brake rear cable and conduit retainer to the cable adjuster.





8. Connect the front parking brake cable and conduit to the parking brake rear cable and conduit at the cable connector.
9. Adjust the cable tension.
10. Turn the air suspension switch on.
