Rear

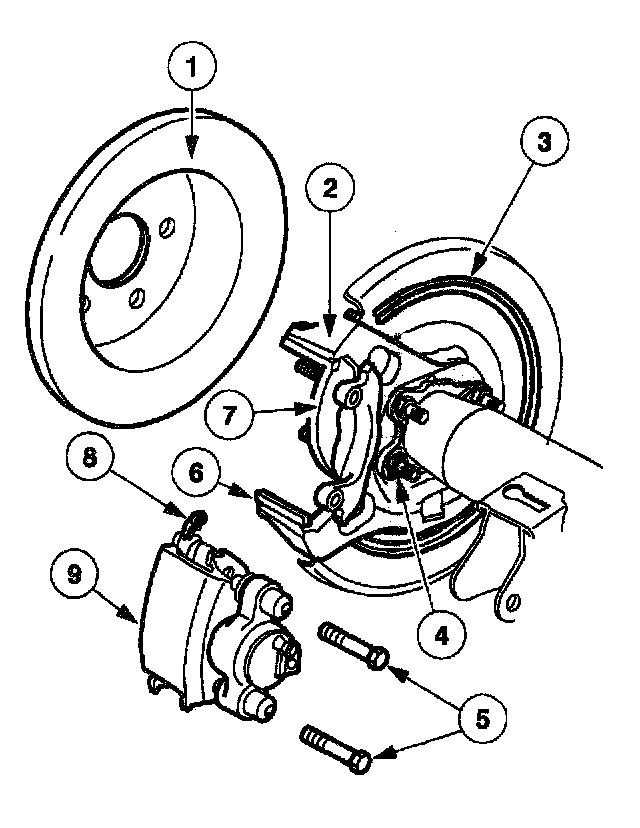

Rear Disc Brake System Components

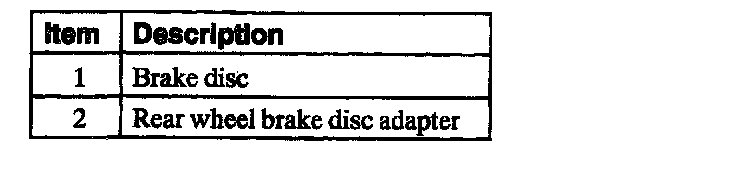

Part 1 of 3

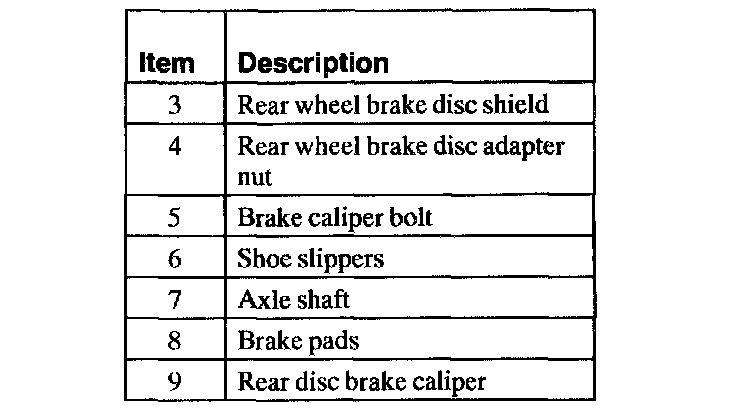

Part 2 of 3

2 Of 2:

Part 3 of 3

NOTE: The inboard and outboard brake pads are not interchangeable.

The brake disc is a solid, full-cast, drum-in-hat type. The rear disc brake pad is equipped with a riveted span" clip that secures it to either the rear disc brake caliper piston or the rear disc brake caliper housing.
