Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> G

G

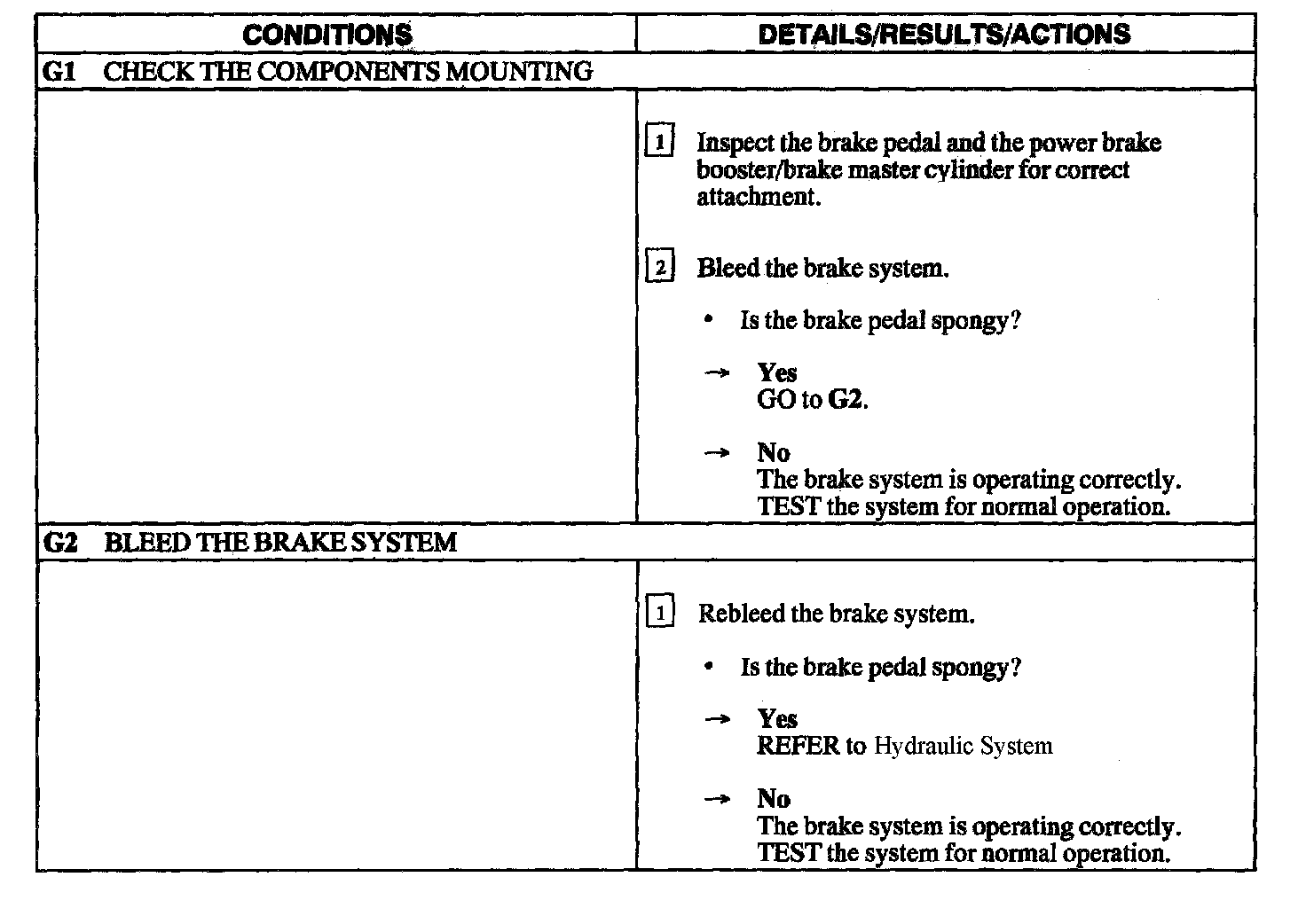

PINPOINT TEST G: SPONGY BRAKE PEDAL With NO WARNING INDICATOR


Test G1-G2:
