Initial Inspection and Diagnostic Overview

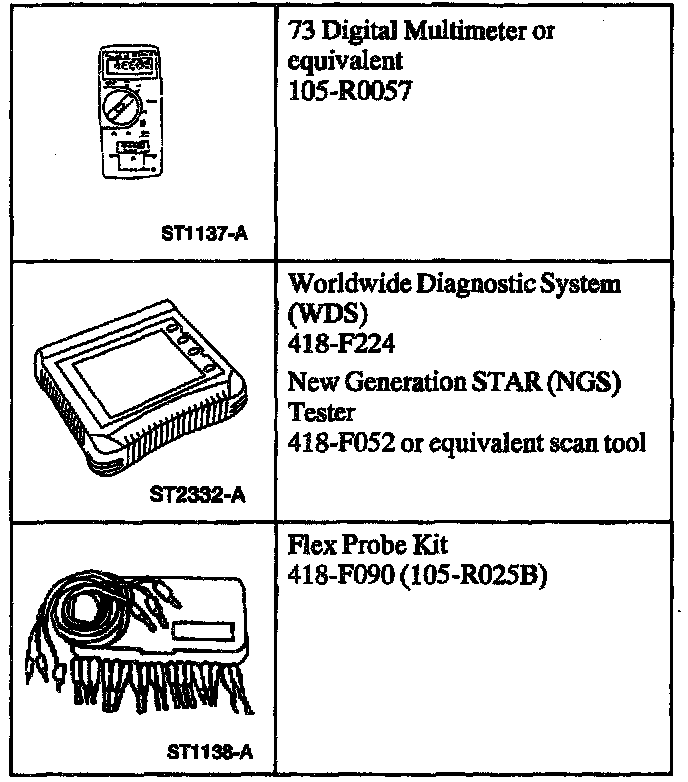

Special Tool(s)

Inspection and Verification

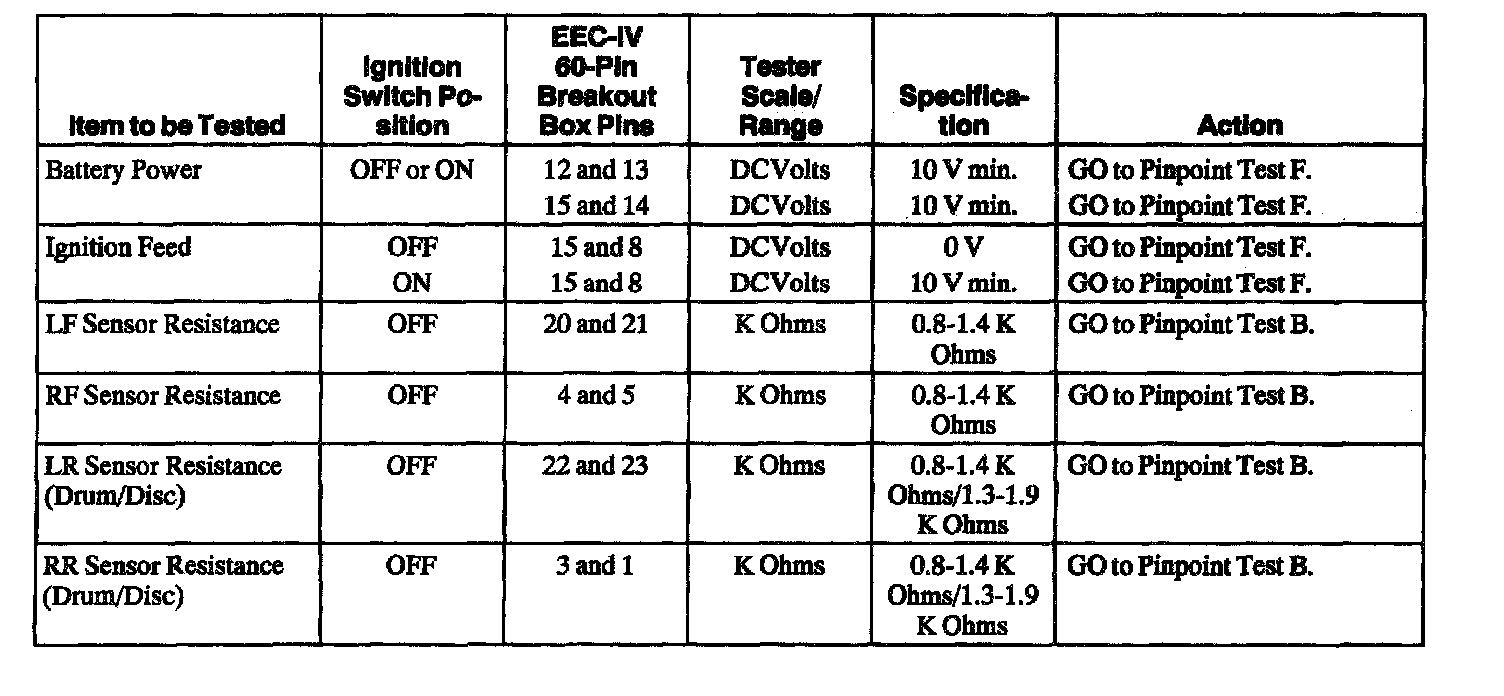

AntiLock Quick Check Sheet





Part 1 of 2

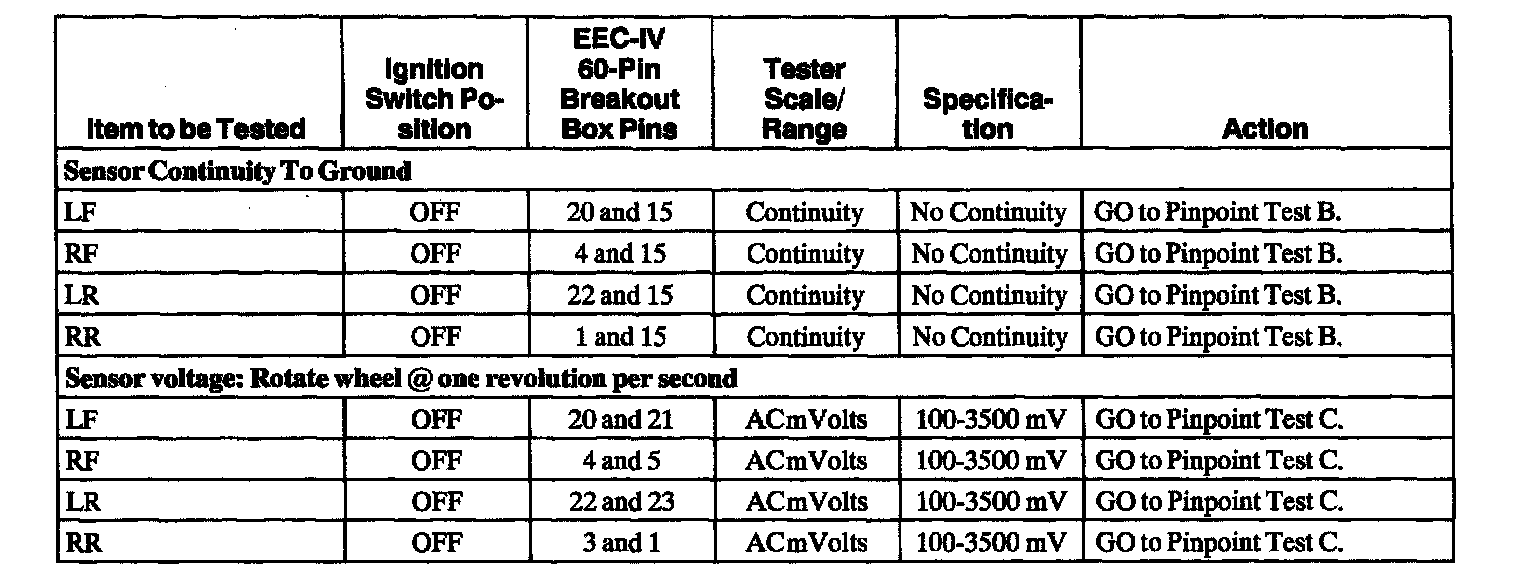

Part 2 of 2

1. Verify the customer's concern by operating the vehicle and applying the brakes under different conditions to duplicate the condition.
2. Inspect to determine if one of the following mechanical or electrical concerns apply:





Visual Inspection Chart
3. If the concern remains after the inspection, connect the scan tool to the Data Link Connector (DLC) located beneath the instrument panel, and select the vehicle to be tested from the scan tool menu. If the scan tool does not communicate with the vehicle:
^ check that the-program card is correctly installed.
^ check the connections to the vehicle.
^ check the ignition switch position.

4. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
5. Perform the DATA LINK DIAGNOSTIC TEST. If scan tool responds with:
^ CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Module Communications Network.
^ NO RESP/NOT EQUIP for anti-lock brake control module, GO to Pinpoint Test F. F
^ SYSTEM PASSED, retrieve and record the continuous Diagnostic Trouble Codes (DTC'S), erase the continuous DTC'S and perform self-test diagnostics for the anti-lock brake control module.
6. If the DTC'S retrieved are related to the concern, go to Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index to continue diagnostics. Diagnostic Trouble Code Tests and Associated Procedures
7. If no DTC'S related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics. Symptom Related Diagnostic Procedures
