Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test E: Power Seat Does Not Recline - Driver Seat

Test E: Power Seat Does Not Recline - Driver Seat

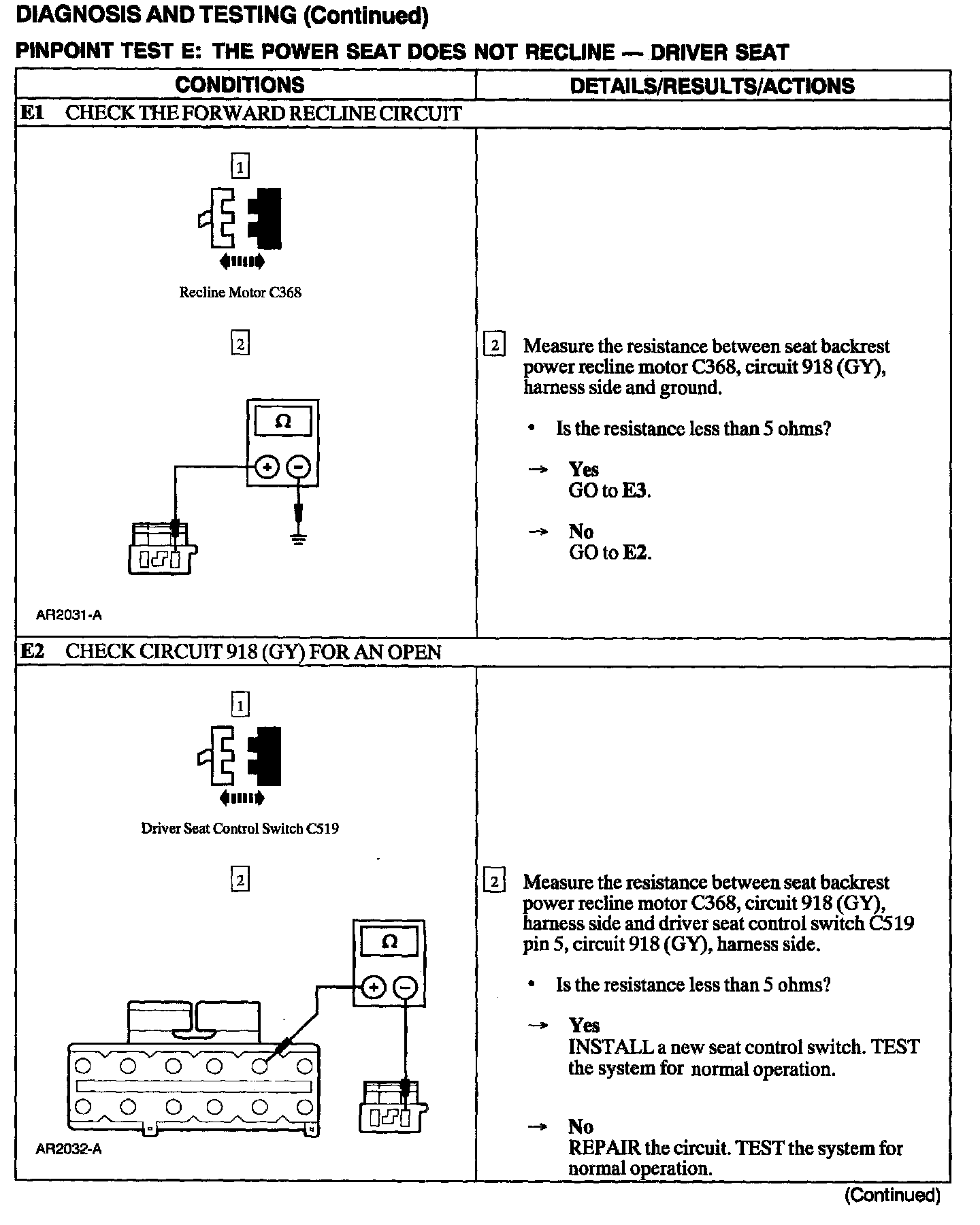

E1 - E2:

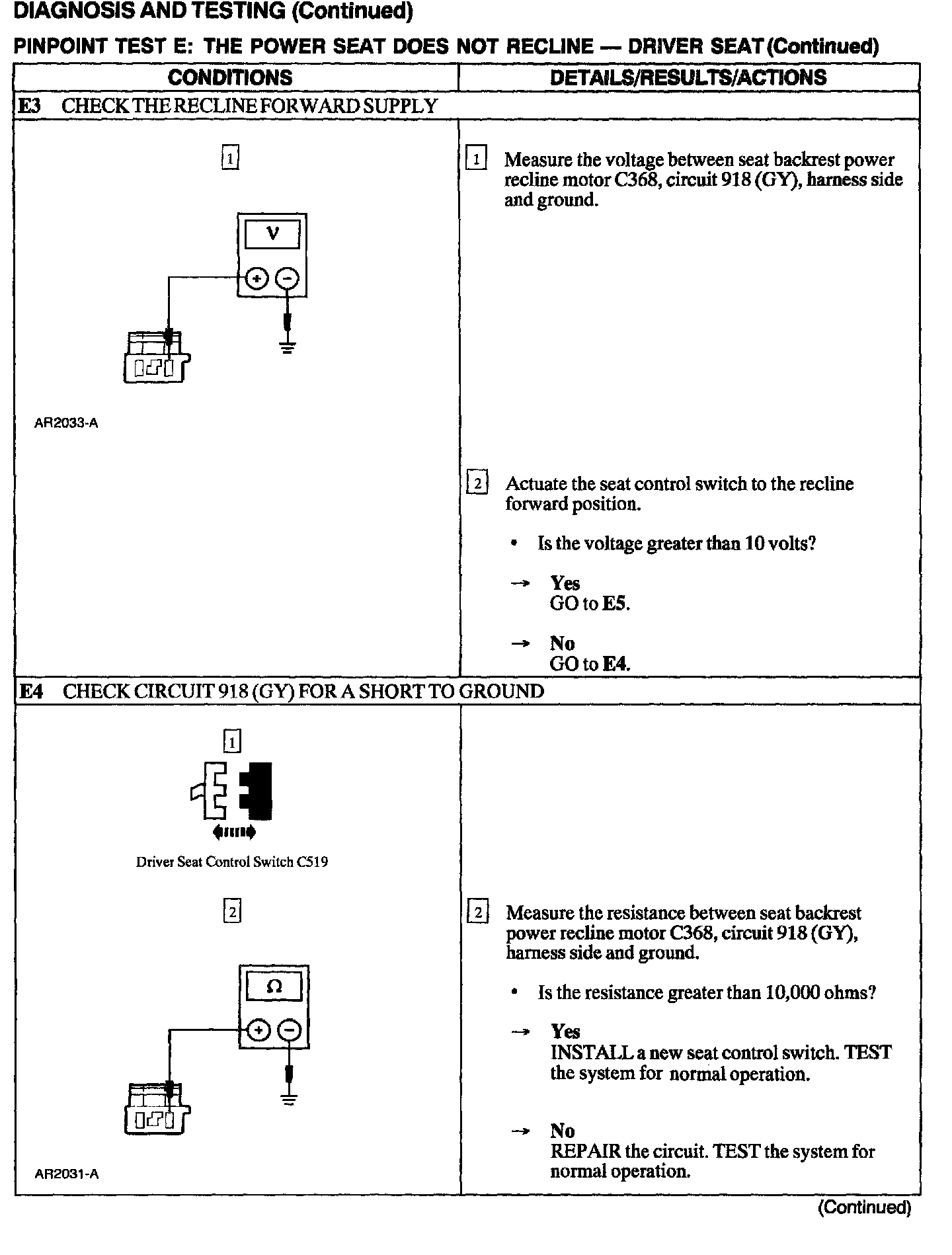

E3 - E4:

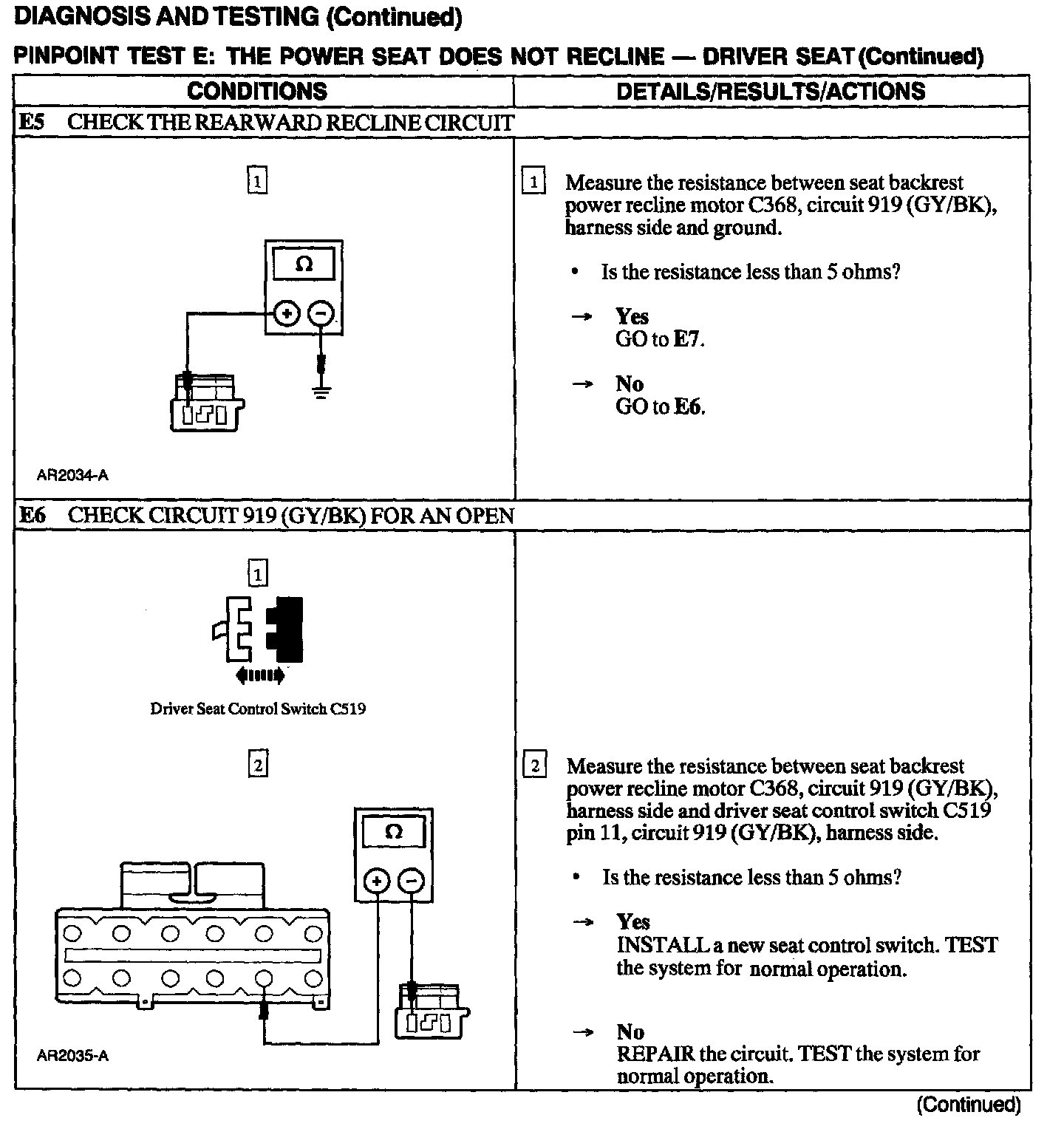

E5 - E6:

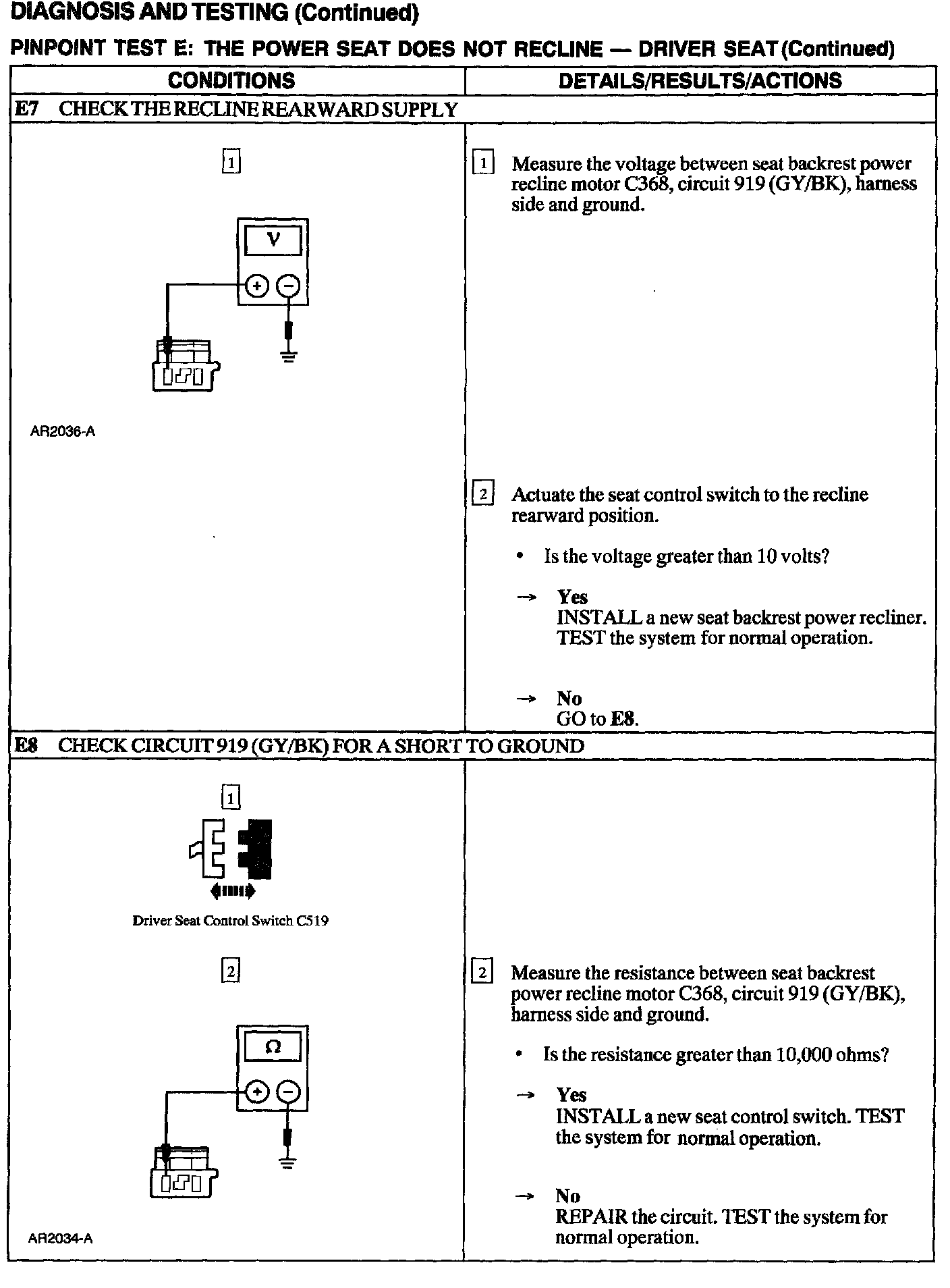

E7 - E8:
