Test J: Panic Feature Is Inoperative/Does Not Operate Correctly

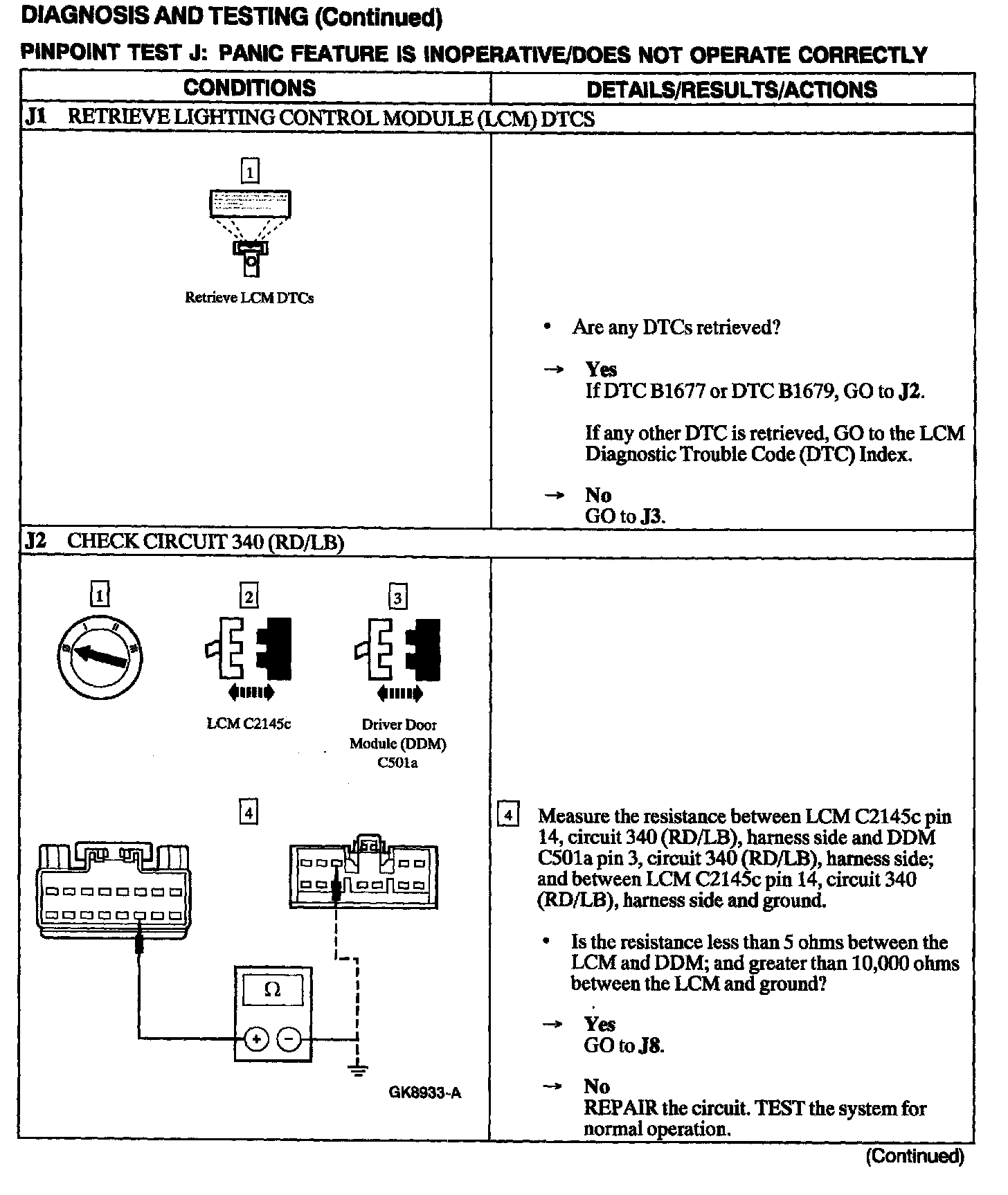

J1 - J2:

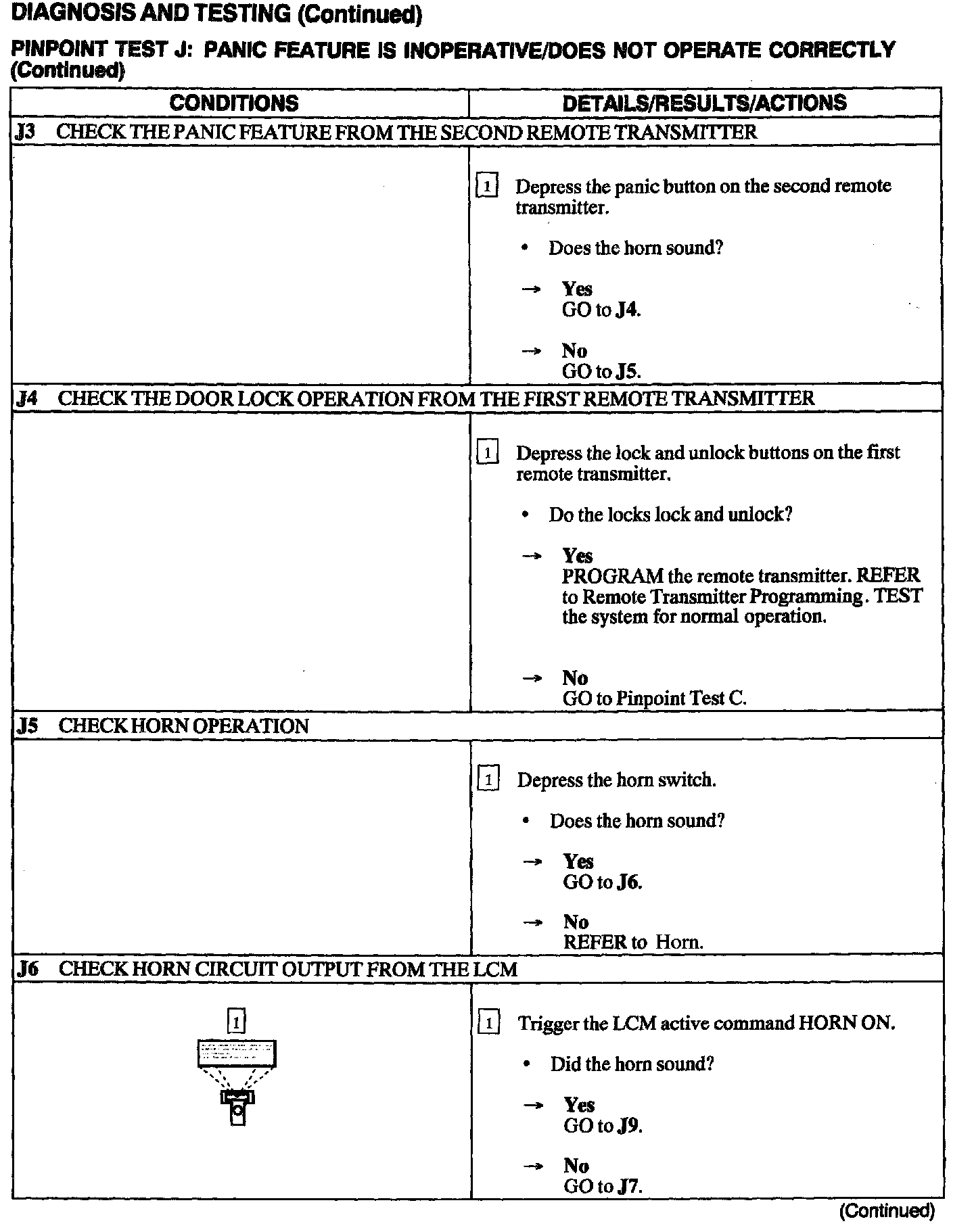

J3 - J6:

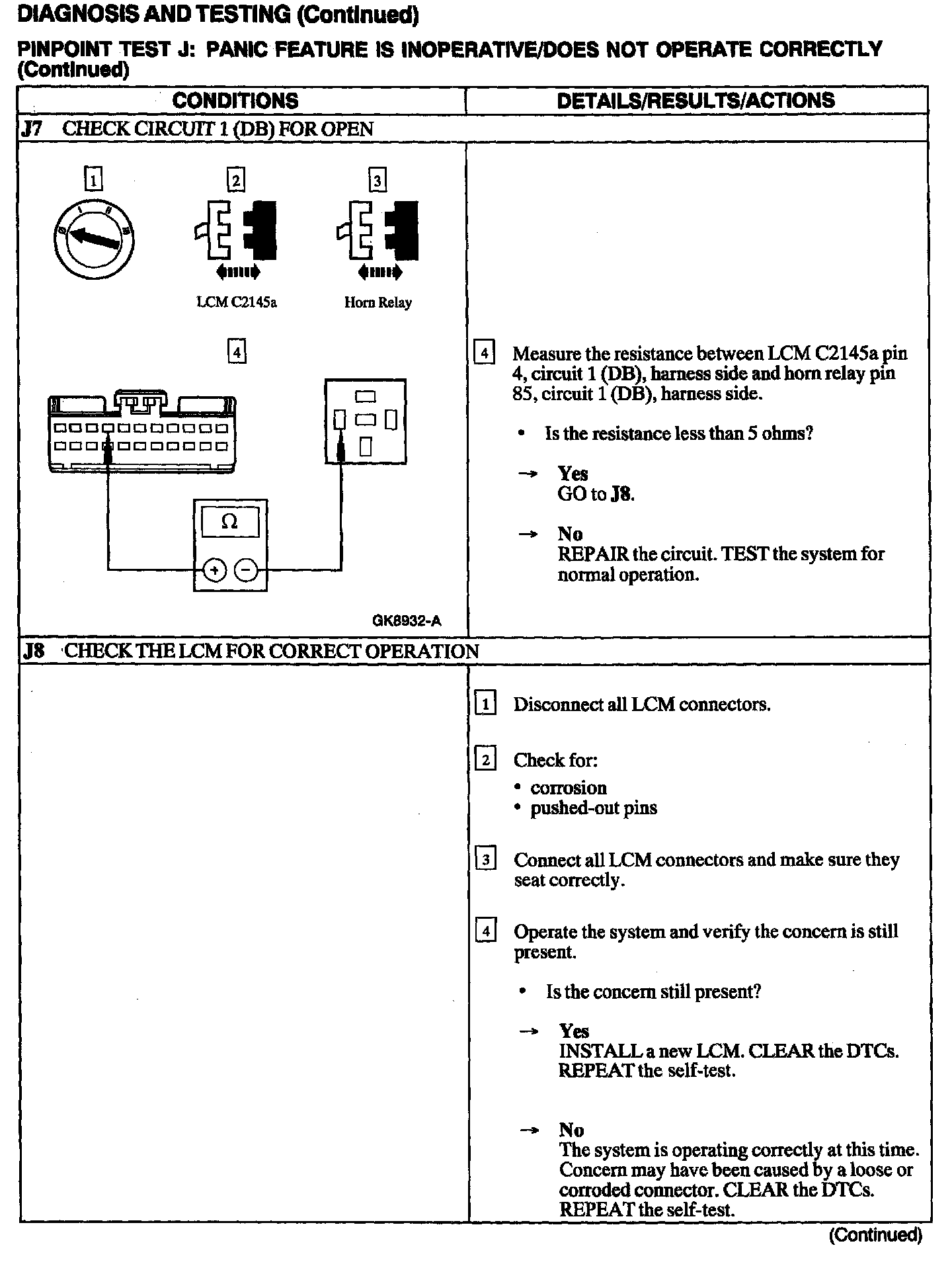

J7 - J8:






J9:
