FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Test F: Doors Do Not Lock/Unlock Using the Remote Transmitter

Test F: Doors Do Not Lock/Unlock Using the Remote Transmitter

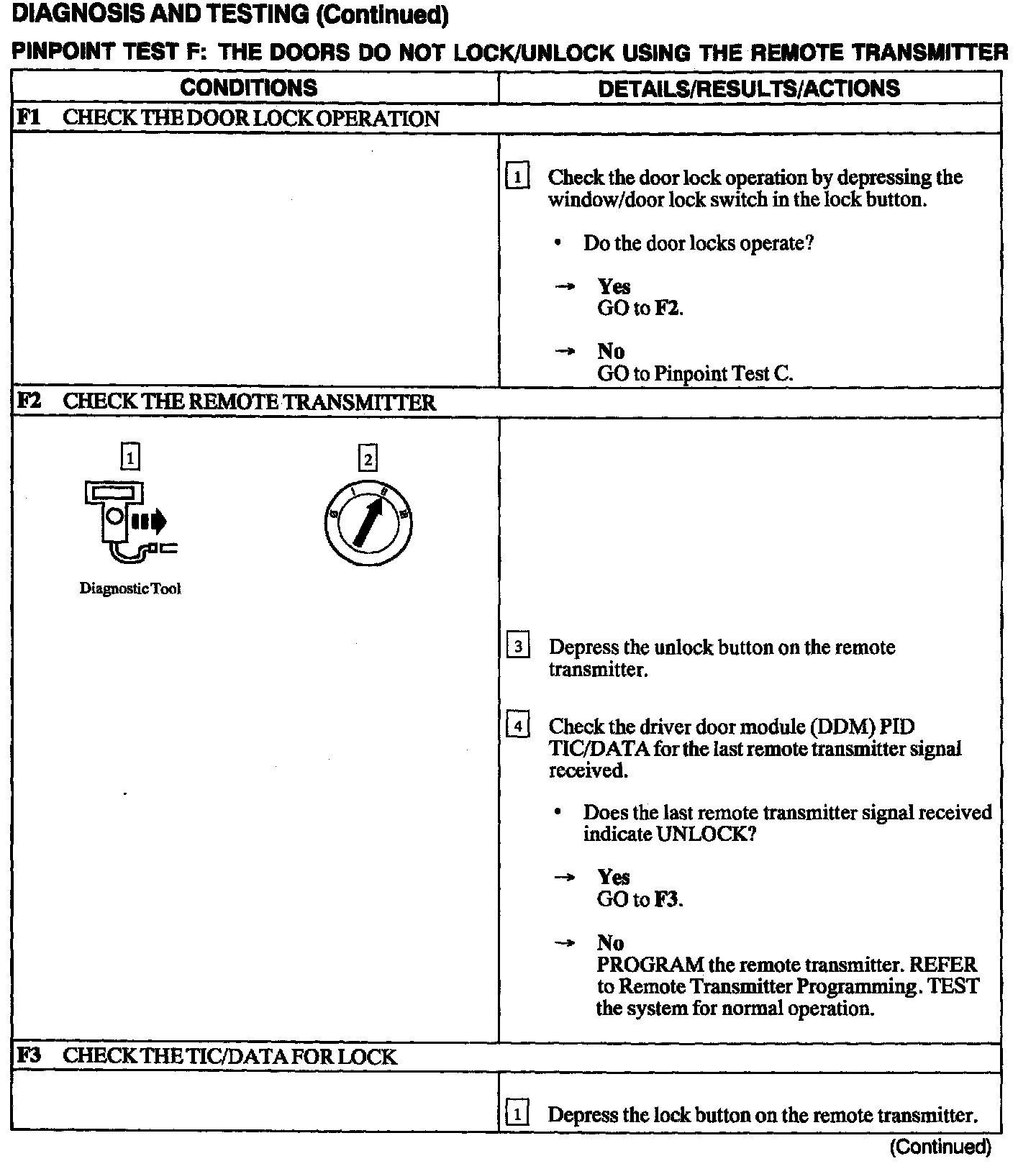

F1 - F3:

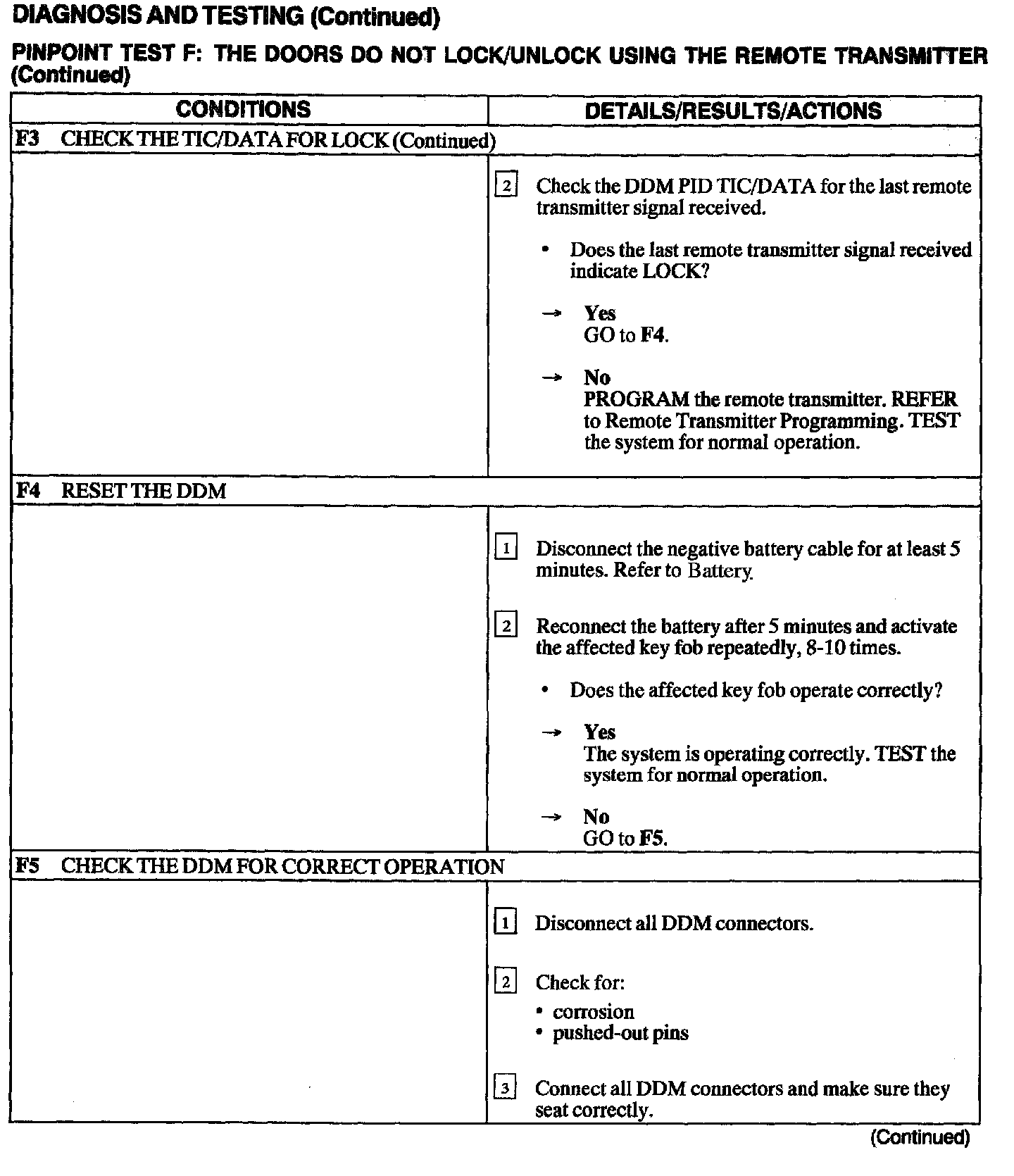

F3 - F5:

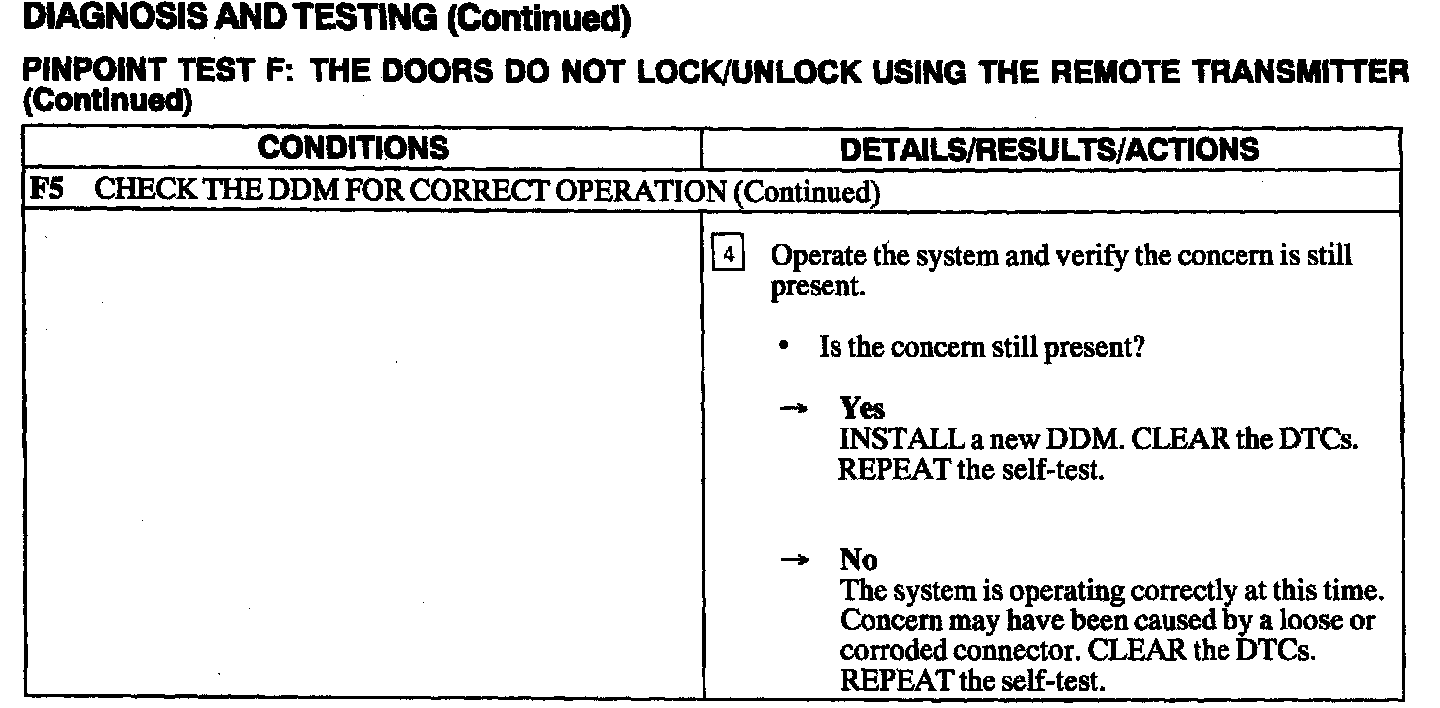

F5:
