Rear Door Trim Panel

REMOVAL







All vehicles

1. Remove the window regulator control switch plate.


NOTE: Use care not to damage the trim panel when removing the screws.

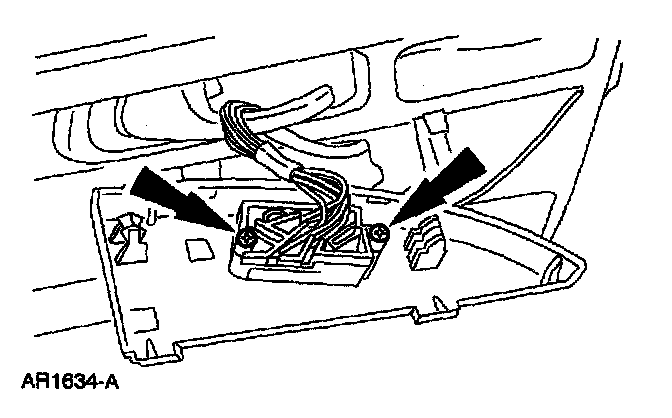

2. Remove the screws and the regulator control switch plate.

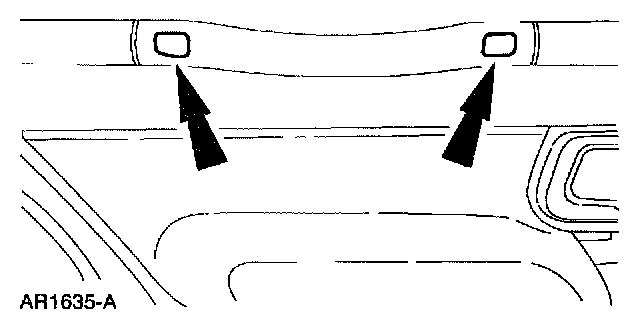

3. Remove the screw covers.

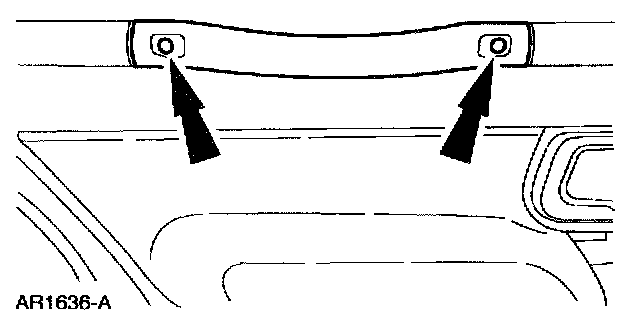

4. Remove the screws.







5. Remove the interior door handle cup.







Short wheelbase vehicles

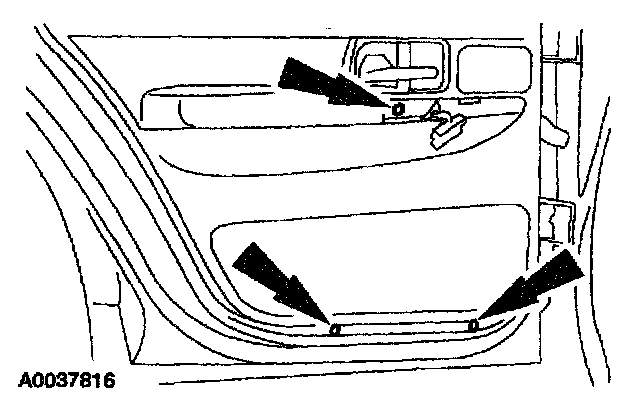

6. Remove the screws.







Long wheelbase vehicles

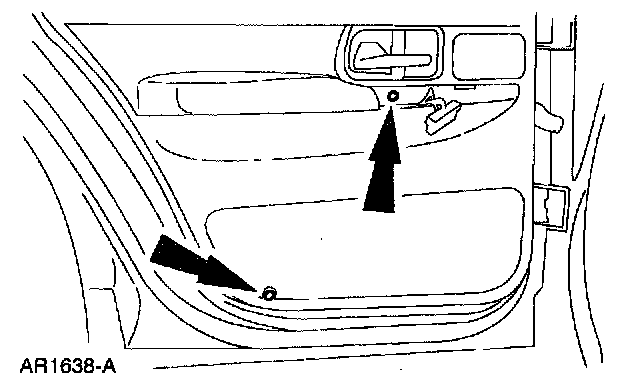

7. Remove the screws.







All vehicles

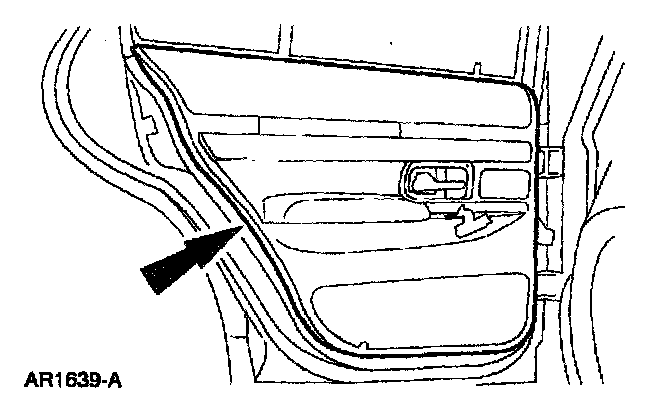

8. Remove the rear door trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
