Floor Console

REMOVAL
1. Remove the floor console finish panel.







2. Remove the console glove compartment.
- Disconnect the electrical connector.

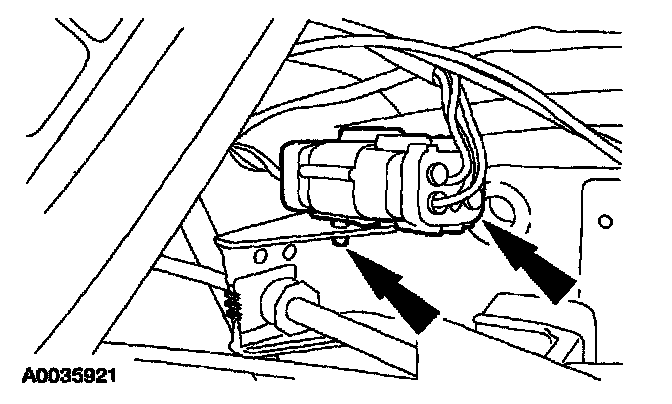

3. Disconnect the floor console electrical connector.
- Release the connector from the shifter.

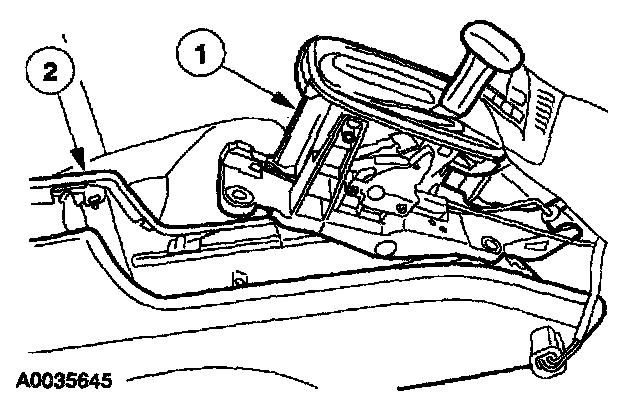

4. Position the shifter assembly aside.
1 Remove the four nuts.
2 Disconnect the electrical connector.

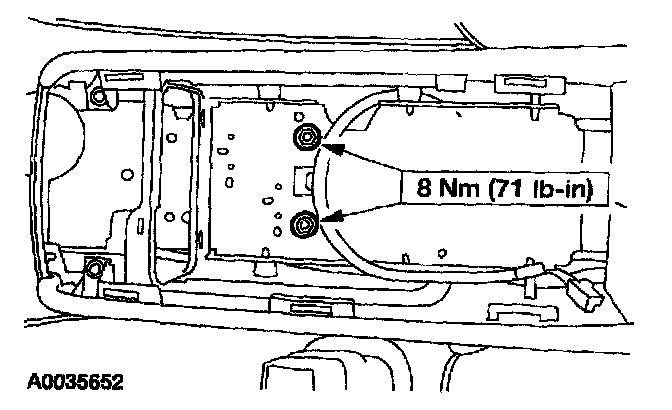

5. Remove the floor console bolts.

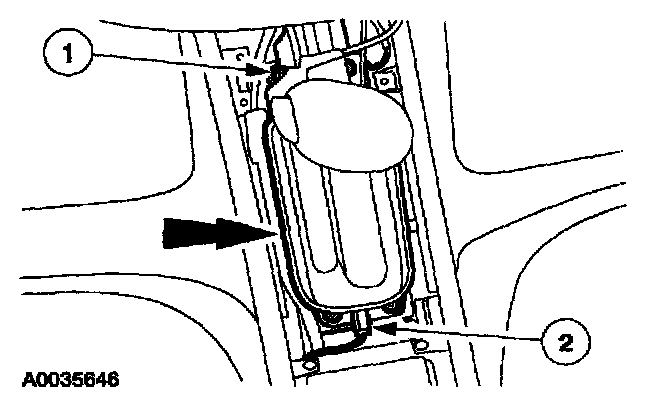

6. Remove the floor console.
1 Position the shifter assembly aside.
2 Slide the floor console rearward to remove.

INSTALLATION
1. To install, reverse the removal procedure.
