ACM Self-Diagnostic Mode (P100i Only)

NOTE: To enter the speaker walk-around test or ACM self-diagnostic mode, the ACM must be turned on and in radio tuner mode (AM/FM). The ACM self-diagnostic mode can only be entered while in the speaker walk-around test.

1. The ACM self-diagnostic mode (P100i only) has five tests available:
^ Preset button 1 = Audio internal/external SELF TEST. If SELF FAIL is displayed, press TUNE > to scroll view the diagnostic trouble codes (DTCs) stored. Refer to ACM Diagnostic Trouble Code (DTC) Index. If system is OK, SELF PASS is displayed. Diagnostic Trouble Code Tests and Associated Procedures
^ Preset button 2 = View/clear continuous DTCs. NO DTCS is displayed if no DTCs are retrieved. If DTCS FOUND is displayed, press TUNE > button to view the DTCs retrieved. Refer to ACM Diagnostic Trouble Code (DTC) Index. To clear all DTCs, press the EJECT button. DTCS CLEAR will be displayed. Diagnostic Trouble Code Tests and Associated Procedures
^ Preset button 3 = SIGNAL TEST. This test measures the average strength at the current tuner setting.

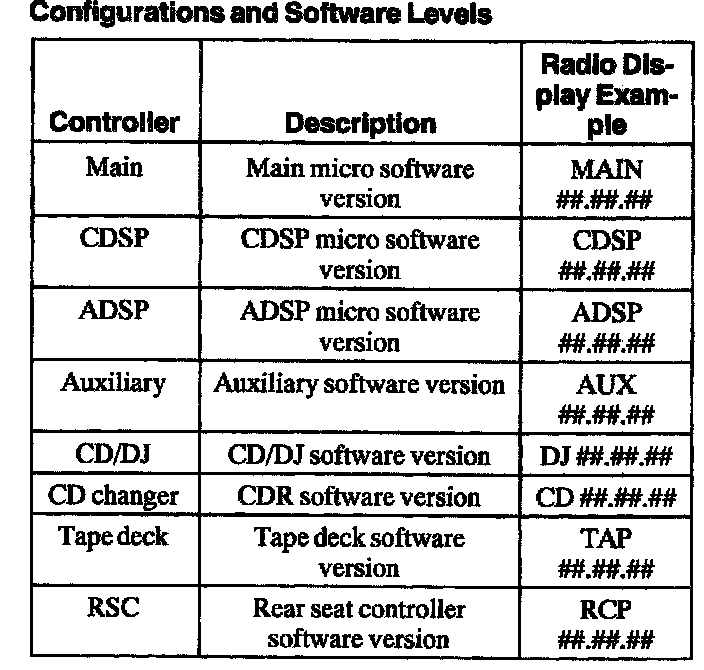

Configurations And Software Levels:

^ Preset button 4 = Software configuration level. This test queries each radio system controller for their software configuration level. SOFT LEVELS will be displayed upon completion of the query. Press TUNE > to scroll view the software configuration version level.
^ Preset button 5 = DISPLAY TEST. This test will light all the ACM display segments for five seconds and then turn all segments off. When the test is complete, DISPLAY TEST is displayed on the bezel.
2. To enter these tests, press the preset button desired while in the speaker walk-around test. This will abort the speaker walk-around test and start the selected test.
3. To exit the ACM self-diagnostic mode, turn the ignition switch or ACM off.
4. If the concern remains and the fault is not detected, proceed to the Symptom Chart to continue diagnostics. Symptom Related Diagnostic Procedures
