Torque Converter Leak Check

Torque Converter Leak Check

Special Tools:

Special Tool(s)

Check
1. Clean the outside surface of the torque converter.

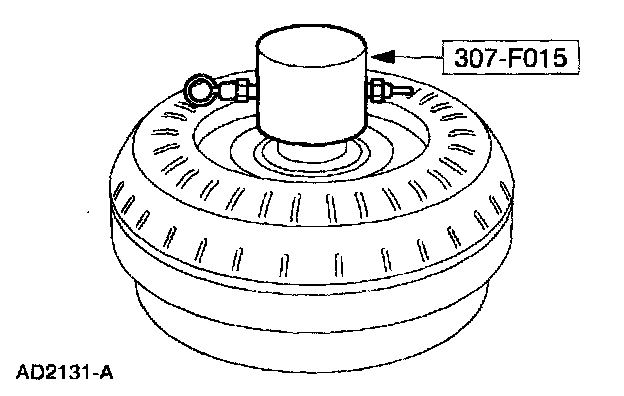

2. Install the special tool into converter hub.





3. WARNING: Always follow correct safety procedures while using press. Failure to follow these instructions can result in personal injury.

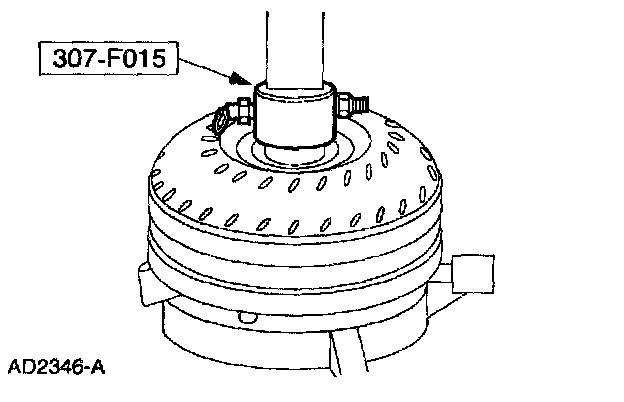

Position the torque converter with the installed special tool into an arbor press. Secure press. Apply enough force from press to seal tool into torque converter.





4. NOTE: Use clean dry shop air.

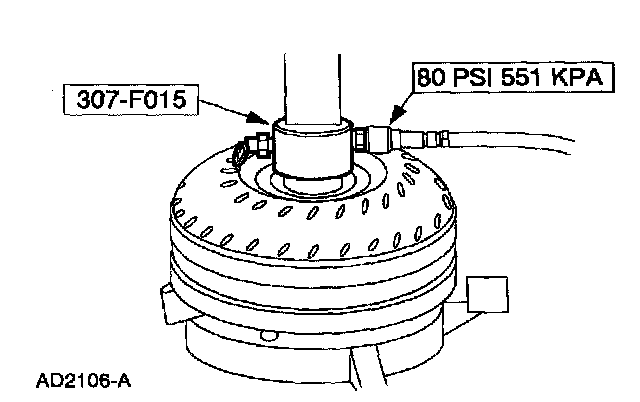

Using the special tool, apply air pressure to the valve.

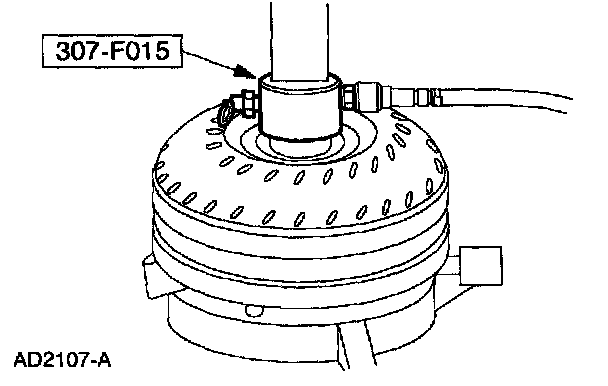

5. With the special tool installed and air pressure applied to valve, inspect for leaks at converter hub, seams and studs. A soap bubble solution may be applied around those areas to aid in diagnosis. If leaks are present, install a new converter.

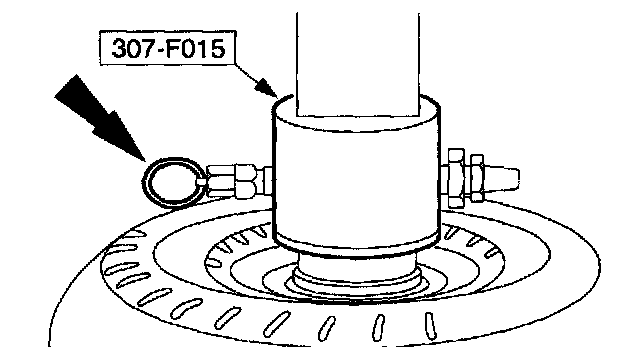

6. Remove air hose. Release the pressure and then slowly release the press, and the tool. Remove the converter from the press.
