Home >> Mercury >> 2002 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> General

General



GENERAL SPECIFICATIONS

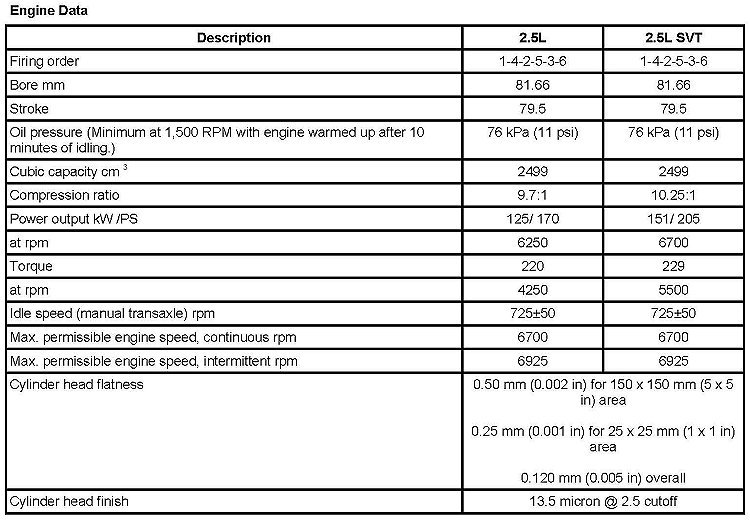

General Specifications (1 Of 2):

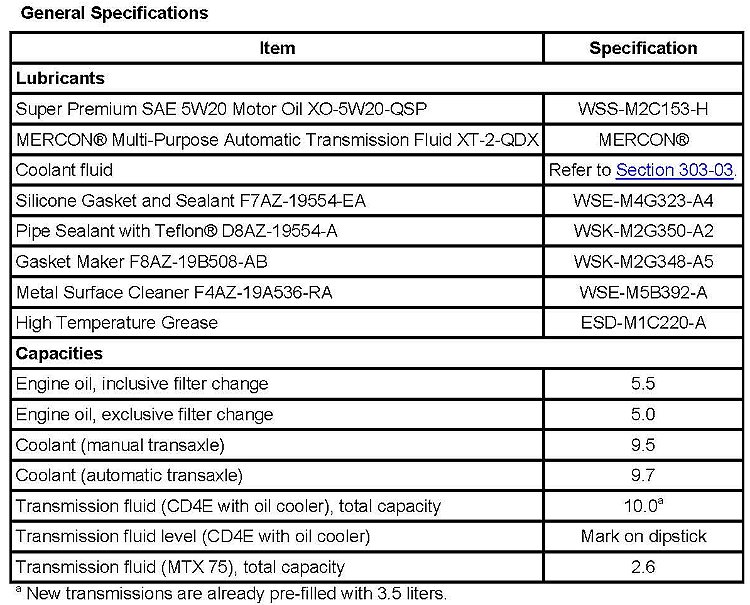

General Specifications (2 Of 2):
