Home >> Mercury >> 2002 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Description and Operation >> Electronic Engine Controls

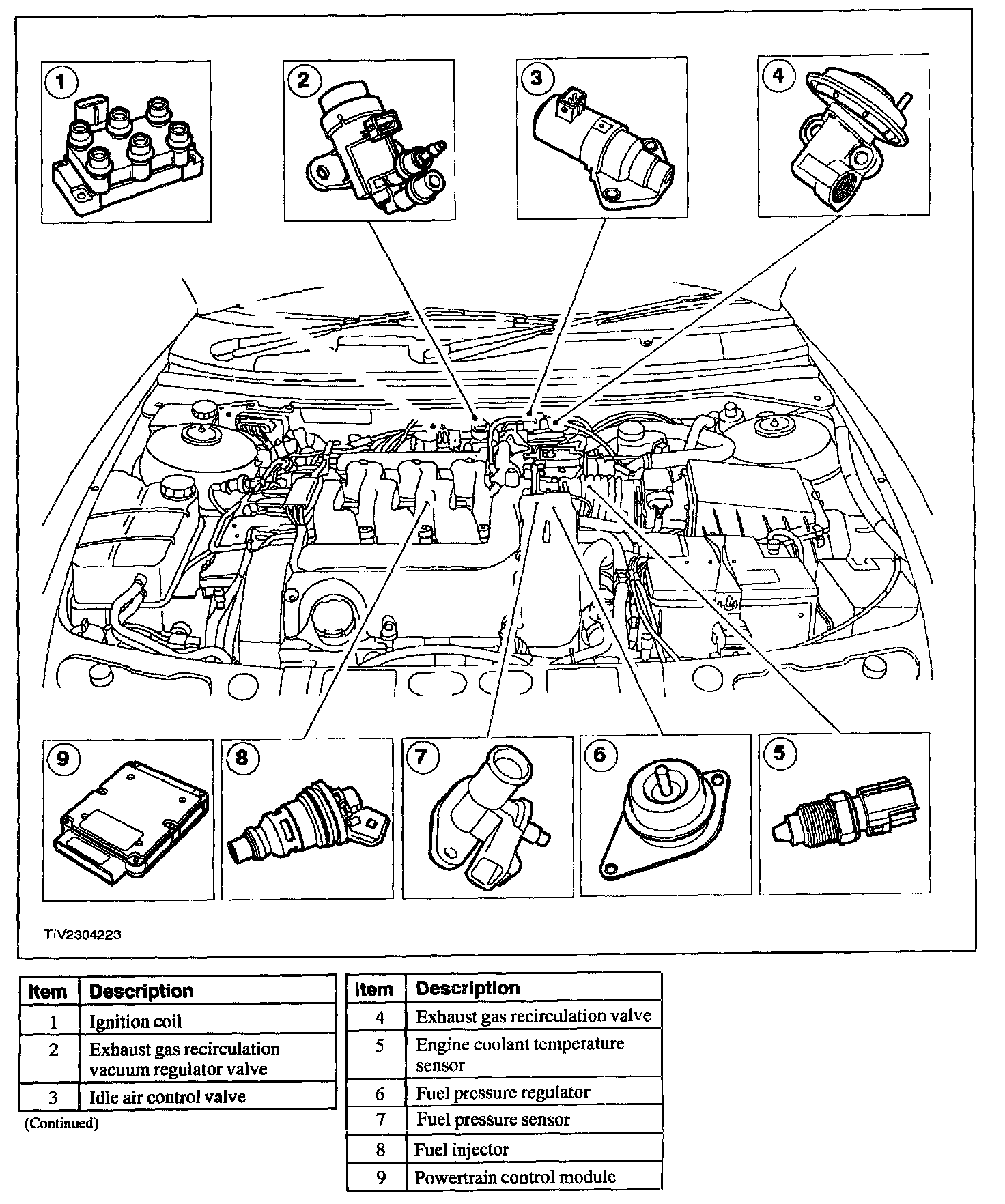

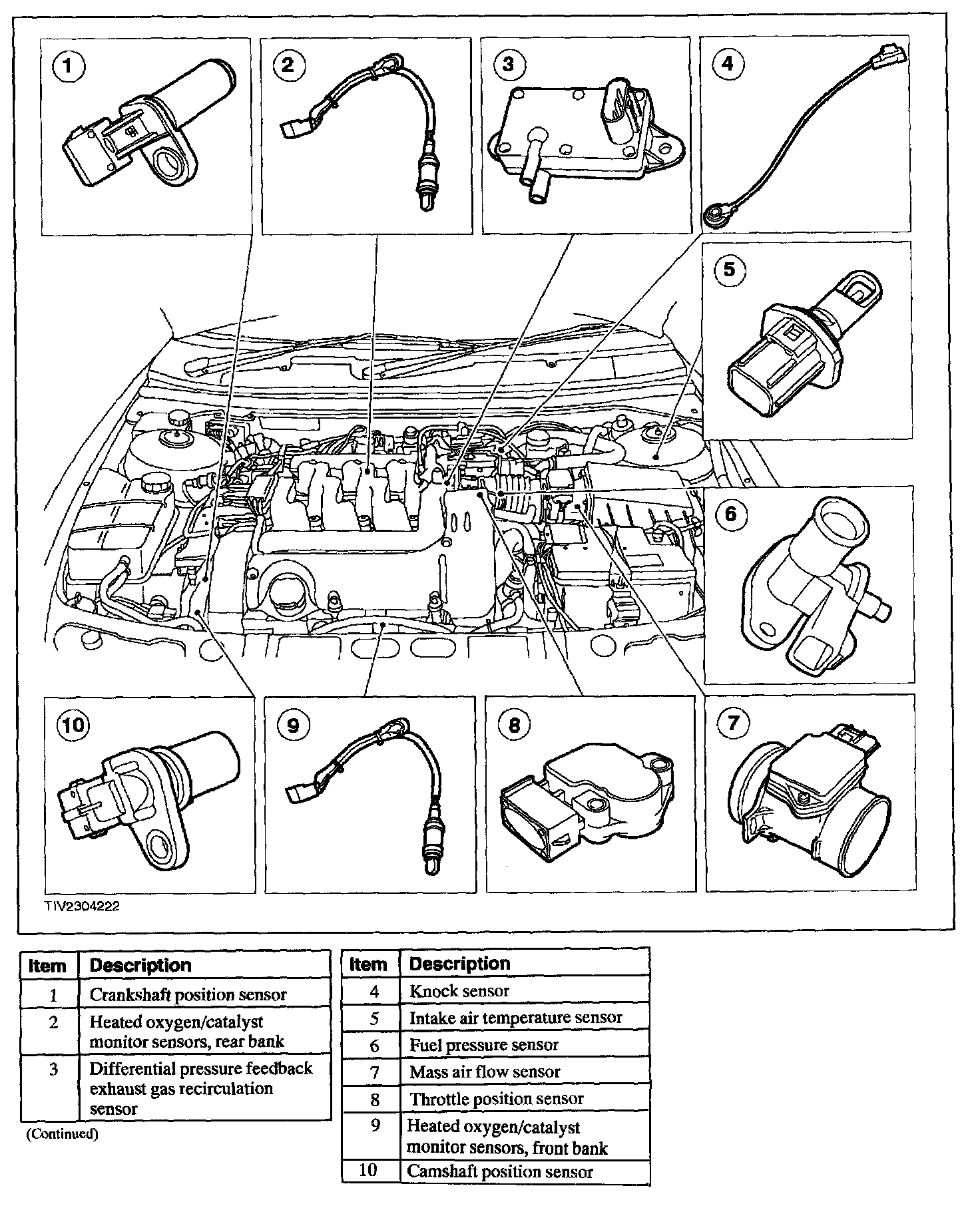

Electronic Engine Controls











Comprehensive descriptions of operation are contained at the individual component Description and Operation.
