Test Y: Indicator Inoperative -Malfunction Indicator Lamp (MIL)
Test Y: Indicator Inoperative -Malfunction Indicator Lamp (MIL)

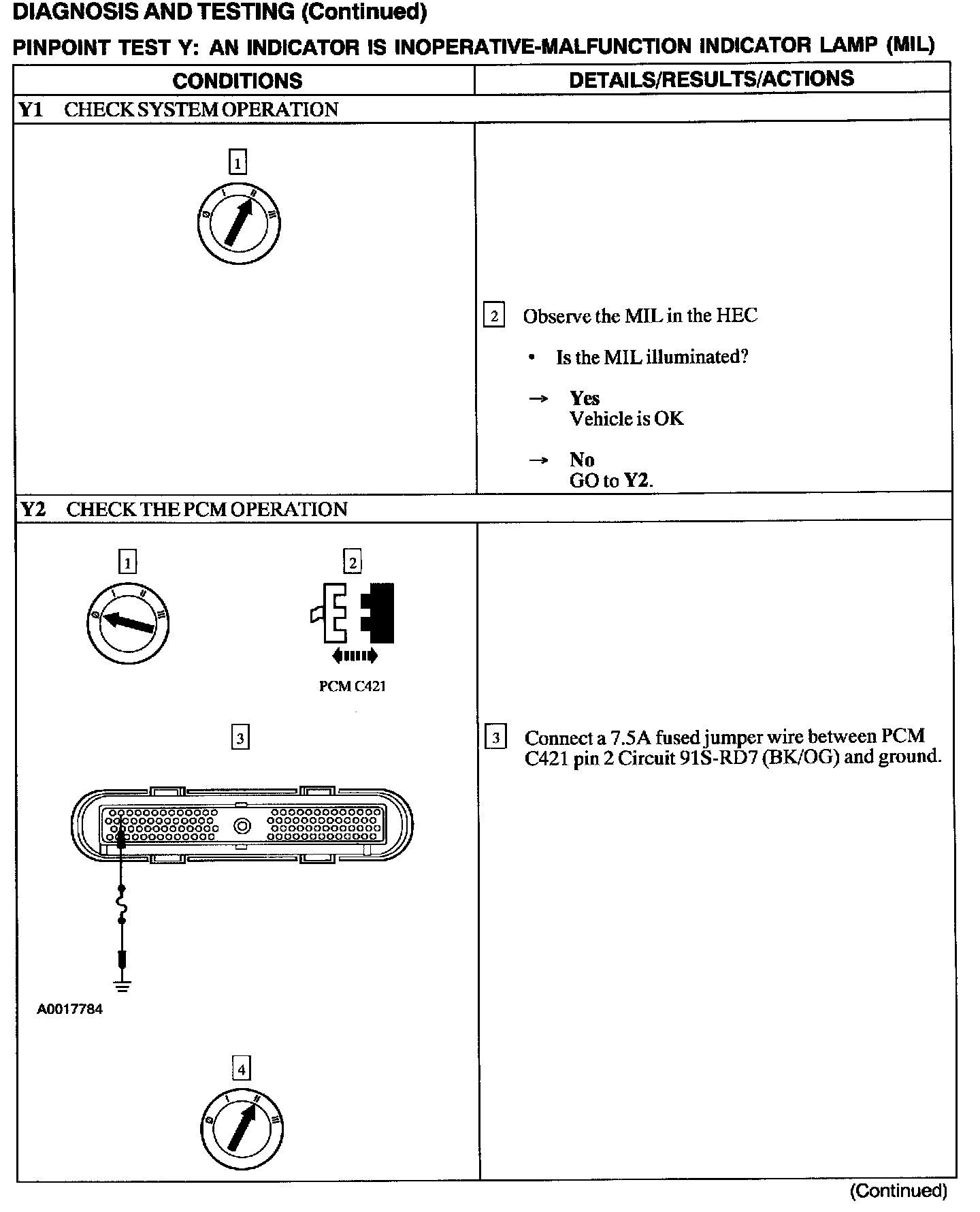

Y1 - Y2:

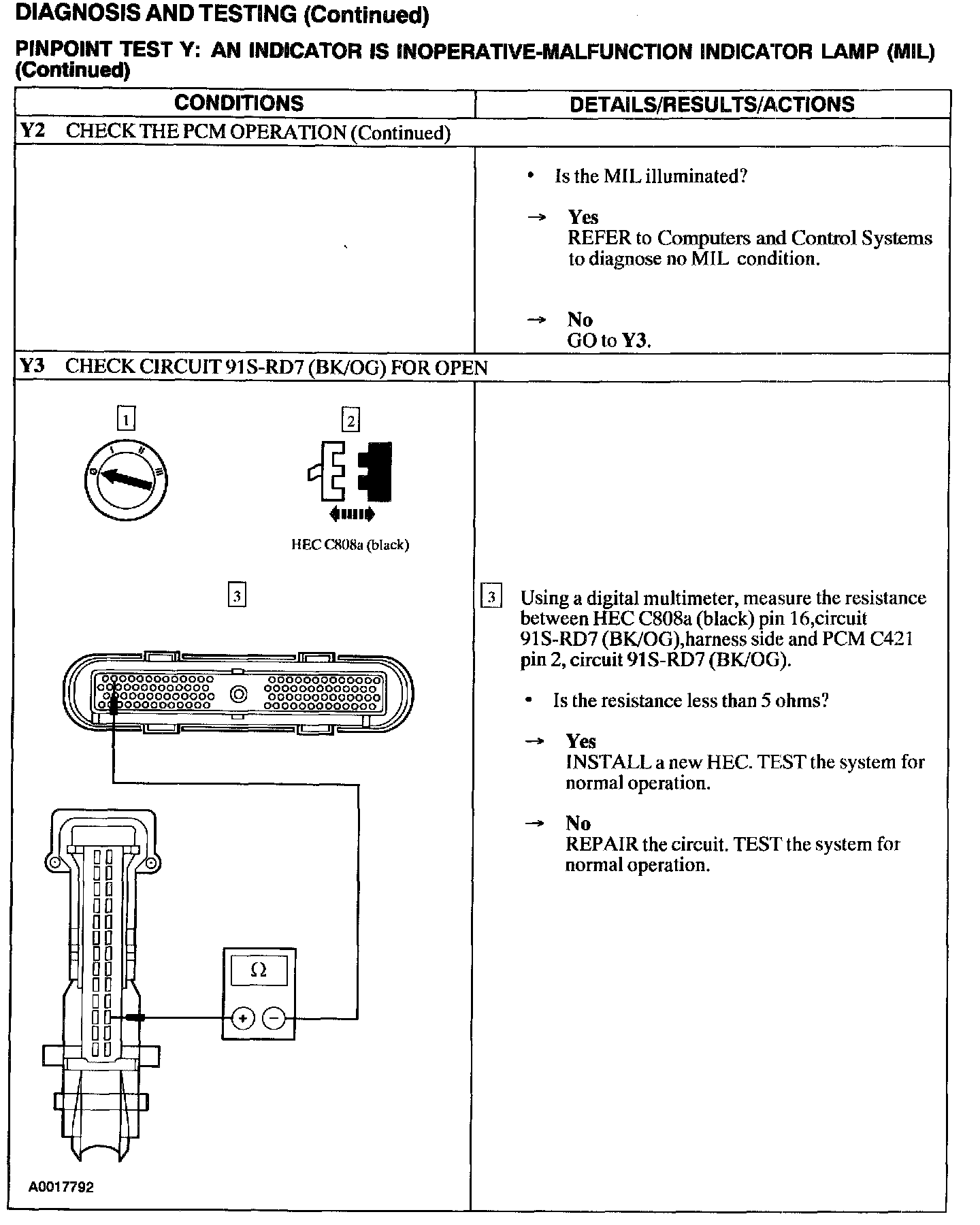

Y2 - Y3:
