Test M: An Indicator Is Always On - Bulb Out Warning Indicator
Test M: An Indicator Is Always On - Bulb Out Warning Indicator

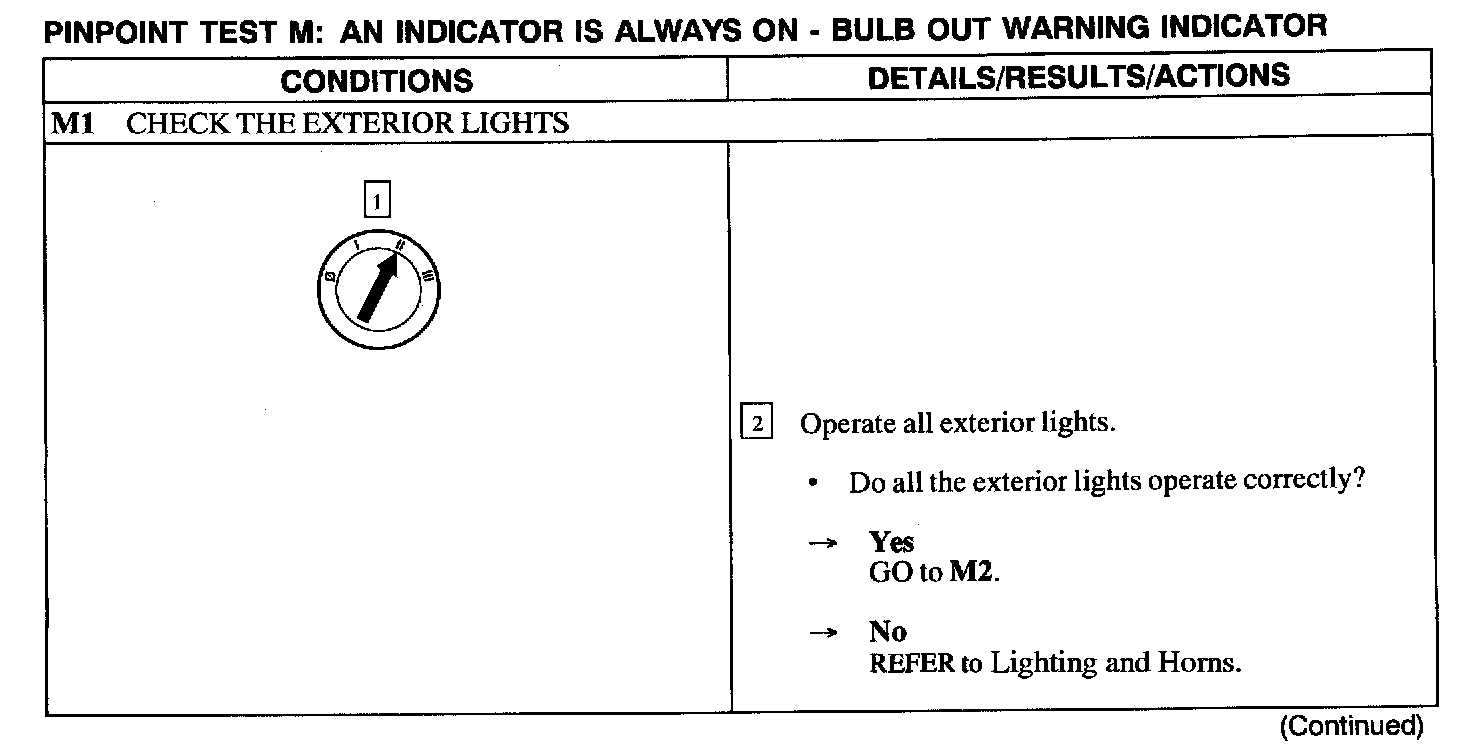

M1:

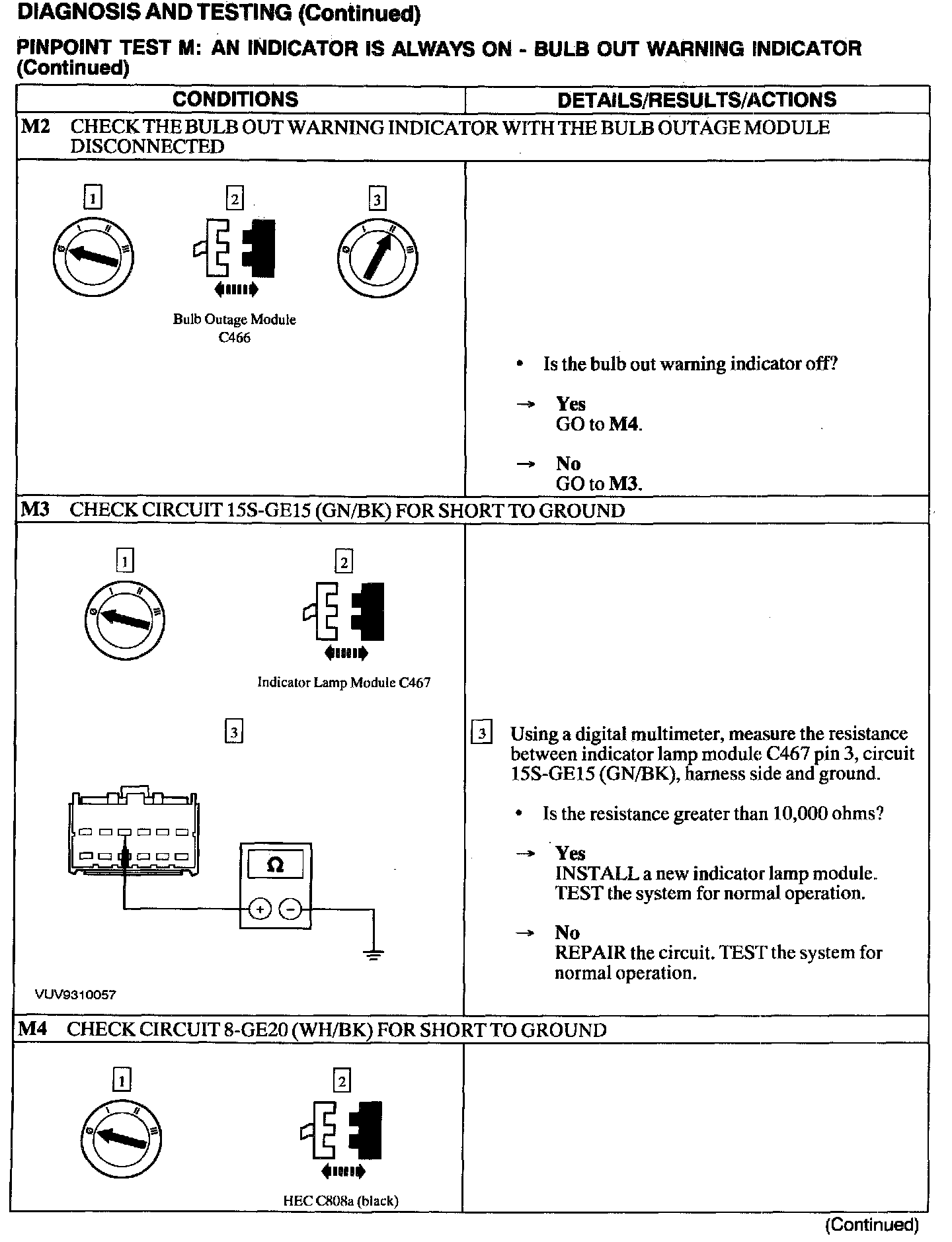

M2 - M4:

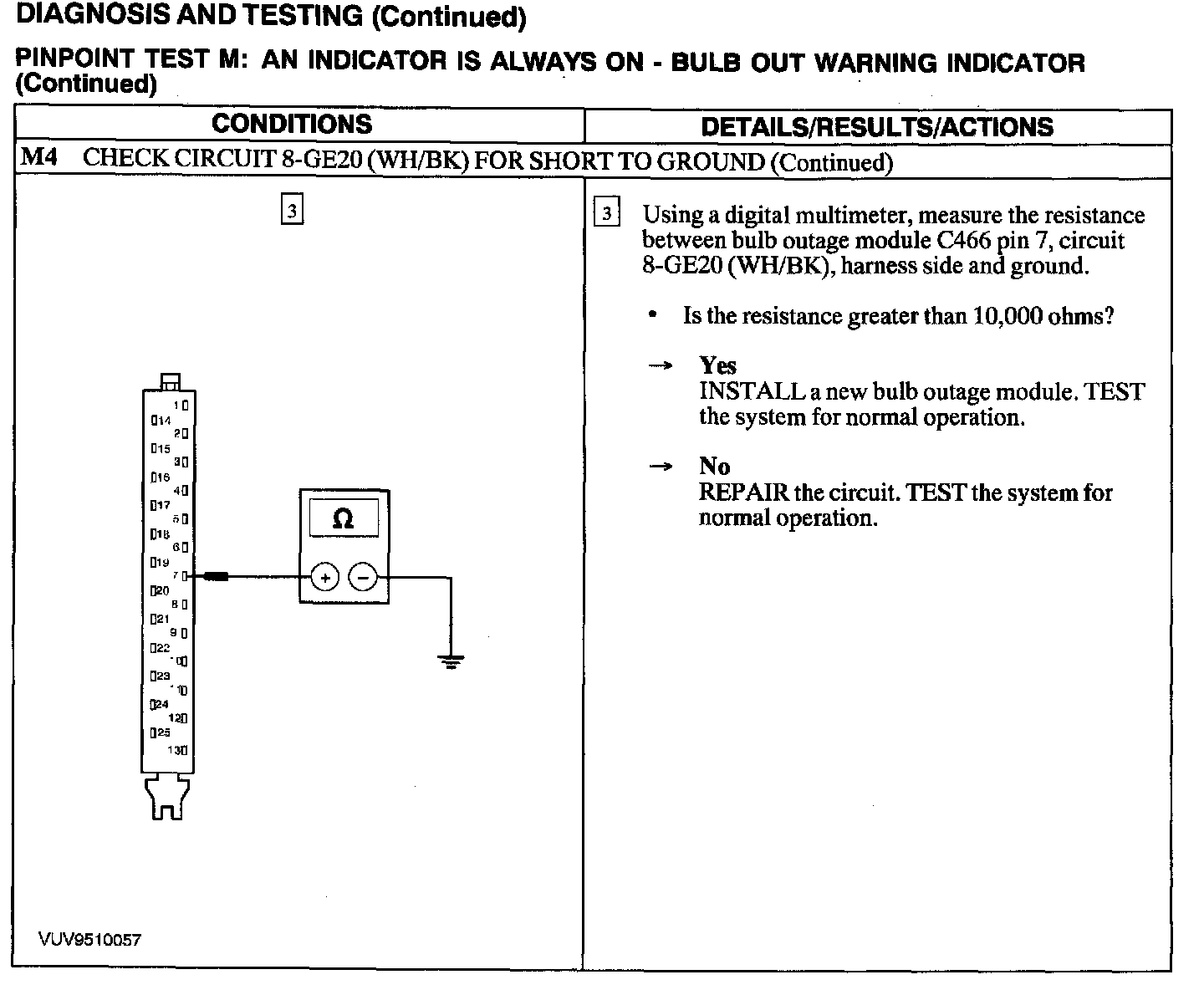

M4:
