Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C: A Single Power Window Is Inoperative - Right Front
Test C: A Single Power Window Is Inoperative - Right Front

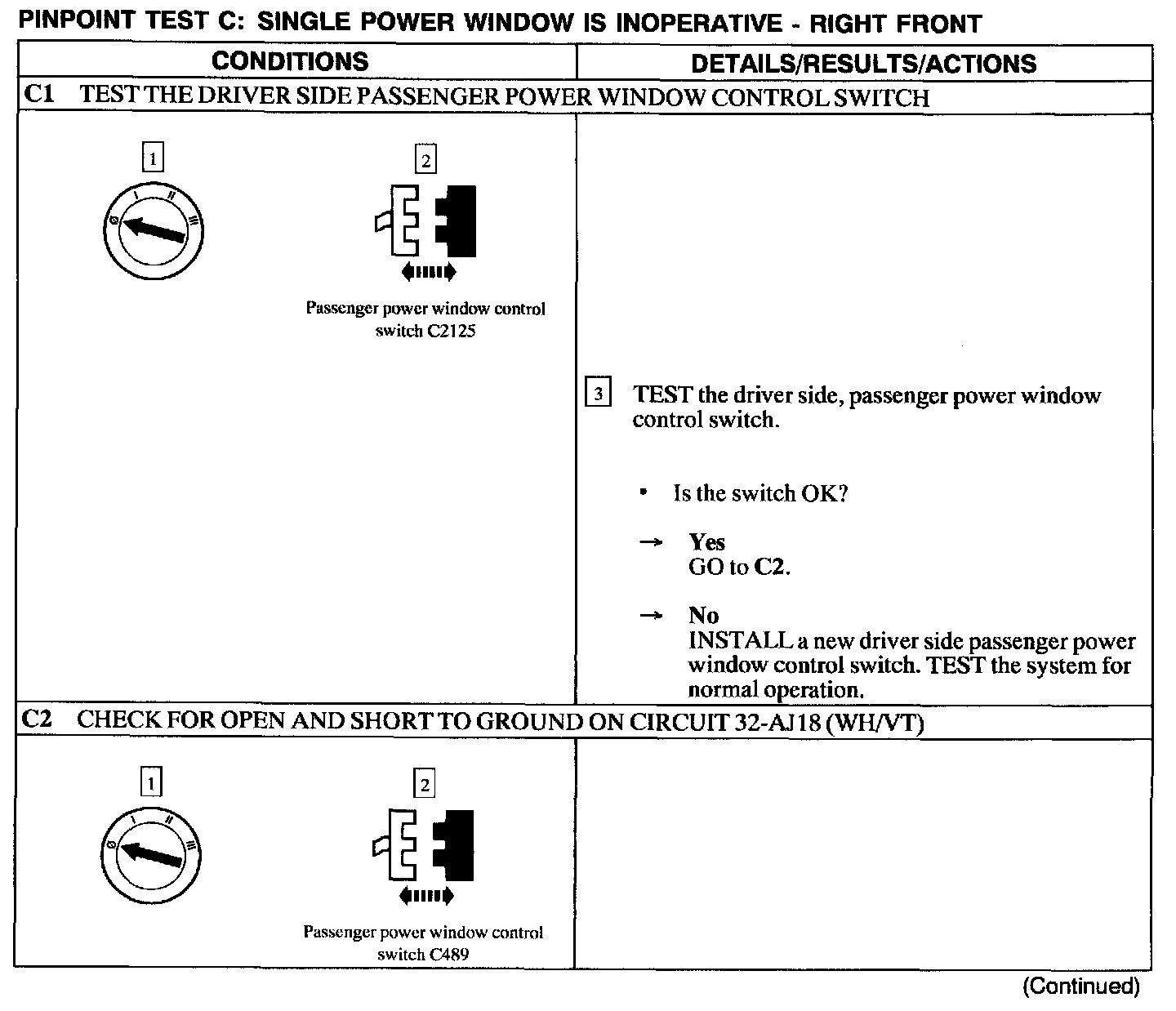

C1 - C2:

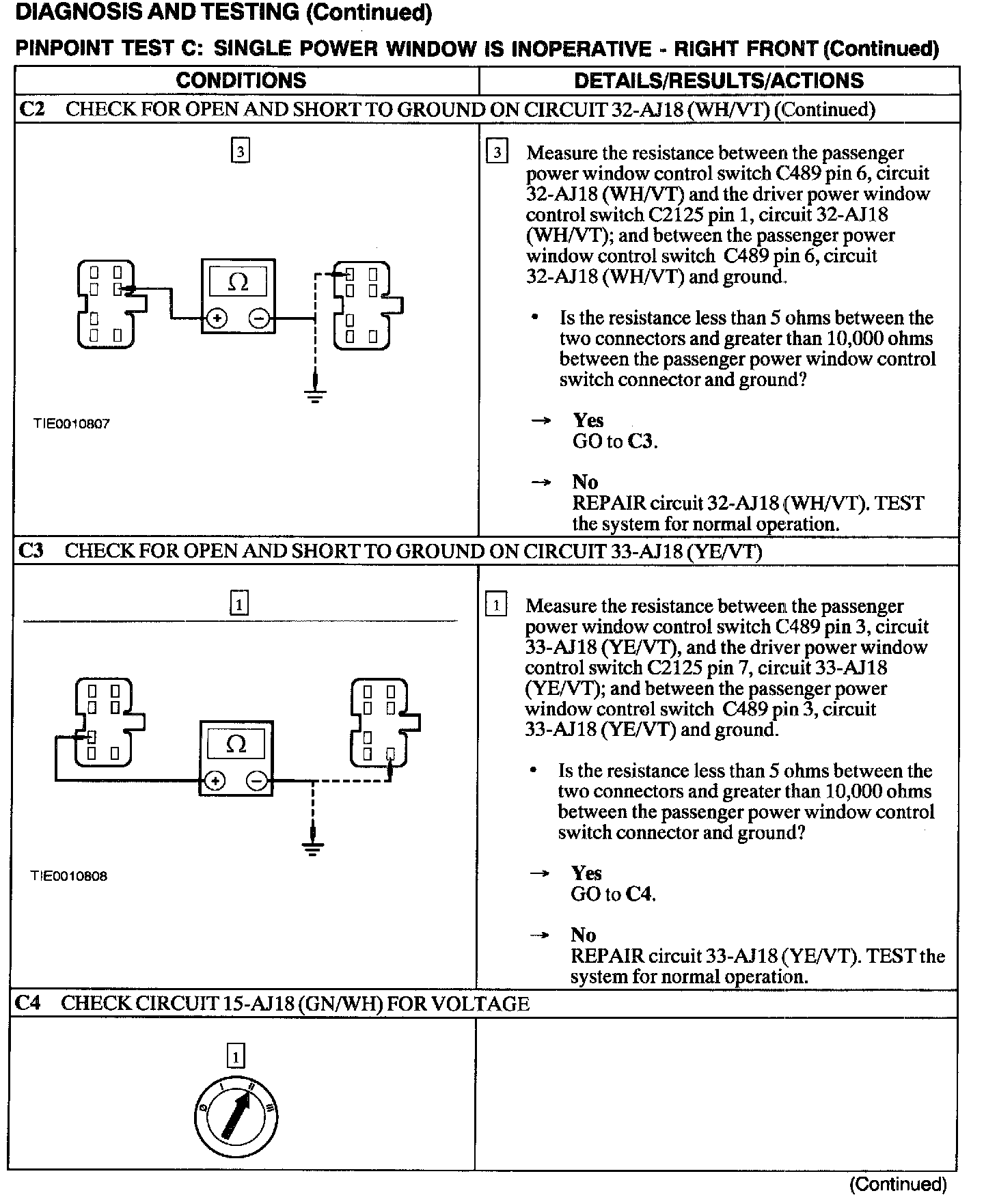

C2 - C4:

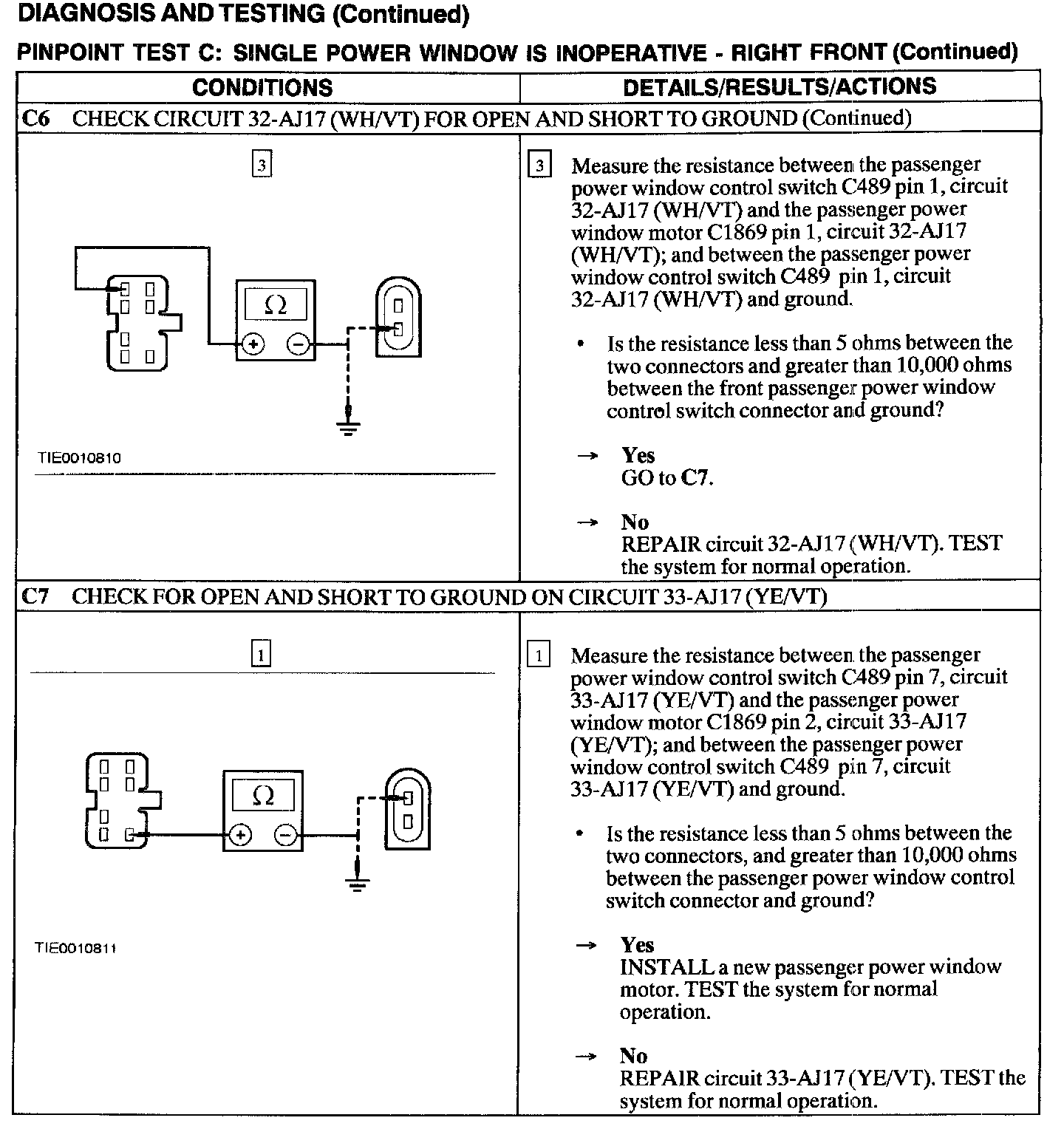

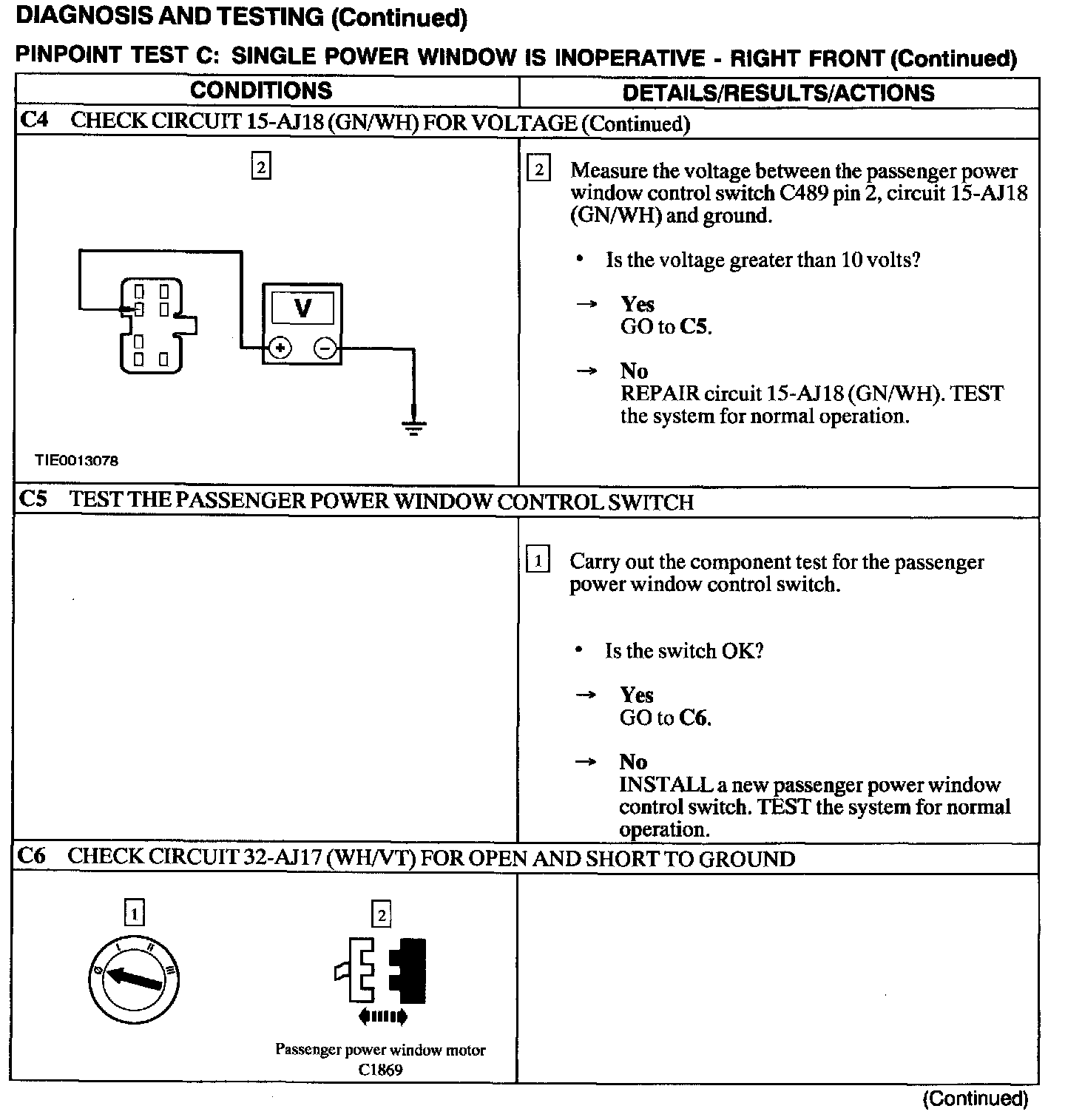

C4 - C6:
C6 - C7:
