Transaxle Support Insulator-RH

Transaxle Support Insulator-RH
Removal

1. NOTE: The locations of the engine mountings and engine support insulators are described looking from the engine to the transaxle.

Raise and support the vehicle.

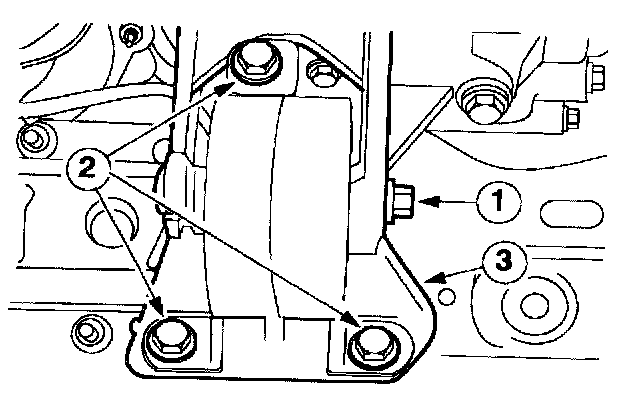

2. Remove the support insulator.
1 Remove the through bolt.
2 Remove the bolts.
3 Remove the insulator.

Installation

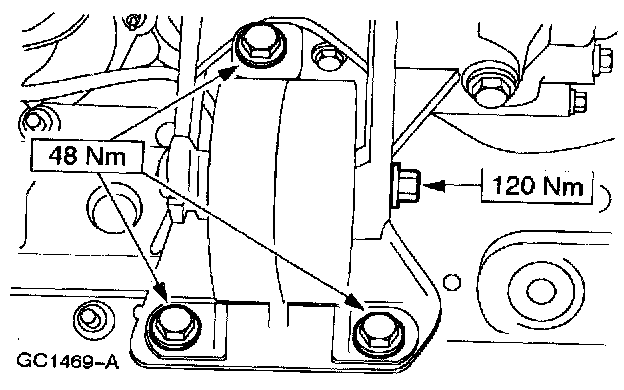

1. To install, reverse the removal procedure.
