Transaxle Support Insulator-LH

Transaxle Support Insulator-LH
Removal

1. NOTE: The locations of the engine mountings and engine support insulators are described looking from the transaxle to the engine.

Raise and support the vehicle.

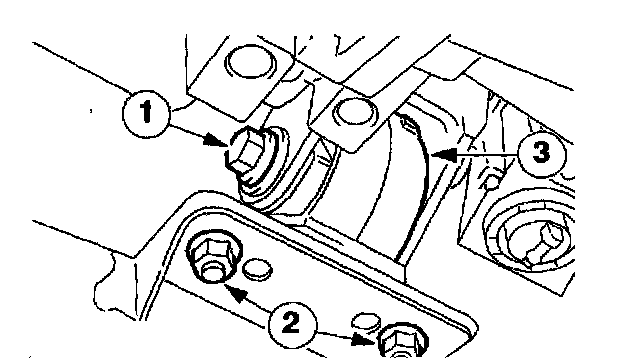

2. Remove the support insulator.
1 Remove the through bolt.
2 Remove the nuts.
3 Remove the insulator.

Installation

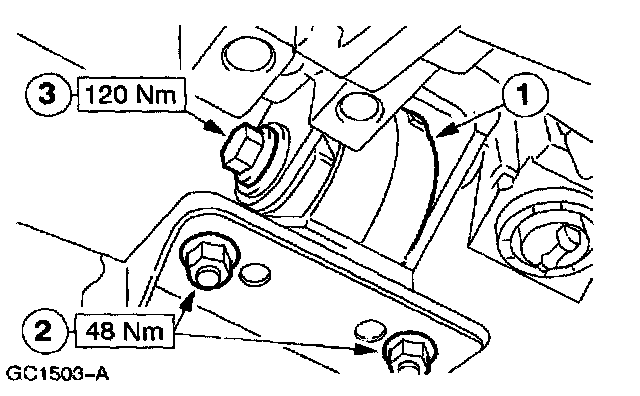

1. To install, reverse the removal procedure.
