Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Testing and Inspection >> Manual Transmission and Clutch >> Diagnosis By Symptom >> Symptom Chart - General Concerns

Symptom Chart - General Concerns

Symptom Chart - General Concerns

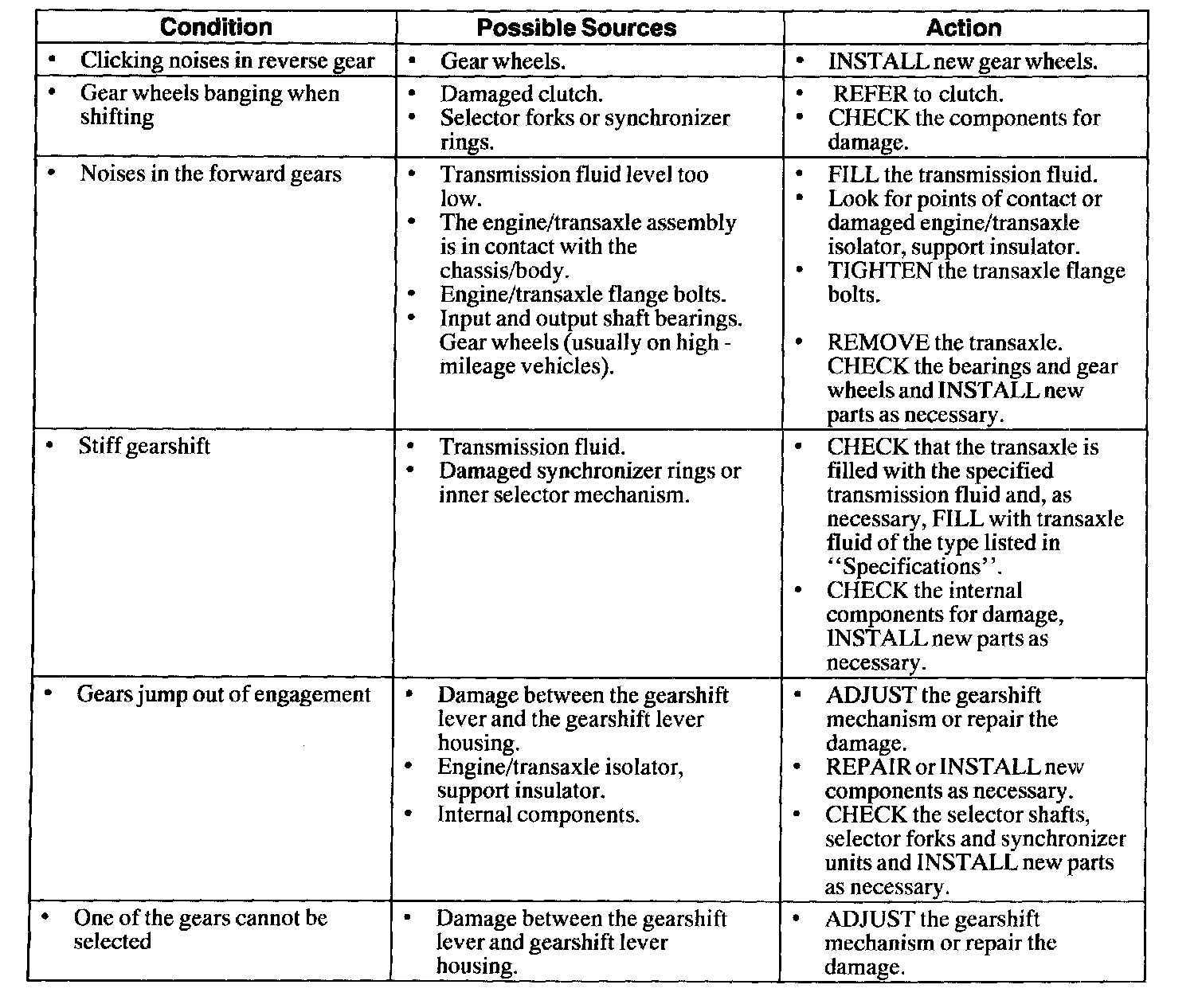

1 of 2

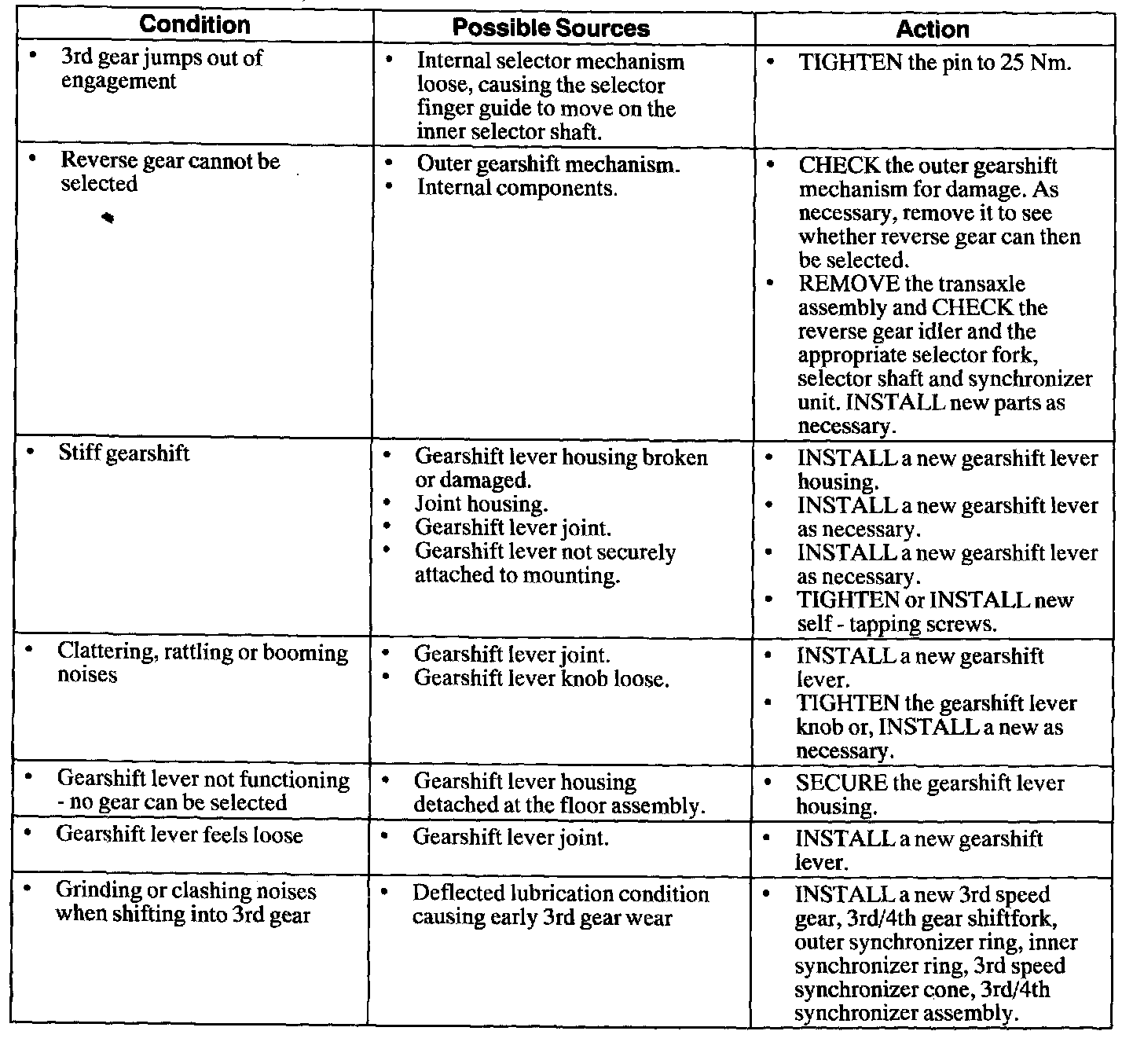

2 of 2
