Synchronizers

Synchronizers
Disassembly





1. CAUTION: Use care when disassembling the synchronizer assembly. The detent balls are spring loaded and may be ejected from the assembly.

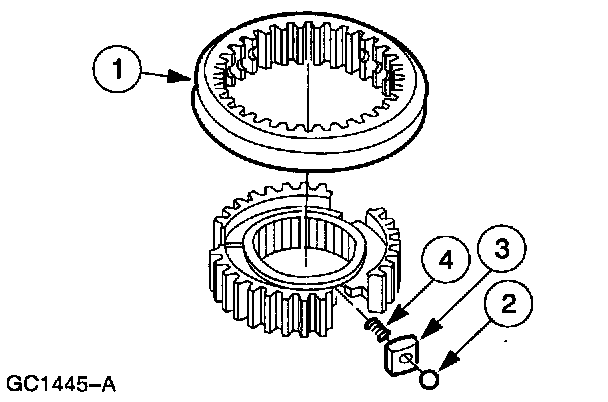

Disassemble the synchronizer.
1 Synchronizer outer ring.
2 Detent ball.
3 Blocker bar.
4 Compression spring.

Assembly





1. Assemble the synchronizer.
1 Compression spring.
2 Blocker bar.
3 Detent ball.
4 Synchronizer outer ring.
