Release Hub and Bearing Check
Release Hub and Bearing CheckCheck

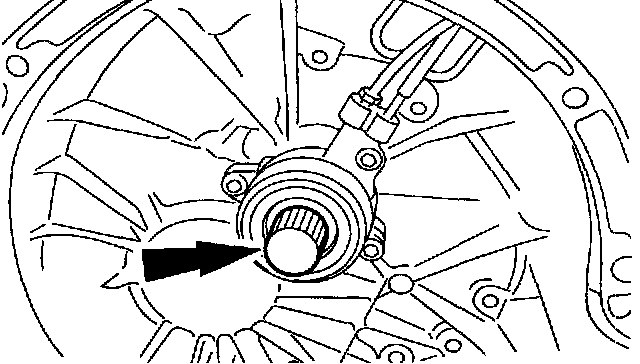

1. Turn the clutch release hub and bearing in both directions and check for any binding or abnormal noise.
2. CAUTION: The clutch release hub and bearing is sealed and must not be immersed in any type of cleaning fluid.
Check for worn or damaged clutch release hub and bearing fork contact surfaces.
3. Install the clutch release hub and bearing on the input shaft and check for a smooth sliding condition.
4. Check driveshaft splines for rust, scoring, or damage.
