Clutch Pressure Plate Check
Clutch Pressure Plate CheckCheck
1. Check the clutch pressure plate for scoring, cracks, or discoloration. Minor scratches or discoloration should be removed with fine emery cloth.
2. Measure the flatness of the clutch pressure plate surface with a straight edge and a feeler gauge.
3. Check the diaphragm spring fingers for discoloration, scoring, bent or broken segments and spring ends that are higher or lower than the rest.

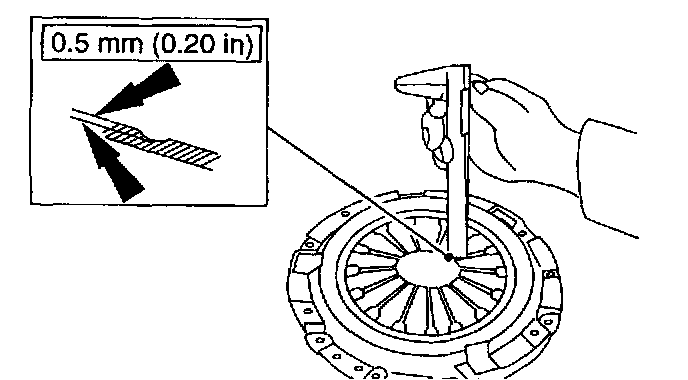

4. Measure the wear of the diaphragm spring fingers.
