Clutch Pedal Adjustment

Clutch Pedal Adjustment

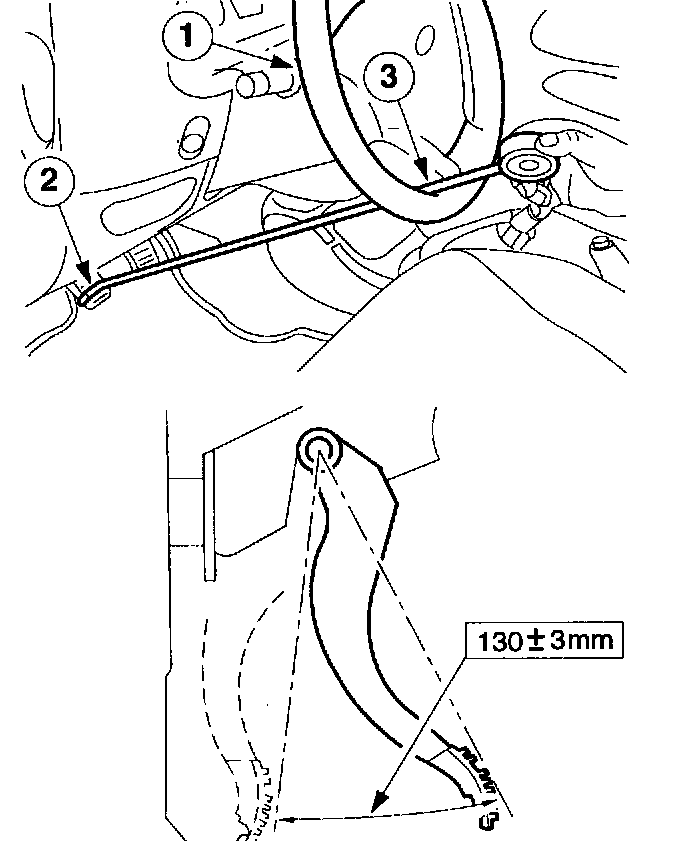

1. Determine the clutch pedal travel.
1 Turn the steering wheel from the straight-ahead position approximately 30 degrees to the left.
2 Attach cable ties to clutch pedal (second groove from the bottom) and tighten. Install a steel rule with cable ties and pass through the steering wheel.
3 Read the measurement, depress clutch pedal as far as the stop and read the measurement again.





2. NOTE: Pedal travel should not be restricted by mats or the clutch master cylinder.

Adjust the clutch pedal travel.
- Dimension 130 ~ 5 mm.

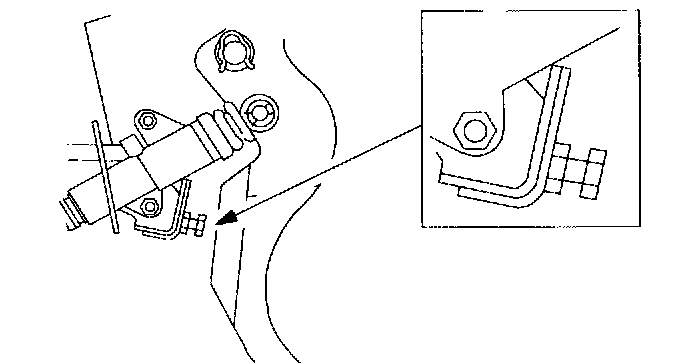

- The travel may be adjusted to 130 + 5 mm at the pedal stop screw.
