Seals and Gaskets: Service and Repair

Halfshaft Oil Seal

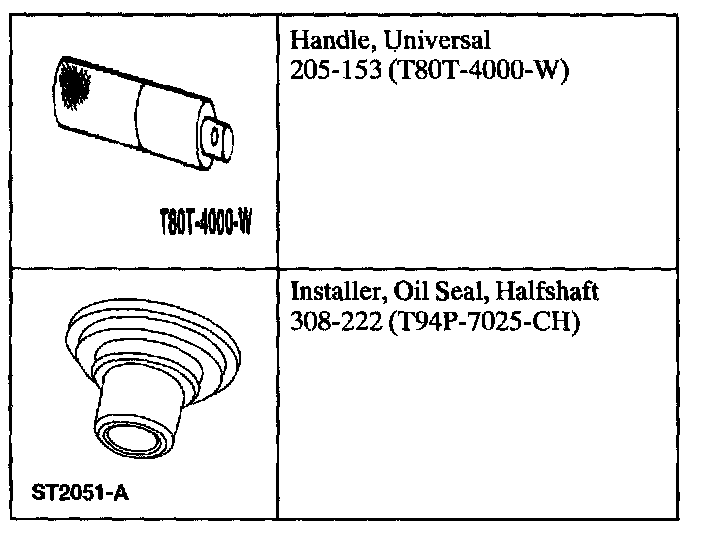

Special Tool(s)

Removal
1. Remove the halfshaft.





2. Remove the differential seal (left-hand side shown, right-hand side similar).

Installation





1. Using the special tools, install the new differential seal.
- Lubricate seal with MERCON Multipurpose Automatic Transmission Fluid XT-2-QDX meeting MERCON specification plus 2% Friction Modifier C8AZ- 19B546-A meeting Ford specification EST-M2C118-A. MERCON(R) Automatic Transmission Fluid is being replaced by MERCON(R) V as a service fluid, as per TSB 06-14-4.

2. NOTE: Always install a new driveshaft bearing retainer circlip.

Install the halfshaft.
