Test D: The Trans Control Switch (TCS) Doesn't Operate Correctly

PINPOINT TEST D: THE TRANSAXLE CONTROL SWITCH IS NOT OPERATING PROPERLY

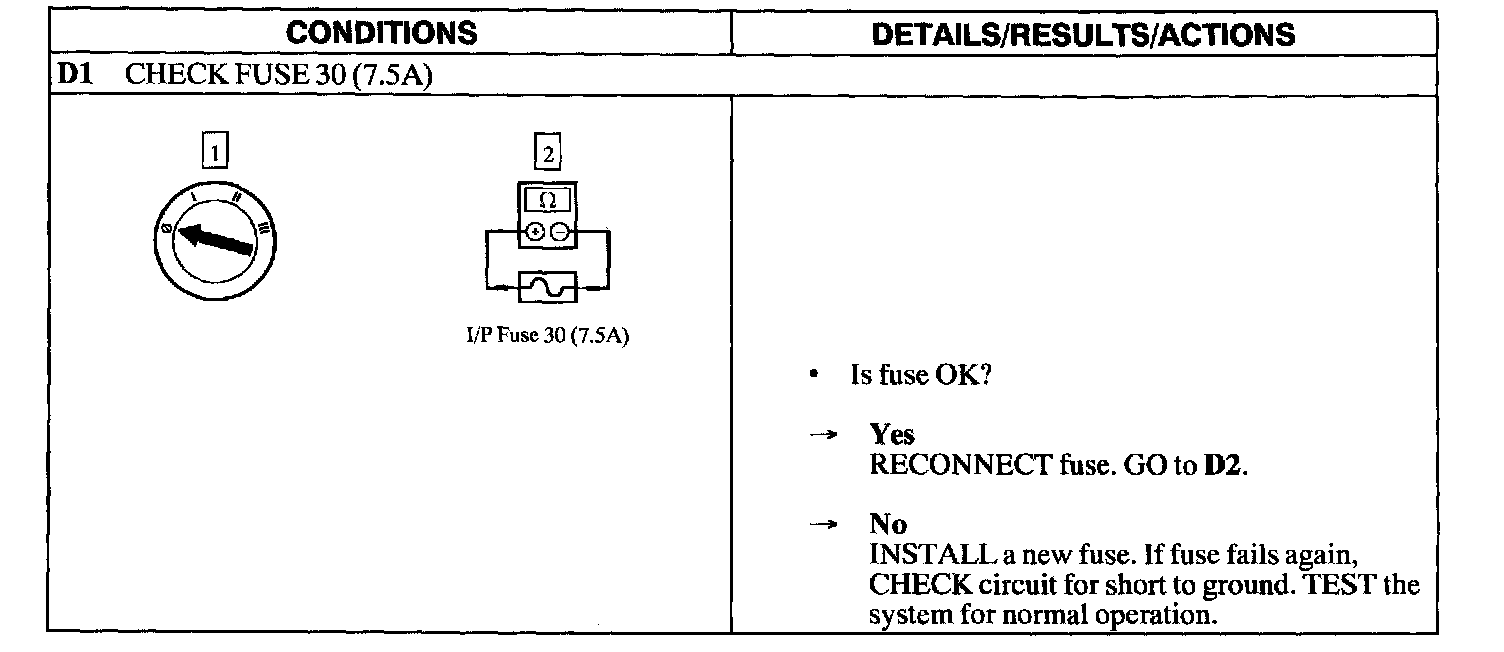

D1

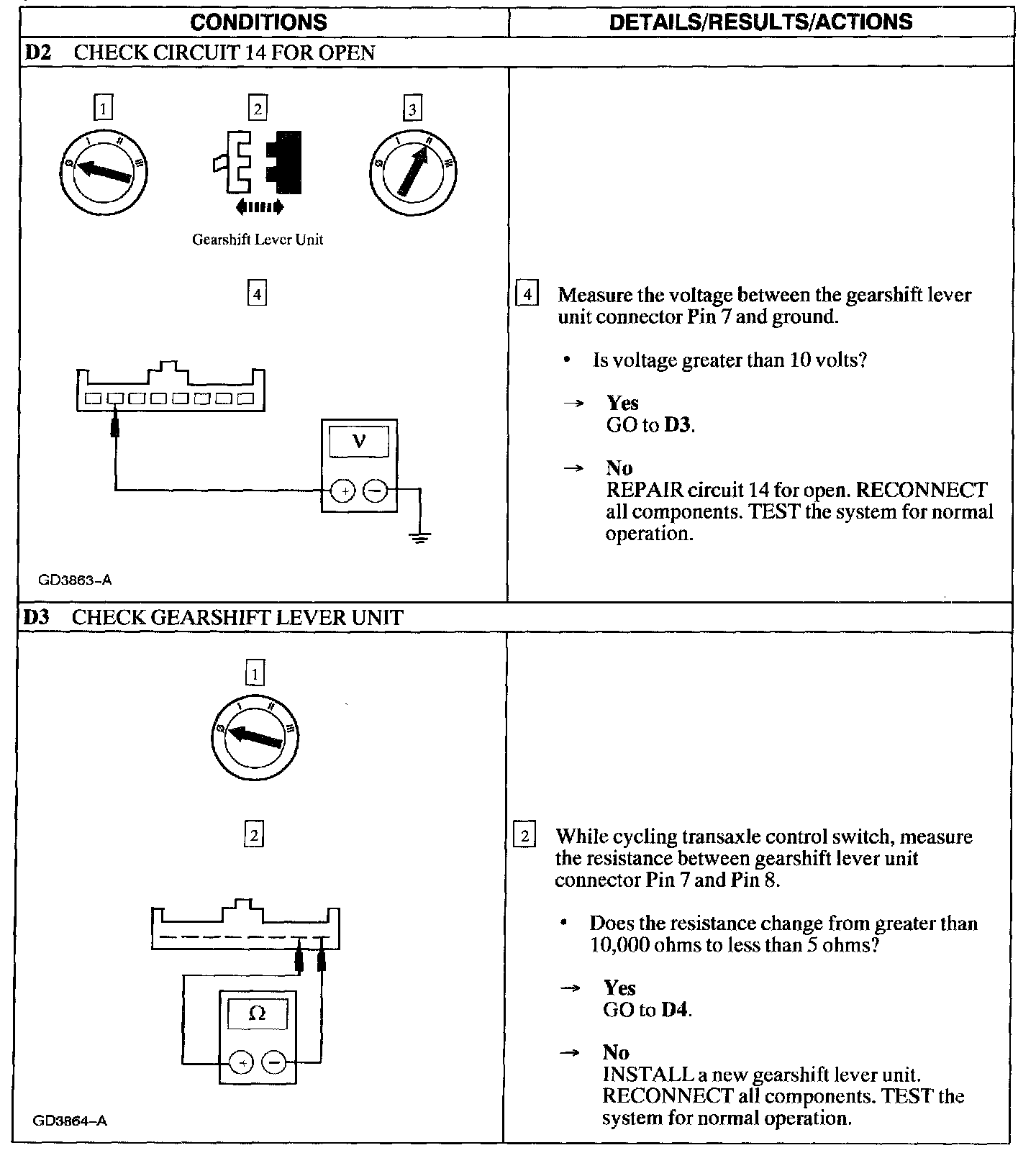

D2 - D3

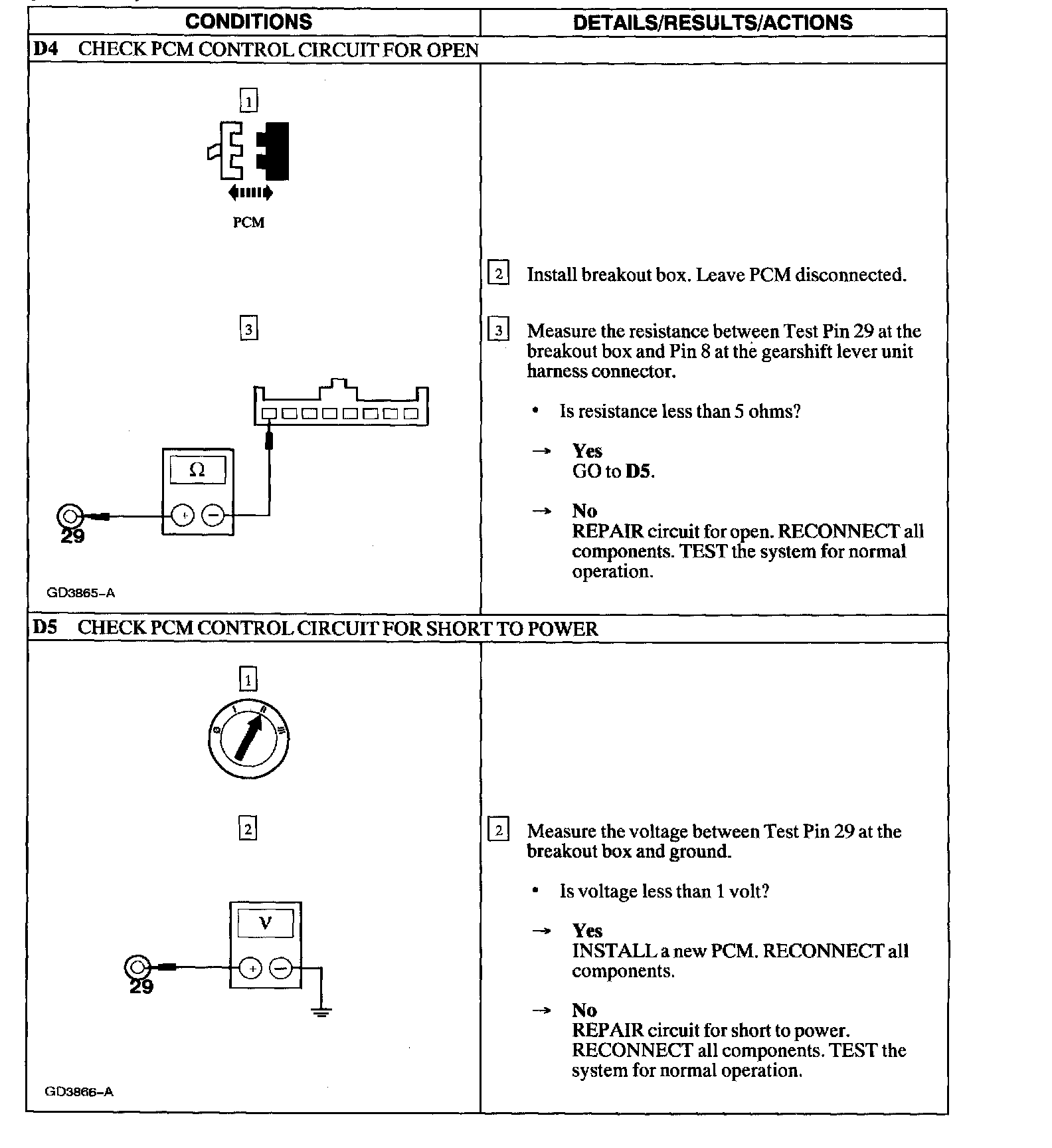

D4 - D5
